Investment-Cast Pump Components for Marine and Industrial Service
Sourcing a pump casting starts with the individual component and the fluid it will meet. We review custom investment-cast bodies and related pump parts with their material, machined interfaces and sample requirements. A marine or industrial application label is a starting point for the enquiry, not a substitute for the actual service specification.
The Component Boundary Leads the Supply Discussion
Relia reviews the casting as part of your pump assembly. A casing, impeller and connection component have different working features and acceptance needs. Identify the supplied item and any finishing or testing included in the order so the manufacturing discussion stays tied to the component you need.

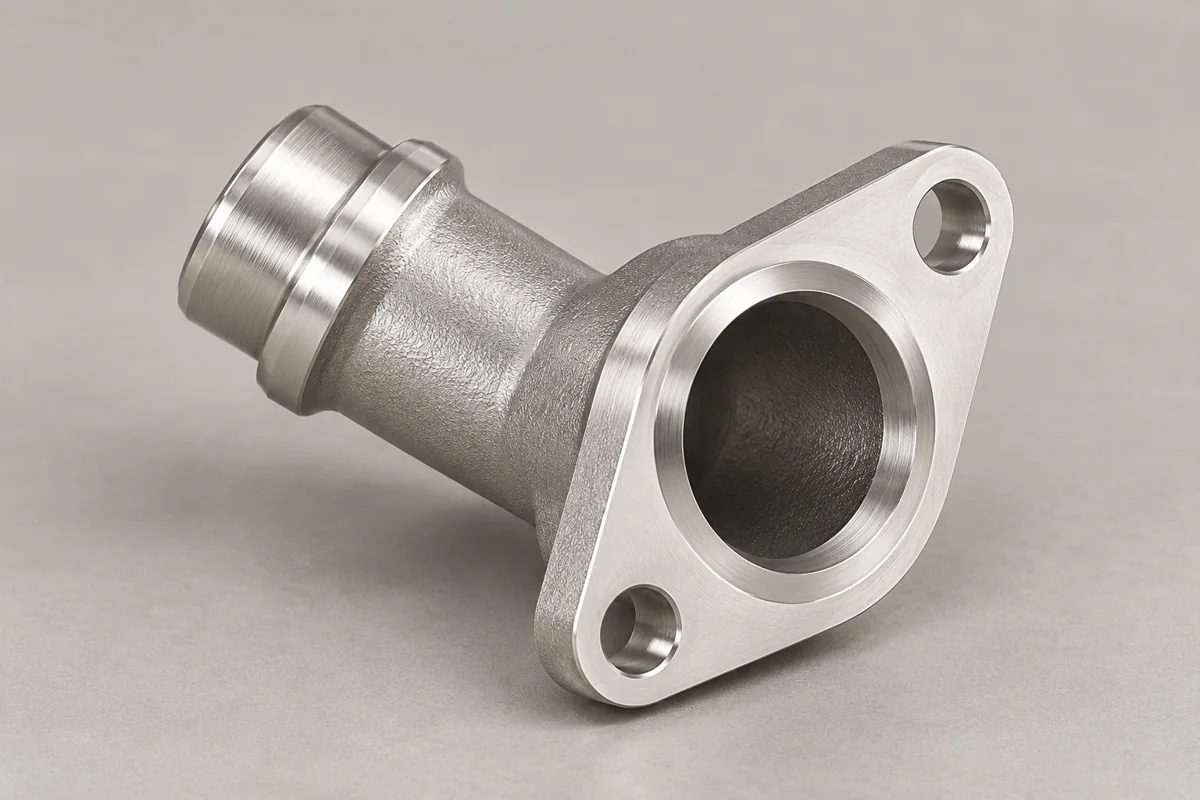

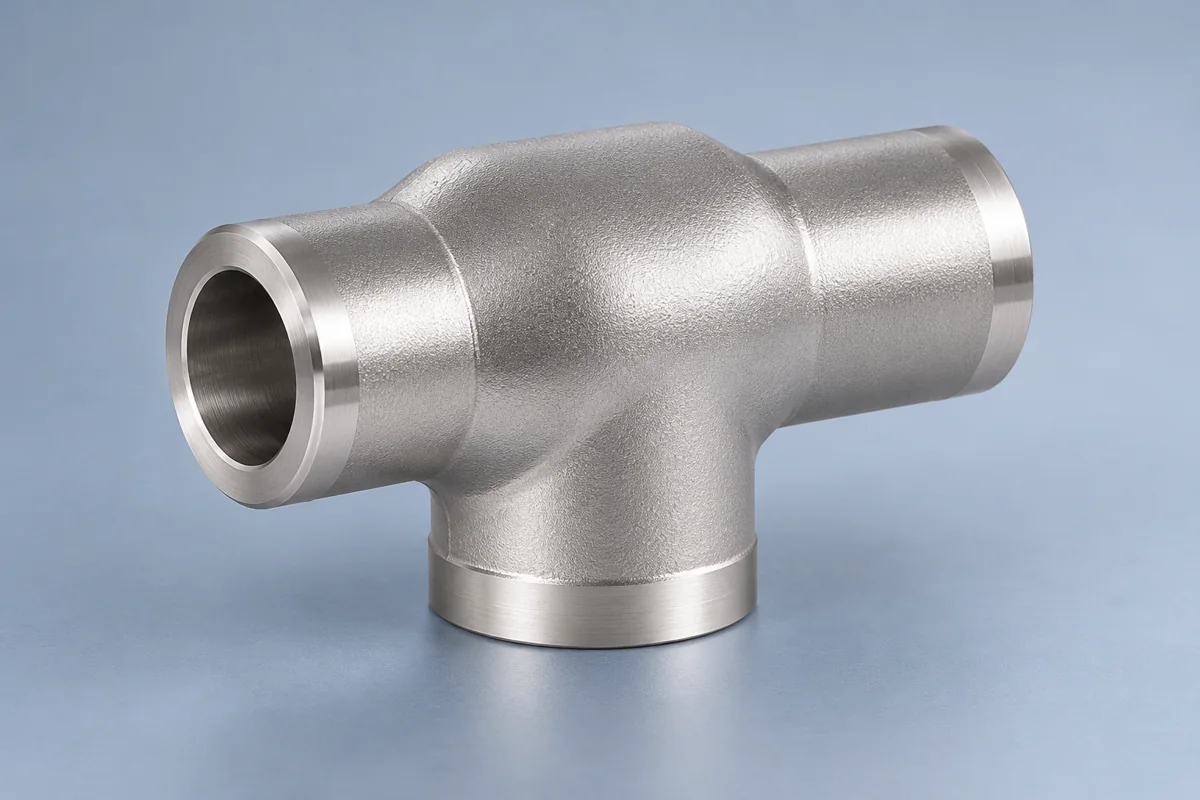

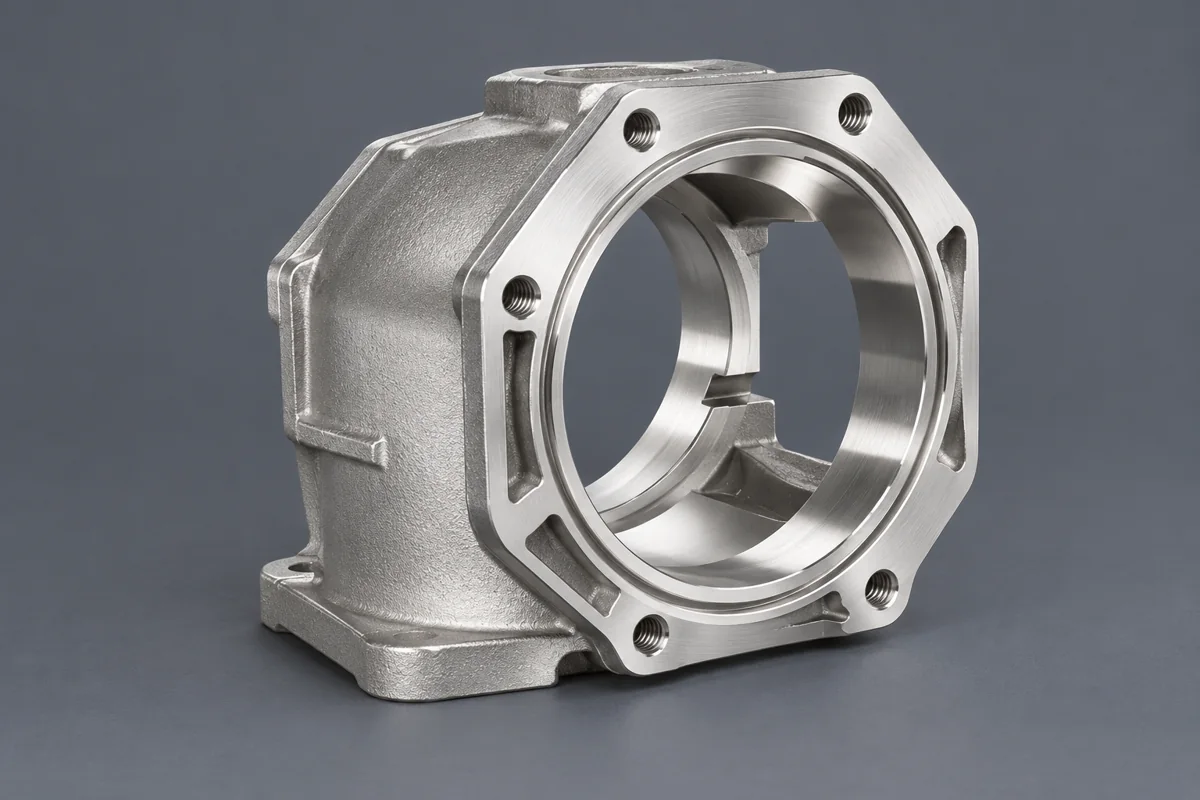

Static body or connection
Passage, mounting faces, ports and sealing contacts define the component and its finished interfaces.

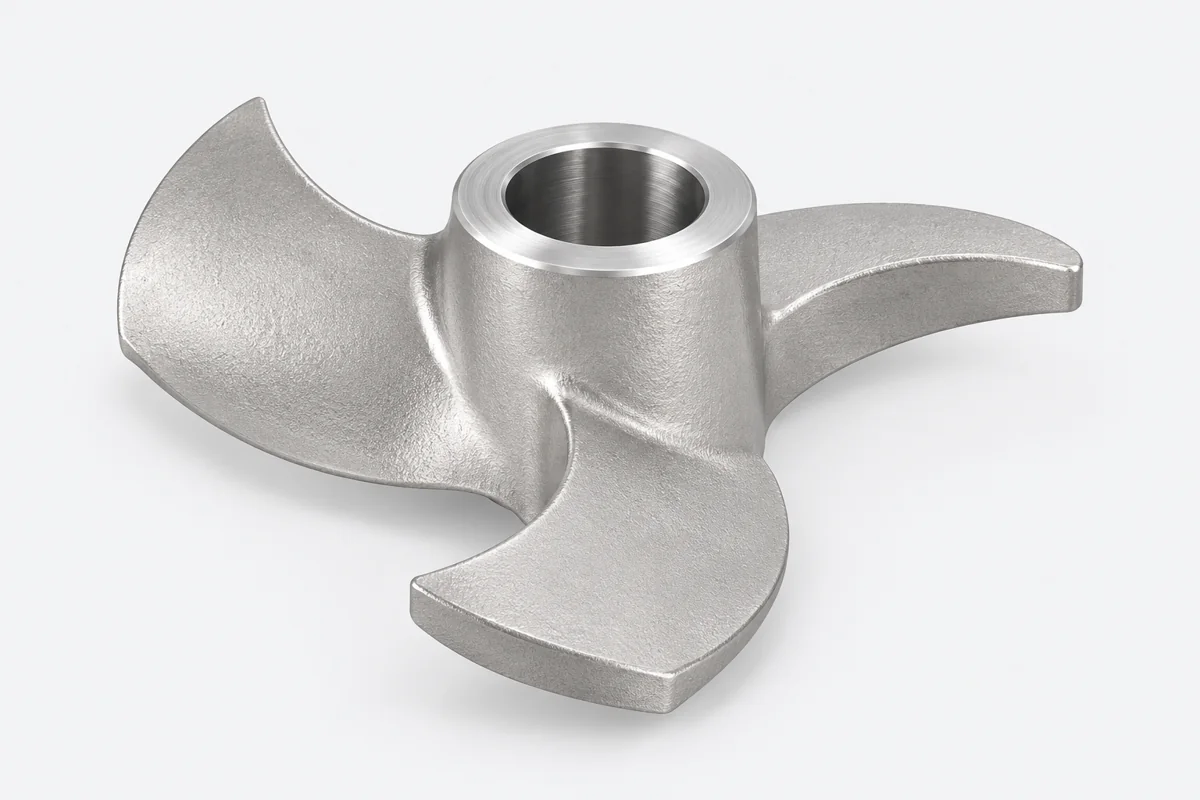

Rotating component
Working geometry and adjoining interfaces need their own drawing; balance or operating evidence is separately specified.
Fluid Exposure Defines the Material Review
Describe the fluid, temperature range, external environment and cleaning exposure. These details help frame the material review and the condition in which the casting will be supplied. If a project requires corrosion testing or marine approval, include the applicable requirement rather than expecting a material name to establish compliance.
Casting Grades and Conditions Need Explicit Approval
Approve the actual casting specification and delivered condition before samples are released. Nominal stainless options may correspond to different cast standards and treatment requirements. The material record should identify the selected component and batch instead of serving as a general statement about every product shown on the site.
The Casting Route Must Reach the Internal Geometry
Internal geometry affects pattern construction, mould formation and cleanup access. Section the passages and show regions that are difficult to reach after casting. We consider those areas alongside machining stock so the proposed route can reach the required shape and leave useful material at the finished interfaces.
Machined Contacts Connect the Pump Assembly
Mounting faces, connection flanges, bores and sealing contacts transfer the casting into the pump assembly. Define their datums and their relationships to the internal geometry. Where a rotating component requires balance or another functional test, make that a separate stated requirement rather than assuming it follows from dimensional approval.
Corrosion, Integrity and Performance Use Different Evidence
Material confirmation, casting-integrity checks and complete pump performance answer different questions. A dimensional report cannot establish flow or head, and a body test does not establish marine qualification. We agree the required evidence at component level and identify the checks that belong to your assembled pump.
A Sample Resolves the Highest-Risk Interface
A useful sample plan concentrates on the uncertain interfaces. Agree the measured features, relevant test requirements and any mating-part feedback before trial manufacture. Record the sample revision and the remaining actions so your approval has a clear meaning when the project moves into repeat supply.
The Order Preserves the Approved Service Brief
Carry the approved material, drawing and service brief into the order. Include internal cleanup, contact protection, identification and the records that need to accompany delivery. This keeps the repeat component aligned with the conditions used during your sample review.
Related engineering and purchasing guidance
Share Your Pump Component and Service Conditions
Send the pump-component drawing, fluid details, material requirement and expected quantity. Mark the critical interfaces and identify any component or assembly tests required by your project. We will review the manufacturing scope around those specific conditions.
