Aluminium Castings for Housings and Mounting Parts
Relia reviews aluminium housings, motor bases and mounting parts from your drawing before confirming a casting route. We compare the actual alloy, wall sections, quantities and CNC contacts. Keep the delivered component requirement fixed, then assess tooling, recurring work and acceptance together rather than choosing only the lowest blank price.
Compare routes for your aluminium component
- RouteThe actual process proposed for this alloy and drawing.
- SectionsWalls, ribs, bosses and mounting regions.
- FitFinished interfaces accepted after affecting operations.
The Component Shape Sets the Casting Questions

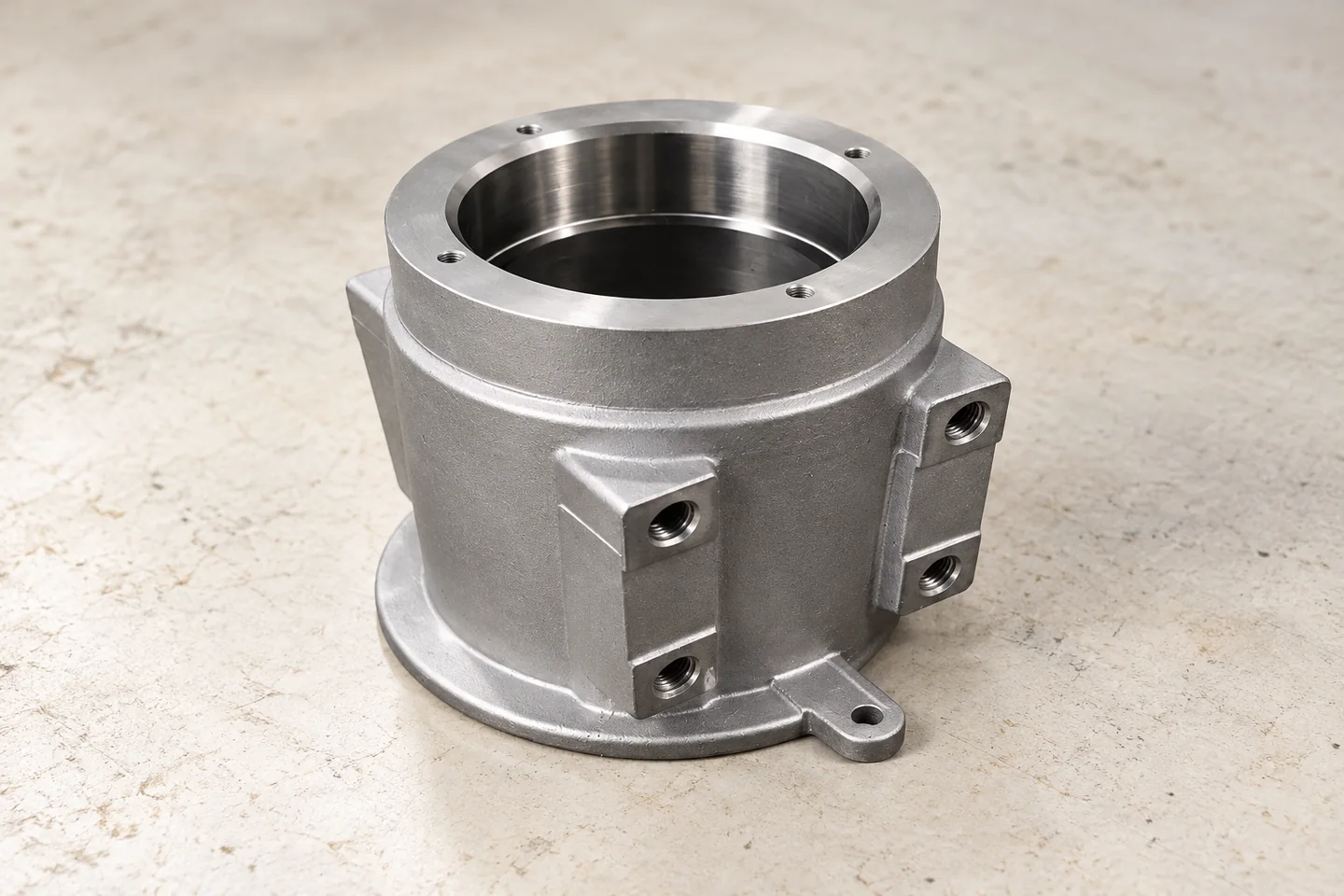

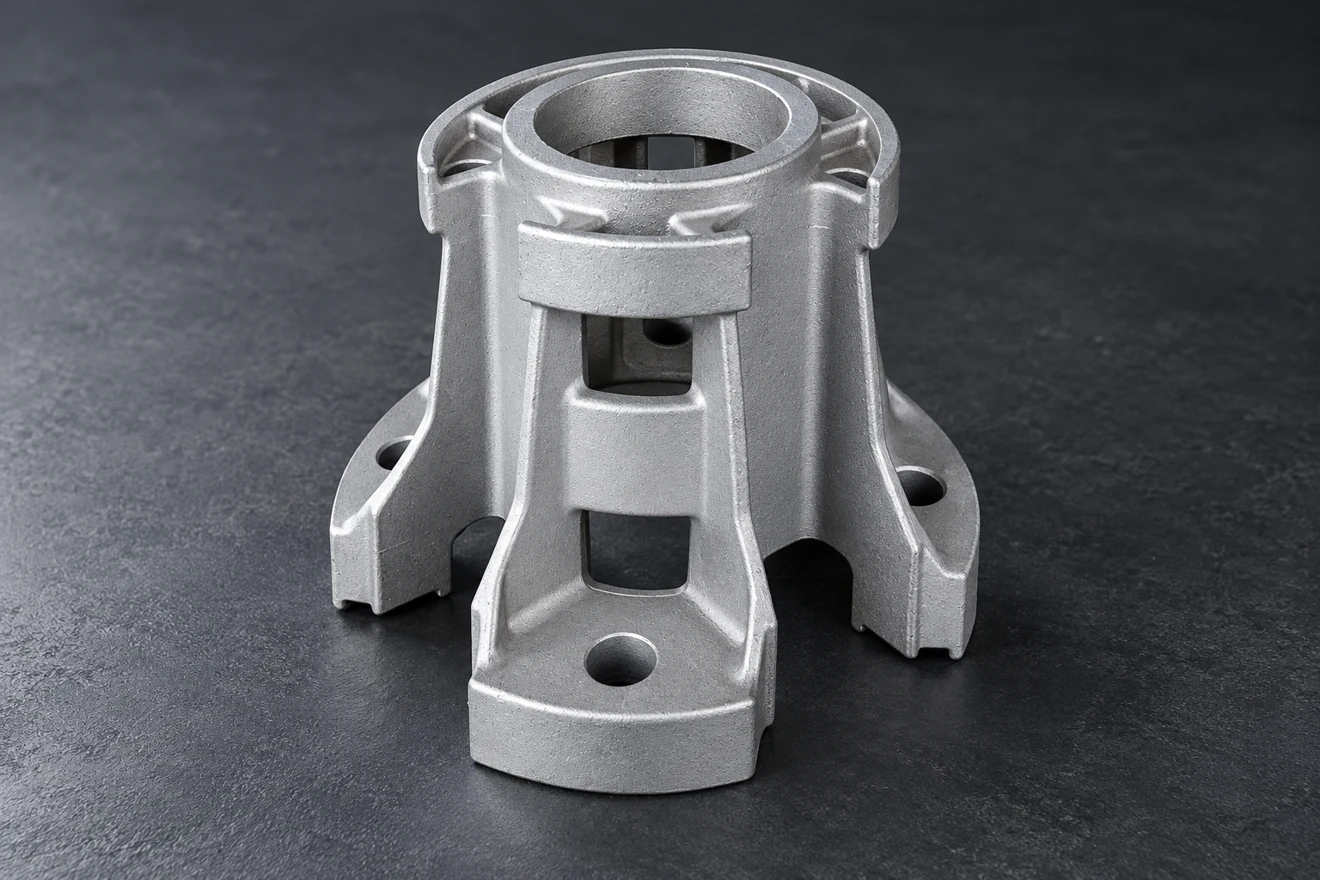

Relia reviews aluminium motor-base and housing enquiries as drawing-defined components. The catalogue includes shallow open-centre mounting forms and bodies with lugs or flanges. A fin, a heavy boss and a seating rim have different forming and machining roles. Identify which example is relevant, then define the actual size, alloy and mounting arrangement rather than inferring a standard motor interface from the photograph.
- WallRequired envelope and local thickness.
- BossFastening or fitted-feature stock.
- MountThe contacts positioning the equipment.
Compare Routes on the Same Delivered Component
A route comparison should hold the final drawing and required condition steady. Tooling commitment, mold access, expected quantities and later machining can differ substantially between proposals. Ask which surfaces remain cast, which require final cutting and how changes will affect the tool. The lowest blank price may not be the lowest cost for the accepted finished component.
Tooling, trials and exposure to later design changes.
Metal, forming, cleaning and the CNC work still required.
The same dimensional, surface and any specified integrity requirement.
Compare the cost of the accepted component. A lower blank price can leave more finishing work or a different tooling risk.
Ribs Support the Shape Without Solid Mass Everywhere

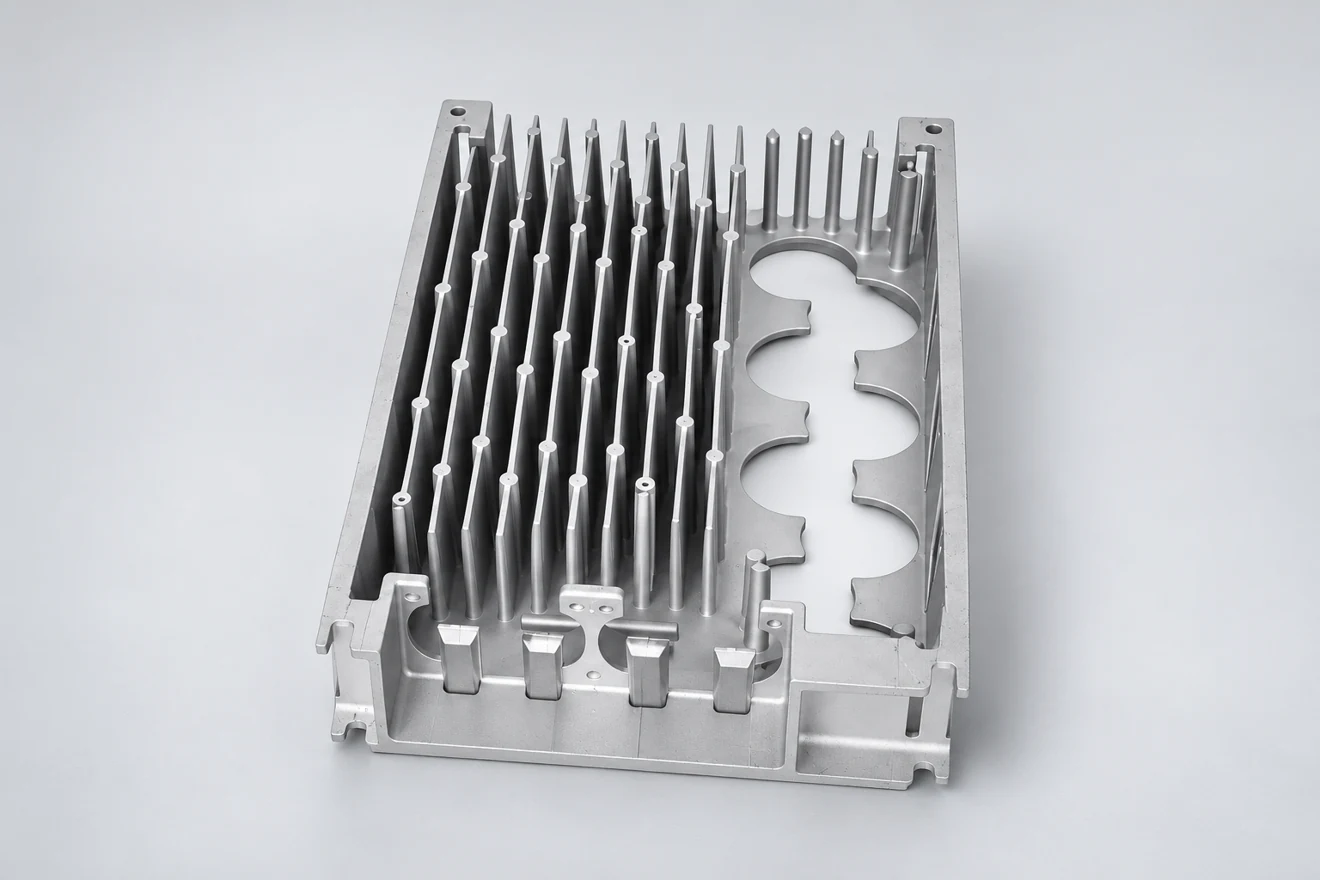

A thin wall beside a massive mounting region needs a careful transition. Ribs can connect support regions, but their roots and nearby sections still need a practical casting review. The finned-plate geometry illustrates the importance of filling and tool access between repeated narrow features. A fin-like appearance alone does not establish thermal performance.
- Thin regionFilling and section feasibility.
- JunctionA workable wall-to-boss transition.
- Repeated finsForming, cleanup and later access.
Machining Stock and Internal Condition Are Connected
A final cut removes the casting surface and can expose material below it. Where the part has a sealing or integrity requirement, consider the depth and location of that cut during route selection. Define the required wall after machining and any relevant examination or test. A sound-looking exterior does not by itself establish the condition of a deeply machined region.
- BlankThe selected forming route and local material.
- CutDepth and position of the finished interface.
- ResultThe required wall, surface and integrity acceptance.
The Housing Must Be Supported Without Distortion
A cover rim or open housing can flex under a clamp. Place supports to suit the actual stiffness and cutting forces, then check the part in the specified released or supported condition. Relate a central opening, flange and mounting lugs from the assembly datum system. Separate size checks cannot establish that these contacts remain aligned after the fixture is removed.
- SupportThe real wall and mounting regions.
- LocateThe intended functional reference.
- InspectThe final relationship in the accepted state.
The Finish Follows the Actual Alloy and Function
Specify the material and compatible thermal or surface condition for this part. Appearance, environmental protection and a fitted contact need distinct requirements. Mask or control regions where surface buildup would affect fit. If the component contains fluid, its leakage or pressure acceptance is a separate defined scope, not a property implied by an aluminium housing photograph.
- MetalActual alloy and delivered condition.
- SurfaceRequired finish and protected contacts.
- FunctionAny separately specified fluid or operating test.
Sample Checks Concentrate on the Difficult Feature
For a motor-base form, inspect the mounting plane and the related opening or fixing pattern. For a thin housing, inspect the local stock cleanup, wall and released geometry. Relia agrees the sample criteria with you before the trial and arranges batch production after your approval. Agreed key-dimensional results identify the actual component revision and inspection scope.
- DefineThe critical wall, bore or mounting relation.
- TrialResults in the intended supplied condition.
- RepeatThe approved revision and agreed release checks.
Choose a Housing or Low-Volume Plate Brief
The die-cast housing page develops tooling and motor-interface procurement. The aluminium sand-plate page focuses on lower-volume plate requirements and route economics. They share a material family but answer different purchasing decisions.
Contact the Casting Team
Send the aluminium alloy, model, wall sections, final mounting contacts and quantities. State whether a route is required or alternatives can be compared.
