Auxiliary Wind-Equipment Covers and Metal Housings

Relia reviews auxiliary wind-equipment covers, housings and mounts from your component and mating drawings. We connect the cast body with finished rim, centre and attachment contacts. The agreed scope covers that component and its required evidence; it does not imply qualification for primary turbine structures or drivetrain parts.

Send the auxiliary component and assembly reference

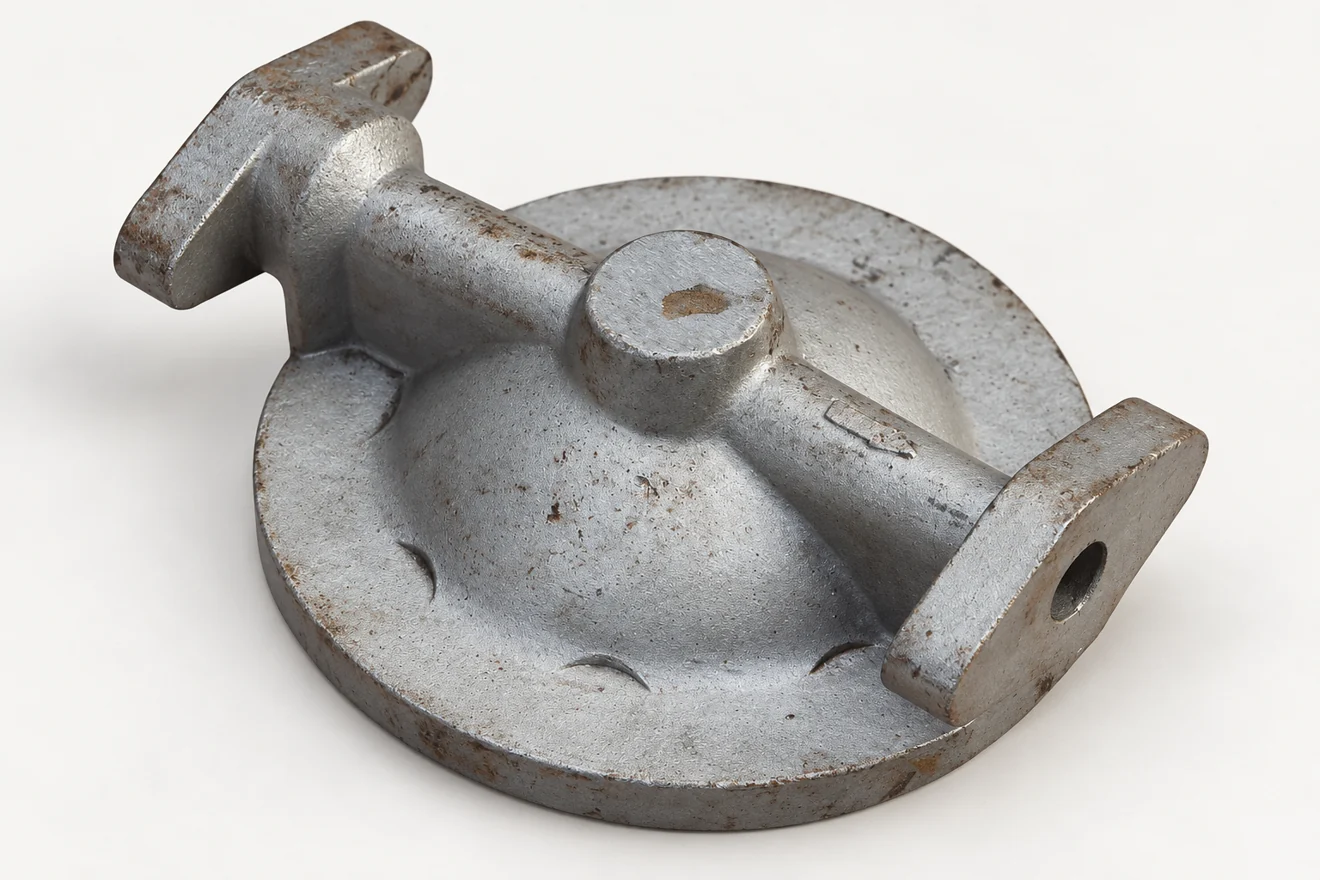

Shallow cover geometry with a central boss and opposing attachments.
Shallow cover geometry with a central boss and opposing attachments.
  1. RoleThe actual auxiliary enclosure or cover.
  2. InterfacesRim, centre and attachment contacts.
  3. ExposureThe specified material and surface condition.
02 / 10Relia · Manufacturing in China

The Cover’s Assembly Role Sets the Boundary

Relia’s wind-equipment catalogue reference shows a shallow dish-like form with a raised central region and opposing attachments. Identify the actual cover and its mating enclosure. A component title does not establish a turbine model or primary structural duty. The order describes the part supplied and the interfaces it must join.

  1. ComponentThe actual auxiliary cover or housing.
  2. Mating partThe adjoining enclosure or support.
  3. ScopeBlank, CNC work and final surface state.
03 / 10Equipment component sourcing

The Rim and Centre Need Related References

A central opening can be a fit, clearance or access feature. The outer rim may seat, seal or merely enclose space. Mark those roles on the drawing, including the relationship to attachment holes. This prevents unnecessary precision on a nonfunctional region while leaving the actual installation contacts fully defined.

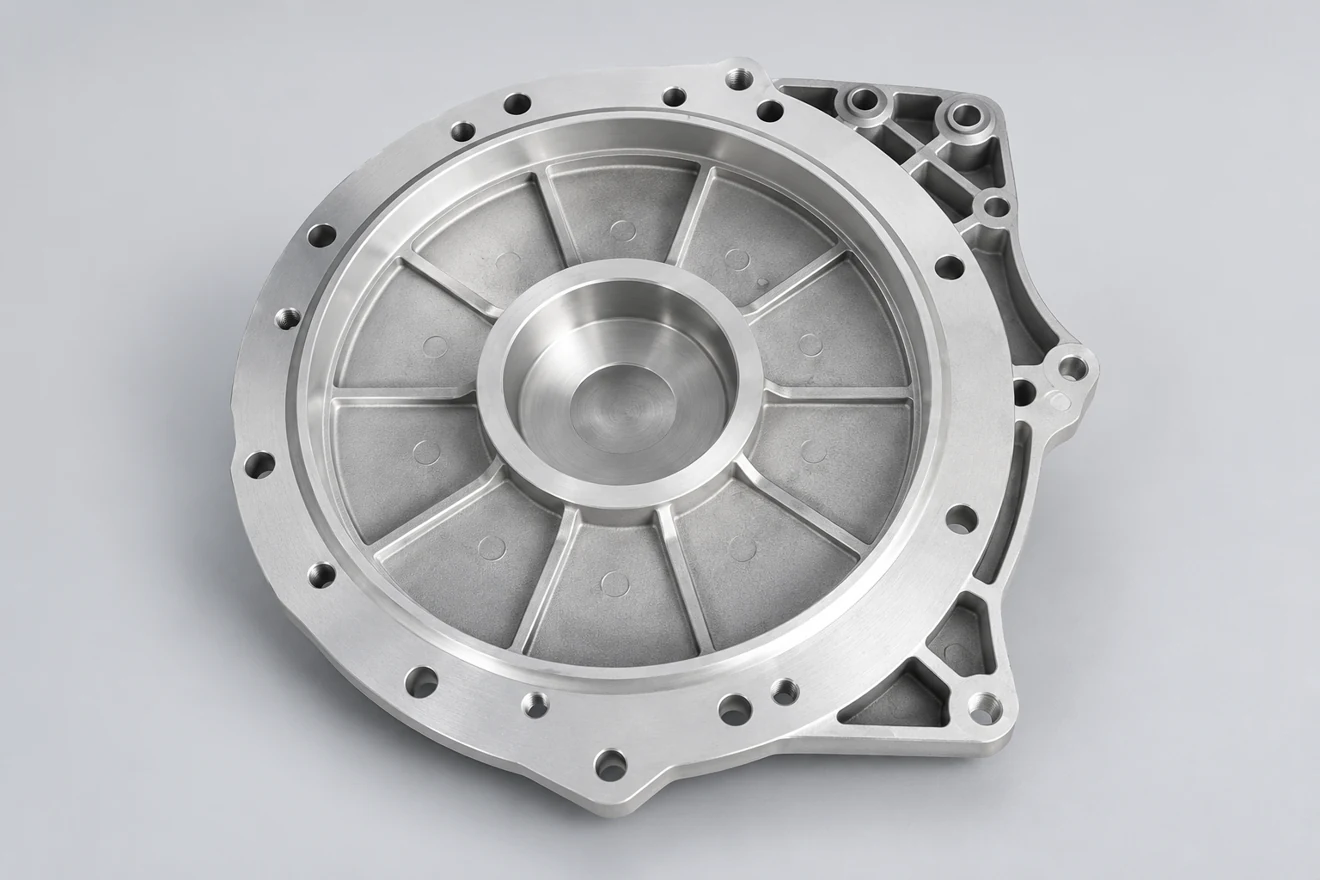

Ribbed circular cover with a different centre and fixing arrangement.
Ribbed circular cover with a different centre and fixing arrangement.
CentreState whether it fits, clears or provides access.
RimDefine the seating, sealing or enclosure boundary.
AttachmentsLocate the holes and contacts from the working references.

Assign precision where the assembly uses it. A clearance opening and a fitted contact need different limits even on the same cover.

04 / 10Equipment component sourcing

Ribs Connect Thin Walls with Attachment Regions

A cover can join a shallow wall to a boss or local attachment. Review those transitions with the selected alloy and the proposed casting route. Keep local stock where a final contact will be machined. A broad cover should not be treated as a solid plate simply to simplify a drawing; the functional shape and practical manufacturing sections remain connected.

  1. WallThe actual shallow section.
  2. JunctionThe boss or attachment transition.
  3. StockThe material required for final contacts.
05 / 10Equipment component sourcing

Environmental Protection Has a Defined Surface Boundary

State the component’s actual exposure and required protective system. Coating on an exterior has a different role from a sealing rim or fitted central feature. Identify compatible materials, masking and the final measurement stage. A generic wind-equipment label does not independently demonstrate salt-exposure performance or turbine qualification.

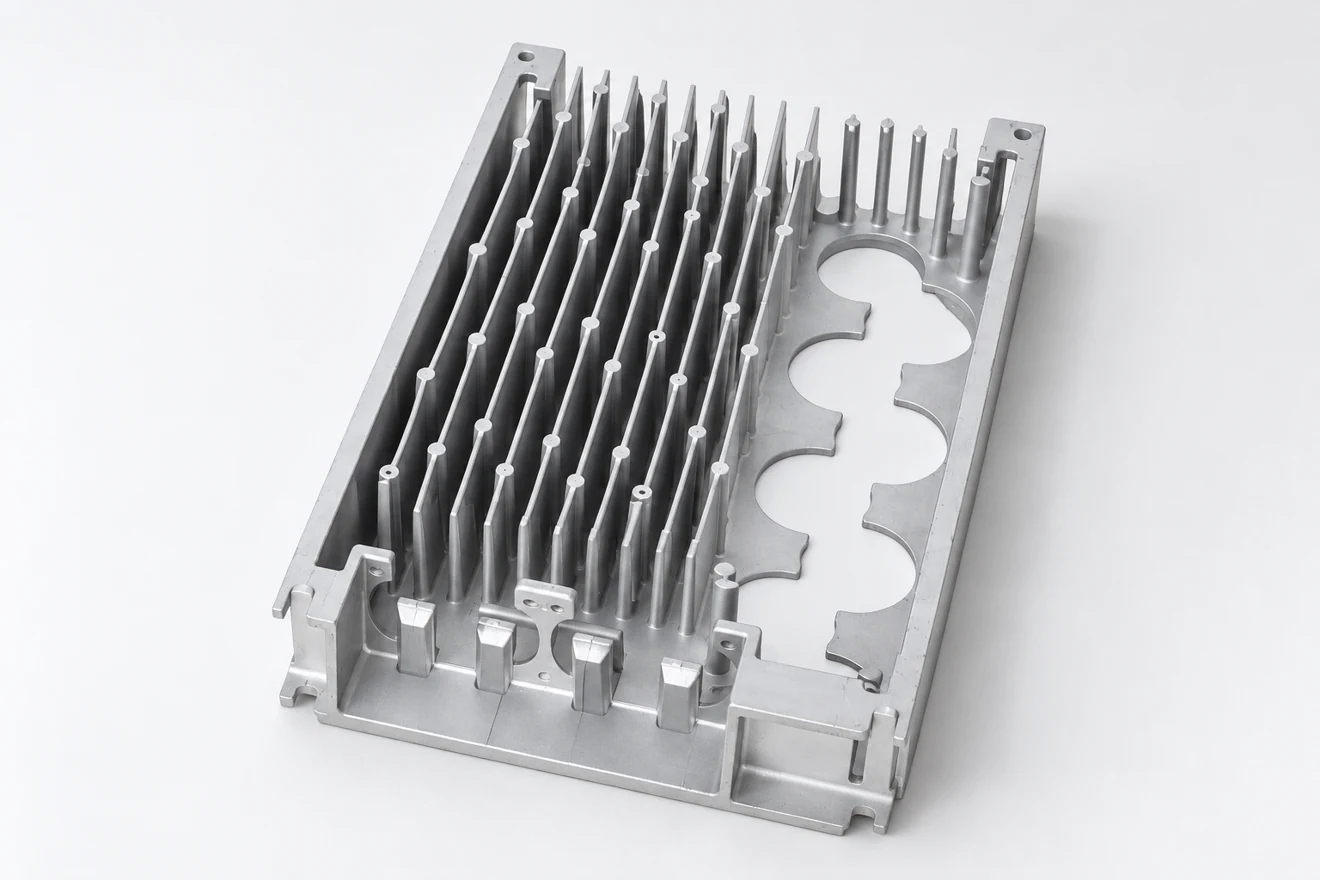

Finned plate geometry with its own section pattern.
Finned plate geometry with its own section pattern.
  1. EnvironmentThe conditions affecting this enclosure.
  2. ProtectionThe specified surface system.
  3. Fit boundaryContacts retained in their required state.
06 / 10Equipment component sourcing

Machining Supports the Cover’s Released Shape

A shallow dish or thin rim can be forced by its fixture. Place supports to preserve the real component rather than flatten it temporarily for a cut. Relate the centre, rim and relevant fixing contacts through the machining references, then inspect in the state specified for acceptance. This is particularly useful where the rim must seat consistently around its perimeter.

  1. SupportStable contacts suited to the shallow wall.
  2. FinishRelated centre and mounting regions.
  3. ReleaseThe free or supported geometry accepted by the drawing.
07 / 10Equipment component sourcing

A Sample Separates Fit from Environmental Qualification

The sample can demonstrate the component’s mounting relationship and agreed surface state. Any environmental or wider equipment qualification requires the actual project scope and evidence. Relia agrees sample requirements first, provides agreed key-dimensional records per order and arranges batch production after your approval of the identified version.

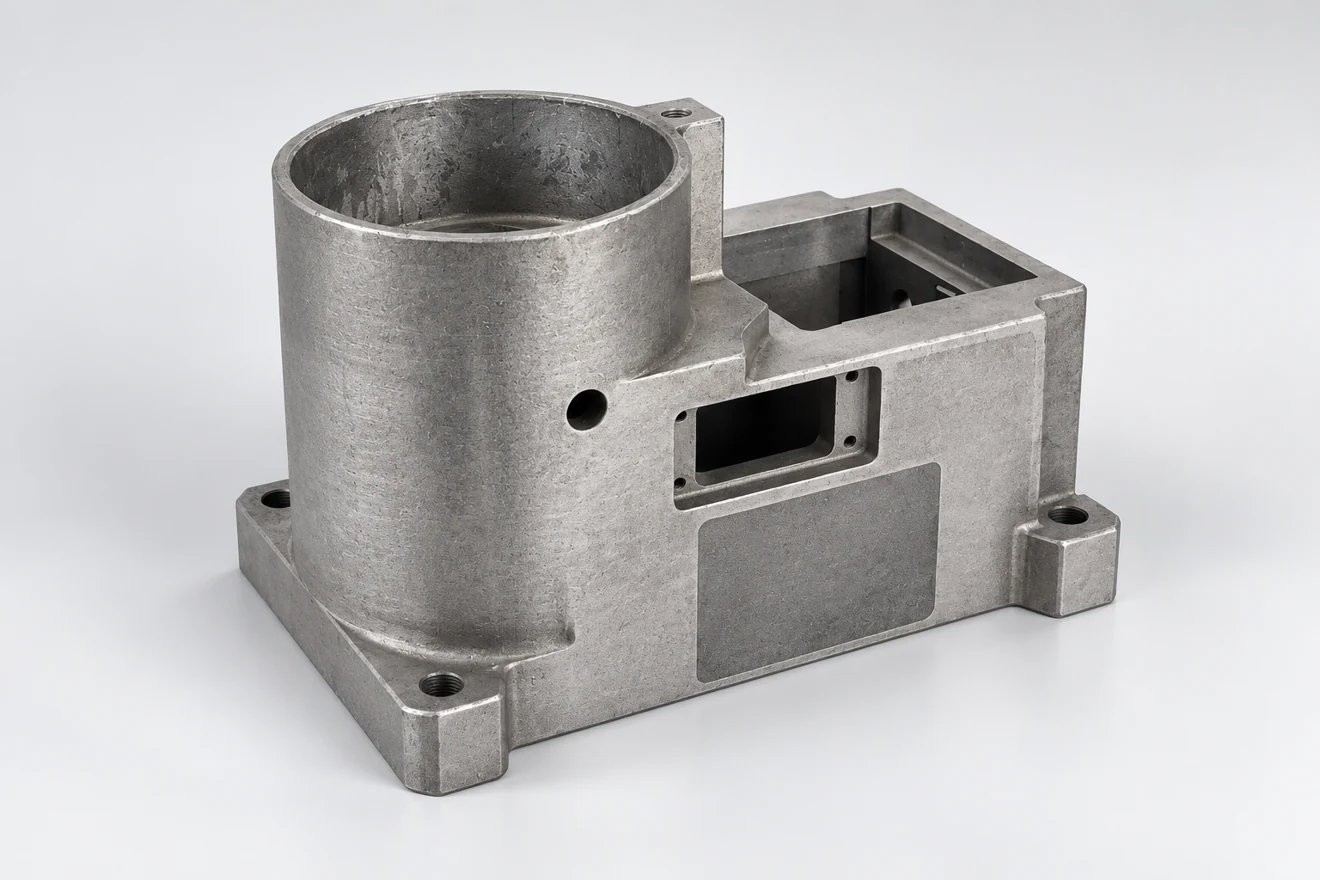

Asymmetric enclosure with separate mounting contacts.
Asymmetric enclosure with separate mounting contacts.
  1. FitRim, boss and attachment relationships.
  2. SurfaceThe condition intended for delivery.
  3. Project evidenceAny separately specified exposure or qualification test.
08 / 10Equipment component sourcing

Packing Avoids Loading the Rim and Projections

Support the cover so shipping loads do not concentrate on a thin edge or mounting projection. Separate finished contact areas from adjacent parts and keep identification readable. The objective is to preserve the accepted geometry and surface through receiving, not merely prevent visible breakage of the main body.

  1. SupportThe main shape in a stable arrangement.
  2. SeparateRim and finished contacts protected.
  3. IdentifyPart revision and relevant shipment references.
09 / 10Equipment component sourcing

Continue with the Auxiliary-Cover Procurement Page

The focused cover guide develops the actual supply and interface brief. The aluminium material page and CNC workflow explain route selection and final-reference planning without expanding this component page into an unsupported claim about primary turbine structures.

Auxiliary wind-equipment casting enquiriesRelated component reference · the order defines its material, dimensions and supplied condition.
Aluminium motor-base and housing enquiriesRelated component reference · the order defines its material, dimensions and supplied condition.
10 / 10Equipment component sourcing

Contact the Casting Team

Provide the auxiliary component and mating drawings, actual material, exposure and finish requirements, quantities and the installation contacts to inspect.
