Bronze Components for Sliding and Fluid-Service Contacts

Relia reviews bronze sleeves and contact components from the actual alloy, mating drawings and service brief. A sleeve joins two fits: its bore works with the shaft and its outside locates in the housing. We define the blank, finishing route and accepted installation state together, with lubrication and operating requirements kept explicit.

Review the sleeve and its mating fits

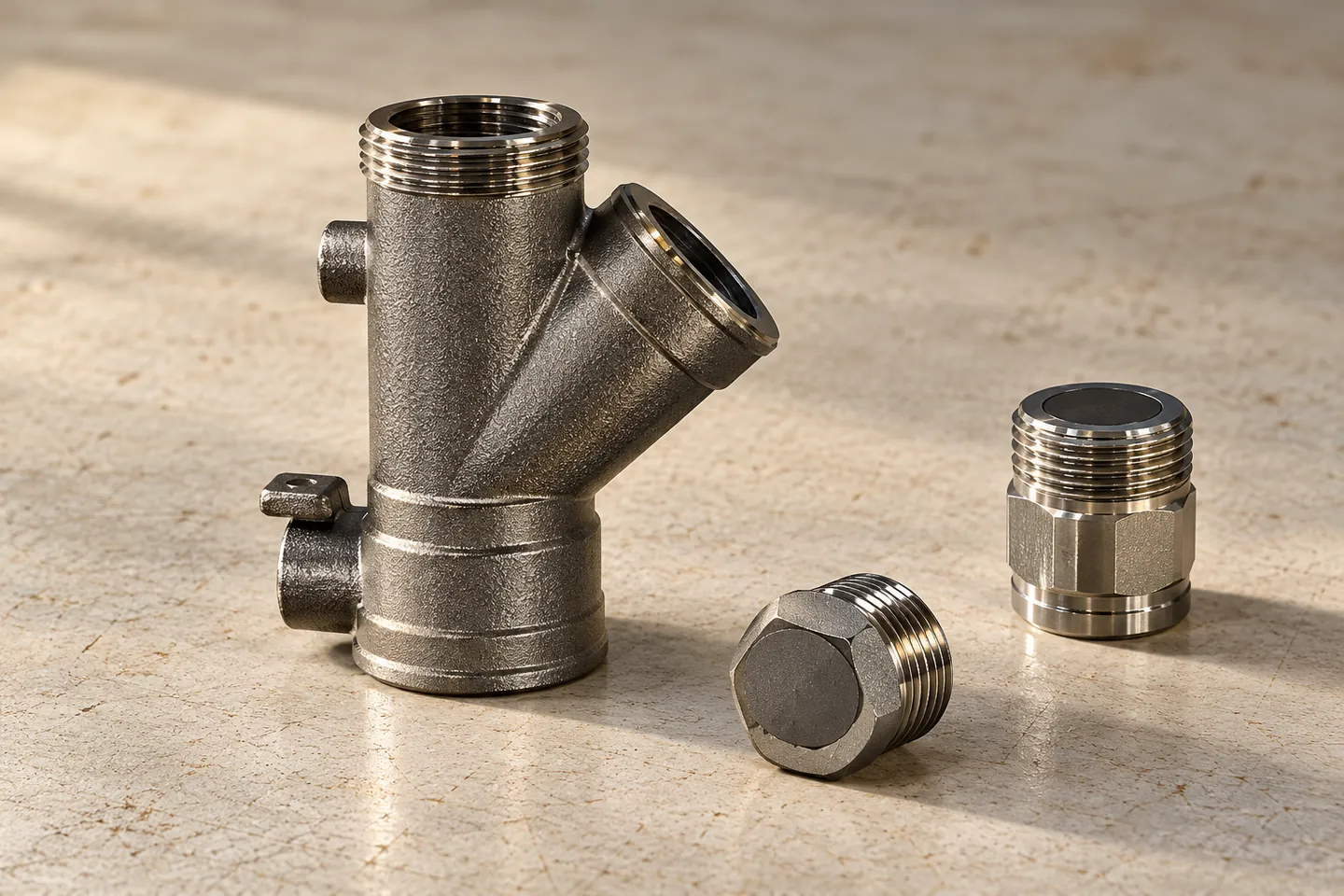

Y-shaped body and separate fitting geometry.
Y-shaped body and separate fitting geometry.
  1. Sliding contactShaft, housing and lubrication context.
  2. Fluid contactMedium, connection and internal surface.
  3. MaterialOne specified alloy and condition per component.
02 / 10Relia · Manufacturing in China

The Working Contact Identifies the Buying Task

Relia reviews sleeve and fitting enquiries as separate components. A sleeve must work between a shaft and housing; a Y-shaped body must connect passages and finished ends. The catalogue can contain alternative metals and several shapes in one listing. Select the actual drawing and grade instead of treating the entire image as a common bronze assembly.

  1. SleeveInner and outer fits plus end references.
  2. RingSeating face and radial interface.
  3. Fluid bodyPassage, thread and connection contacts.
03 / 10Material and service selection

Copper-Alloy Families Are Not Interchangeable

Tin bronzes, aluminium bronzes and other copper alloys have different composition and service characteristics. Specify the actual cast-product designation and required condition. Selecting the alloy involves the intended exposure and contact, not a colour match. A material chosen for a lubricated sliding surface should not automatically be transferred to a different fluid environment.

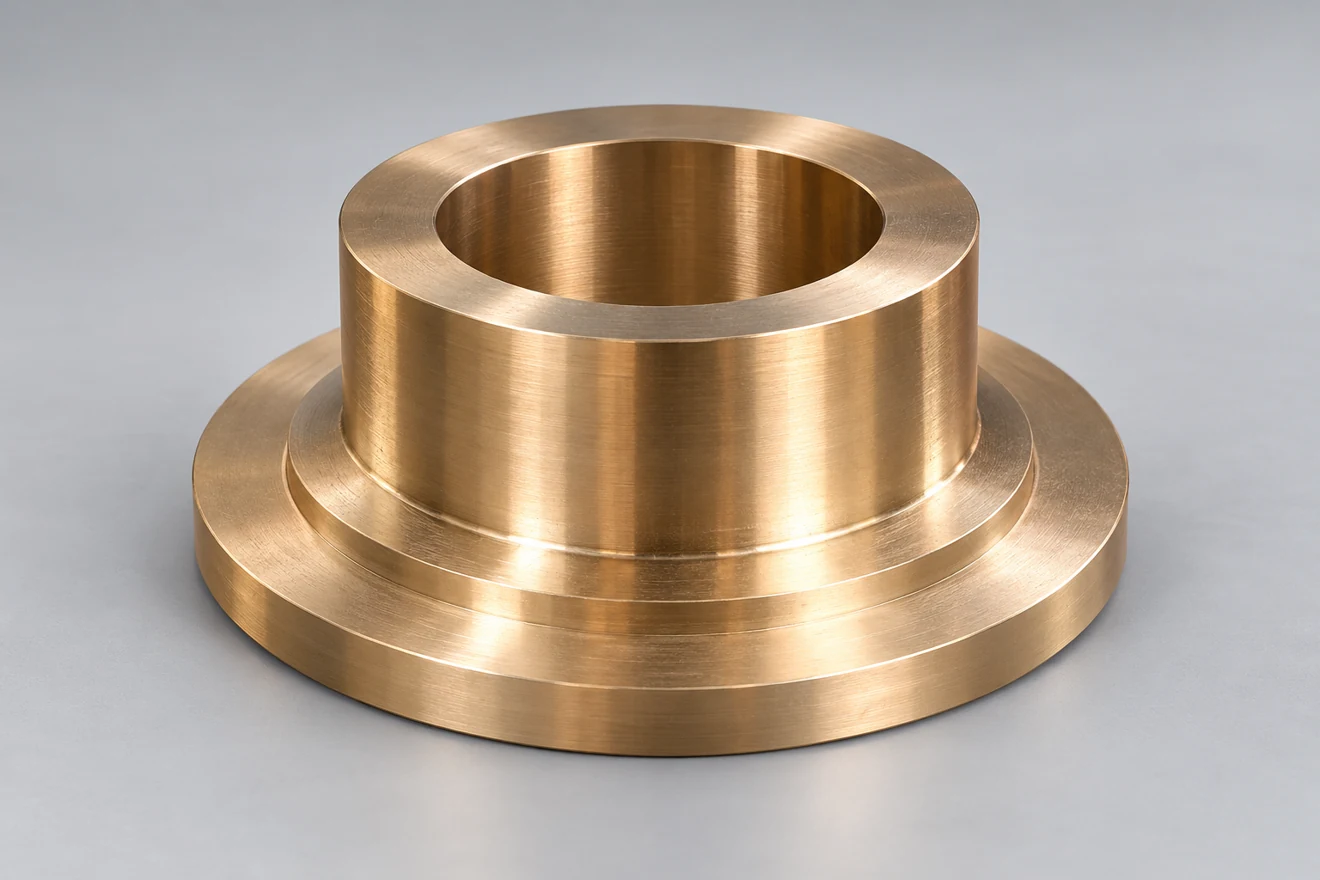

Flanged annular form with a central fitted region.
Flanged annular form with a central fitted region.
  1. SpecifyActual alloy and applicable product document.
  2. RelateSliding or fluid-service environment.
  3. VerifyThe agreed material evidence for the part.
04 / 10Material and service selection

A Sleeve Connects Two Fits and a Lubrication System

The bore works against the shaft while the outside locates in the housing. Installation can affect the bore’s final condition, so define the accepted state and any assembly-related allowance with the design. Speed, loading and lubrication belong in the service brief where they drive material or geometry. A visually smooth sleeve is not a performance specification.

Shaft contactInside fit and the clearance specified by your design.
Bronze sleeveActual alloy, finished wall and accepted loose or installed state.
Housing contactOutside fit and the installation condition affecting the bore.
Lubrication contextState the supply and any groove arrangement, together with relevant speed and loading.
05 / 10Material and service selection

The Drawing Separates Stock from the Finished Wall

A sleeve or flanged ring needs enough stock to establish its fitted surfaces without losing the required wall. Identify which end or face provides the machining reference and how concentric or related surfaces are accepted. For a thin-walled component, support and cutting strategy should preserve the released form rather than distort the part to obtain a temporary size.

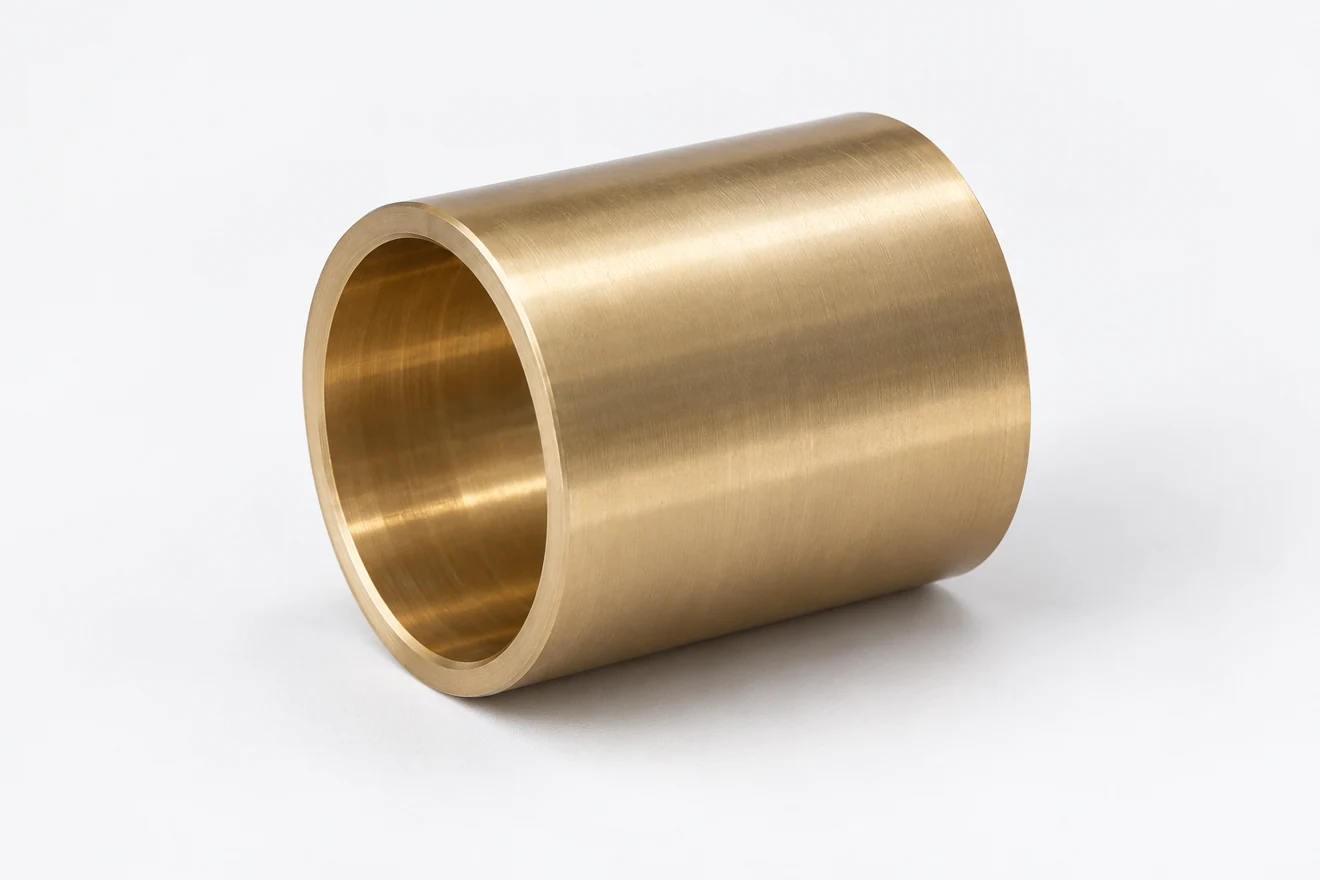

Plain sleeve showing separate inside and outside contacts.
Plain sleeve showing separate inside and outside contacts.
  1. BlankThe wall and stock available for cutting.
  2. ReferenceThe face or axis used for finishing.
  3. Final stateThe actual fitted geometry accepted by the order.
06 / 10Material and service selection

A Fitting Adds Passage and Sealing Requirements

For a Y body or cap, define the internal connection and the finished end contacts. Drilling and threading may leave burrs at intersections; a formed cavity needs an accessible cleanup path. State the actual medium, service conditions and any leakage requirement. A threaded appearance does not establish a standard connection, pressure class or fluid compatibility.

  1. ConnectThread, seat and adjoining geometry.
  2. CleanInternal intersections and accessible cavities.
  3. TestThe actual functional boundary if required.
07 / 10Material and service selection

Surface Finish Follows the Contact’s Function

A sliding bore, an outside press fit and a decorative flange need different surface requirements. Specify the measured or visual criterion at the relevant region. After finishing, protect the opening or fitted surface from impact and contamination. The agreed packing should preserve the accepted component rather than merely contain a quantity of mixed copper-alloy parts.

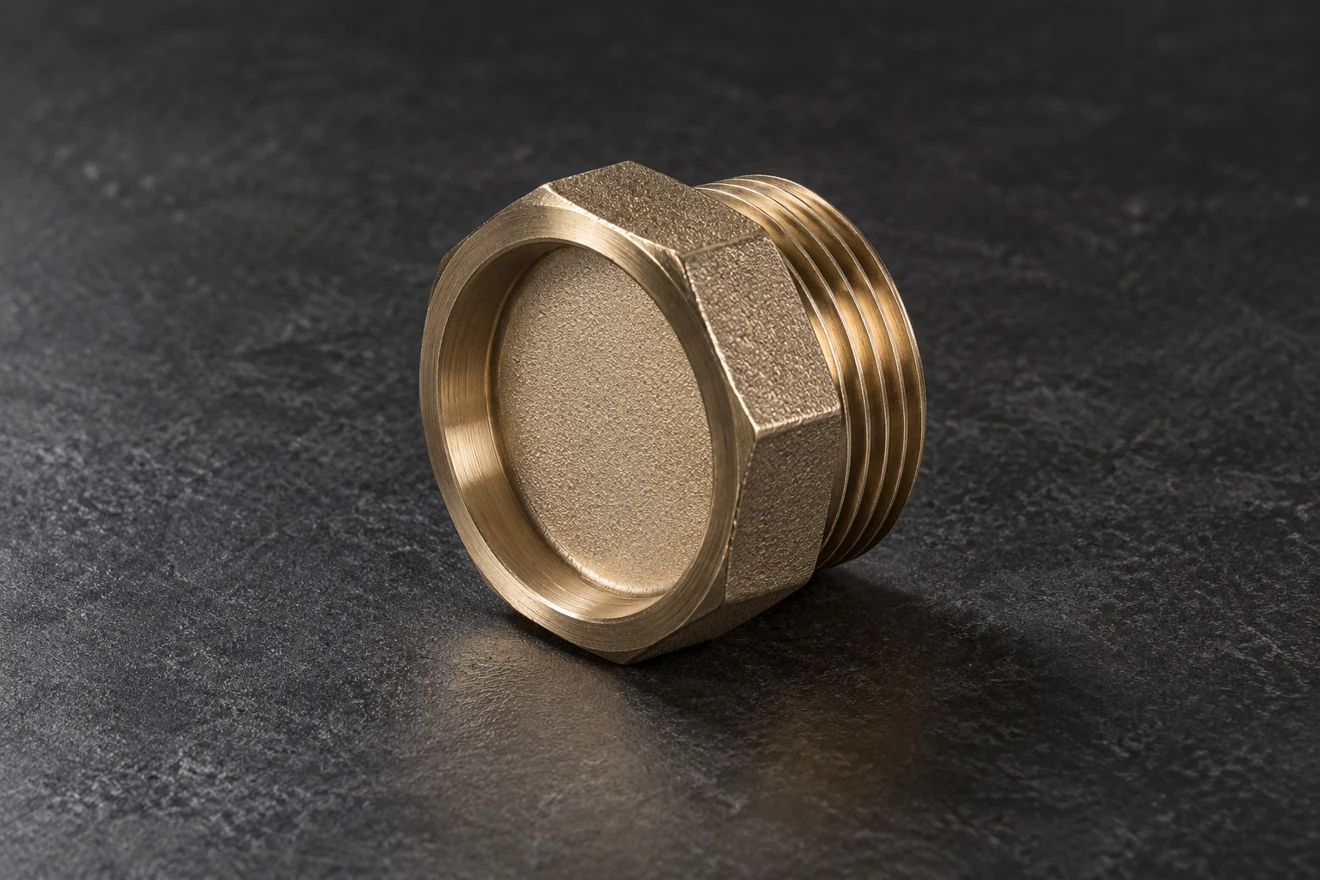

Threaded cap with a closed body and connection end.
Threaded cap with a closed body and connection end.
  1. SlideThe specified contact surface.
  2. LocateThe outside fit and seating reference.
  3. PreserveProtection of the accepted regions.
08 / 10Material and service selection

The Sample Checks the Complete Mating Relationship

The useful sample review connects the selected material with the inner and outer fits or the fluid-body end geometry. Identify whether inspection concerns the loose component or a defined assembled state. Relia provides agreed key-dimensional records with scope and sampling stated per order, and moves to batch production after your sample approval.

  1. IdentityGrade, drawing and supplied version.
  2. FitThe required relationship to adjoining parts.
  3. EvidenceDimensions and any separately specified duty checks.
09 / 10Material and service selection

Choose a Bearing Fit or Connection Guide

The sleeve guide develops the two-fit procurement problem. The brass flange page compares forming routes for another copper-alloy component family. The hydraulic cleaning guide addresses passage residue where a fluid fitting is the actual task. Those boundaries keep each page useful for a distinct decision.

Y bodies, sleeves and copper-alloy fitting enquiriesRelated component reference · the order defines its material, dimensions and supplied condition.
Brass flange and bored-body enquiriesRelated component reference · the order defines its material, dimensions and supplied condition.
10 / 10Material and service selection

Contact the Casting Team

Send the actual bronze grade, component and mating drawings, quantity and service context. For sleeves, identify the shaft, housing and accepted installation state.
