01 / 10Component manufacturing

Confidential Drawings and Controlled Project Files

Start your casting or CNC enquiry with a limited brief: the component family, material and manufacturing task. Agree the applicable confidentiality arrangement before sharing sensitive drawings or samples. Relia then reviews an identified file set so geometry, requirements and the authorised revision stay connected. The original NDA reference remains available below.

Discuss your component

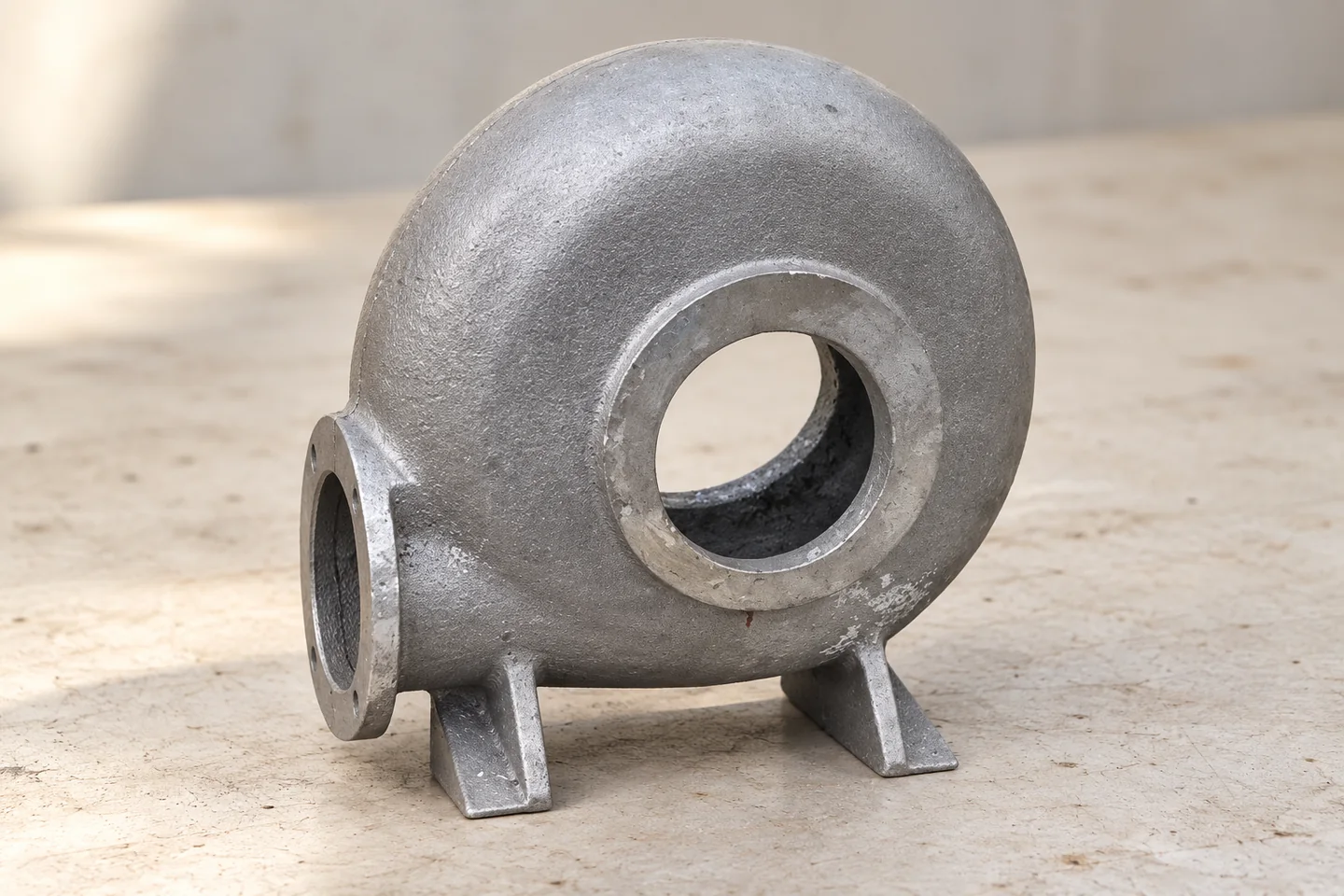

Catalogue housing used to discuss a controlled component file set.
Catalogue housing used to discuss a controlled component file set.
  1. BeginDescribe the manufacturing task with limited detail.
  2. ArrangeIdentify the files and applicable confidentiality agreement.
  3. ReleaseKeep technical review separate from production approval.
02 / 10Relia · Manufacturing in China

An Initial Discussion Can Use a Limited Brief

Relia can start with the part type, material, approximate envelope, order pattern and the operation you need. A housing enquiry may concern a cast blank, a sealing interface or an inaccessible passage; that distinction helps identify which drawings are needed next. Agree the applicable confidentiality arrangement before exchanging sensitive design detail.

  1. ComponentFamily, material and manufacturing need.
  2. BoundaryInformation needed for the next technical step.
  3. AgreementThe project arrangement governing the exchange.
03 / 10Component manufacturing

The Model and Drawing Carry Different Requirements

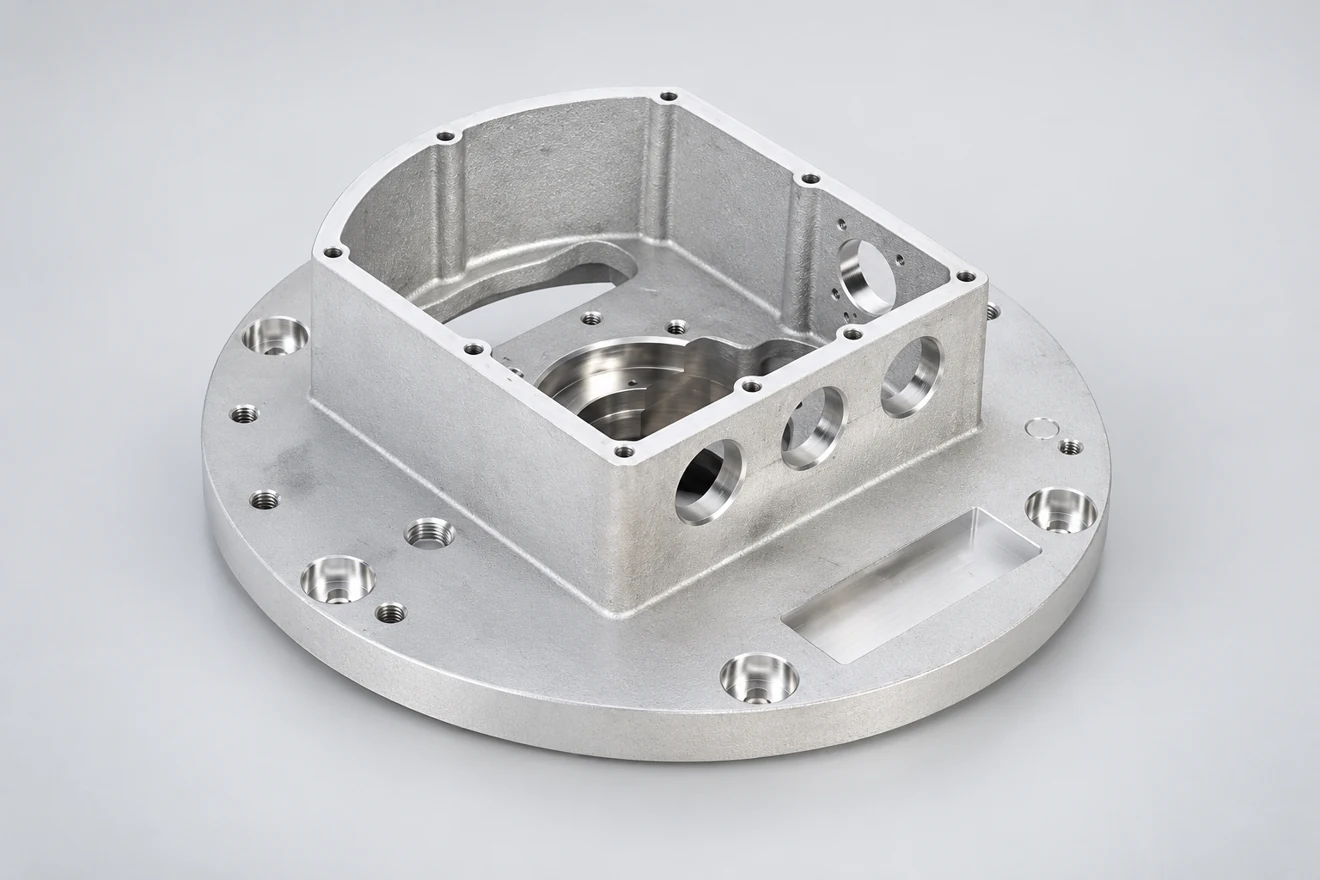

A model explains the outside and internal geometry. A drawing adds units, tolerances, material, finish and acceptance references. A sample can add wear, repair or manufacturing features that need interpretation. Identify the controlling reference set so comments about a recess, bore or wall transition are applied to the correct design.

Open-box housing geometry with a mounting flange.
Open-box housing geometry with a mounting flange.
  1. ModelGeometry and internal sections.
  2. DrawingMaterial, limits and functional datums.
  3. SampleAn identified physical reference with known condition.
04 / 10Component manufacturing

A File Register Keeps the Review Understandable

Give each drawing, model and sample reference a part number and revision. When a new file replaces an older one, state what changed and which version controls the quotation. A short file register can record the filename, revision, units and intended purpose. This reduces the risk of machining from a current model while inspecting against a superseded drawing.

One reference set for quotation and review
ReferenceIdentify itDefine its role
DrawingPart number, revision and unitsMaterial, tolerances, finish and acceptance requirements
3D modelFilename and matching revisionGeometry and internal sections; reconcile differences with the drawing
Physical sampleSample identifier and known conditionFeatures to interpret, wear to exclude and any approved reference surfaces
When a file changes

Name the replaced version, list the changed features and state whether the new file is for review or authorised production. A manufacturing suggestion is not customer approval of a design change.

05 / 10Component manufacturing

Manufacturing Comments Belong to Named Features

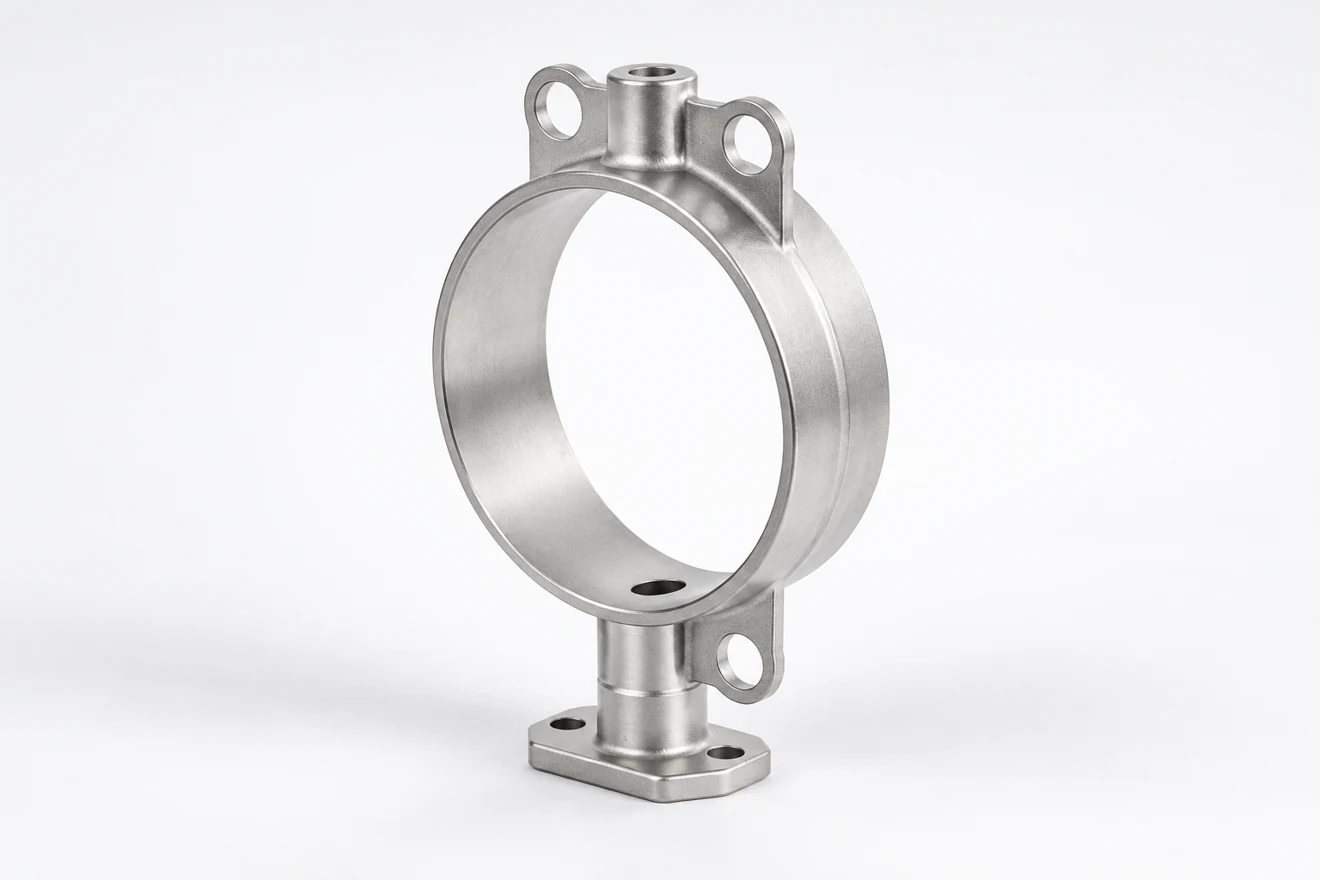

A foundry comment may concern the withdrawal direction, a thick junction or core removal. A CNC comment may concern cutter reach, fixture support or the first datum. Refer to the affected feature and revision when exchanging these notes. A feasibility suggestion can then be evaluated as a specific design decision rather than mistaken for permission to change the part.

Open ring body with separate mounting features.
Open ring body with separate mounting features.
  1. LocateThe section or feature being discussed.
  2. ExplainThe manufacturing reason for the comment.
  3. DecideCustomer release of any design change.
06 / 10Component manufacturing

A Review File Is Different from a Production Release

Sending geometry for quotation does not by itself define tooling ownership, order quantity or the authorised supplied condition. Keep those decisions in the applicable commercial and technical project documents. Relia’s manufacturing review distinguishes an assumption awaiting resolution from a drawing or sample you have approved for production.

  1. ReviewEvaluate geometry and proposed operations.
  2. AgreeResolve quotation assumptions and supply scope.
  3. AuthoriseRelease the actual drawing and production order.
07 / 10Component manufacturing

Sample References Stay Attached to the Approved Version

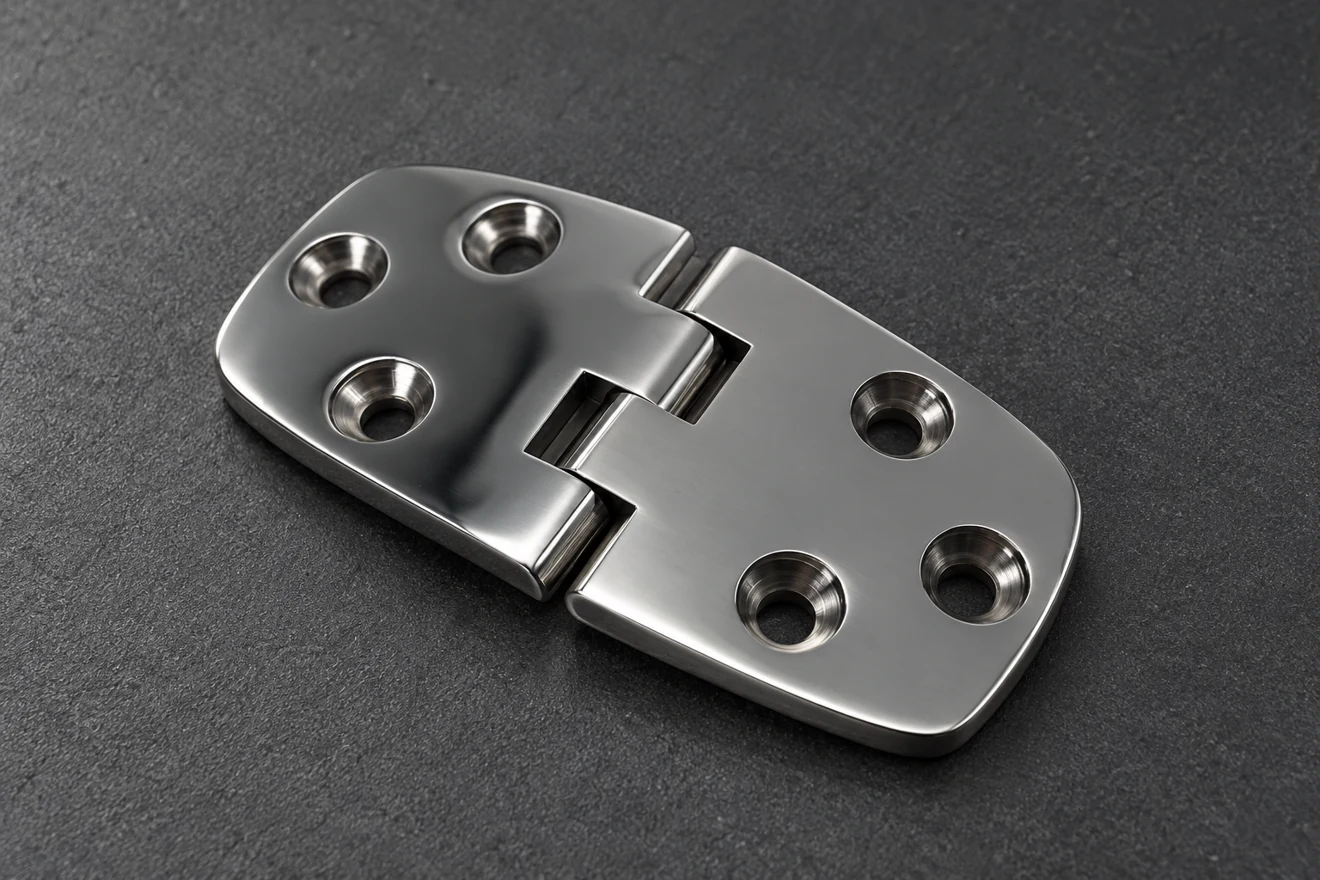

A hinge example can have the same outline while its pivot clearance, mounting pattern or surface requirement changes. Record which version was reviewed and which sample was approved. If the design changes later, identify the affected tooling, operations and inspection requirements instead of treating the earlier sample as approval of every subsequent version.

Hinge geometry illustrating a controlled pivot and fixing pattern.
Hinge geometry illustrating a controlled pivot and fixing pattern.
  1. Before trialReleased reference set and sample criteria.
  2. At approvalIdentified sample and applicable results.
  3. After changeAffected-feature review and renewed release where needed.
08 / 10Component manufacturing

The Existing NDA Reference Remains Available

The website’s existing NDA text is retained below without rewriting its provisions. The practical file-handling notes on this page do not replace the agreement applicable to your project. Use the complete retained text with the document and parties relevant to the actual exchange.

  1. ReferenceThe original website wording remains accessible.
  2. ProjectThe applicable parties and agreement govern the exchange.
  3. Technical scopeDrawing and production releases remain separately defined.
Read the complete original NDA reference
09 / 10Component manufacturing

Move from the File Set to a Defined Enquiry

When the exchange arrangements are in place, connect the released drawing with the required material, quantities and operations. The separate confidential-RFQ guide concerns enquiry scope; the production workflow explains the later manufacturing handoffs.

Ported and bored casting componentsRelated component reference · the order defines its material, dimensions and supplied condition.
Stainless valve-body and fitting enquiriesRelated component reference · the order defines its material, dimensions and supplied condition.
Stainless hinge and clamp componentsRelated component reference · the order defines its material, dimensions and supplied condition.
10 / 10Component manufacturing

Contact the Casting Team

Begin with the component type, material, approximate size and manufacturing task. Identify any confidentiality arrangement needed before sharing detailed files.
