01 / 10 · Define the process in the quotation
Complete Shell Molds and Shell Cores in Casting Quotations
A quote that says shell casting should explain what forms the outside of the component and what forms its internal openings. A complete shell mold and a shell core are different parts of a production proposal.
The mold
Defines the external casting shape and its parting arrangement.
The core
Forms an internal cavity or opening where the chosen design requires one.
Relia reviews the actual component, material and proposed molding route so your quotation has an explicit process and delivery scope.
Review your shell-casting proposal02 / 10 · Factory and buyer alignment
An Explicit Process Proposal for Your Iron Component
Relia's shell-mold enquiries begin with one controlled component drawing and an actual iron or steel requirement. A list of process names does not establish the route used for every catalogue example.
Select the geometry, grade, drawing revision and order quantity.
Separate external molding, internal coremaking and any alternative proposal.
Define casting condition, machining, finish and inspection responsibilities.
03 / 10 · Geometry roles
The Outside Mold and Internal Core Have Different Roles
Show outside sections and internal openings on the same drawing. An exterior photograph cannot define the depth, connection or support requirements of a hidden cavity.
04 / 10 · Complete molding scope
A Complete Shell-Mold Route
In shell molding, resin-coated sand forms a bonded shell against heated pattern tooling. The assembled shell sections define the mold cavity; separate cores are added where the component needs them. Identify this arrangement, the required pattern tooling and any separate cores. Review the parting region, wall sections and stock at features that will be machined.

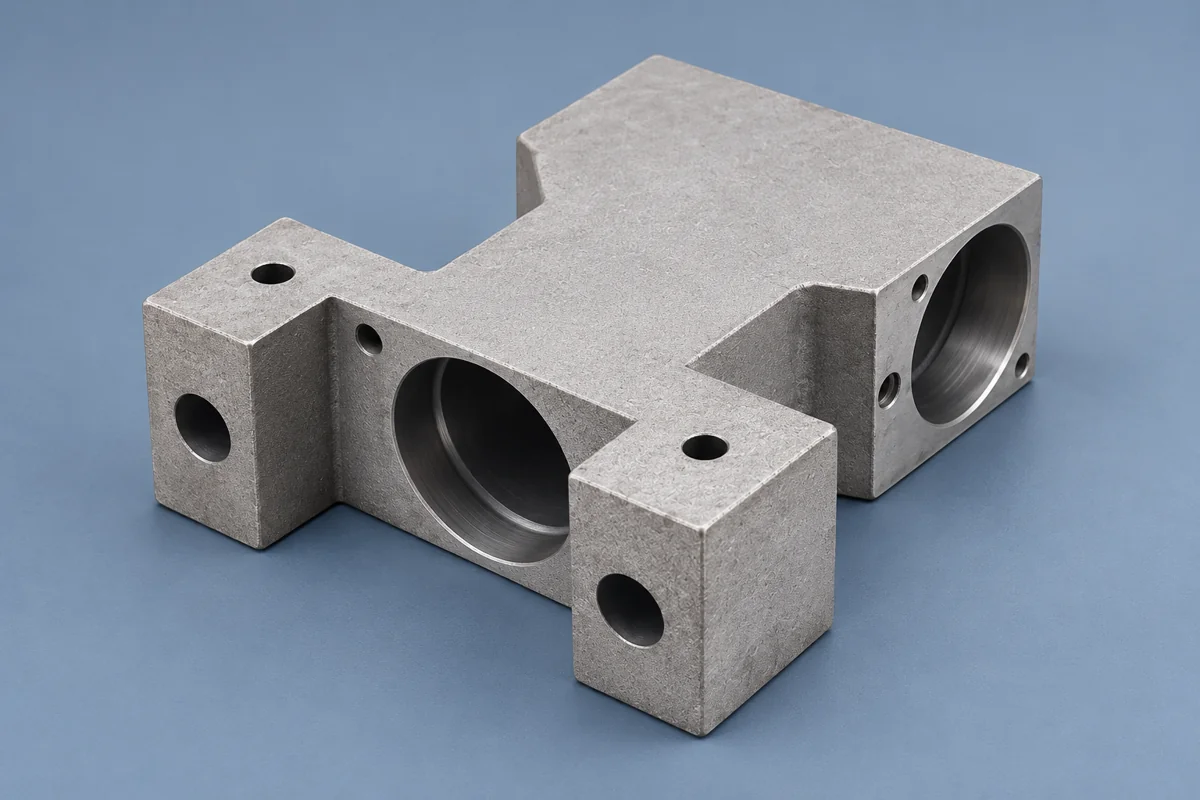

A multi-opening block also needs internal sections and core-location references. These requirements should remain visible in the quotation instead of being hidden behind a broad precision claim.
Review the shell-mold casting component scope
05 / 10 · An alternative process boundary
Shell Cores Within Another Molding Route
A proposal can specify a shell core while using another process for the external mold. It should state both elements, along with the relevant tooling and core-setting scope.
Name the proposed process, casting outline and parting arrangement.
Define cavity, support, location and removal access.
Compare alternatives against the same grade, quantity and final drawing. A mixed process description should not be interpreted as a mandatory sequence.
Keep the molding and coremaking descriptions separate
The proposal should identify the outer mold, any shell cores and the related tooling. Use the same final component requirements when comparing another route.
06 / 10 · Tooling deliverables
Pattern and Core-Box Delivery Boundaries
Separate the component order from any tooling deliverables. State which patterns or core boxes are required for the proposal and whether the enquiry includes tooling ownership, supply or only casting production.
Drawing and revision
Connect each tooling item to the component features it produces and the approved revision.
Quoted responsibility
Agree tooling charges, modification scope and delivery or storage responsibilities.
07 / 10 · Acceptance
Cast and Machined Acceptance Requirements
Identify features that remain cast, those requiring machining and the final condition in which they are measured. A shell-process label does not replace numerical drawing limits or a surface reference.
Relia can provide agreed key dimensional records for an order, with the measured characteristics and sampling frequency specified for that order. Define any material or additional test requirements separately.
Review shell-mold flange and cylindrical component enquiries08 / 10 · Component evidence
Iron Block and Structural Component References

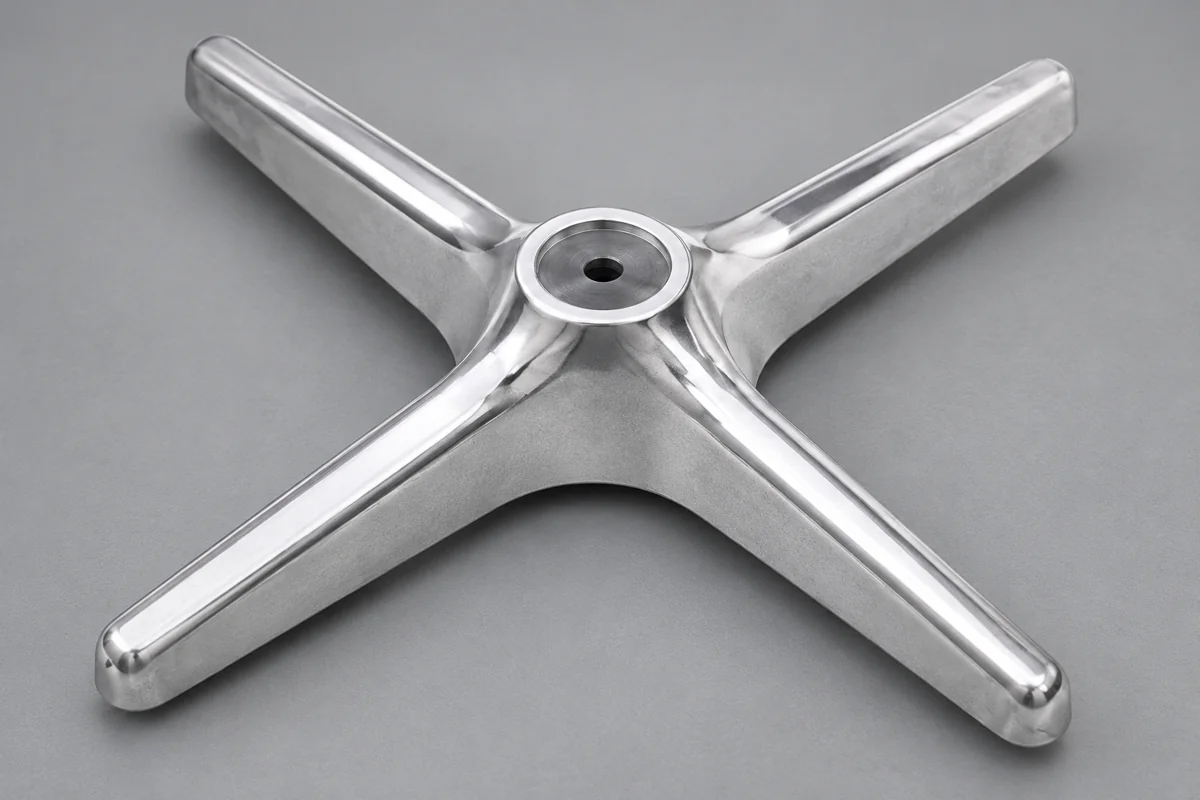

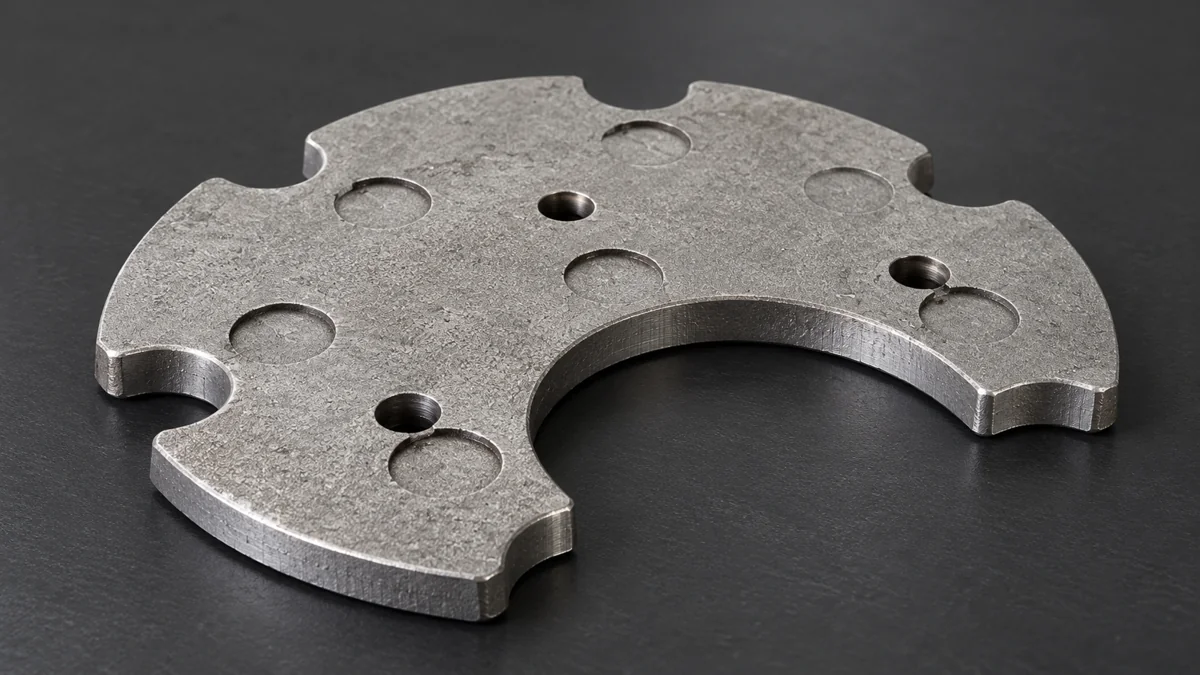

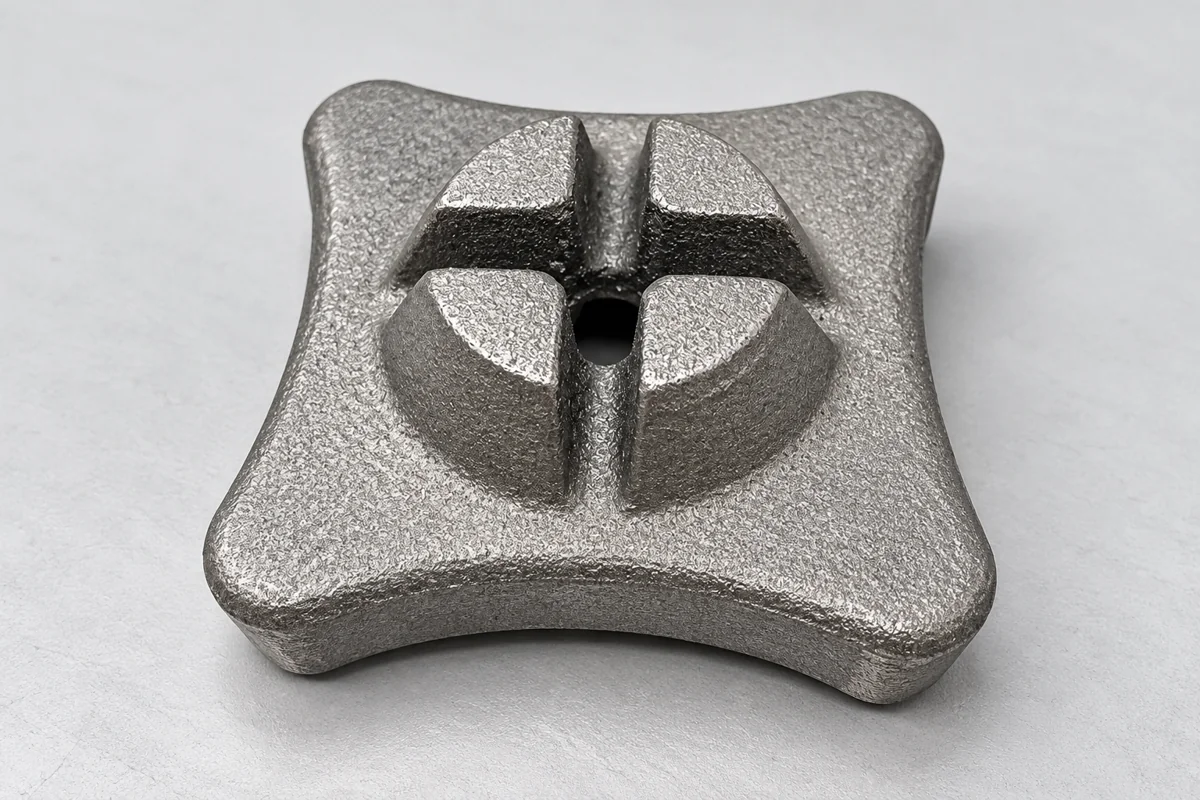

The catalogue includes hub supports, notched plates, ribbed bases and blocks with openings. Use these forms to communicate the component family, then define the actual material and process proposal.
The illustrations are geometry references, not records proving that every sample was produced using a complete shell mold.
View hub-support and notched-plate casting enquiriesView a ribbed structural casting enquiryView a multi-opening iron-block enquiry
09 / 10 · Comparable offers
Compare Quotations with the Same Process Scope
Use the same grade, revision, quantities and delivered condition.
Separate mold route, coremaking, tooling work, machining and finish.
Define required evidence and obtain customer approval before batch production.
Pricing and milestones should relate to that explicit scope, rather than an assumed process hidden inside a short quotation label.
10 / 10 · Discuss the proposal
Send the Component and Proposed Process Description
Send Relia the component drawing, actual material requirement and quantities. Include the process description you need clarified and any internal sections that affect cores, machining or cleaning.
