Custom Steering Knuckle Sourcing with Project Qualification Requirements
Request a custom steering-knuckle review with the vehicle-interface drawing, material, permitted process and qualification requirements. Relia connects bearing, joint and mounting features to the blank, treatment and CNC plan. The quotation identifies the component checks included; vehicle approval, fatigue or other programme validation follows the actual project specification and approval authority.
Read the overview and page sections
We connect the forming route with bearing, joint and mounting features that need controlled machining. The proposal identifies the component and qualification scope, so sourcing progress remains separate from vehicle approval or an unsupported claim of safety performance.
Critical Interfaces Keep the Knuckle Review Focused
Relia reviews the knuckle through the relationships that locate the wheel-side and suspension-side connections. Relia's technical discussion links material condition, blank design and CNC access to those interfaces. Your released drawing and applicable project requirements remain the acceptance basis, including the tests or records agreed for the supplied component.
03 / 10Component decisions

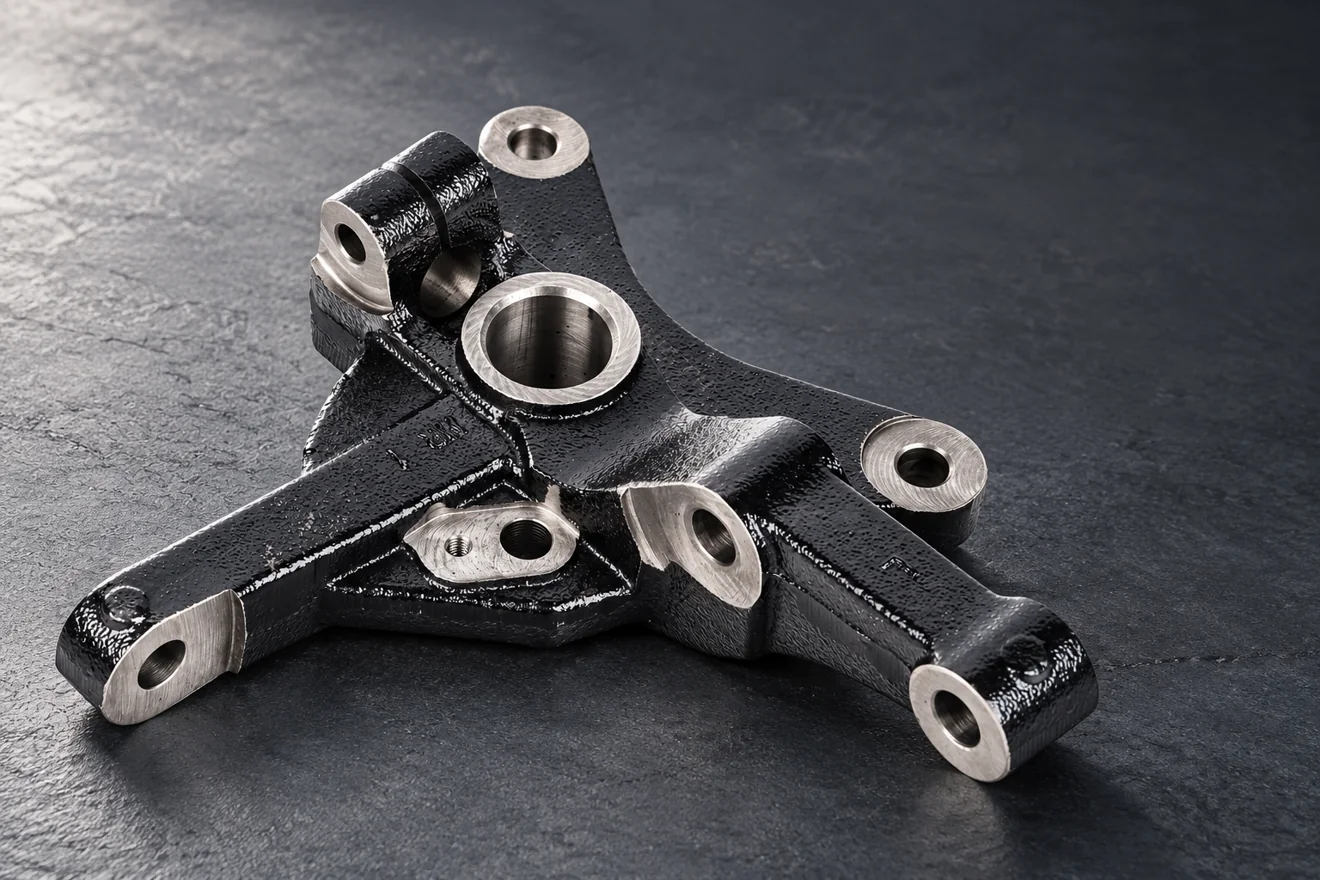

Identify the Features That Govern Vehicle Assembly
A similar outline cannot establish replacement fit. Define the loaded and locating contacts together with their relationship to the whole component.
| Requirement | Input from the vehicle project | Evidence to define |
|---|---|---|
| Main bore | Mating assembly and locating reference | Size, form and position results |
| Attachment arms | Hole, taper or seat geometry and duty | Finished-interface and loaded-region checks |
| Material state | Actual grade and treatment requirements | Applicable material and property records |
| Programme approval | Required first-article or validation scope | Authorised component-level approval |
Material and Route Are Controlled Requirements
State the actual casting or other material specification, supplied condition and required treatment. Any proposed alternative route or material needs the applicable engineering review. Neither the image nor a generic steel description demonstrates the properties or reliability required for your component.
Machine Related Interfaces from a Stable Datum Plan
The selected blank must leave stock and accessible supports for bearing contacts, mounting faces and joint features.
- Component definition
- Supported blank
- Related machining
- Release evidence
- Relate knuckle features through a stable datum plan
- Place treatment and examination at the correct stage
Open the manufacturing route and detailed review
Relate knuckle features through a stable datum plan
Their relative position matters alongside individual diameters. The machining plan therefore needs a locating strategy that preserves the required axes and orientations as the component moves between operations.
Place treatment and examination at the correct stage
Relia's review also places any specified treatment and examination at the stage relevant to the finished part. Clamping should support the knuckle without distorting its working geometry, and inspection should follow the drawing's datum system. Fatigue, proof-load or vehicle-level acceptance remains governed by the actual project specification rather than inferred from the machining result.
Integrity Requirements Identify Method and Zones
Where NDT or other integrity evidence is required, specify the method, examination regions, coverage, stage and acceptance basis. Review the proposed inspection access with the geometry. A general NDT available statement is not an examination result or a qualification approval.
07 / 10Component decisions
Review the Process Change Before Approving Supply
Moving between casting and forging changes the proposal. Qualification should follow the actual material and process used for the ordered component.
| Stage | Focus | Release condition |
|---|---|---|
| Scope | Freeze part number, revision and duty | A controlled project brief |
| Manufacture | Define blank route, treatment and final machining | The actual proposed process |
| First article | Check interfaces and specified material condition | Reviewable component evidence |
| Validation | Complete the programme's required approvals | Authorised supply for the defined use |
Changes Stay Within the Approval System
Tooling, route, material or design changes can affect the accepted configuration. Agree notification and requalification requirements under the project terms. Keep drawing revisions and delivered lots linked to the appropriate approval scope instead of assuming one sample covers every future knuckle variant.
- Identify affected contactsBore, attachment axis, taper or mounting face.
- Review existing evidenceCheck which material, dimensional or duty results still apply.
- Obtain the required releaseKeep renewed checks and approval linked to the new configuration.
An approval for one configuration does not automatically cover the changed knuckle.
Send the Details for Your Component Review
Tell us what you need to buy and the condition you need to receive. Relia Casting will review the component, manufacturing scope and requested evidence with you before an order is agreed.
- Controlled knuckle drawing and design requirements
- Actual material and manufacturing specification
- Mating interfaces and datums
- Applicable qualification and NDT requirements
- Quantity and evidence-approval route
