Custom CNC Machined Iron Steel Casting Parts | Investment Casting Project Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
Model NumberS2306Materialsteel/Iron
-
ApplicationIndustryDimensionsCustomer Required
-
Surface treatmentPaint/Powder coating/oxidation etcMold makingBy ourself
-
ProcessDie Casting-deburring- MachineryServiceOEM ODM
-
FeatureEco FriendlyQuality ControlProfessional Inspection
-
PackingCarton

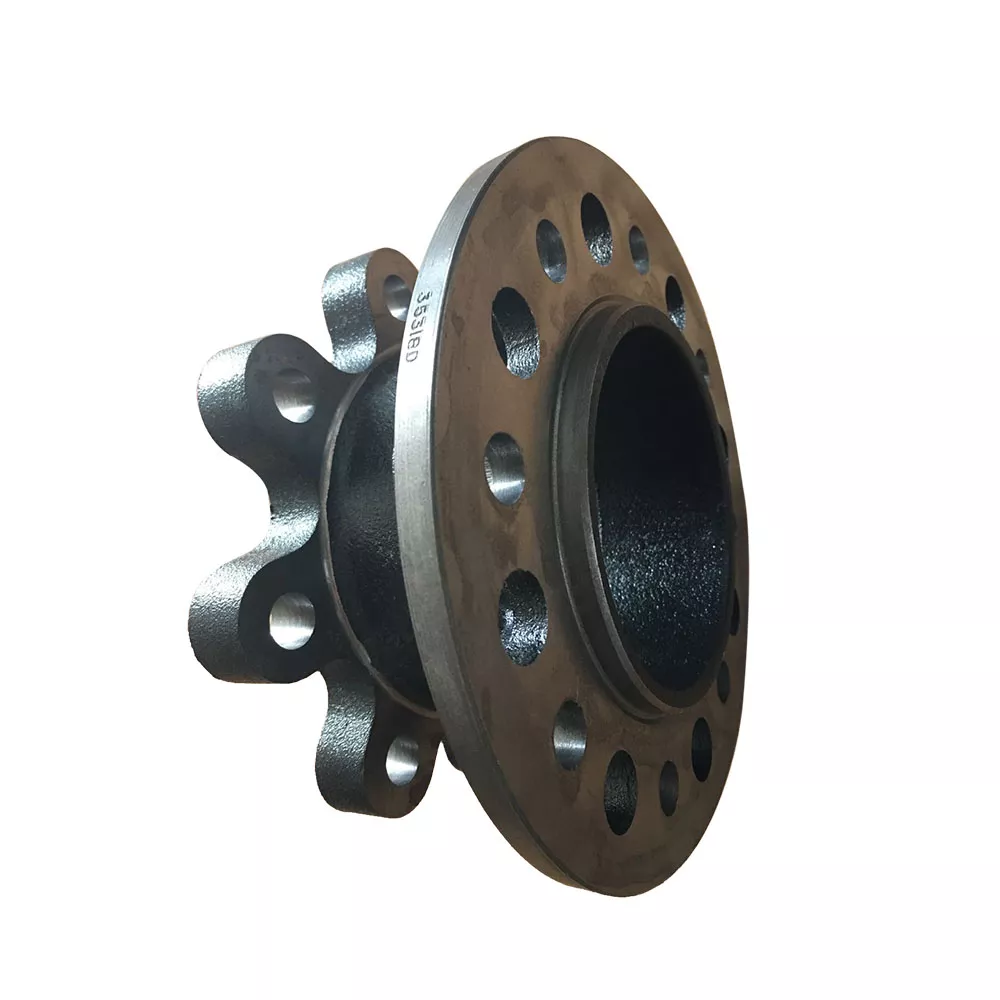

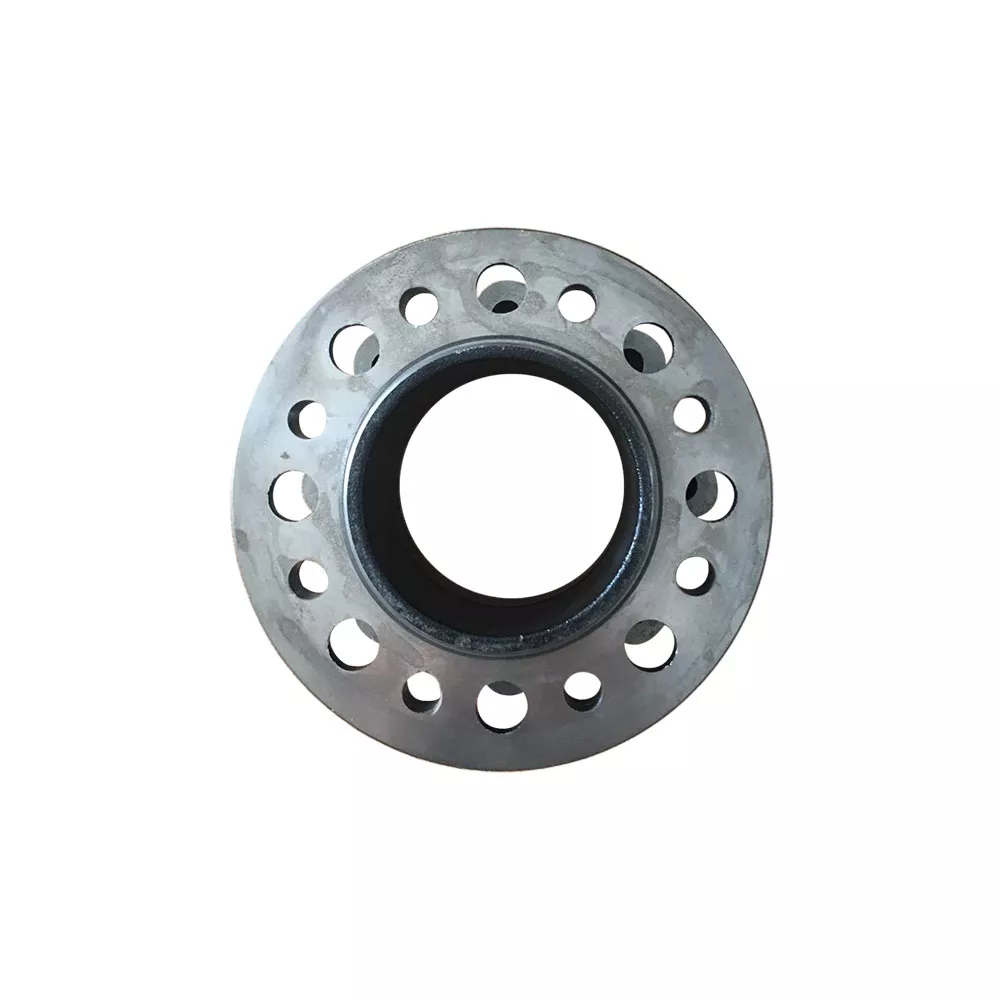

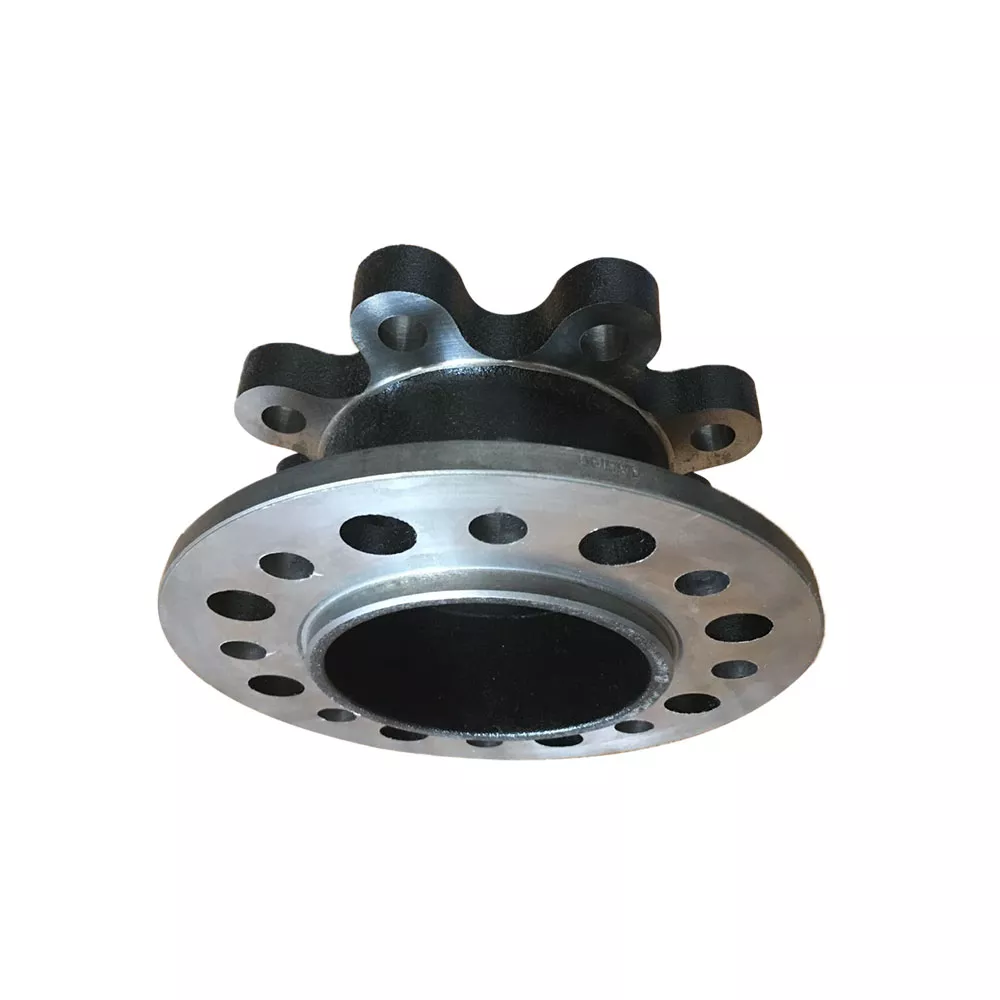

Central bore with repeated flange holes

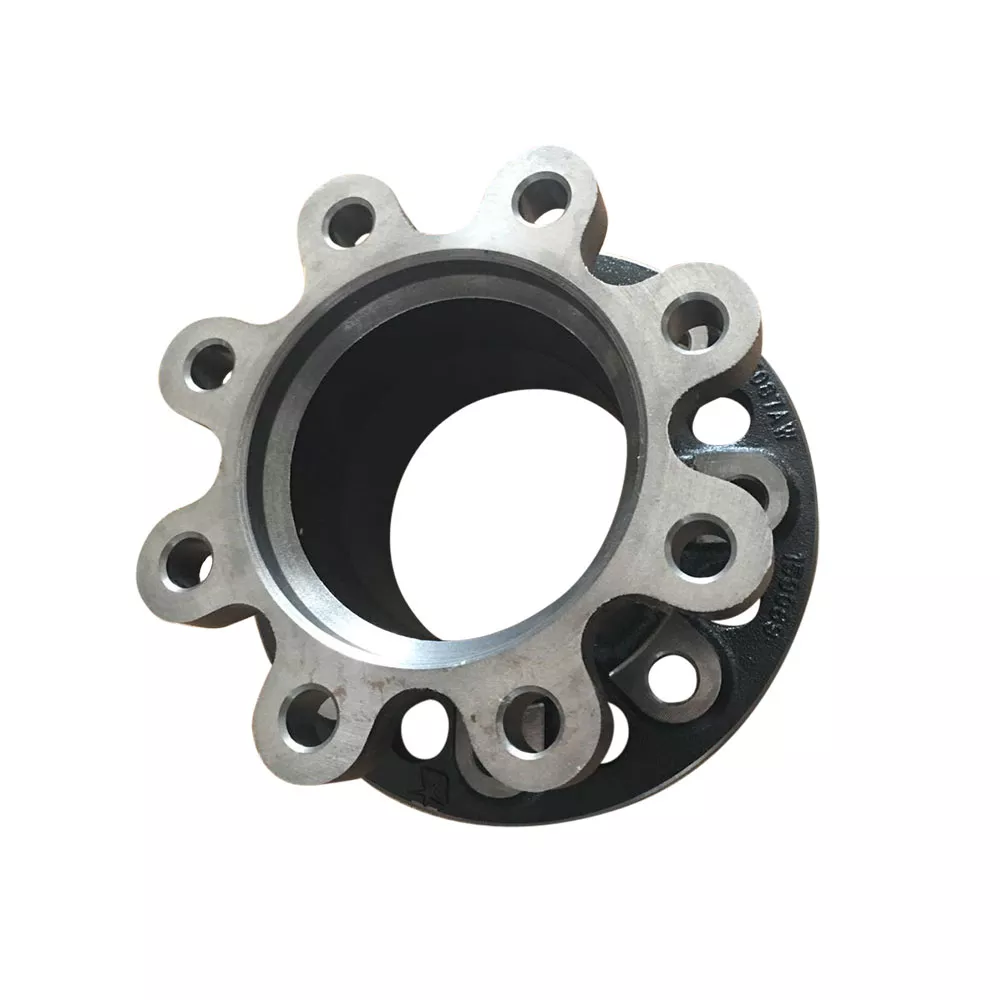

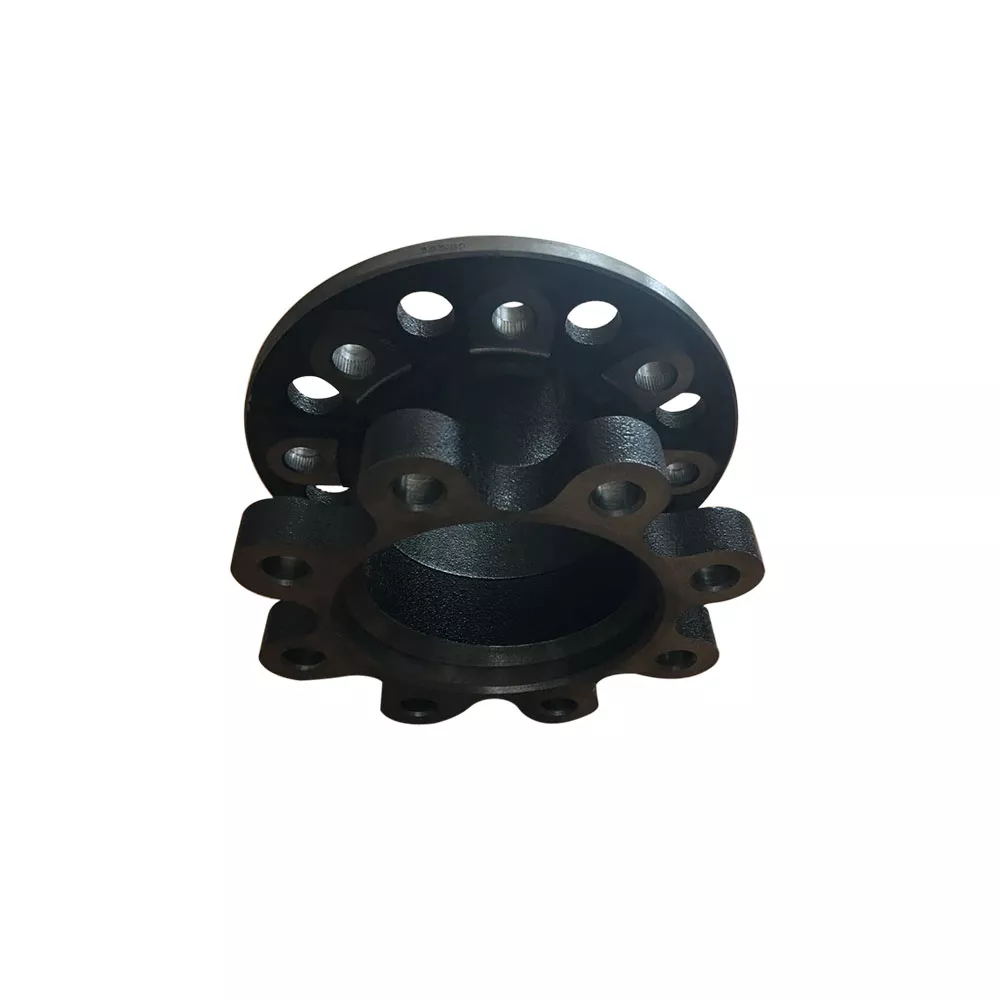

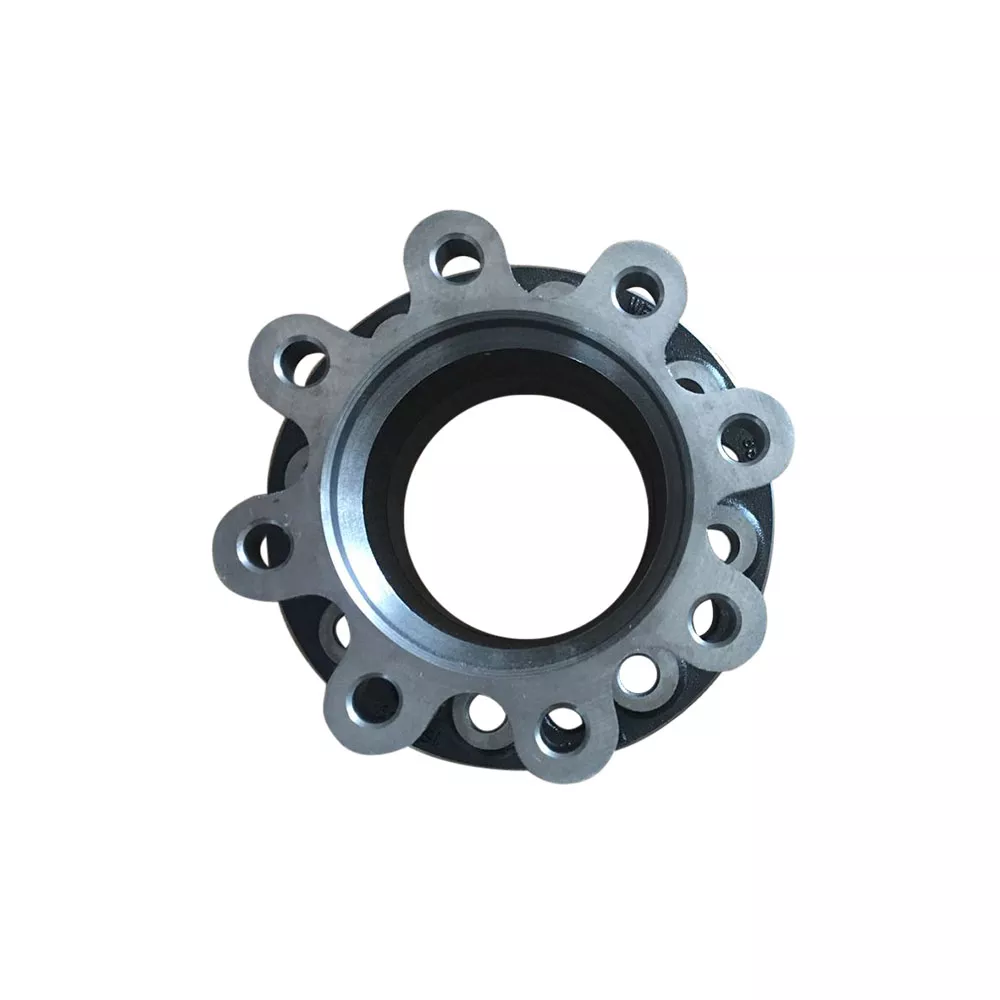

The example has a broad machined-looking circular face, a large center opening and repeated openings around the perimeter. Raised outer forms behind the face also need definition on the casting drawing.
Separate the casting from its finish machining
Specify steel or iron grade, or stainless separately where required, with the intended casting route. Define machining allowances and the finished bore, flange and fixing interfaces.
Include quantities, surface treatment and inspection criteria for the bore and hole pattern. The photograph does not establish a wheel or coupling application, rotational rating or one shared material across all title options.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
