Custom Shell Mold Grey and Ductile Iron Sand Casting Parts | Zinc Plating Enquiries

• Model Number

  DM2309
  Application

  Custom Casting
• Process

  Die Casting / Sand Casting / Precision Casting
  Surface treatment

  Sandblasting / Powder Coating / Painting / Plating
• Dimensions

  Customized
  Material

  Aluminum/ Iron/ Steel
• MOQ

  100 pcs
  Keyword

  Custom Casting

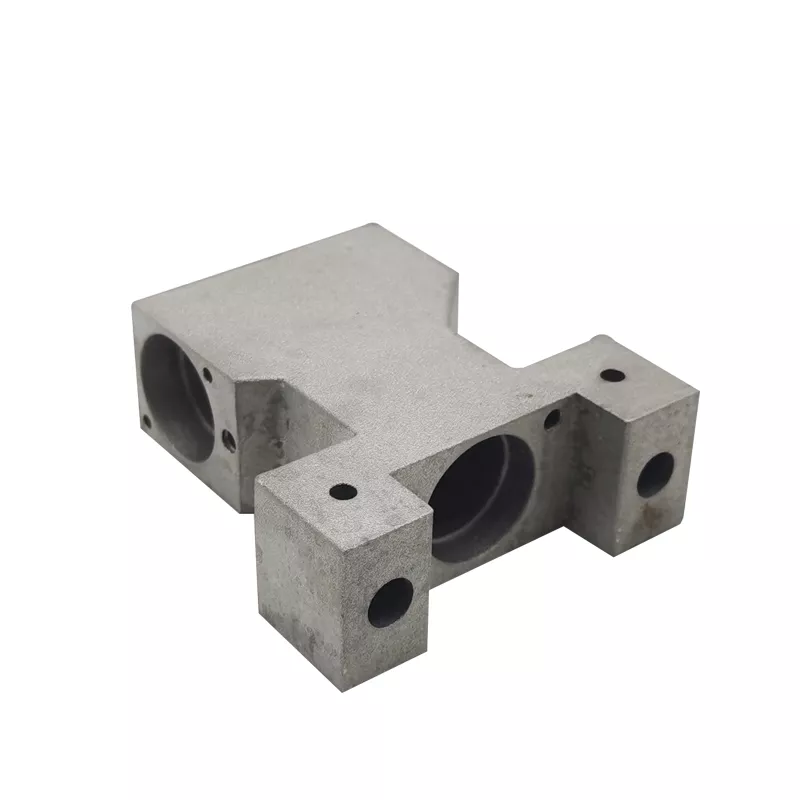

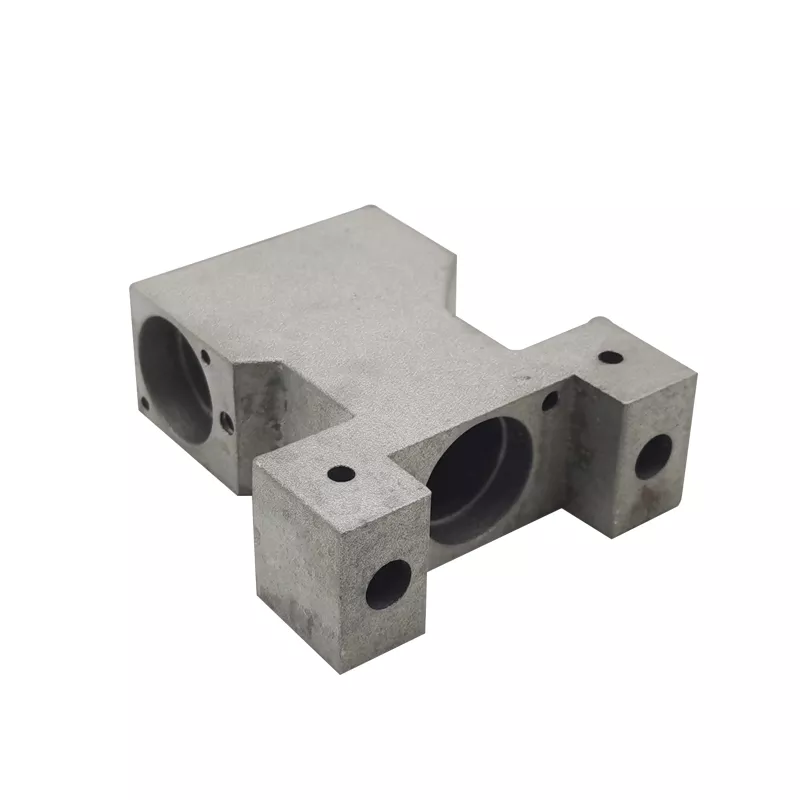

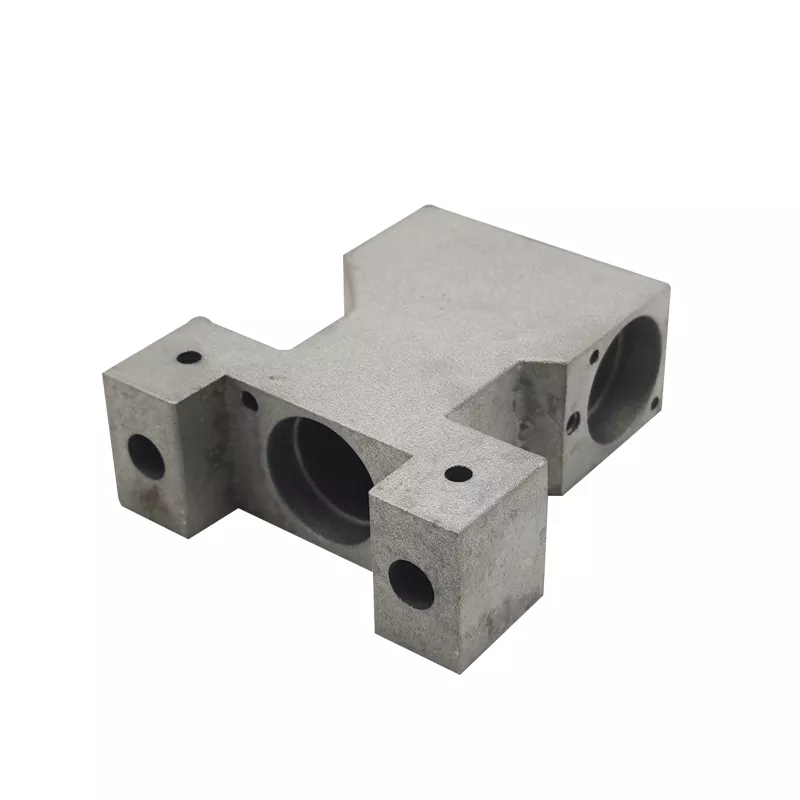

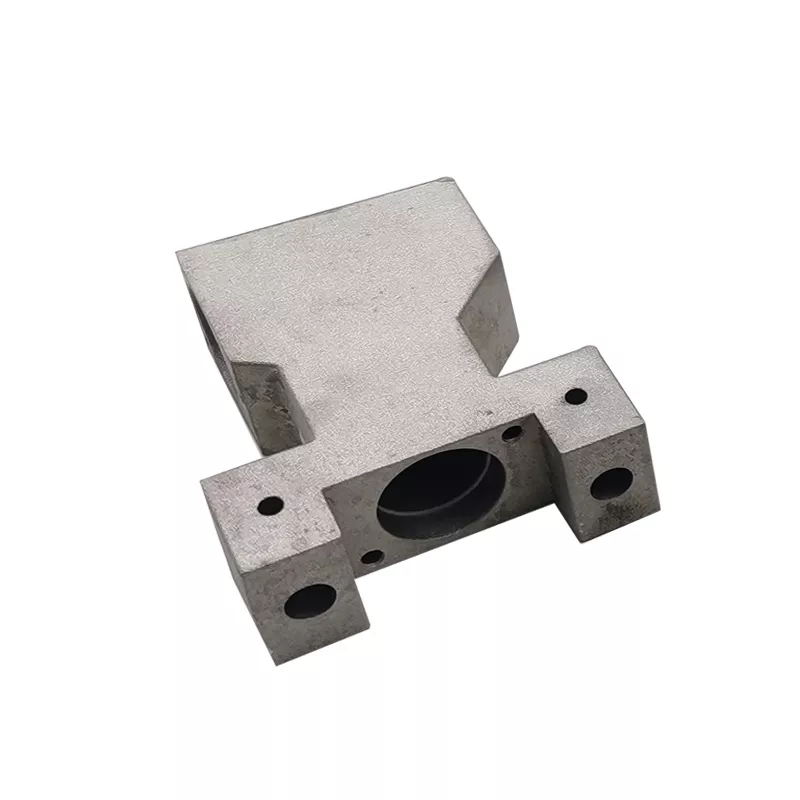

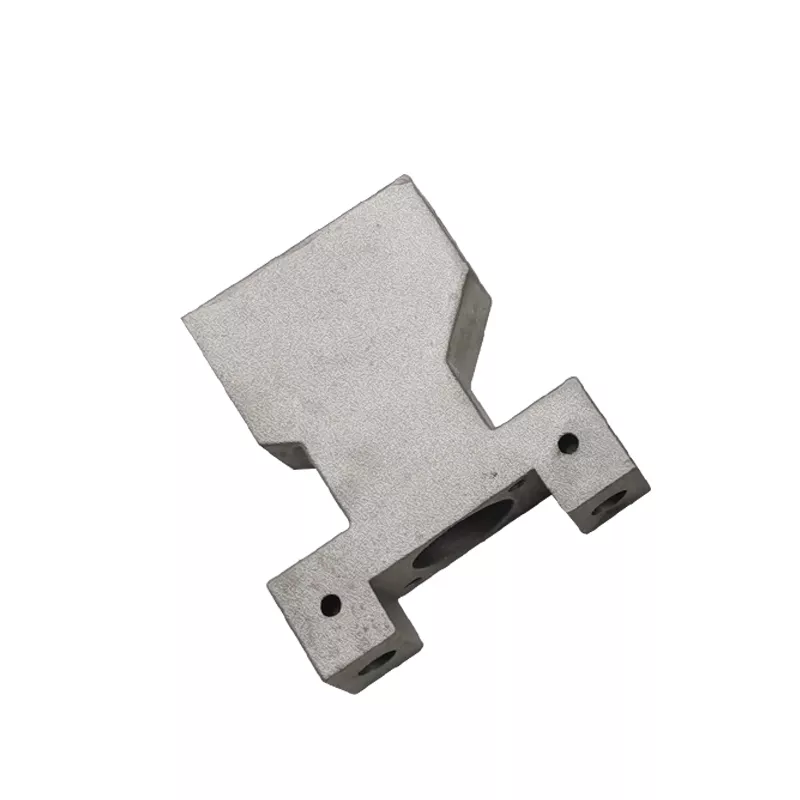

Start a shell-mold iron casting enquiry with the block geometry and the openings that must connect to the surrounding assembly. The example has projecting mounting ears, several smaller holes and larger circular openings on different faces. Its stepped outline gives each locating face a specific role in the drawing.

Map the openings through the block

Show the position and size of each circular opening from agreed datums. Provide section views wherever the internal spaces or relationships between openings affect manufacture or inspection. The visible exterior does not establish a connected internal passage, a particular fluid service or a pressure class.

• Identify the block and each projecting mounting ear.
• Define bore positions and any internal sections.
• Select grey or ductile iron with its actual grade.
• State shell-mold and secondary-machining requirements.
• Locate plated, masked and inspected surfaces.

Specify the iron and plated condition

Grey iron and ductile iron are enquiry directions that require one actual material specification for the selected component. If shell molding is required, identify that requirement in the manufacturing brief and review it against the design. General casting process choices do not mean every component uses the same route.

Zinc plating is part of the requested finishing scope rather than a property proven by the photograph. Define the required coating specification, appearance and any surfaces to remain uncoated. Where coating affects a bore, threaded interface or locating face, state whether its dimension is controlled before or after finishing.

Connect inspection to the mounting arrangement

Distinguish raw cast surfaces from faces and openings requiring machining. Identify the relationship between the mounting ears and larger bores, including the units and tolerances that govern fit. Supply the mating drawing when the inspection needs to reflect a joined assembly rather than isolated dimensions.

Include the intended operating conditions, drawing revision, quantities and required material or coating records. Any pressure, corrosion or functional qualification belongs in the project acceptance plan with a defined method; it cannot be inferred from the block shape or the finish name alone.

Discover the versatility and durability of our Custom Service Shell Mold Zinc Plating Grey Iron Ductile Iron Sand Casting Parts, meticulously crafted to meet your unique specifications. With the model number DM2309, these custom casting components are designed for a multitude of applications, ensuring that they effectively serve your needs in various industries.

Our comprehensive fabrication process includes die casting, sand casting, and precision casting, allowing for exceptional quality and precision in each part. The surface treatment options we offer—ranging from sandblasting to powder coating, painting, and plating—further enhance the aesthetics and longevity of the products, making them suitable for both functional and decorative purposes.

Customized dimensions ensure that each part fits perfectly into your projects, accommodating a wide range of requirements. Crafted from high-quality materials such as aluminum, iron, and steel, these sand casting parts boast remarkable strength and reliability.

We maintain a minimum order quantity of 100 pieces, making it easy to procure exactly what you need while staying within budget. Elevate your projects with our Custom Service Shell Mold Zinc Plating Grey Iron Ductile Iron Sand Casting Parts today, where quality meets customization.
