Custom Aluminum Casting Parts | Sand Investment and Die Casting Service Enquiries
-
Model NumberDM2104MaterialAluminum
-
ApplicationIndustryDimensionsCustomer Required
-
Surface treatmentPaint/Powder coating/oxidation etcMold makingBy ourself
-
ProcessDie Casting-deburring- MachineryServiceOEM ODM
-
FeatureEco FriendlyQuality ControlProfessional Inspection
-
PackingCarton

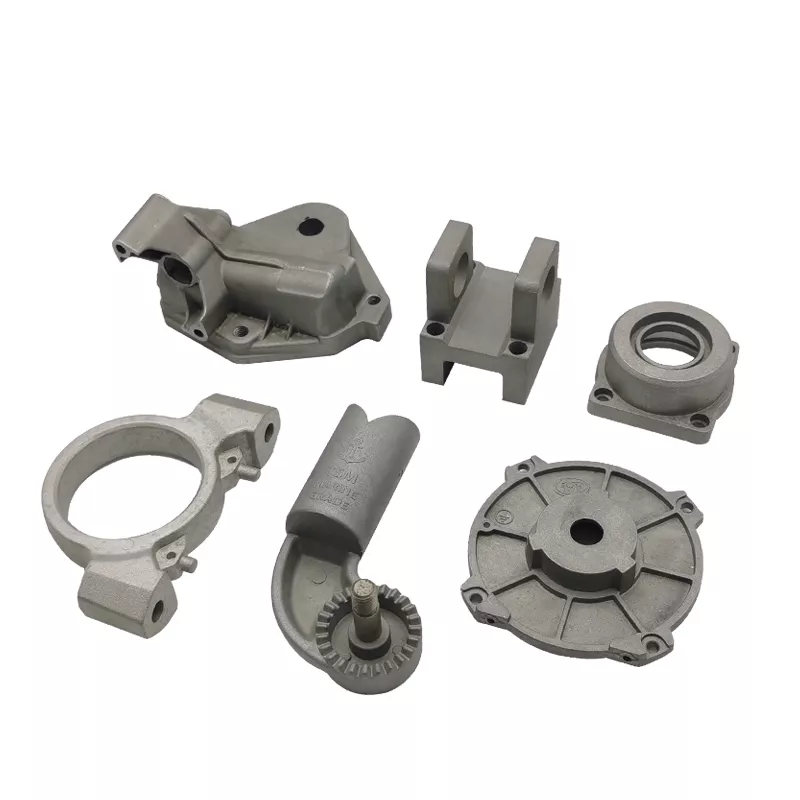

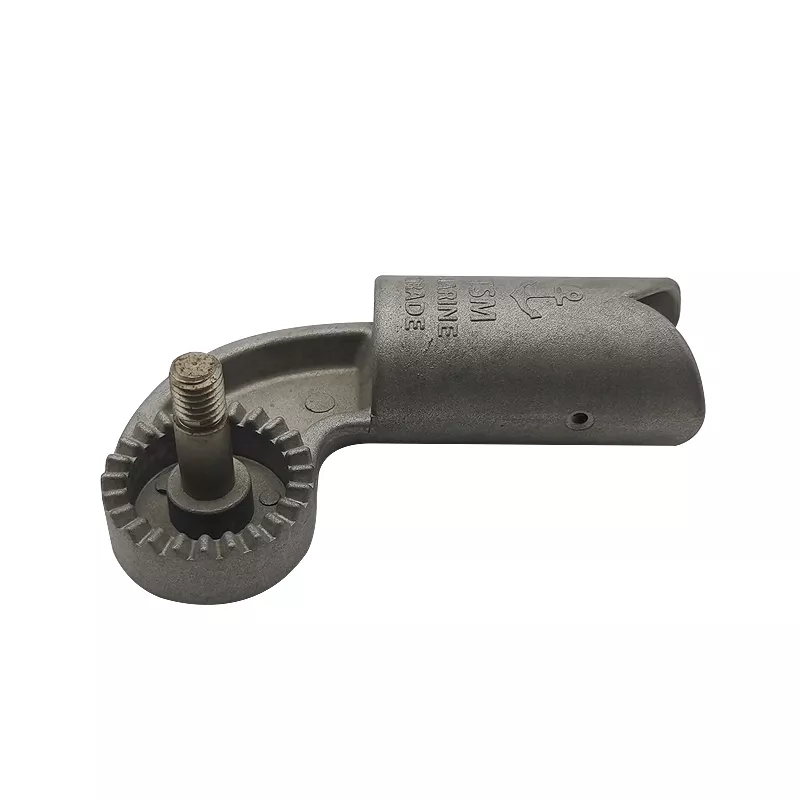

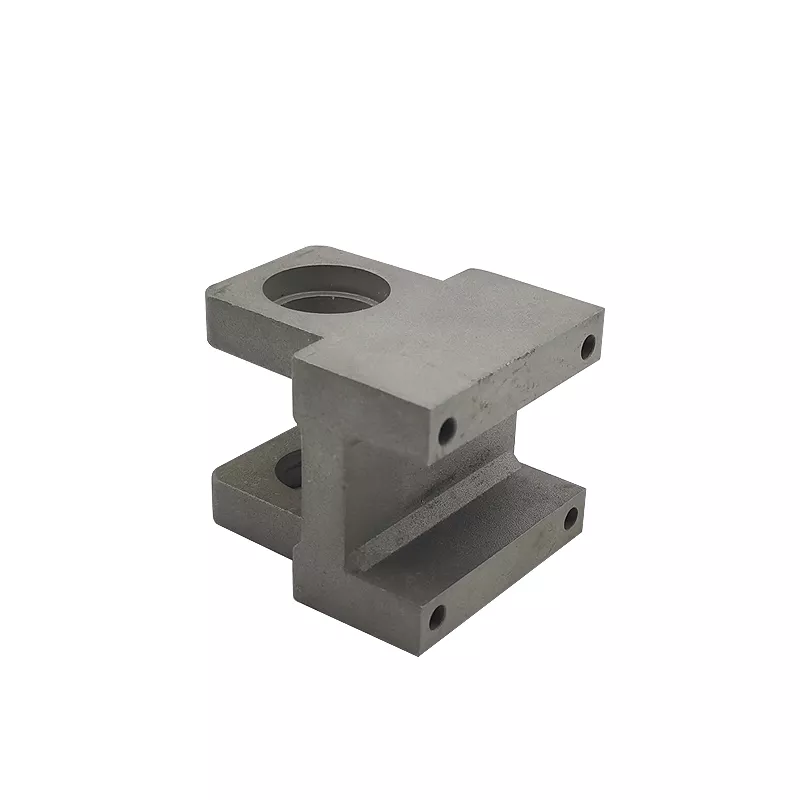

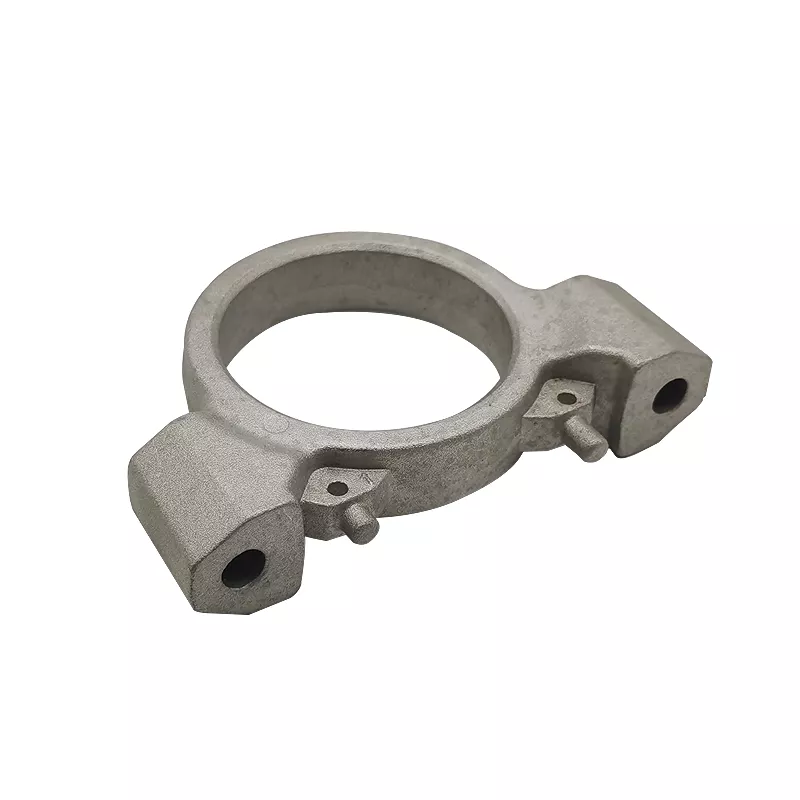

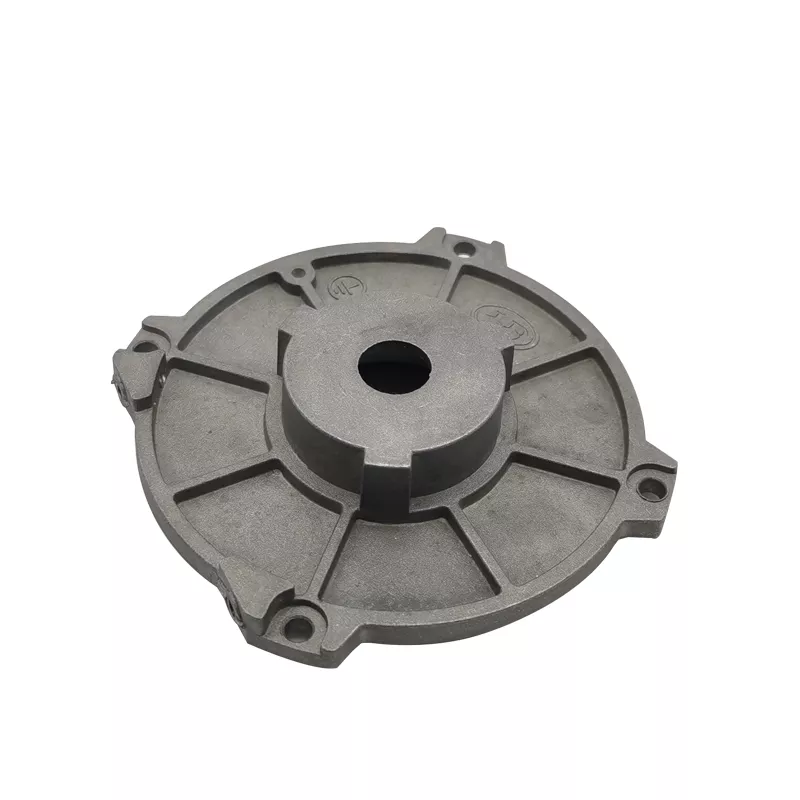

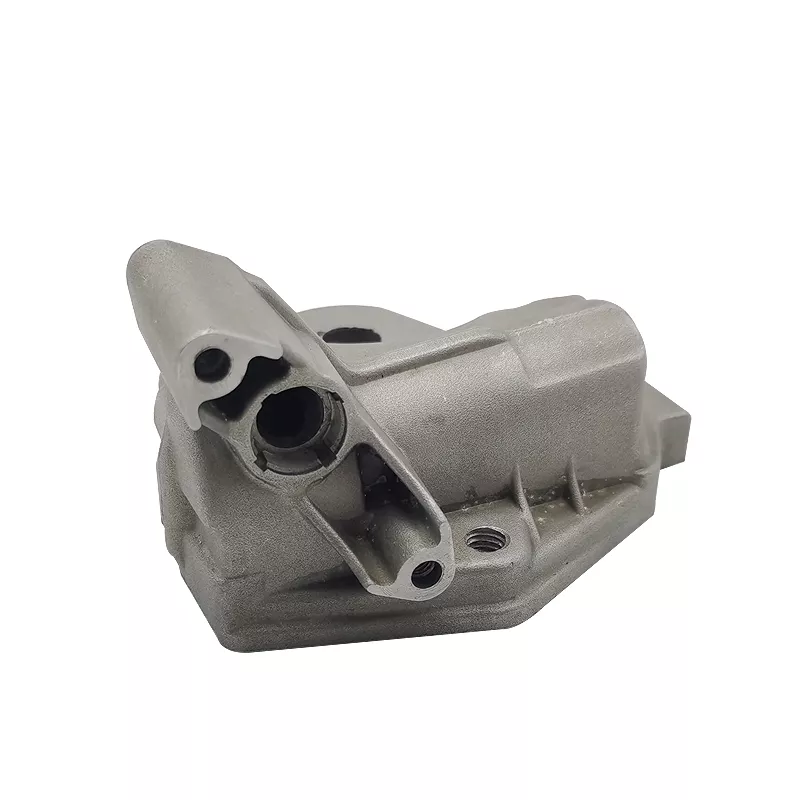

Identify the individual component required before selecting a casting service. The examples include open housing forms, a forked bracket, a circular seated part, a ring-like piece, a cylindrical item and a ribbed round cover-like part. The assortment does not establish one shared drawing, material condition or assembly relationship.
Create a component schedule for the actual request
Provide a part number, drawing revision and quantity for every item required. Define the actual outer and internal geometry, including bores, seats, mounting holes and contact faces where they affect fit. Include mating parts and section views where an exterior image cannot explain the complete design.
Do not assume that several pictured items form one supplied set. Identify any assembly relationship explicitly and distinguish individual components from complete equipment. A cover-like or housing-like appearance does not establish its operating function or a tested duty.
Select the metal and casting route per part
- Identify each selected component and drawing revision.
- Specify the actual aluminum grade and condition.
- Choose the agreed casting route for that design.
- Mark secondary machining and material-appropriate finish.
- Define final inspection and the supplied component scope.
Sand, investment and die-casting terms are directions to assess against the actual drawing. They are not one automatic sequence for every example, and the photograph does not independently establish how each blank was produced. Agree the route, deburring and machining requirements for the selected alloy and geometry.
Make finished acceptance comparable
Specify units, tolerances and measurement criteria for the interfaces controlling assembly. Select paint, coating or another appropriate treatment with masking where finishing affects dimensions or contact. State the final supplied condition rather than relying on a general precision label.
Provide the intended installation and any duty-related evidence required by the actual component. No load, sealing or thermal rating follows from the assorted forms. Confirm quantities and documentation so proposals address one coherent material, route and inspection plan for each part in the schedule.
