Custom Iron Steel Stainless Zinc Alloy Sand Casting Parts | China Factory Ribbed Bracket Enquiries
-
Model Numbersand casting

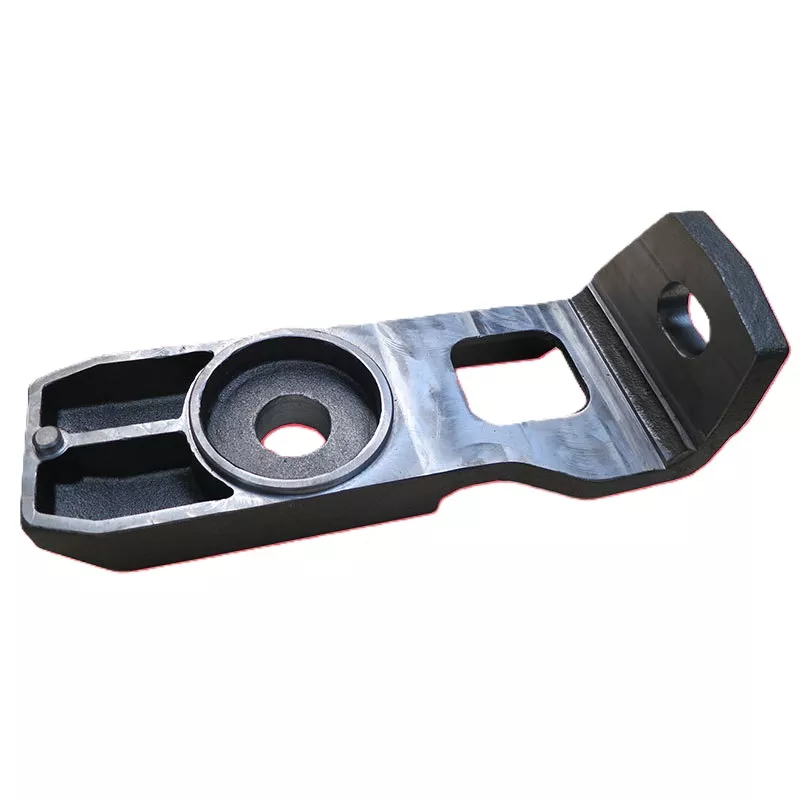

The example is an elongated ribbed bracket with a central circular recess, a rectangular window and an upturned end containing a hole. Select the actual part drawing; the photograph does not establish material chemistry, numerical dimensions or a load rating.
Locate the raised end from the main bore
Dimension the circular recess, end angle, hole position and mounting contacts from functional datums. Provide adjoining references and distinguish fitted surfaces from clearances or openings.
Choose the metal and review sand-casting feasibility
Specify the actual iron, steel, stainless or zinc alloy standard and condition. Review sections, quantities, machining stock and compatible finishing for that metal; a material list does not prove every combination is suitable for one route.
- Identify the bracket drawing and revision.
- Specify actual alloy and final condition.
- Dimension recess, window and end-hole contacts.
- Define cast sections and machining allowance.
- Agree finish, inspection and relevant load tests.
Accept the bracket against defined requirements
State final tolerance units, measurement conditions and the real installation duty. Broad machinery, automotive or construction references do not establish universal fit or tested durability; material and inspection evidence should apply to this component.
Discover high-quality sand casting parts directly from a professional China factory. We specialize in manufacturing custom iron, steel, stainless steel, and zinc alloy casting components, designed to meet diverse industrial requirements. Our experienced team ensures every part is crafted with precision, following strict quality control procedures.
We offer tailor-made sand casting solutions to accommodate various design specifications, dimensions, and surface finishes. Whether you need small batches or mass production, our advanced facilities and skilled engineers guarantee consistent product quality and prompt delivery.
Our sand casting services are suitable for a wide range of applications including machinery, automotive, construction, and more. We focus on providing cost-effective and reliable casting parts that help improve your products' performance and durability. Contact us for OEM and customized solutions to fit your project's needs.
