Custom Gray Iron Ductile Iron Sand Casting Machinery Components with Machining Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
Model Number2110MaterialIron/Aluminum
-
ApplicationIndustryDimensionsCustomer Required
-
Surface treatmentPaint/Powder coating/oxidation etcMold makingBy ourself
-
ProcessDie Casting-deburring- MachineryServiceOEM ODM
-
FeatureEco FriendlyQuality ControlProfessional Inspection
-
PackingCarton

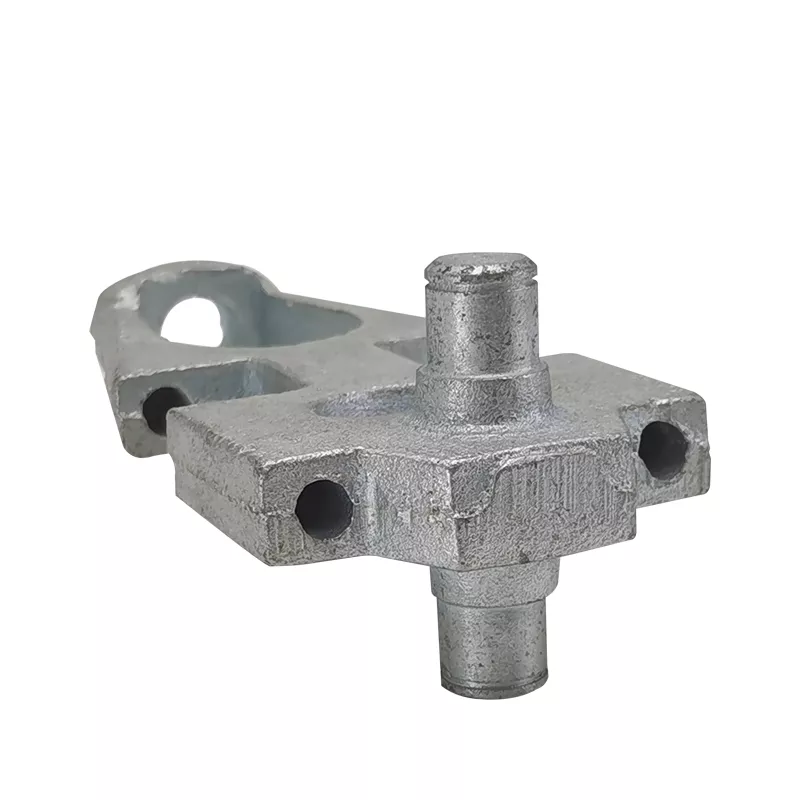

Cylindrical ends and fixing holes on a shaped mounting body

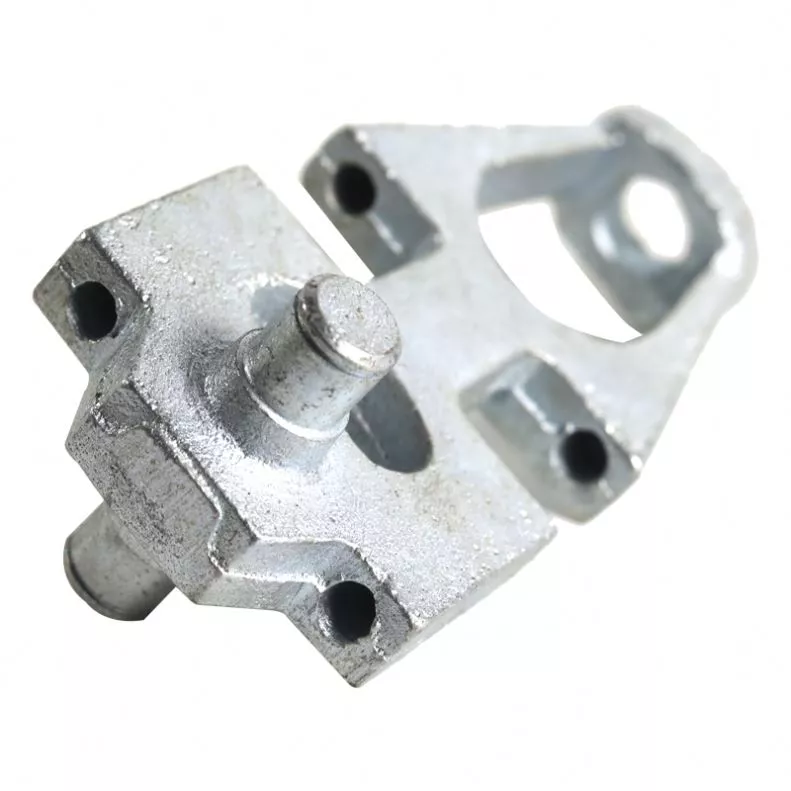

The retained views show raised cylindrical regions, a pair of front fixing openings and a connecting form with a larger opening toward its rear. Define the cylinder axes, hole positions and mounting contacts on the drawing, including their relationship to the mating component.
Material and machining for the actual bracket
For gray or ductile iron sand casting, specify the required grade and route. Mark finished bores, contact faces and any shaft-like regions requiring machining; the image does not establish an iron grade.
Provide quantities, finish and drawing revision. Include dimensional and material inspection requirements for the cylindrical ends and fixing interfaces. The two views describe a mounting form, rather than a supplied assortment of housings and levers.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
