Model NumberS2407Materialaluminum /iron /steel/ zamac/cooper etc
-
ApplicationIndustrySurface treatmentPowder Coating /Painting / CNC /Anodizing etc.
-
ProcessCasting +Machining(if Need)+surface TreatmentCertificationISO9001/TS16949/RoHS
-
Quality Control100% Inspected /ISO9001 SystemDrawing format2D/(PDF/CAD)3D(IGES/STEP)
-
MOQNegotiablePackingPoly Bag + Inner Box + Carton
-
StandardEN124 Standard/EN1433/Customized

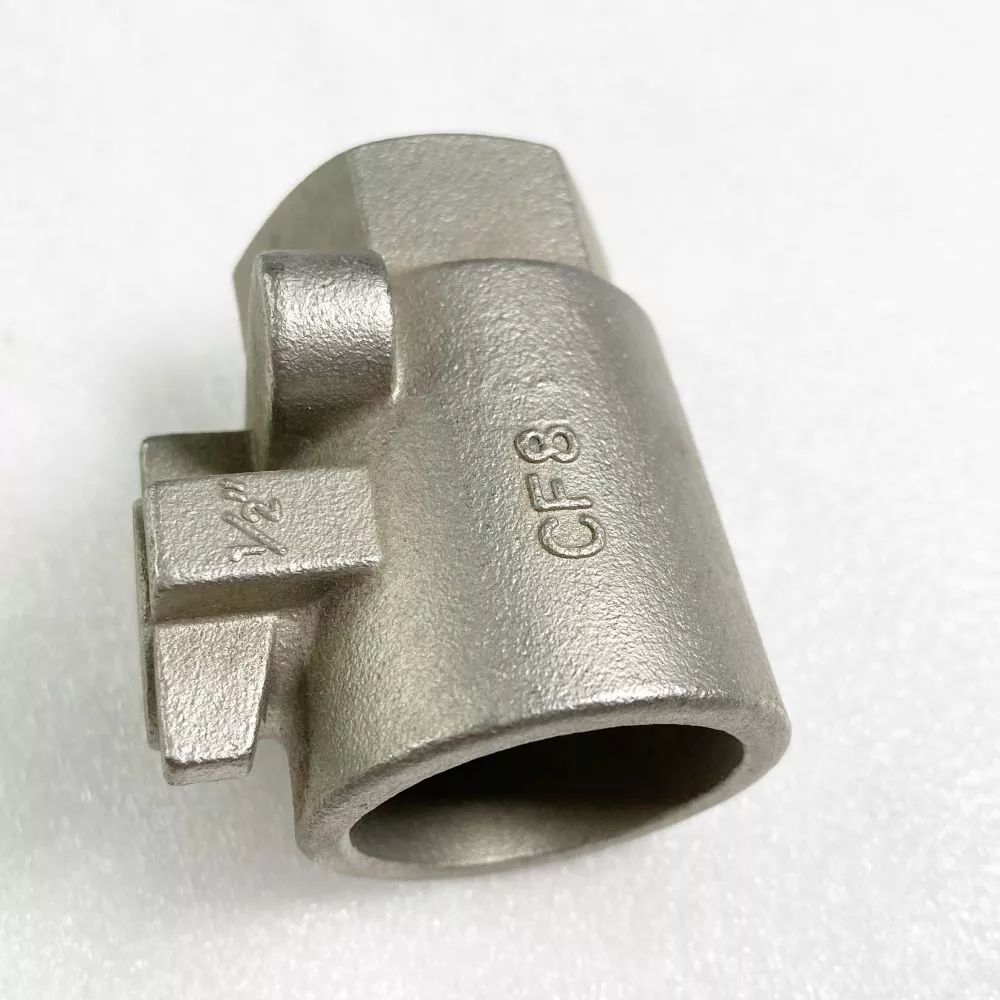

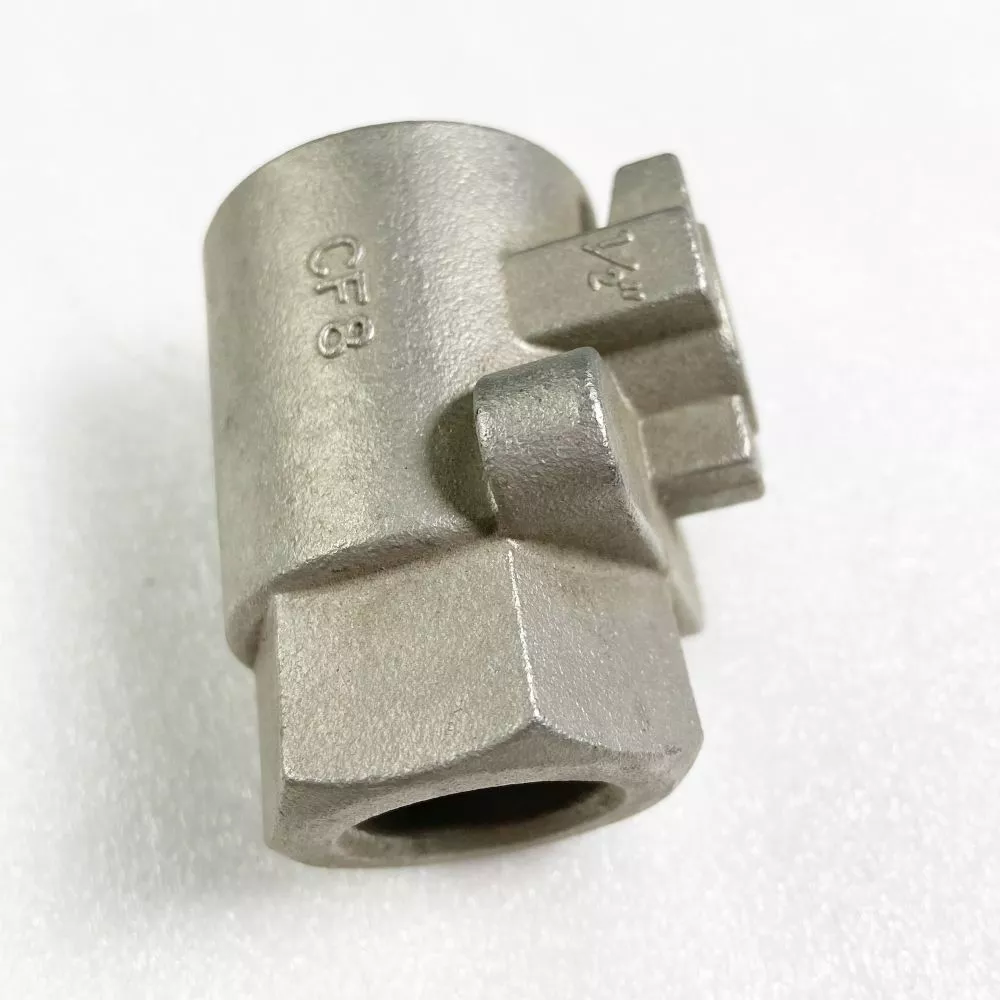

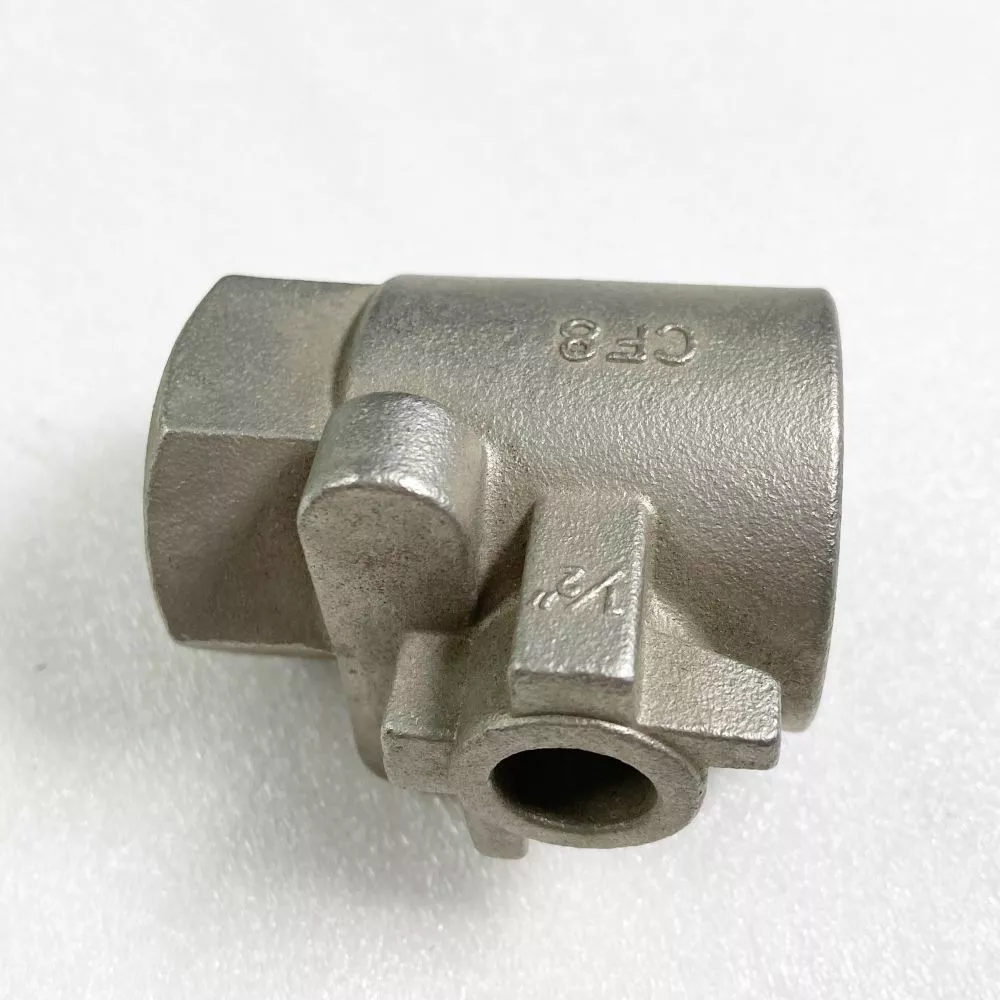

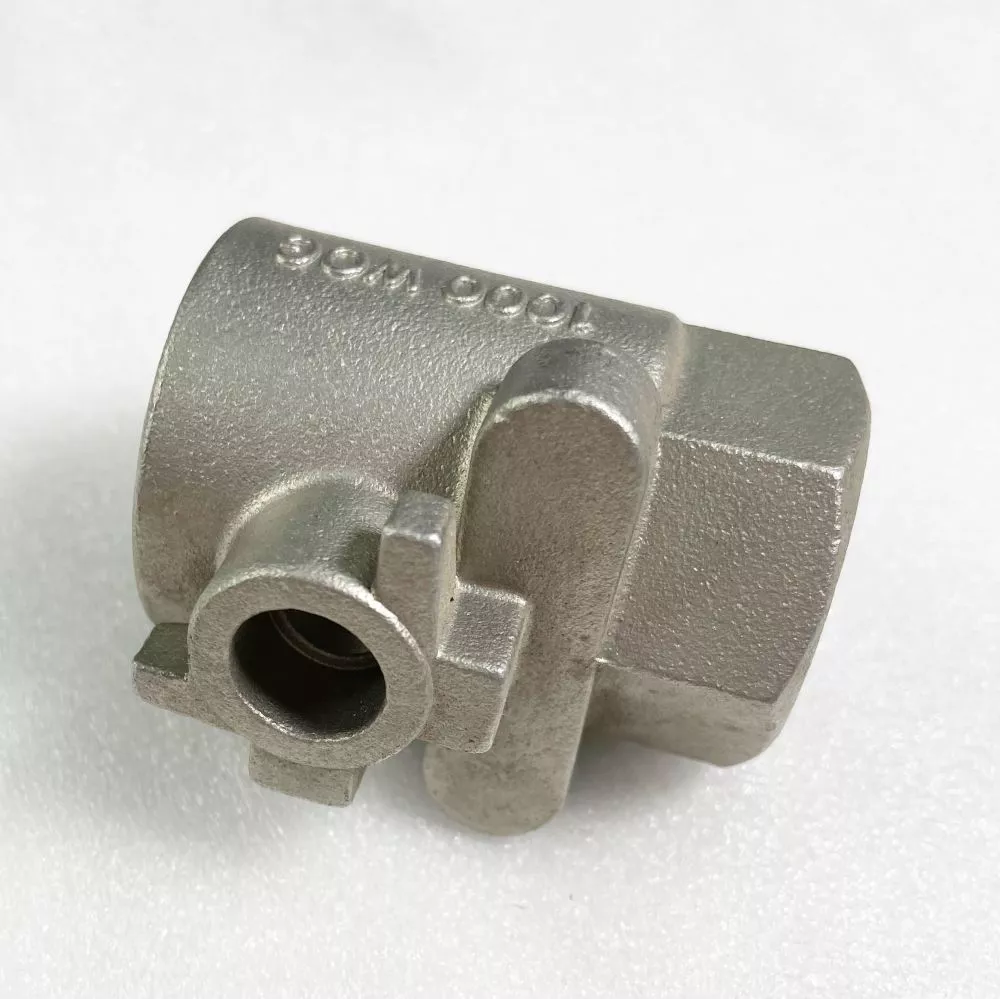

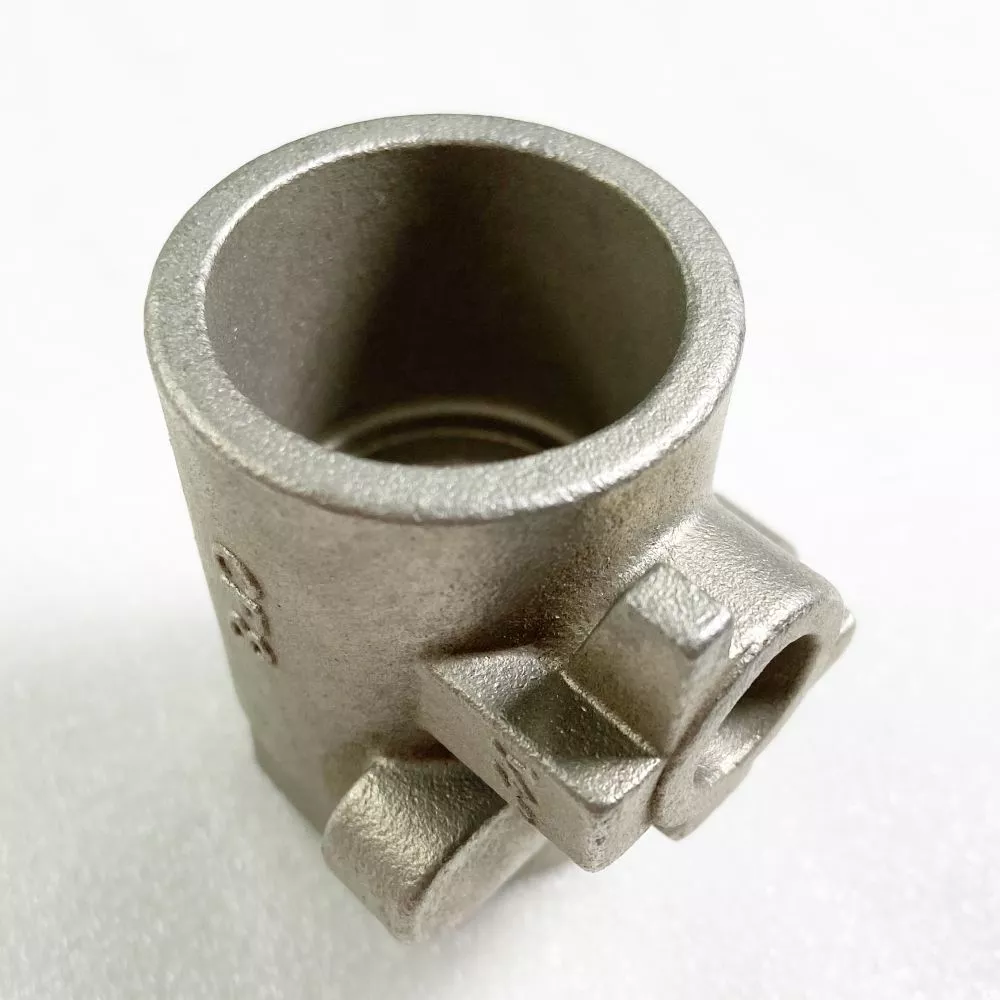

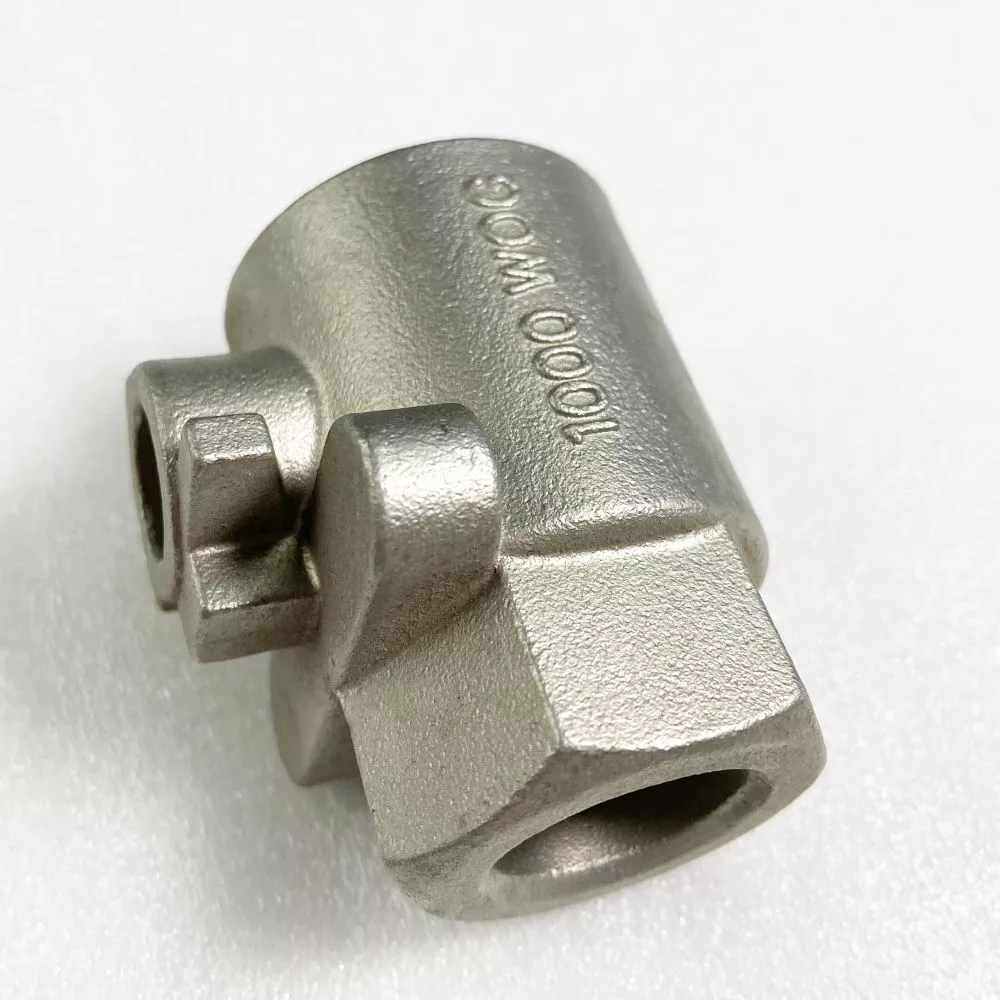

Define the fitting-like component through its main opening and side boss before selecting a finished condition. The example has a hexagonal end, cylindrical body and raised identifying marks. The image does not independently verify stainless grade, a polish specification or the actual connection standard.
Describe the body and side interface
Provide sections that relate the main opening to the side boss and explain any required internal spaces. State actual connection or thread requirements with mating dimensions. Identify whether the request covers the component alone or additional fittings, inserts and other separately defined pieces.
Specify stainless steel and the polished surface
Select the actual stainless grade and condition for the investment-casting enquiry. Other listed metals are separate alternatives. Define the forming and secondary-machining requirements, then specify the polish and appearance criteria for the selected surfaces rather than assuming a finish from the rough-textured example.
- Identify the fitting component and drawing revision.
- Select actual stainless grade and material evidence.
- Locate main and side connection interfaces.
- Define machining and the required polished regions.
- Agree final inspection and application criteria.
Inspect the supplied connection geometry
Use PDF/CAD or IGES/STEP drawings to state units, tolerances and final measurement conditions. Identify any masking, protected interfaces or appearance checks after treatment. Required qualifications must have current evidence applicable to the actual component and inspection scope.
Include quantities, intended media or service conditions and any functional tests required by the design. Neither the hexagonal shape nor the surface markings establishes pressure capability, compatibility or approval of a finished fitting.
Discover the exceptional quality of our Stainless Steel Casting, expertly crafted for a variety of industrial applications. Manufactured using advanced investment casting techniques, our stainless steel parts offer unparalleled precision and durability. Each component undergoes a meticulous process that may include machining and surface treatments such as powder coating, painting, CNC machining, or anodizing, ensuring they meet the highest standards.
With model number S2407, our products are made from premium materials including aluminum, iron, steel, zamac, and cooper, providing versatility to cater to diverse industry needs. We pride ourselves on adhering to strict quality control measures, with every piece 100% inspected under ISO9001 and TS16949 certification, guaranteeing exceptional performance and reliability.
Our commitment to quality is reinforced through our adherence to international standards like EN124 and EN1433, while also offering customizable solutions to best fit your project requirements. We accept drawing formats in both 2D (PDF/CAD) and 3D (IGES/STEP), ensuring seamless integration into your production workflow.
Whether you need a small quantity or require a larger order, our minimum order quantities are negotiable to accommodate your specific needs. Each product is securely packed in a poly bag, accompanied by an inner box, and shipped in a sturdy carton to ensure safe delivery.
Elevate your manufacturing capabilities with our Stainless Steel Investment Casting solutions, where quality, reliability, and innovation come together to meet the demands of modern industry.
