Custom Aluminum Die Casting Sand and Investment Casting Enquiries for Ribbed Round Covers
Generate QR code
Product description
Project & Delivery Requirements
-
Model NumberRTS-03MaterialAluminum
-
ApplicationIndustryDimensionsCustomer Required
-
Surface treatmentPaint/Powder coating/oxidation etcMold makingBy ourself
-
ProcessDie Casting-deburring- MachineryServiceOEM ODM
-
FeatureEco FriendlyQuality ControlProfessional Inspection
-
PackingCarton
Ribs connect the center to peripheral fixing areas

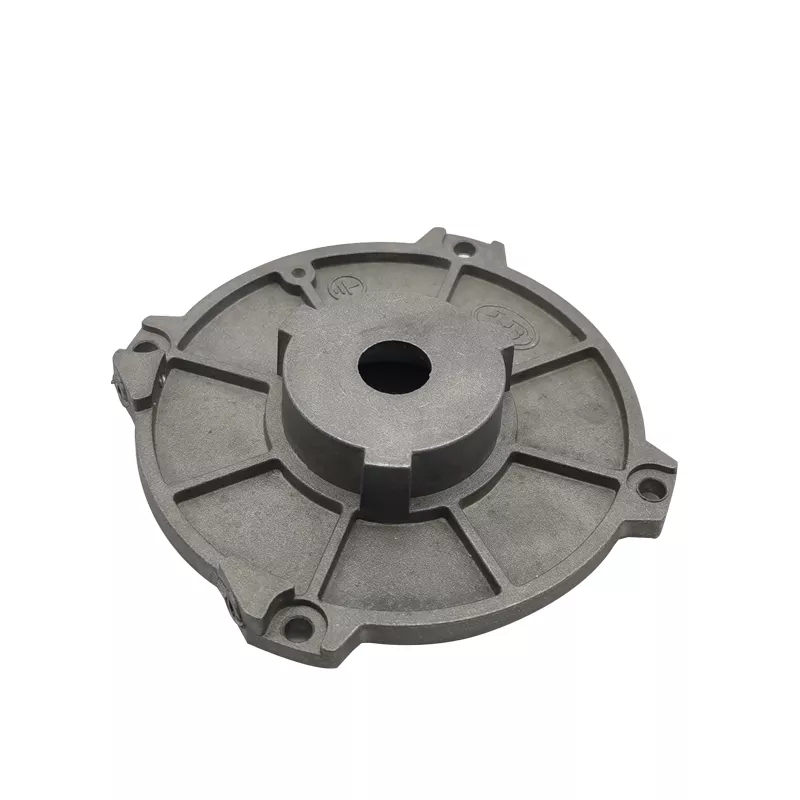

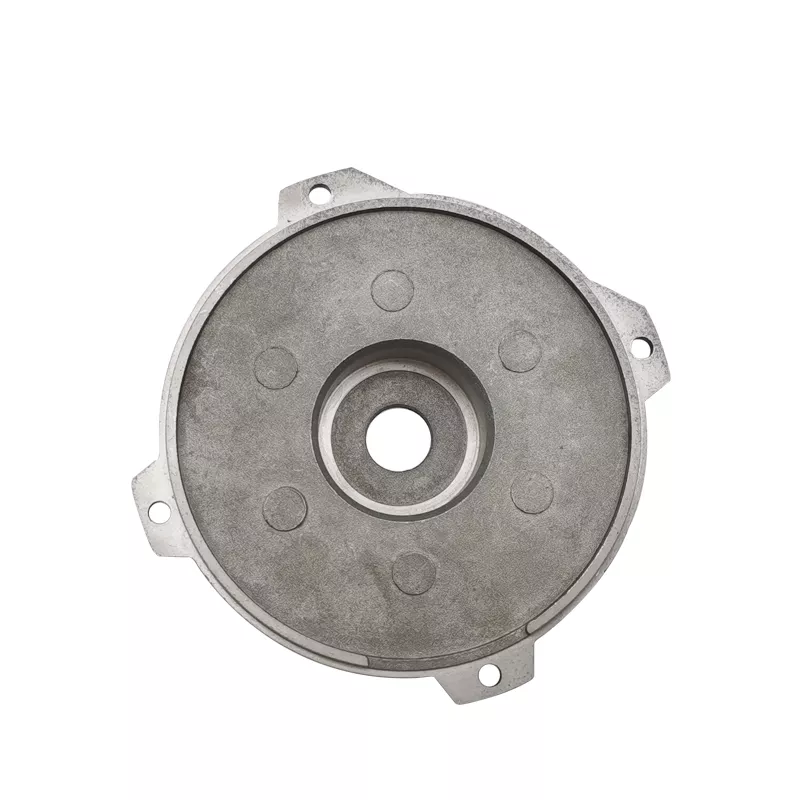

The example has a round cover-like form with radial ribs, a center opening and fixing lugs around its edge. Define the bore and reference face before locating the lugs and specifying the required rib sections.
Specify the aluminum casting route
Provide the alloy and state whether die, sand or investment casting is requested for review. Mark any bore, flange face or hole requiring subsequent machining.
Include quantities, finish and drawing revision. State inspection criteria for the center opening, contact face and fixing pattern, with any material records required for the part.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
