Product description
Project & Delivery Requirements
-
Model NumberS2211MaterialAluminum/Steel/Stainless Steel
-
ApplicationIndustryDimensionsCustomer Required
-
Surface treatmentPaint/Powder Coating/Oxidation etcMold makingBy Ourselves
-
ProcessDie Casting-deburring- MachineryServiceOEM ODM
-
FeatureEco FriendlyQuality ControlProfessional Inspection
-
PackingIndividually Packed or as per your requirements

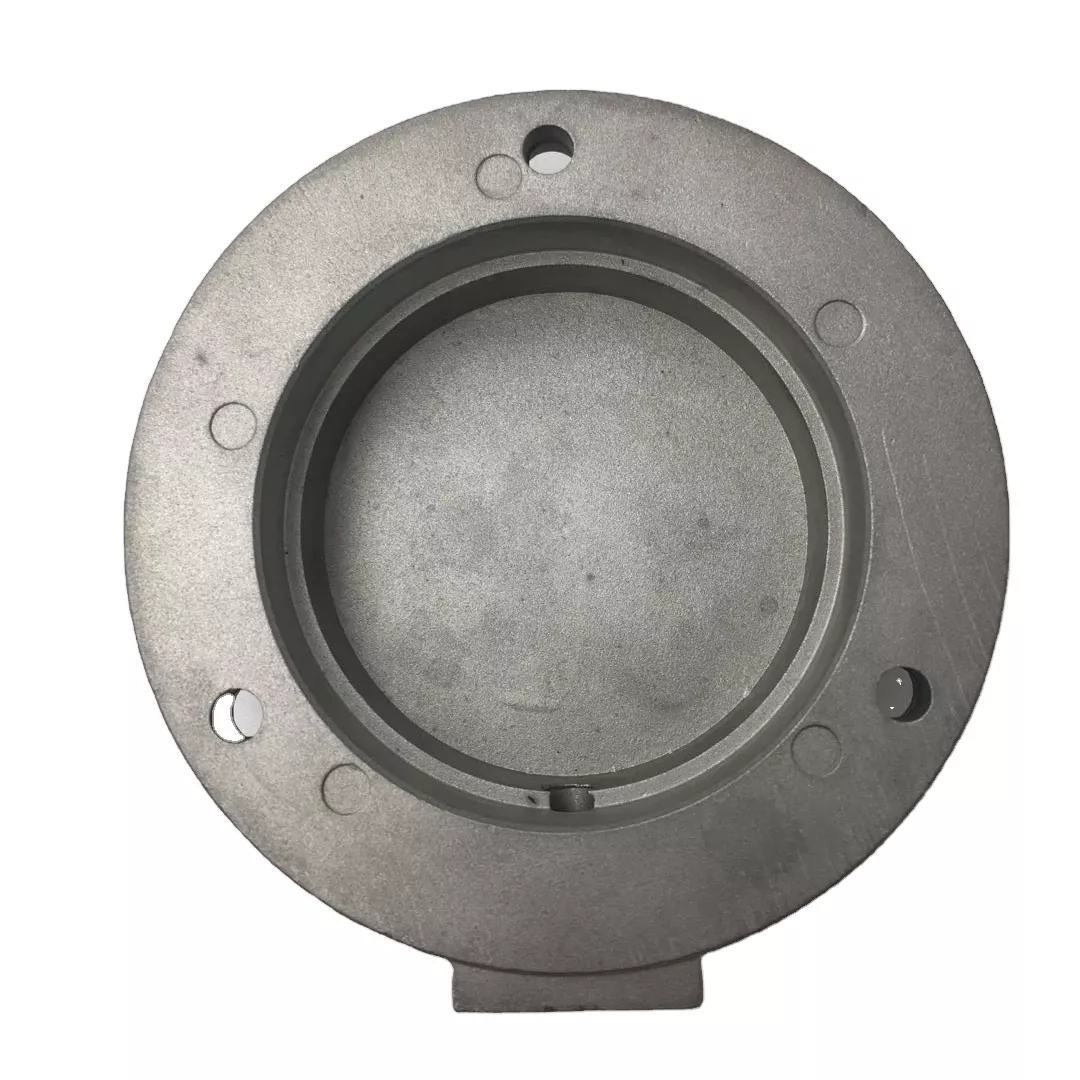

A recessed center within a drilled mounting flange
The example has a broad round flange, a deep circular recess and fixing openings around its edge. Define the recess axis, flange reference face and hole pattern together, including any locating contacts required by the mating component.
Confirm the casting route on the part specification
For aluminum sand casting, state the alloy and route required for review. The retained process parameter names die casting; the appearance of the cover does not establish which method produced it.
Mark surfaces needing machining, with quantities, finish and drawing revision. Include inspection criteria for the recess, holes and flange. The dark surface does not verify a coating specification, and the image does not establish a pressure or sealing rating.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
