Custom Sheet Metal Ring Plates and Box Component Enquiries | Bending and Stamping Service
Generate QR code
Product description
Project & Delivery Requirements
-
Model NumberS2407RMaterial CapabilitiesSteel/Aluminum/copper/Stainless Steel 316/brass
-
ApplicationMachinery/Industry/Home/AutomotiveEquipmentCNC Bending/Stamping Machine/Laser Marking
-
ProcessLaser Cutting Bending StampingKeywordSheet metal fabricating part
-
Surface treatmentPainting\Powder Coating\Plating\PolishingDrawing format2D/3D/CAD/DWG//STEP/PDF/IGS
-
CertificateISO9001/TS16949LogoAccept Customized Logo
-
TechnologyStamping+drilling+assembly

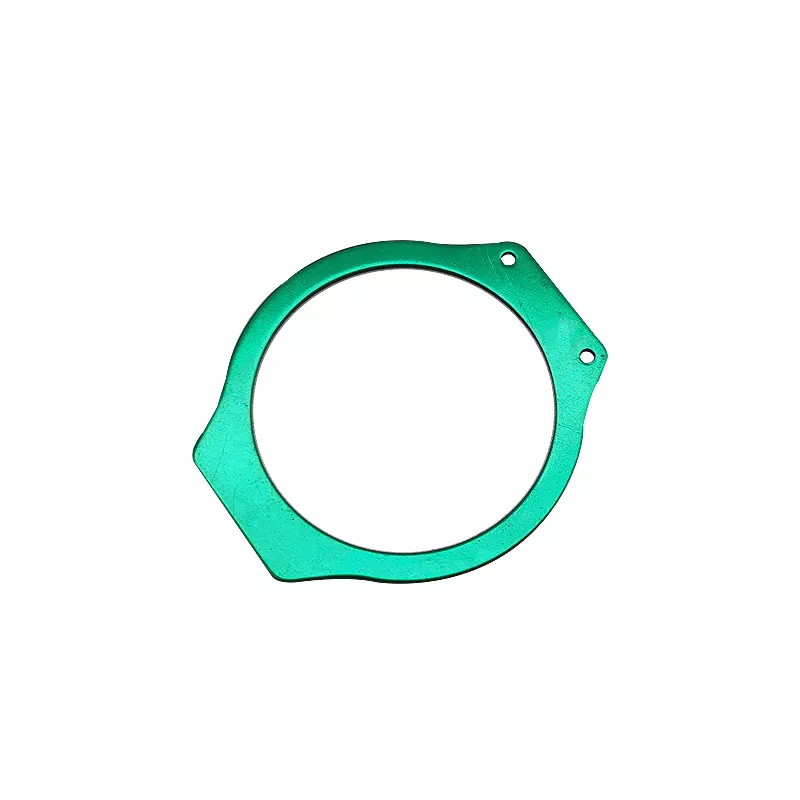

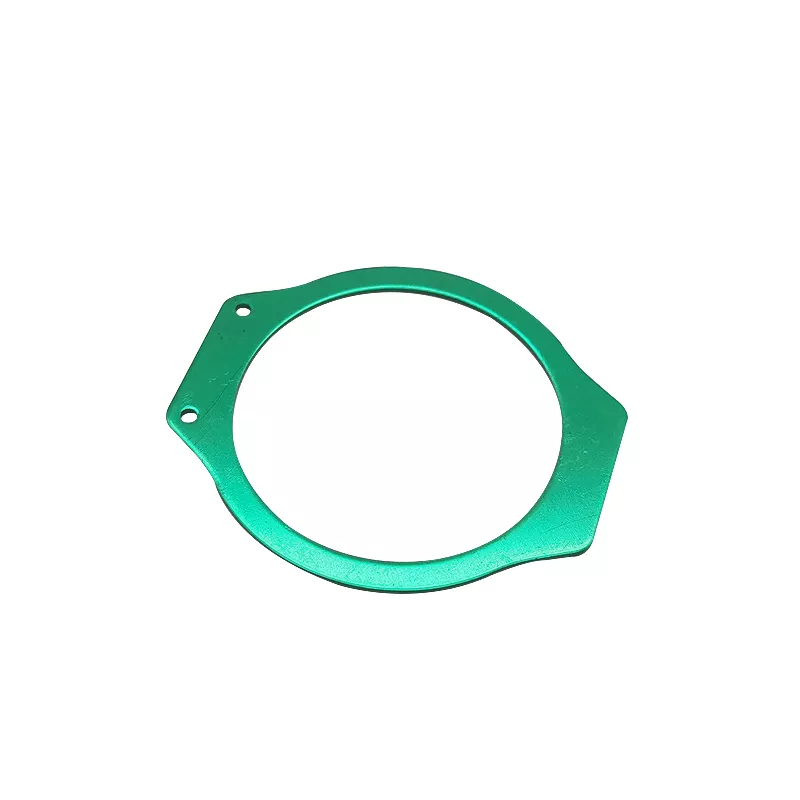

A large center opening within a thin mounting ring
The green example is a flat ring-like plate with projecting regions and small fixing holes. Dimension its central opening, outer profile and hole pattern together, including the contact face used in the assembly.
Specify the sheet grade, thickness and finish for the requested component. The original box or kit wording does not establish that this image represents a complete enclosure or a supplied assembly.
If the enquiry covers a box or stamping kit
List every required component with its drawing, bends, joins and fastening details. Include quantities and inspection criteria for the ring and adjacent parts. The color of the example does not verify a particular material, coating specification or electrical function.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
