Custom Aluminum Steel and Stainless Steel Sheet Metal Stamping Panels with Bent Mounting Flanges
-
Model NumberS2208 2407RMaterialsteel, stainless steel, aluminum
-
SizeCustomized sizeApplicationMachinery/Industry/car
-
ColorCustomized ColorProcessStamping
-
ServiceCustomized OEMUsagePrecision Metal Stamping Product
-
PackingCartonTypeOEM Parts
-
EquipmentCNC Bending/Stamping Machine

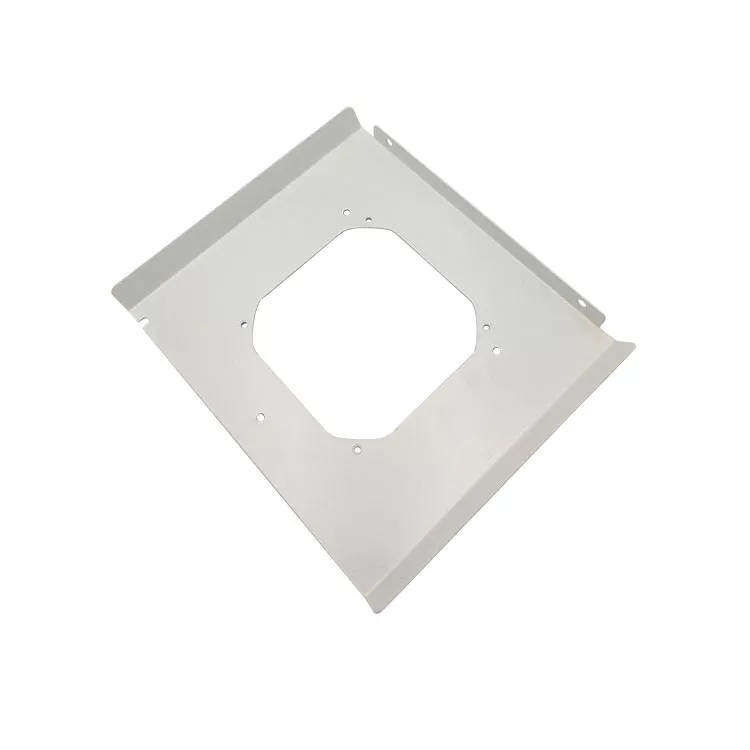

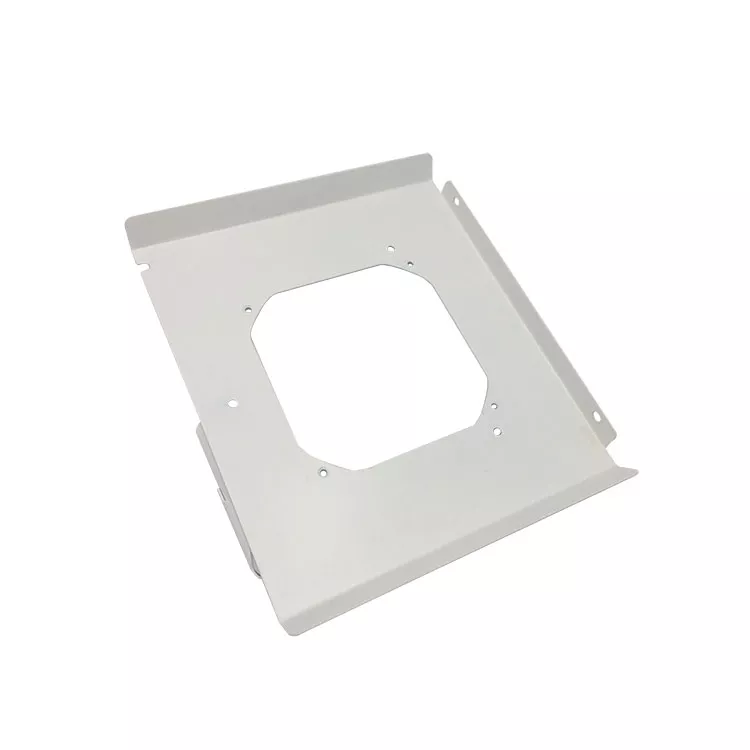

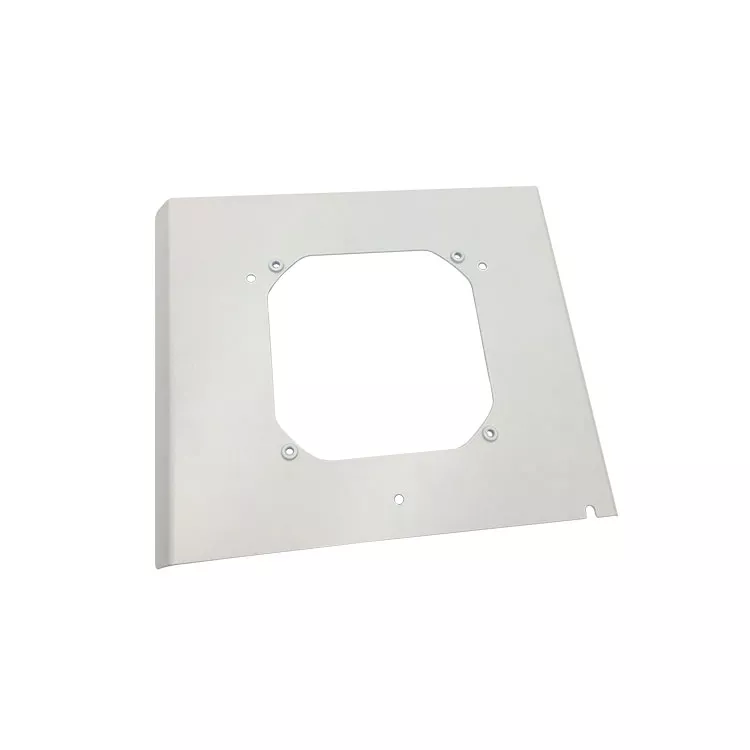

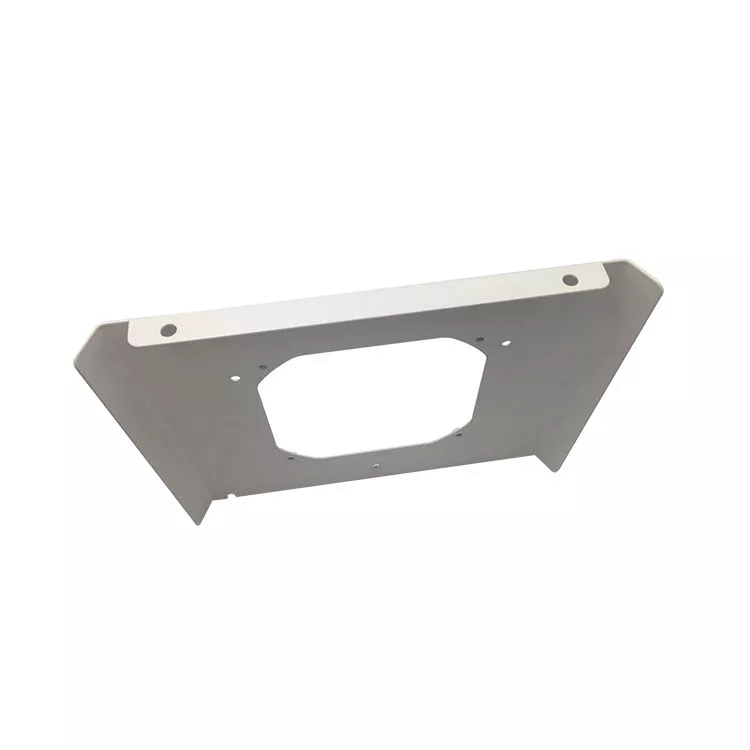

S2208 2407R custom sheet metal stamping enquiries include the illustrated panel with bent edge flanges, a large central cutout and smaller mounting holes. The part drawing determines the panel outline and the position of these interfaces. Steel, stainless steel and aluminum are listed material options.
Coordinate the cutout and formed edges
Specify the sheet grade and thickness, the central opening and the mounting-hole pattern. Dimension the flange heights and bend locations from the required references. Where a mounting hole lies in a bent edge, show the finished position so that acceptance addresses the formed component.
CNC bending and stamping equipment are listed for custom OEM work. Identify the required color and finish condition, together with any edges or visible faces needing particular attention. A light-colored sample does not establish its coating system or metal grade.
Enquiry information
Provide the current drawing and quantity, including the mating component where it controls clearances. Define inspection points for the cutout, holes and flange alignment. Agree the material, operations and packing protection for the panel's formed edges before placing the order.
