Custom Ductile Cast Iron Sand Casting Parts with Central Bore and Mounting Flange
Generate QR code
Product description
Project & Delivery Requirements
-
Model Number2111MaterialAluminum
-
ApplicationIndustryDimensionsCustomer Required
-
Surface treatmentPaint/Powder coating/oxidation etcMold makingBy ourself
-
ProcessDie Casting-deburring- MachineryServiceOEM ODM
-
FeatureEco FriendlyQuality ControlProfessional Inspection
-
PackingCarton

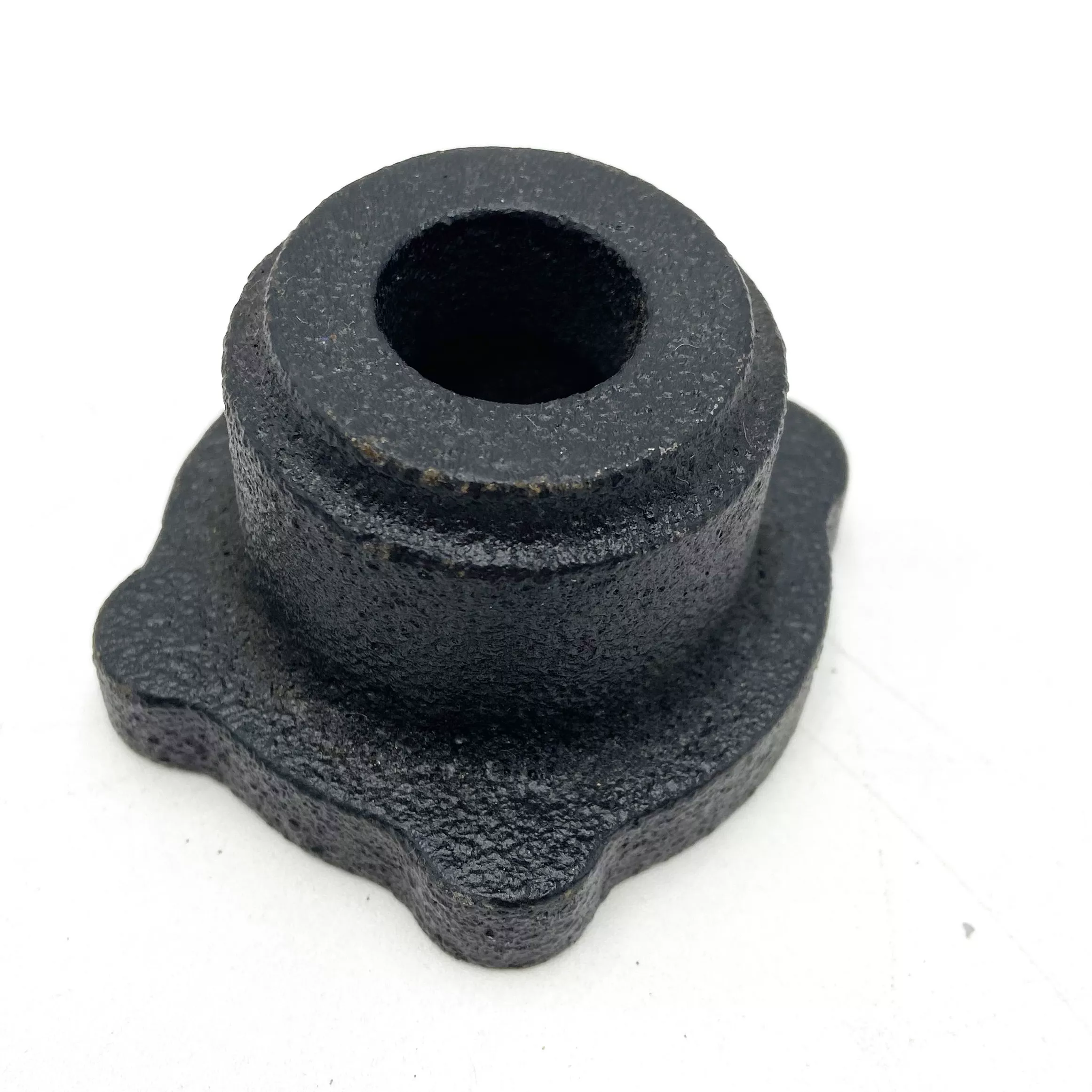

A hollow body above a mounting flange
The dark example has a large central opening and a broad flange with mounting features around its edge. Define the bore axis, flange reference face and the dimensions that connect the component to the mating assembly.
For a ductile iron sand-casting enquiry, specify the grade and required section geometry. Mark the bore, contact faces and fixing details that need machining.
Inspection and finishing scope
Include quantities, surface treatment and the drawing revision. State material-document requirements and inspection criteria for the finished bore, flange and mounting interfaces.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
