Custom Slotted Sheet Metal Mounting Plates | CNC Stamping and Spring Part Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
Model NumberS24009 2407RMaterial CapabilitiesSteel/Aluminum/copper/Stainless Steel 316/brass
-
ApplicationMachinery/Industry/Home/AutomotiveEquipmentCNC Bending/Stamping Machine/Laser Marking
-
ProcessCutting Bending Stamping WeldingSurface treatmentPainting\Powder Coating\Plating\Polishing
-
Drawing format2D/3D/CAD/DWG//STEP/PDF/IGSCertificateISO9001/TS16949
-
KeywordSheet Metal Fabricating Parts

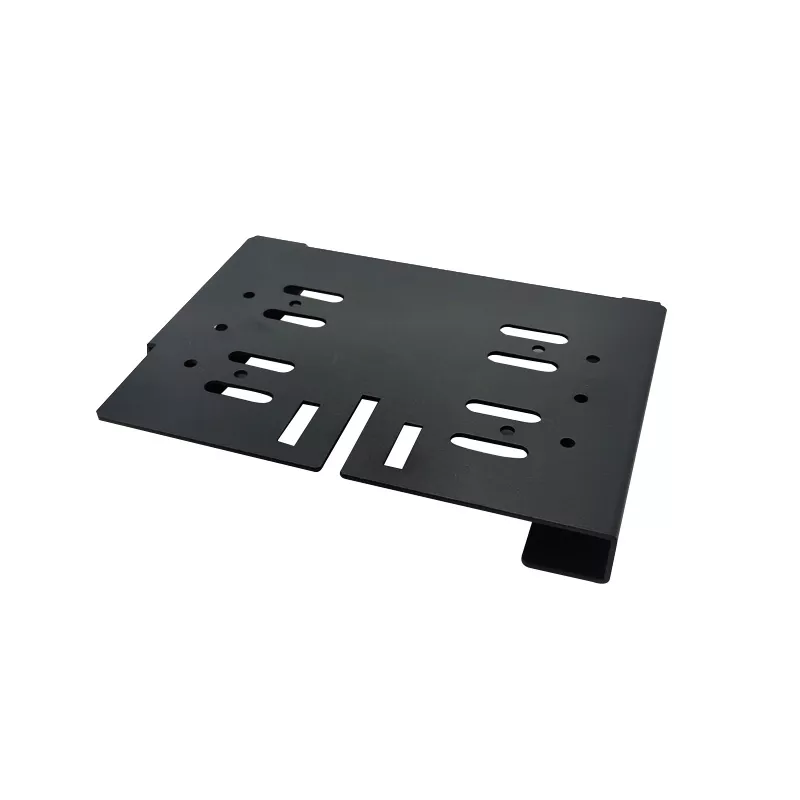

Slots across a plate with raised fixing edges

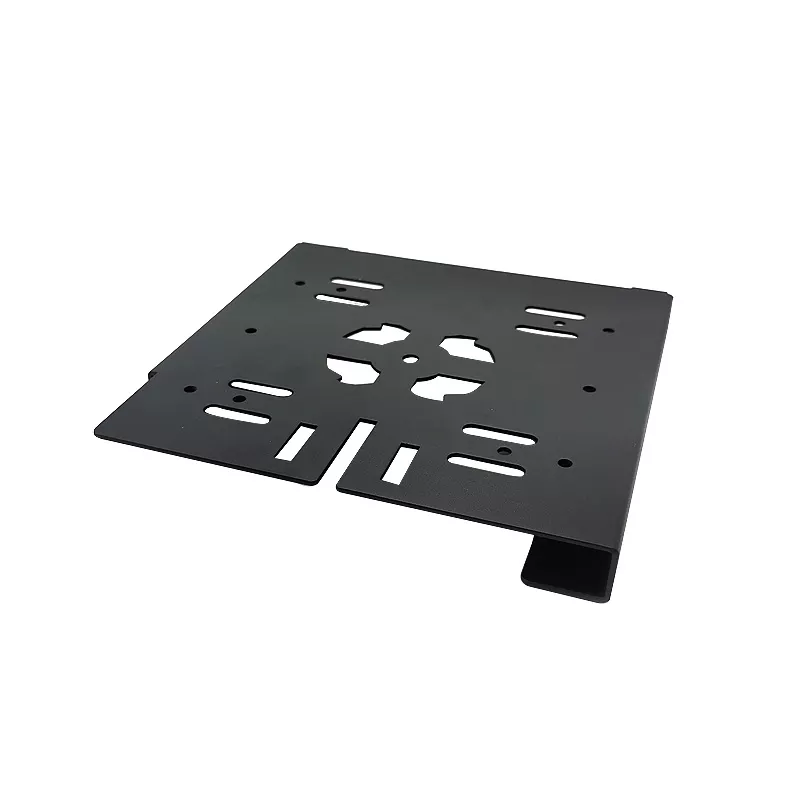

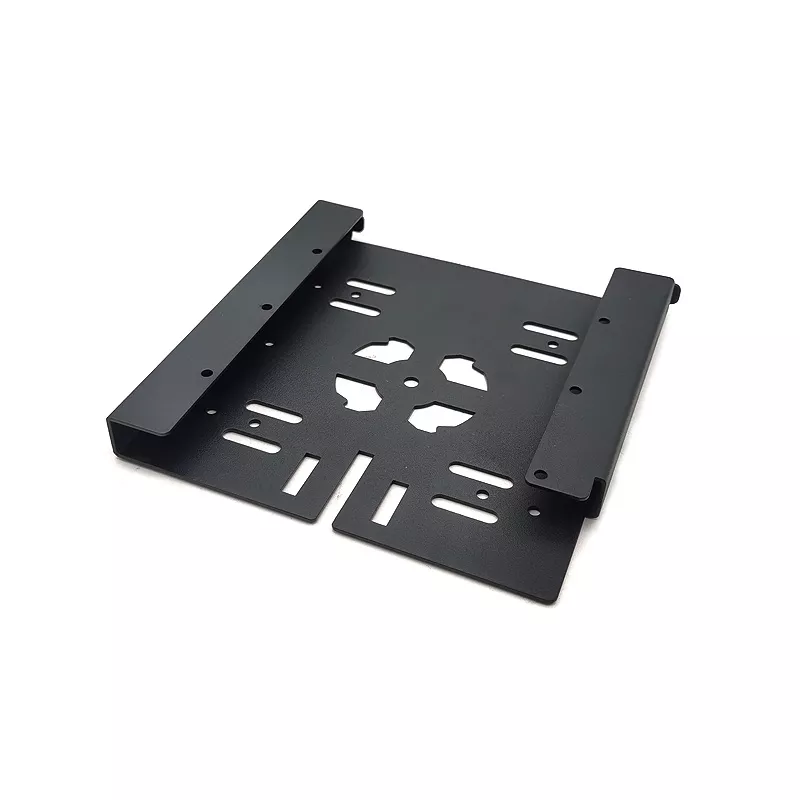

The dark example has elongated center openings and formed edge regions with additional holes. Dimension the slots and holes from the finished mounting faces, including the clearance required after bending and coating.
Specify the sheet grade and thickness, with any CNC work or joining requirements. If a spring function is intended, define the material condition and force or deflection criteria separately; the plate shape does not establish spring behavior.
Review the finished mounting fit
Include quantities, finish and drawing revision. Mark the slot spacing, bend locations and hole positions for inspection. Similar slotted plates do not independently establish a distinct size, service load or tested elastic function.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
