Custom Cut and Stamped Sheet Metal Panels with Slotted Openings and Central Threaded Mounting Feature
-
Model NumberS2407RMaterial CapabilitiesSteel/Aluminum/copper/Stainless Steel 316/brass
-
ApplicationMachinery/Industry/Home/AutomotiveEquipmentCNC Bending/Stamping Machine/Laser Marking
-
ProcessLaser Cutting Bending StampingKeywordSheet metal fabricating part
-
Surface treatmentPainting\Powder Coating\Plating\PolishingDrawing format2D/3D/CAD/DWG//STEP/PDF/IGS
-
CertificateISO9001/TS16949LogoAccept Customized Logo
-
TechnologyStamping+drilling+assembly

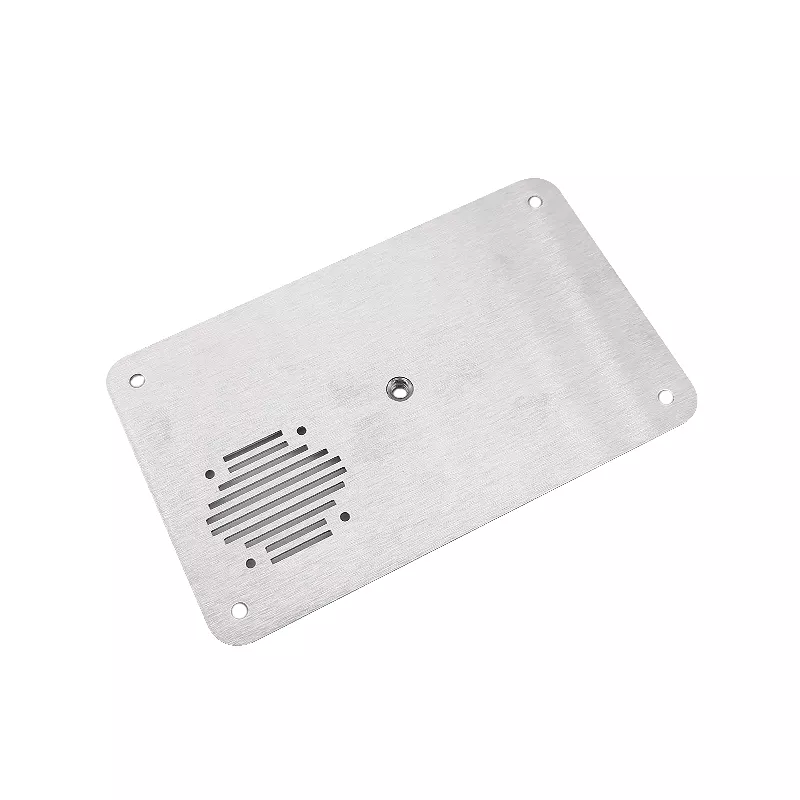

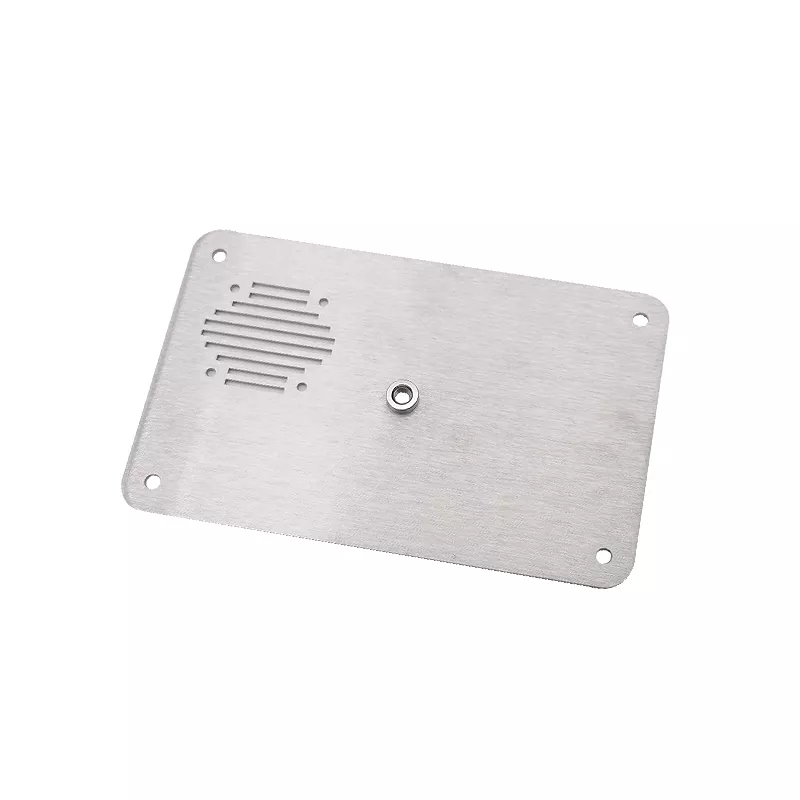

The S2407R panel example has a rectangular outline with rounded corners, corner mounting holes, a grouped slot pattern and a raised central threaded feature. The profile and mounting details should be specified together in the drawing. Identify whether the enquiry includes a separate insert or other companion part.
Flat panel and mounting details
Define the outer dimensions, corner radii and the locations of holes and slots. Specify the central thread requirement and its position relative to the panel references. The drawing should identify any separate attachment and the finished condition needed around it.
Steel, aluminum, copper, stainless steel 316 and brass are listed capabilities. The manufacturing information includes laser cutting, bending, stamping, drilling and assembly. Select the actual material, thickness and operations for this component.
Finish and inspection
Provide the surface-treatment requirement, current drawing revision and quantity. Agree acceptance of the opening pattern, flatness where required and threaded interface. Confirm packing protection for both the panel surface and projecting mounting feature.
