Product description
Project & Delivery Requirements
-
Model NumberDM2105Materialaluminum/iron/zinc
-
ApplicationIndustryDimensionsCustomer Required
-
Surface treatmentPaint/Powder coating/oxidation etcMold makingBy ourself
-
ProcessDie Casting-deburring- MachineryServiceOEM ODM
-
Quality ControlProfessional InspectionPackingCarton

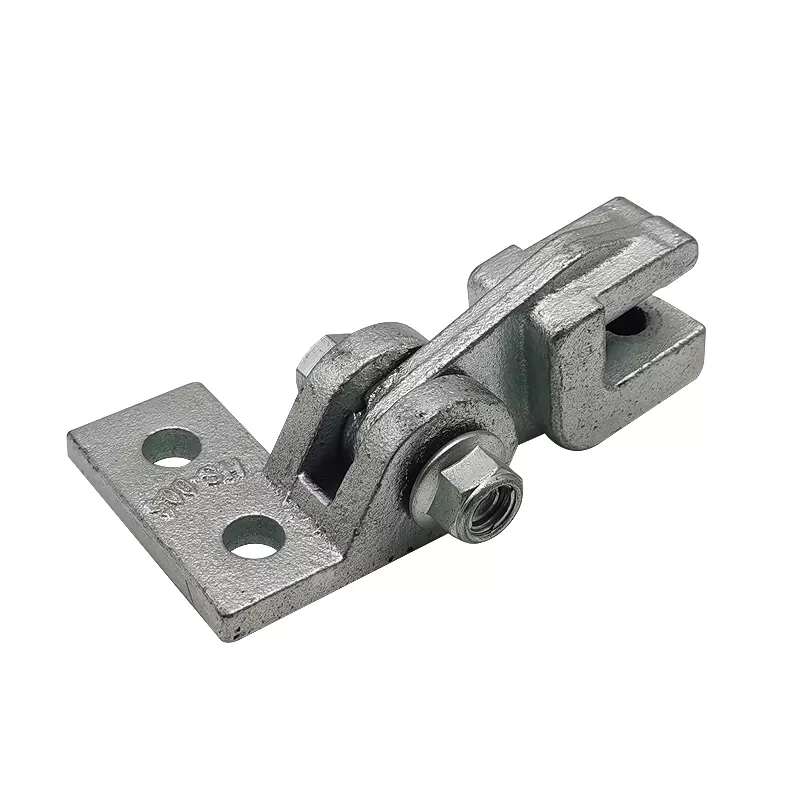

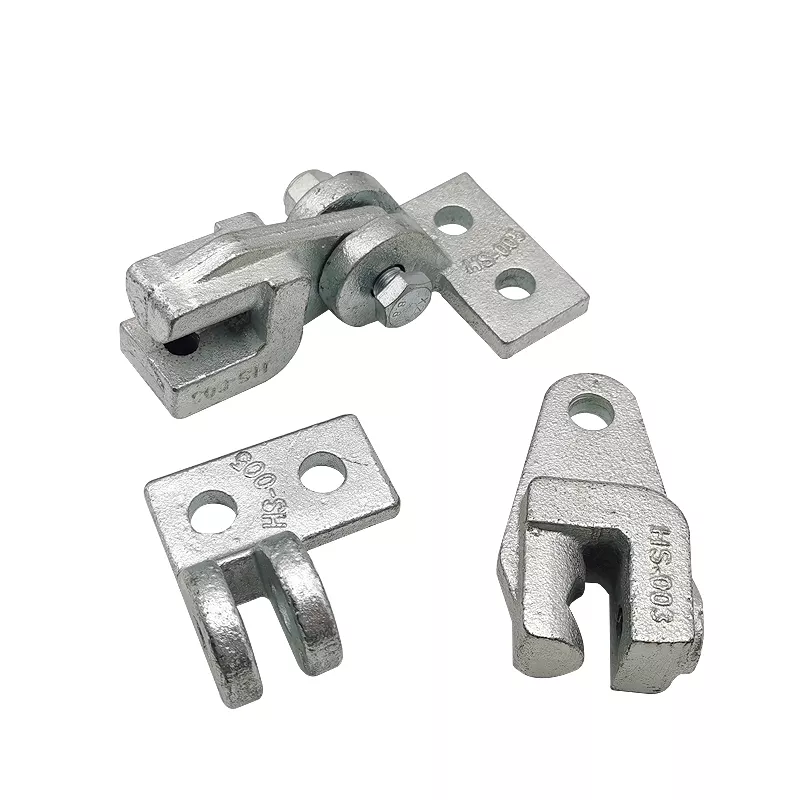

Plate, pivot region and forked end
The pictured assembly combines a two-hole plate, upright connecting regions, a central bolt and a forked end. Identify every component included in the request, with its own dimensions and mating interfaces.
Specify casting material component by component
For an iron casting, state grade and the sand or investment route to review. The broader aluminum, iron and zinc list does not establish that every pictured piece has the same composition or manufacturing method.
Include quantities, finish and any machining or purchased hardware. Mark bore alignment, plate-hole positions and assembly clearances for inspection. No working-load rating is verified by this example.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
