OEM Ductile Iron Sand Casting or A380 ADC12 Aluminum Die Casting | Wheel-Like Parts

• Model Number

  DM2309
  Application

  Custom Casting
• Process

  Die Casting / Sand Casting / Precision Casting
  Surface treatment

  Sandblasting / Powder Coating / Painting / Plating
• Dimensions

  Customized
  Material

  Aluminum/ Iron/ Steel
• MOQ

  100 pcs
  Keyword

  Custom Casting

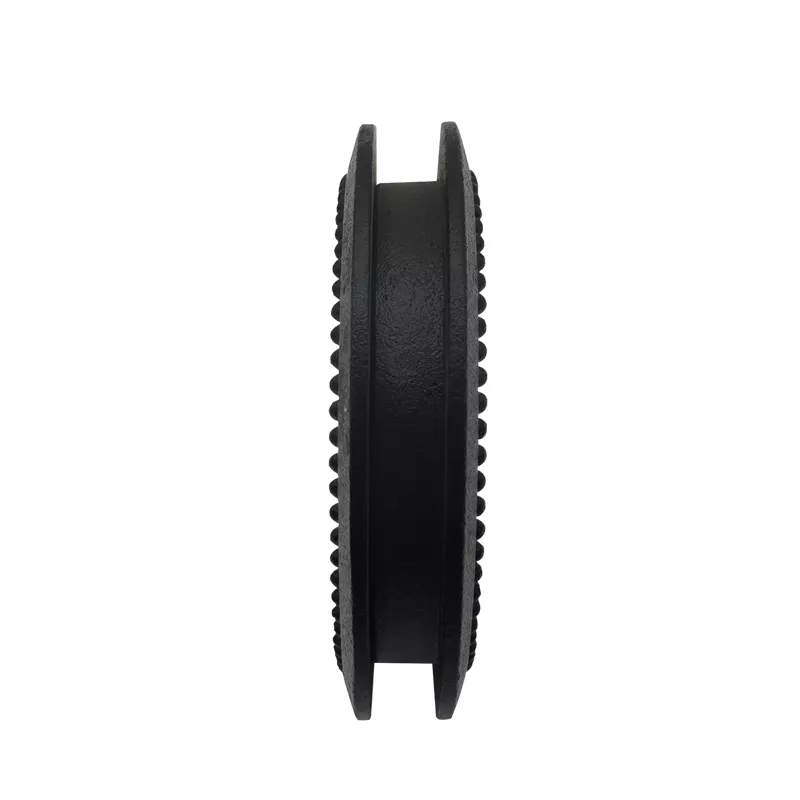

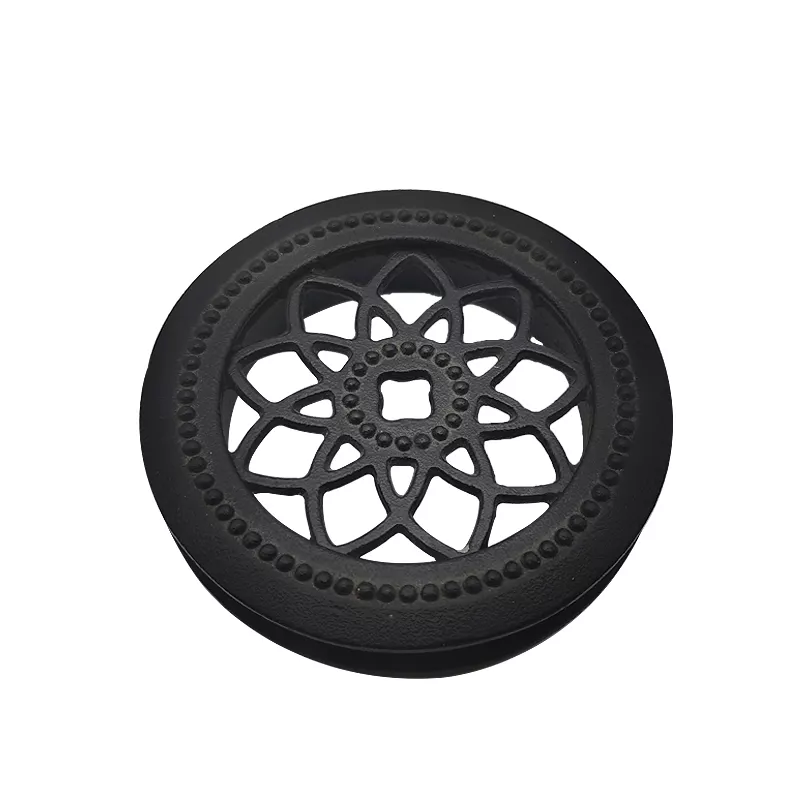

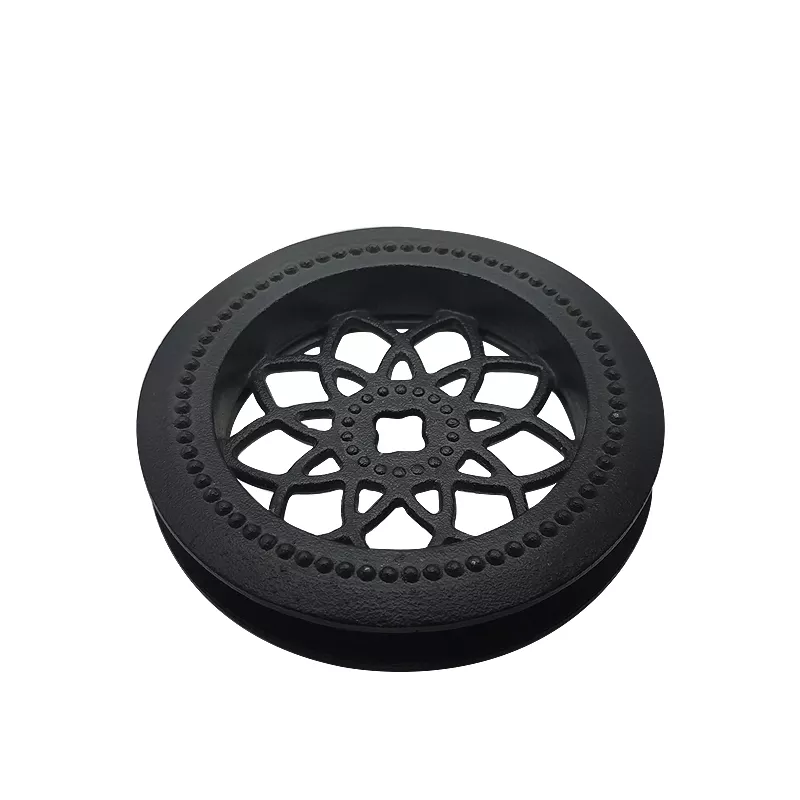

Choose the actual metal and manufacturing direction for the wheel-like component before preparing its casting request. The example has an outer circular ring, a patterned open web, a noncircular central opening and multiple smaller openings around the hub and rim. These relationships need a dimensioned drawing for the selected design.

Locate the ring, web and central interface

Define the outside envelope and the relationship between the rim and hub from common datums. Show the web sections and the positions of the small openings. Include the mating geometry for the noncircular center, with the actual fit and engagement requirements rather than a shape-based assumption about its function.

• Provide the ring, web and hub drawing revision.
• Choose ductile iron or the required aluminum alloy.
• Select sand casting or the agreed die-casting route.
• Identify machined contact and central mating regions.
• Define finish and application-specific inspection criteria.

Keep the iron and aluminum alternatives distinct

Ductile iron sand casting and A380 or ADC12 aluminum die casting describe separate enquiry directions. State one actual material specification and the manufacturing plan appropriate to the requested part. The aluminum designations require a selected grade and any material evidence specified for that order.

Identify which faces and openings can remain as cast and which require secondary machining. Resolve any finishing choice against the chosen material and the dimensions that matter in the delivered condition. The dark example does not establish its metal composition or a particular coating system.

Define acceptance for the intended wheel-like use

A circular open-web shape is insufficient to establish rotational speed, balance, transmitted torque or allowable load. State the actual application and include any required functional tests with their methods and limits. If balancing or assembly checks are needed, identify the finished parts included in that operation.

Supply the controlled drawing, quantities, intended environment and required inspection records. Separating material, route and performance requirements gives the custom casting enquiry a usable technical basis while preserving the individual component's required mounting and contact relationships.

Elevate your projects with our OEM Ductile Iron Sand Casting Foundry Parts, expertly crafted from high-quality materials such as aluminum, iron, and steel. These precision-engineered components cater to various applications, making them ideal for custom casting needs.

The product, model number DM2309, showcases versatility in manufacturing processes, utilizing advanced techniques like die casting, sand casting, and precision casting to ensure optimal performance and durability. Each piece can be customized to meet specific dimensions, allowing for a tailored fit in your projects.

Our surface treatment options enhance the final product's quality and appearance, offering sandblasting, powder coating, painting, and plating finishes to suit your aesthetic and functional requirements. With a minimum order quantity of 100 pieces, you can easily stock up on these essential parts for your production needs.

Choose our OEM Ductile Iron Sand Casting Foundry A380 ADC 12 Aluminum Die Casting Parts for reliable, high-performance solutions that stand the test of time in various industrial applications. Experience unmatched precision and quality today!
