Custom Grey Iron Precision Casting Parts | Pivoted Mounting Components

• Model Number

  B
  Material

  Aluminum
• Application

  Industry
  Dimensions

  Customer Required
• Surface treatment

  Paint/Powder coating/oxidation etc
  Mold making

  By ourself
• Process

  Die Casting-deburring- Machinery
  Service

  OEM ODM
• Feature

  Eco Friendly
  Quality Control

  Professional Inspection
• Packing

  Carton

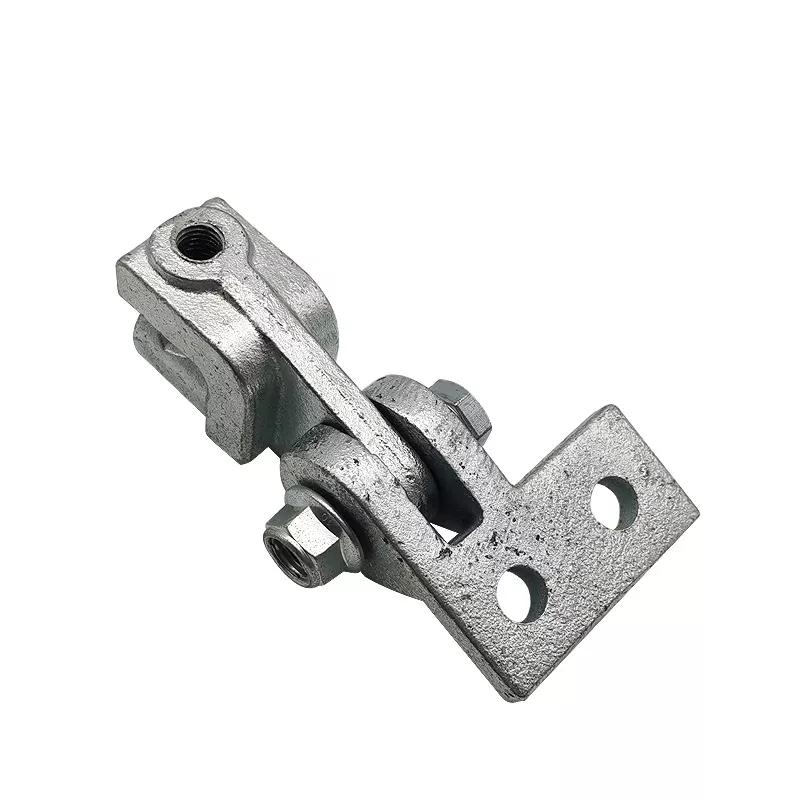

Define the pivoted mounting component as individual parts or a specified assembly before choosing a casting requirement. The rough example has a two-hole base, upright pivot region, central bolt and nut and a fork-like upper member. These details do not establish actual grey-iron composition or an allowable load.

Locate the base and pivot relationships

Provide the base mounting pattern and pivot axis from shared assembly datums. Dimension the fork opening and any contact or spacing regions used by the adjoining part. Identify the fasteners and other pieces included in the required supply, with individual drawings where appropriate.

Specify the actual iron and forming direction

Grey iron is the material direction for this precision-casting enquiry. An aluminum alternative needs a separate material and manufacturing specification. Select the actual grade and condition, review the forming plan and mark any bores, faces or moving interfaces requiring machining after casting.

• Identify the base, upper member and assembly revision.
• Specify actual grey iron and material evidence.
• Locate mounting holes, pivot and fork interfaces.
• Define forming, machining and compatible finish.
• Agree hardware inclusion and final acceptance checks.

Inspect the delivered movement and contacts

State units, tolerances and final measurement conditions at the actual working interfaces. If movement is required, define travel, clearances and any assembly checks. Choose a compatible treatment and identify masking or dimensional checks needed after finishing.

Include quantities, intended service and any load or functional-test criteria. A pivoted shape and visible fastener do not establish safe working force or a standard clearance; those requirements must be specified for the actual design and supplied assembly.

Professional Customized Iron Casting Precision Metal Casting Products are expertly crafted to meet the highest standards of quality and precision. With a model number designated as B, these grey iron casting parts serve a diverse range of industrial applications.

Utilizing aluminum as the primary material, our products exhibit excellent durability and strength, making them ideal for various sectors. Each piece is customized to meet the specific dimensions required by customers, ensuring that you receive tailor-made solutions that fit your project's unique needs.

The surface treatment options include paint, powder coating, and oxidation, providing flexibility in achieving the desired finish and enhancing the product's longevity. Our in-house mold-making capabilities guarantee that each part is produced with precision and care, following a robust process that includes die casting, deburring, and machinery operations.

Our services are designed to accommodate OEM and ODM requirements, assuring clients of our commitment to delivering personalized solutions. Environmentally friendly practices are at the core of our operations, emphasizing sustainability while maintaining high-quality outputs.

Quality control is paramount, and every product undergoes professional inspection to ensure it meets stringent industry standards. The packaging of our grey iron casting parts is done meticulously using cartons, ensuring that they arrive safely at your designated location.
