Custom Zinc Plated Iron Investment Casting Parts with Forked and Drilled Mounting Features
Generate QR code
Product description
Project & Delivery Requirements
-
Model NumberRTS-01MaterialIron
-
ApplicationIndustryDimensionsCustomer Required
-
Surface treatmentPaint/Powder coating/oxidation etcMold makingBy ourself
-
ProcessDie Casting-deburring- MachineryServiceOEM ODM
-
FeatureEco FriendlyQuality ControlProfessional Inspection
-
PackingCarton

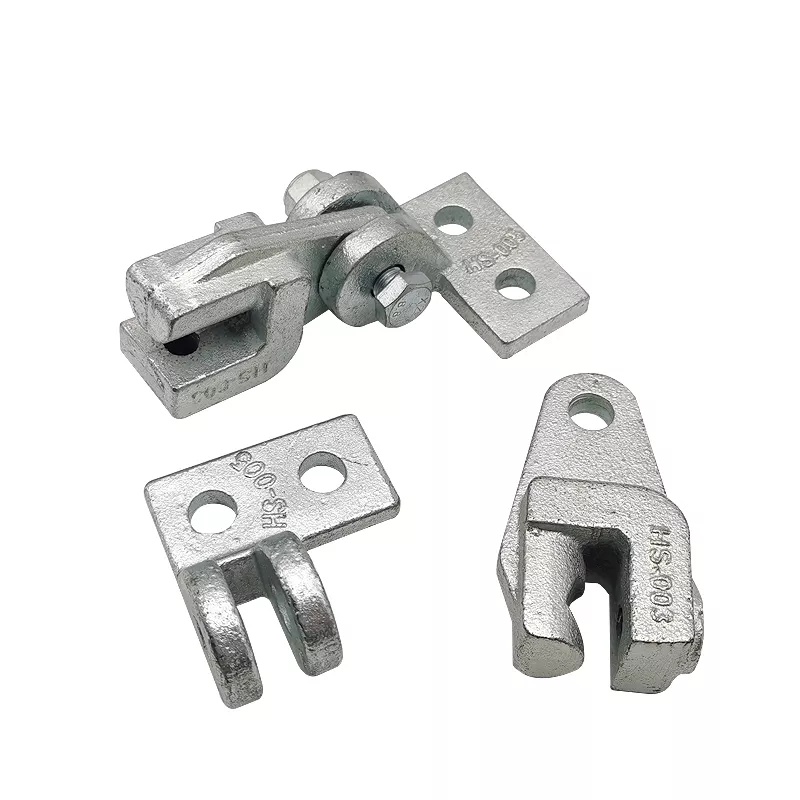

Forked connections and drilled mounting faces
The examples have forked ends, fixing holes and shaped mounting plates. Identify the required part on a drawing and dimension the arm spacing, hole pattern and contact faces from the assembly references.
For an iron investment-casting enquiry, specify the grade and machining requirements. If zinc plating is requested, state the coating specification and any thread or contact surfaces needing separate control.
Requirements after finishing
Include quantities, mating hardware and drawing revision. Mark fit dimensions and inspection criteria for the plated component, including any coating allowances at the working interfaces.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
