304 Stainless Steel Butt Weld Elbow Enquiries | SCH40 SCH80 Polished Hot Forged Pipe Fitting Projects

• warranty

  1 year
  customized support

  OEM
• model number

  SS304
  Technic

  Casting
• Connectivity

  tube clamps connected by screws
  shape

  Various
• head code

  round
  Overall Length

  4.8 in
• Height

  25-300mm
  Surface Treatment

  Polishing
• Pressure

  Low Pressure
  System of Measurement

  Metric
• Mounting hole diameter

  0.25 in
  Pipe Features

  Flexible
• Pipe Class

  150
  Application

  Agricultural Irrigation, Oil and Gas
• Thread Types

  NPT
  Product name

  Stainless Steel Butt Weld Elbow
• Surface Finish

  Satin Finish
  Anti-Corrosion Treatment

  Passivated
• Connection End Type

  Plain End
  Forming Process

  Hot Forging
• Material Condition

  Hot Rolled
  Standard or Nonstandard

  Standard
• Product Grade

  Industrial Grade
  Special Feature

  High Pressure Resistance

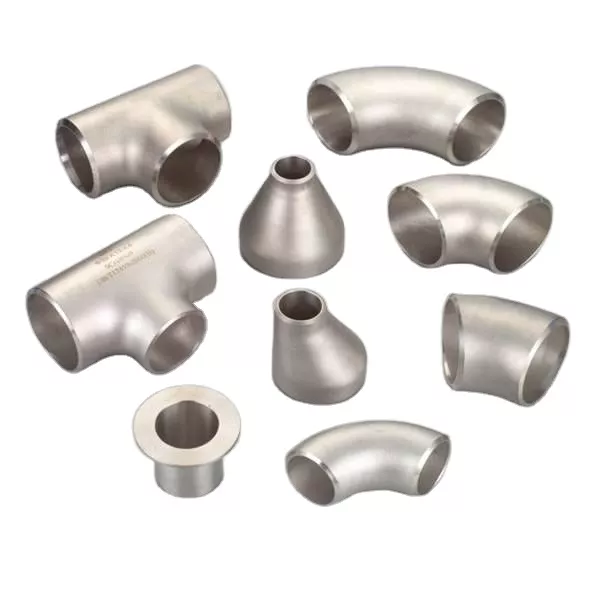

Specify the actual butt-weld elbow separately from other tubular fittings. The image includes elbows, tees, reducers and short connectors rather than one verified material or joint configuration.

Choose actual grade and wall specification

SS304 and SCH40 or SCH80 are title-level requests, while actual options list Iron and 21.3–60.3mm. Confirm grade, pipe diameter, wall standard, bend angle and radius for the selected drawing.

Separate joining and forming references

Plain-end butt welding, NPT and screw-clamp references are not interchangeable connections. Casting and Hot Forging also require actual route selection and appropriate material evidence.

• Select the elbow drawing and required joint ends.
• Specify actual stainless or iron grade.
• Define diameter, wall, angle and bend radius.
• Review forming, end preparation and surface finish.
• Agree medium, temperature and service acceptance tests.

Verify pressure and corrosion requirements

Low-pressure and high-pressure labels need one applicable standard and test basis. Polishing or passivation does not establish universal corrosion suitability, joint compatibility or pressure qualification.

The 304 Stainless Steel Butt Weld Elbow is engineered for outstanding industrial performance and reliability. Manufactured from high-grade SS304 stainless steel, this fitting provides superior corrosion resistance and excellent durability, making it ideal for harsh and demanding environments. The hot forged and polished construction ensures a smooth satin finish, enhancing both appearance and functionality.

This butt weld elbow is available in SCH40 and SCH80 wall thicknesses, suitable for low pressure systems, and meets industry standards for quality and consistency. The flexible design accommodates various shapes and sizes, with a round head code, and an overall length of 4.8 inches for versatile installation in different applications such as agricultural irrigation and oil and gas pipelines.

Designed for easy connectivity, the pipe fitting features tube clamps connected by screws, plain ends for straightforward butt welding, and NPT thread compatibility. The anti-corrosion passivated treatment guarantees a long service life even in aggressive operating conditions. With OEM support and customizable options, this industrial grade fitting adapts to specific project requirements.

Choose our 304 stainless steel butt weld elbow for a reliable solution backed by a one-year warranty, precision casting technology, and high-pressure resistance. Improve your fluid and gas transfer systems with robust, efficient, and aesthetically polished pipe fittings directly from the manufacturer.
