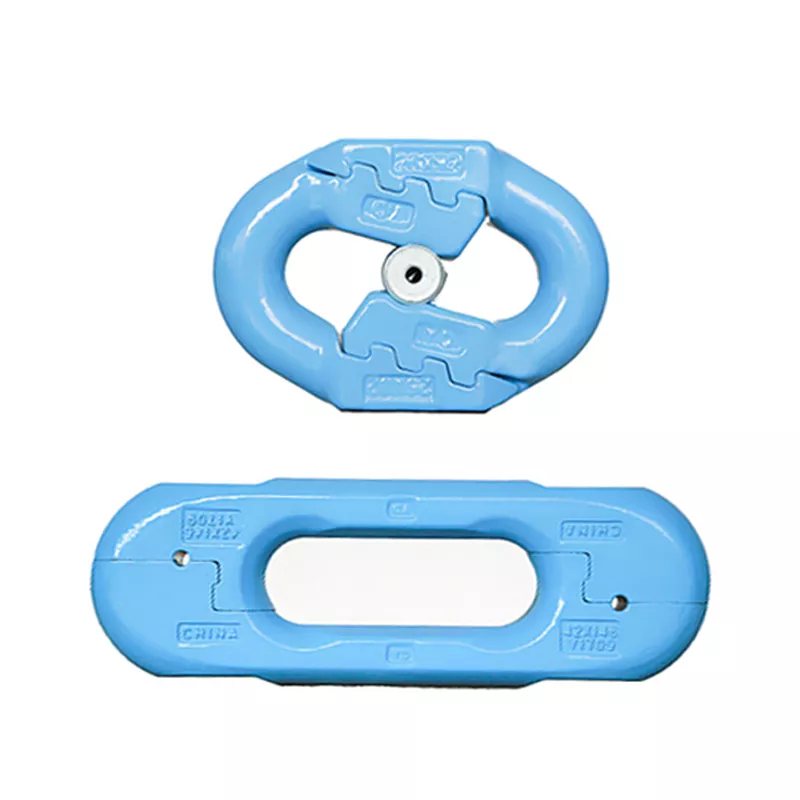

34x126 Serrated Connecting Ring for Mining Circular Chains & Industrial Links
-
Model NumberS2308MaterialIron
-
ApplicationMine/Auto/Industry/ HomeDimensionsCustomer Required
-
Surface treatmentPaint/Powder Coating/Oxidation etcMold makingBy Ourselves
-
ServiceOEM ODMQuality ControlProfessional Inspection
-
PackingIndividually Packed or as per your requirementsProcessForging+Machining(if Need)+Surface Treatment
The 34x126 designation identifies this serrated connecting-ring enquiry for mining circular chains. Selection still depends on the complete connection drawing, mating-chain geometry and intended service rather than the designation alone.
Confirm what 34x126 means for your chain

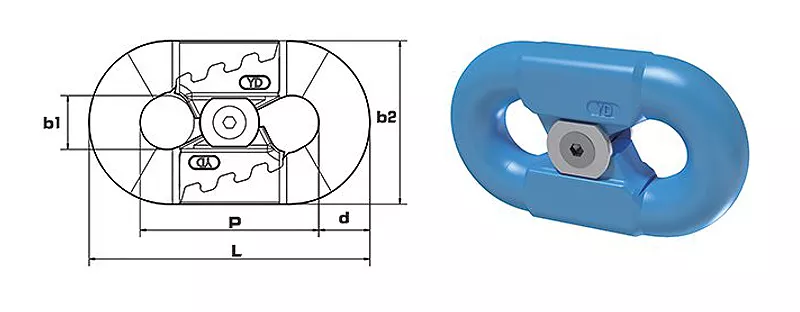

Include the dimensional drawing and its units when enquiring about the 34x126 ring. Identify the dimensions represented by the designation and the chain configuration it must join. A name containing two numbers is not a substitute for a complete interface specification or proof of interchangeability.
Define the serrated joining interfaces
Show the serrated connection geometry, internal opening and contact areas that control engagement. Identify any locking elements or additional components included in the ordered connection. For a replacement ring, compare those features with the actual mating chain rather than relying on a photograph of a similar link.
Agree the forged and finished conditions
The manufacturing enquiry can include forging, machining if required and surface treatment. Specify the ferrous material grade, required condition and any faces that need finished dimensions. The selected grade and finish must be agreed for the serrated ring instead of being inferred from a broad material or coating description.
Set acceptance for the mining connection
Provide the operating duty and the evidence required to accept the 34x126 connection. Working load, fatigue performance and any applicable mining or lifting qualification need configuration-specific confirmation. Neither the serrated form nor a mining-chain description establishes a published load class.
- Identify the 34x126 designation on a drawing with explicit units.
- Provide the mating circular-chain and serrated-interface geometry.
- State the ring material grade and required condition.
- Mark any connecting-ring surfaces requiring machining or finish control.
- Include the service duty and connection-acceptance requirements.
A comparable 34x126 ring enquiry defines the actual joining configuration and the evidence needed for its intended chain service.
