Custom Aluminum Zinc Alloy Die Casting | Hollow Flanged Bodies and Angled Tubes

• Model Number

  Zenithus-Casting
  Material

  Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals etc.
• Process

  Die casting, Sand casting, Investment casting, Lost foam casting etc.
  Heat treatment

  Quenching & tempering; solution & aging
• Surface treatment

  Powder coating, Zinc plating, Laser engraving, Sandblasting etc.
  Inspection

  Metallographic analysis, MT, UT, RT, 100% visual+100%gauge, CMM etc.
• OEM/ODM

  Accept
  Application

  Auto, Motorcycle, Energy, Medical device, Robotics etc.
• Drawing Format

  2D(PDF/CAD), 3D(IGES/STEP)
  Certification

  ISO9001:2015/IATF16949
• Standard

  ASTM, AISI, DIN, BS, JIS, NF, AS

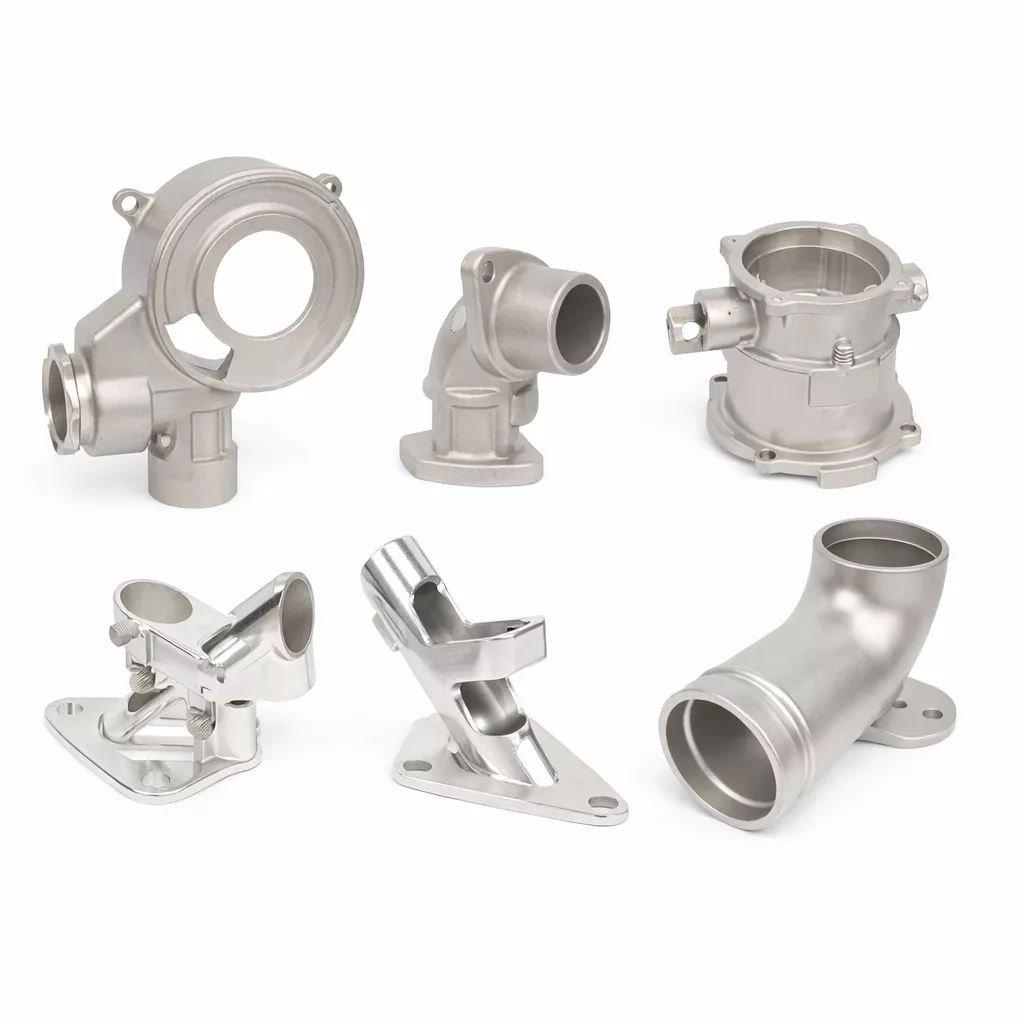

Define the selected hollow body before comparing an aluminum or zinc-alloy casting proposal. The examples include circular passages, elbow-like profiles, flanged or tabbed regions and angled tubes on mounting plates. Their appearance does not establish a pressure rating, standard pipe connection or one supplied system.

Reference the passages to the mounting base

Provide section views and the actual mating-component geometry. Locate bore axes, flange faces and base fixings from the references used by the assembly, including any required angular relationship. Identify cast surfaces and contacts needing machining so final fit can be assessed independently of the photographed outline.

Select the alloy and treatment together

State an actual aluminum or zinc-alloy grade, material condition and quantity for each design. Evaluate the die-casting route for those sections rather than assuming every hollow form uses the same process. Heat treatment and surface finishing need to suit the selected metal and intended service, not a universal combination of methods.

• Select the flanged body or angled-tube drawing.
• Specify actual alloy, condition and wall sections.
• Locate passage axes and mounting contacts.
• Define machining, finishing and fit allowances.
• Agree component inspection and any duty tests.

Separate dimensional checks from service acceptance

Use PDF or CAD dimensions and IGES or STEP models to communicate the hollow geometry. Specify final tolerances, measurement conditions and required material records. Any sealing, pressure or fluid-service requirement needs the actual operating brief and applicable testing; neither a passage nor a flange proves that qualification.

Evaluate the casting proposal against this body's defined bore-to-base relationship and the agreed finished-component acceptance.

Discover premium custom aluminum and zinc alloy die casting parts manufactured by Zenithus-Casting, a leading OEM factory in China. Our components are crafted from a wide range of materials including aluminum, brass, bronze, copper, hardened metals, and precious metals, offering versatile solutions for various industries.

We specialize in multiple casting processes such as die casting, sand casting, investment casting, and lost foam casting, ensuring precise engineering and consistent quality. With advanced heat treatment methods like quenching, tempering, solution, and aging, our parts are built to withstand demanding conditions.

Our surface treatments include powder coating, zinc plating, laser engraving, and sandblasting, providing enhanced durability and aesthetic appeal. Each product undergoes rigorous quality inspection including metallographic analysis, MT, UT, RT, visual checks, gauges, and CMM to meet international standards and certification requirements such as ISO9001:2015 and IATF16949.

Zenithus-Casting supports OEM and ODM services, accepting 2D and 3D drawings in various formats. Our die casting parts are widely used in automotive, motorcycle, energy, medical device, and robotics industries, meeting ASTM, AISI, DIN, BS, JIS, NF, and AS standards.
