Custom Galvanized Steel Sheet Metal Stamping and Fabrication Channel Brackets with Paired Side Holes
-
Model NumberS2407RMaterial CapabilitiesSteel/Aluminum/copper/Stainless Steel 316/brass
-
ApplicationMachinery/Industry/Home/AutomotiveEquipmentCNC Bending/Stamping Machine/Laser Marking
-
ProcessLaser Cutting Bending StampingKeywordSheet metal fabricating part
-
Surface treatmentPainting\Powder Coating\Plating\PolishingDrawing format2D/3D/CAD/DWG//STEP/PDF/IGS
-
CertificateISO9001/TS16949LogoAccept Customized Logo
-
TechnologyStamping+drilling+assembly

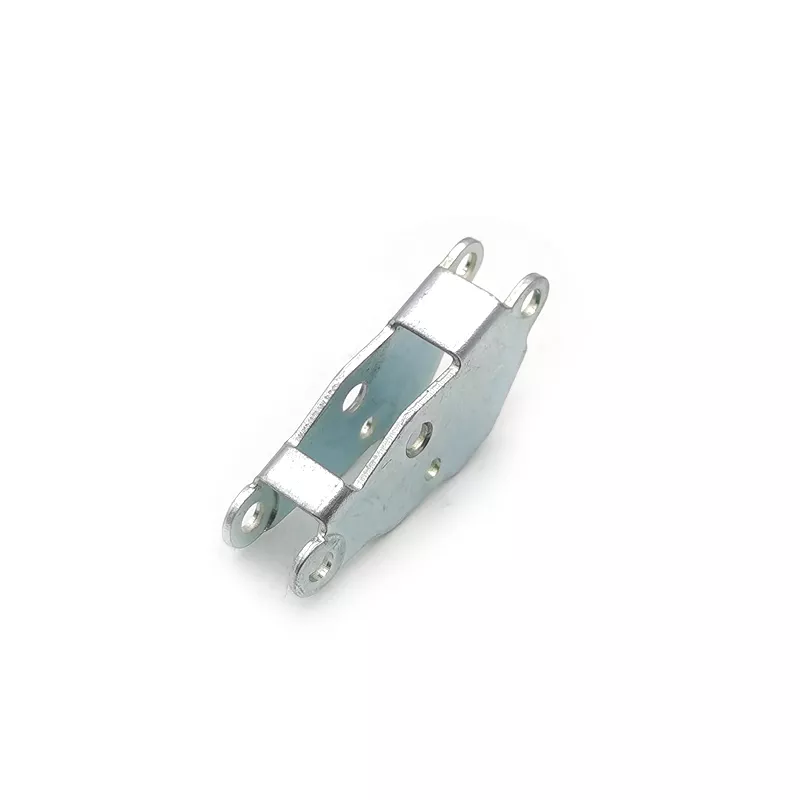

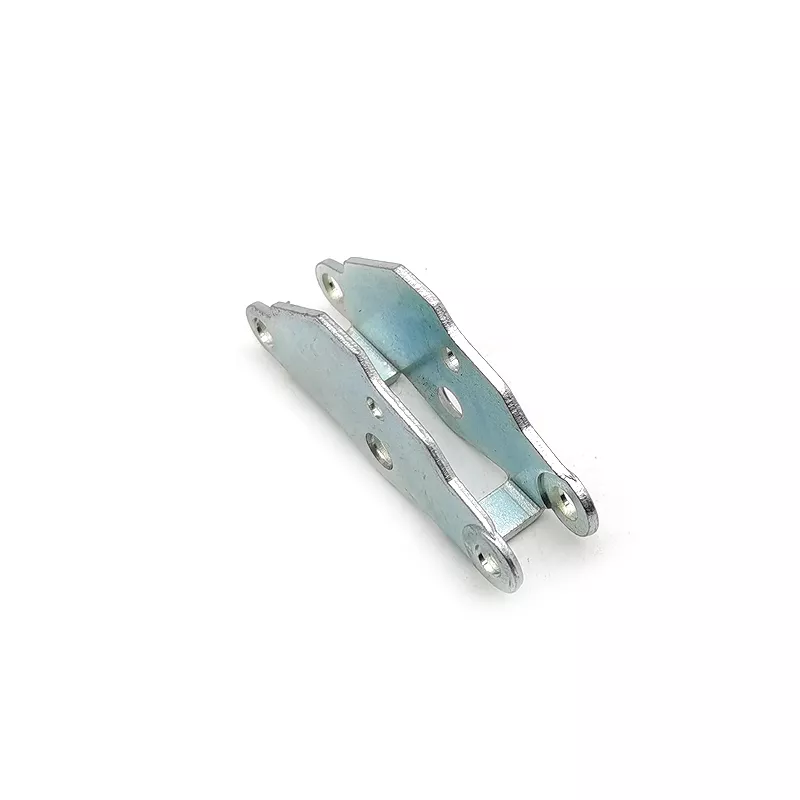

The S2407R example is a small channel-shaped bracket with two upright sides and several holes through them. Rounded end features are visible on the side walls. For a galvanized steel fabrication enquiry, provide the actual grade, sheet thickness and required surface specification.
Align the side-wall holes
Show the distance between the upright sides, the channel length and the hole locations on each wall. Identify the mating pin or fastener geometry where it controls fit. Dimension the bracket in its formed condition, including clearances to the surrounding assembly.
Laser cutting, bending and stamping are listed, with drilling and assembly noted in the source. Define the required operations and any extra surface treatment for the ordered component. Material and coating evidence should match the requested steel specification.
Enquiry information
Supply current 2D/3D drawings and quantities, marking the critical inspection features. Confirm whether pins or other pieces are included in the supply. Any load or joint-life requirement needs design-specific acceptance criteria.
