OEM Custom Steel Plate Cutting and Sheet Metal Stamping Parts | Domed Flange Components

• Model Number

  S2201 2407R
  Material

  steel, stainless steel, aluminum
• Size

  Customized size
  Application

  Machinery/Industry/car
• Color

  Customized Color
  Process

  Stamping
• Service

  Customized OEM
  Usage

  Precision Metal Stamping Product
• Packing

  Carton
  Type

  OEM Parts
• Equipment

  CNC Bending/Stamping Machine

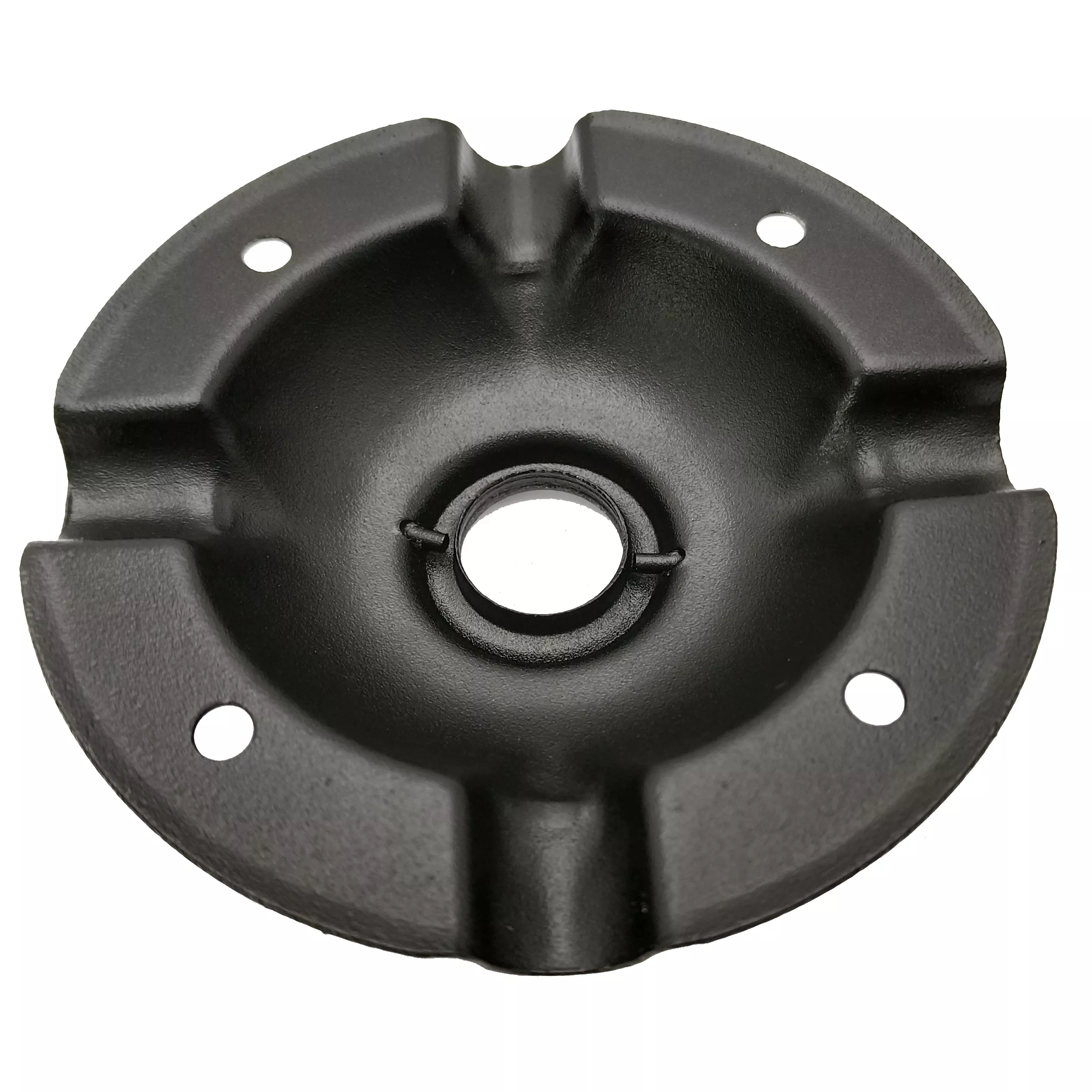

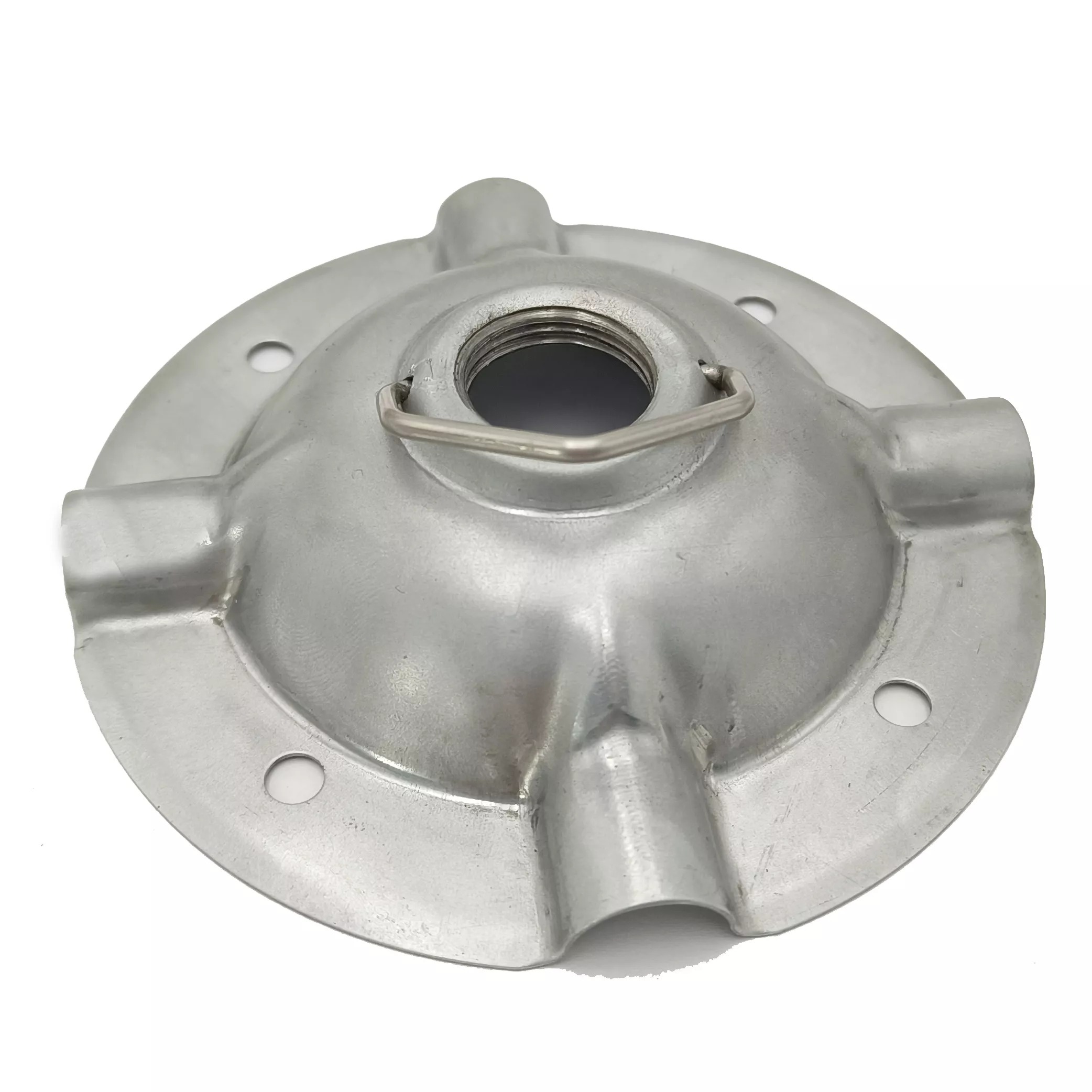

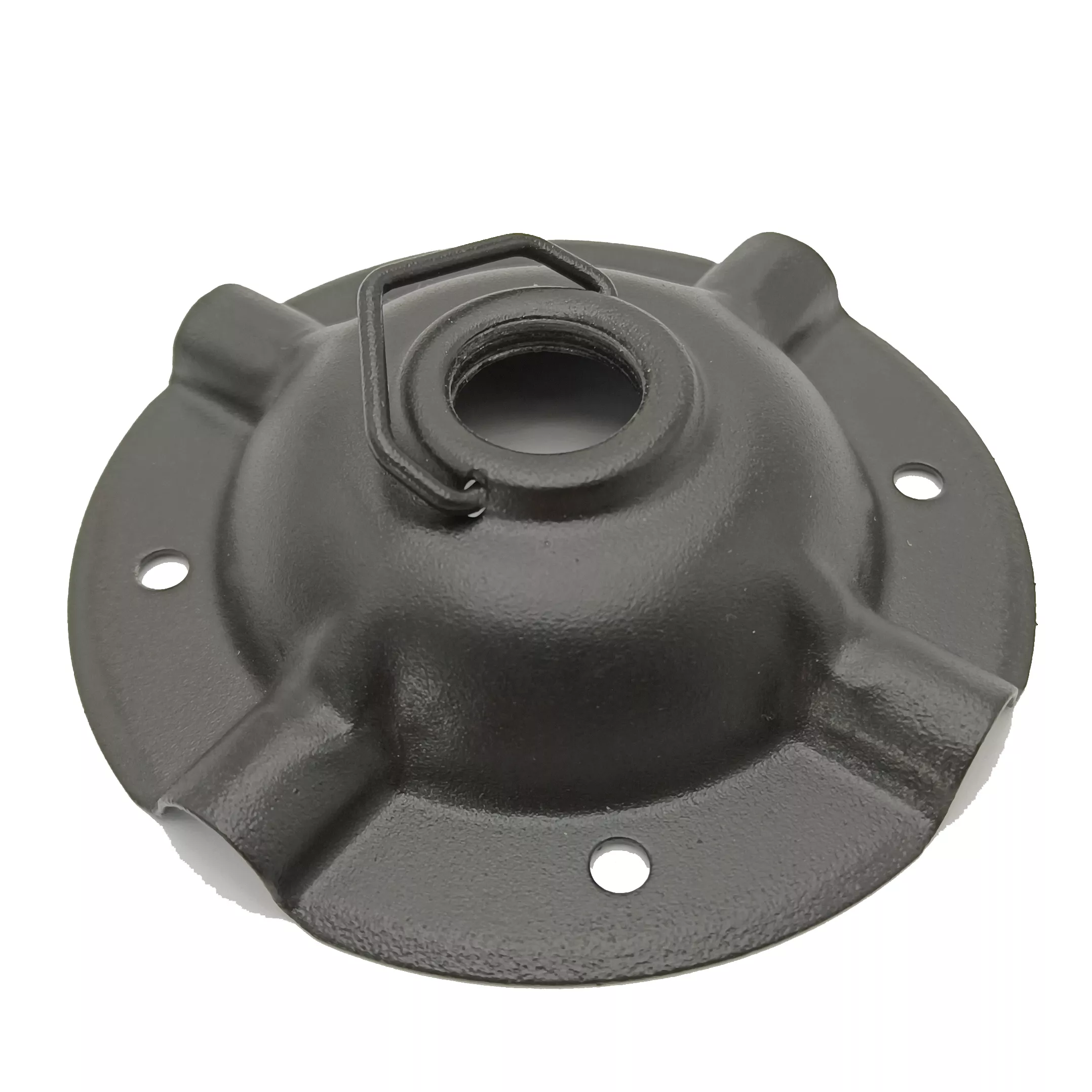

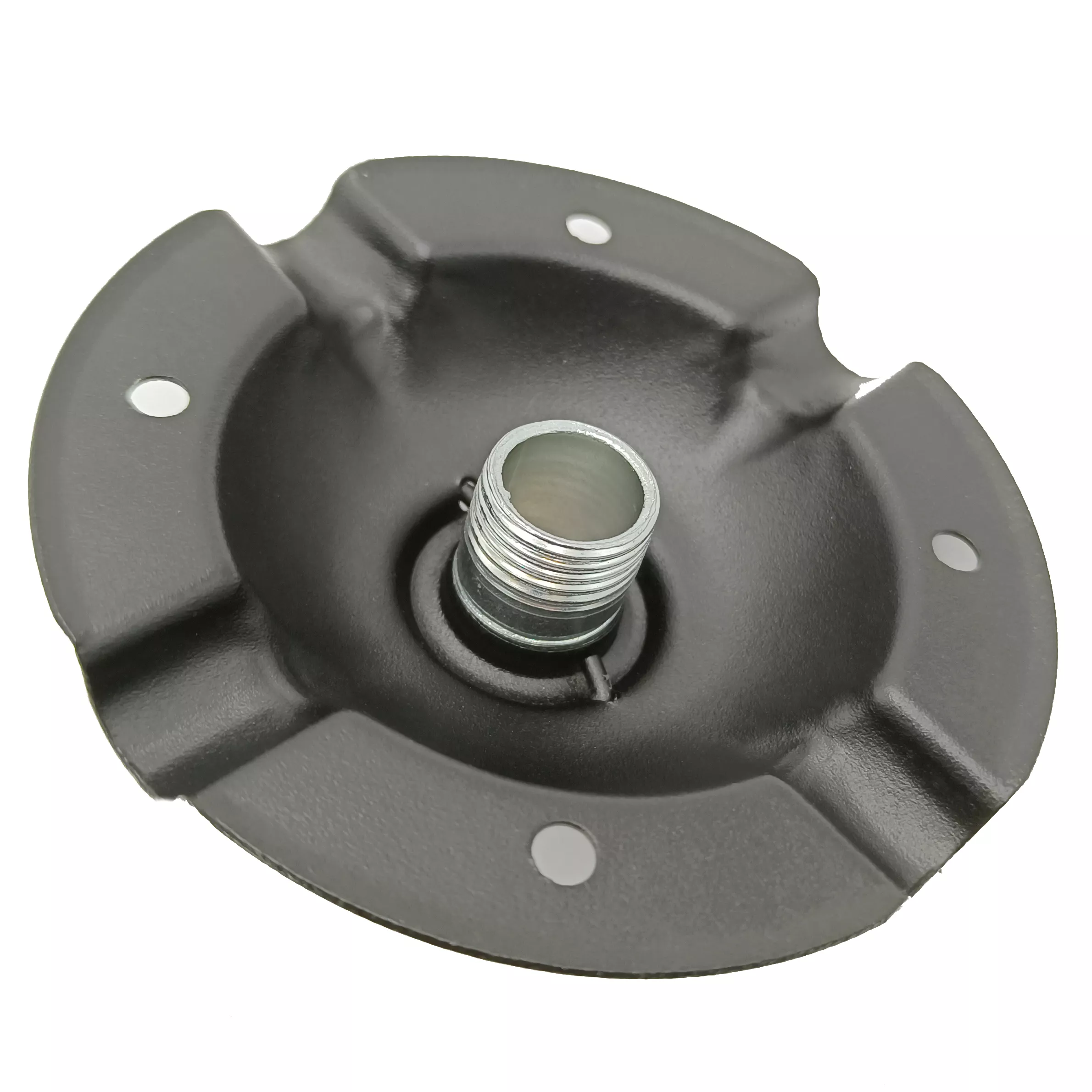

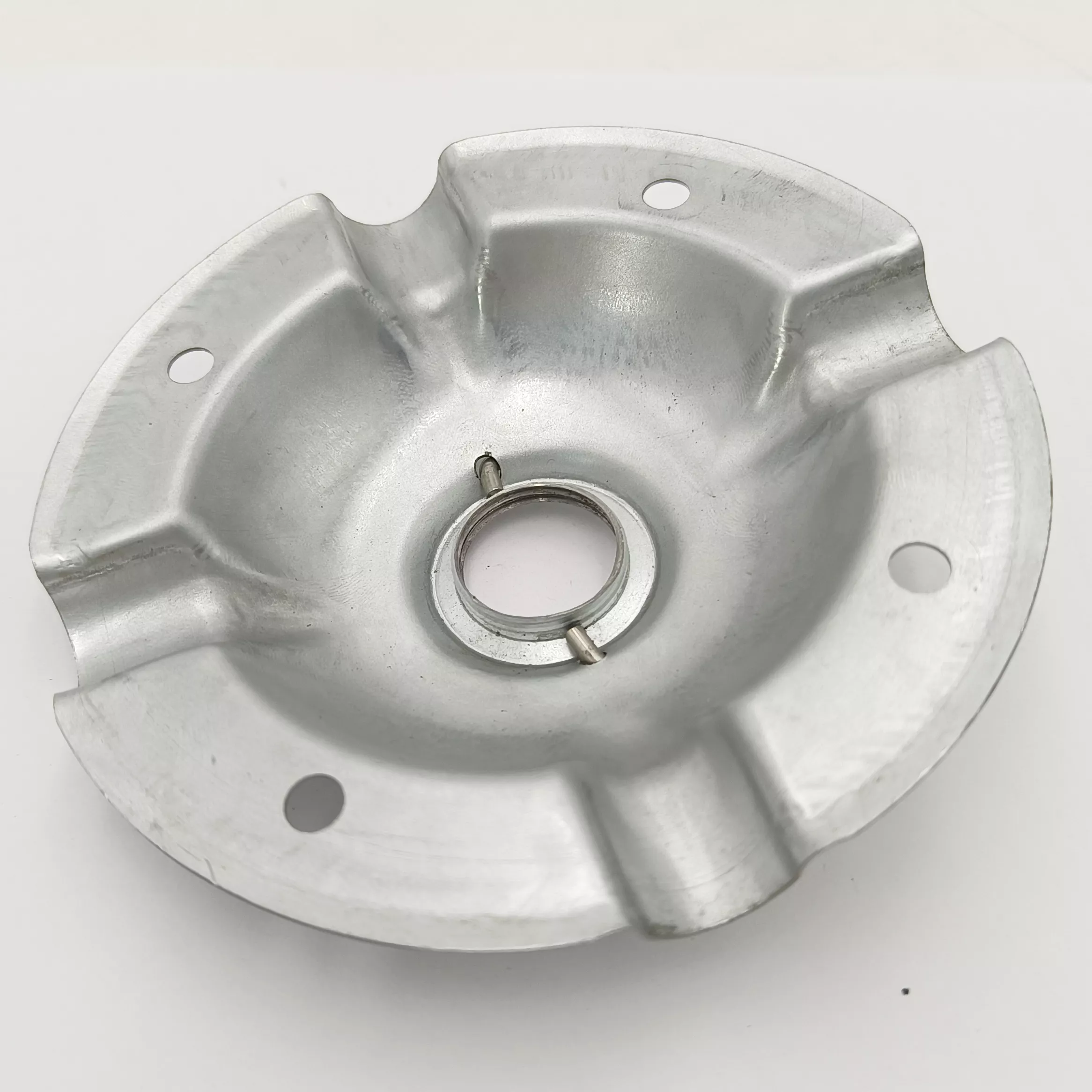

Define the domed component through its central neck, radial formed regions and outer fixing flange. The dark and light examples have similar broad forms, but their appearance does not establish a common alloy, exact thread or pressure function. Actual material and geometry must come from the controlled design.

Relate the neck opening to the flange contacts

Provide sections through the neck and dome, with fixing-hole positions referenced to assembly datums. Identify adjoining components and actual connection requirements where applicable. Show contact faces, clearances and any retention details rather than inferring a thread standard from the circular opening.

Select metal and the cutting or forming plan

Steel, stainless steel and aluminum are separate material options. Specify actual grade, condition and thickness with required material records. Review cutting, stamping and any secondary work against the component geometry, identifying edge and surface requirements on the drawing. A photograph does not independently establish the manufacturing route.

Define precision and application acceptance

Mark tolerances with units and final measurement conditions at the neck, dome and flange. Select a compatible finish and appearance requirement. Any pressure, mechanical, automotive or environmental requirement needs actual service conditions and applicable evidence rather than a general application label.

• Reference each domed flange and mating drawing.
• Specify actual metal grade, condition and thickness.
• Dimension neck, formed regions and fixing holes.
• Define cutting, stamping and selected surface finish.
• Agree interface inspection and required application tests.

Include quantities, drawing revisions and requested inspection documentation. Separate different material or connection configurations so the proposed supply can be checked against the correct component and acceptance basis.
