Custom Non-Standard Cast Iron Plate | Sand Lost Foam Vacuum Casting OEM ODM Enquiries

• Model Number

  Zenithus-Casting
  Material

  Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals etc.
• Process

  Die casting, Sand casting, Investment casting, Lost foam casting etc.
  Heat treatment

  Quenching & tempering; solution & aging
• Surface treatment

  Powder coating, Zinc plating, Laser engraving, Sandblasting etc.
  Inspection

  Metallographic analysis, MT, UT, RT, 100% visual+100%gauge, CMM etc.
• OEM/ODM

  Accept
  Application

  Auto, Motorcycle, Energy, Medical device, Robotics etc.
• Drawing Format

  2D(PDF/CAD), 3D(IGES/STEP)
  Certification

  ISO9001:2015/IATF16949
• Standard

  ASTM, AISI, DIN, BS, JIS, NF, AS

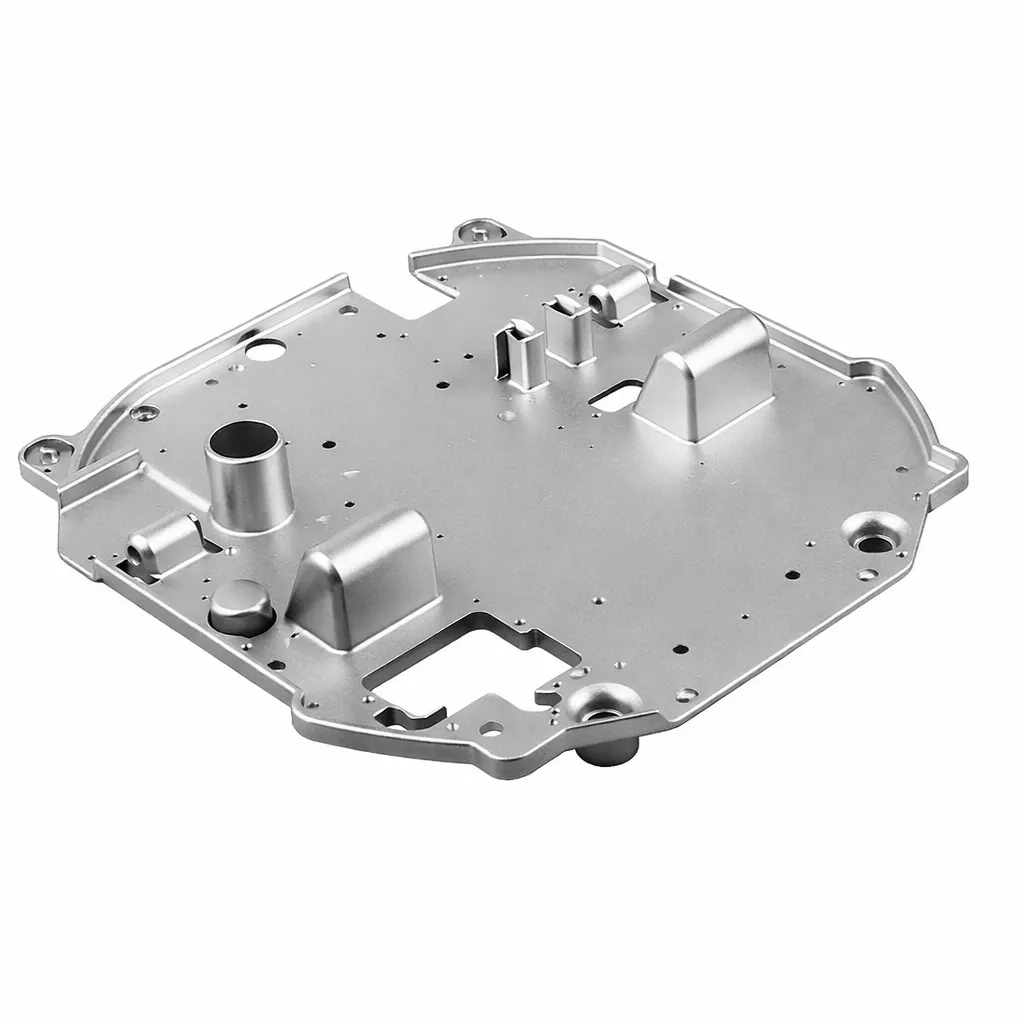

Define the shallow mounting plate before reviewing a non-standard cast-iron project. The example has a raised perimeter, projecting fixing ears, openings, a tall cylindrical boss and smaller raised regions. Those details provide a geometry reference without verifying the iron grade or the plate's production history.

Relate the bosses to the plate's mounting face

Provide a controlled drawing locating the raised features, through openings and perimeter contacts from functional datums. Include sections where boss walls or transitions affect manufacture and assembly. Identify any adjoining cover or additional hardware separately; the plate image does not establish a complete supplied enclosure or seal.

• Reference the shallow iron plate and drawing revision.
• Specify actual iron grade and delivery condition.
• Locate mounting bosses, openings and perimeter ears.
• Review sand, lost-foam or vacuum process requirements.
• Agree machined contacts and finished plate inspection.

Assess the casting route against the sections

State quantities, material requirements and stock allowances at surfaces needing machining. Sand, lost-foam and vacuum terminology requires a clear process proposal for this alloy and geometry rather than an assumed sequence. Choose any treatment and finish for the actual iron and intended equipment environment.

Accept the plate using final datums

Supply PDF or CAD dimensions and IGES or STEP geometry where available. Mark tolerance units, measurement conditions and inspection methods at the working contacts, together with required material records. Current applicable certification or functional performance needs separate evidence; a generic process or inspection reference does not establish it.

Compare the OEM or ODM proposals using the same plate sections, boss relationships and measurable finished mounting requirements.

Experience precision engineering with Zenithus-Casting’s Custom Non Standard Sand Cast Iron Lost Foam Vacuum Casting Services. Our factory specializes in OEM and ODM solutions, delivering high-quality castings using advanced manufacturing techniques including sand casting, lost foam casting, die casting, and investment casting. We work with a wide range of materials such as aluminum, brass, bronze, copper, hardened metals, and precious metals to meet your unique requirements.

Our comprehensive process includes heat treatments such as quenching and tempering, solution and aging, as well as various surface treatments like powder coating, zinc plating, laser engraving, and sandblasting. Every product undergoes rigorous inspection with metallographic analysis, MT, UT, RT, 100 percent visual and gauge inspection, and CMM to ensure superior quality and reliability.

Zenithus-Casting caters to diverse industries including automotive, motorcycle, energy, medical devices, and robotics. We support both 2D and 3D drawing formats (PDF, CAD, IGES, STEP), and are certified to ISO9001:2015 and IATF16949 standards, complying with ASTM, AISI, DIN, BS, JIS, NF, and AS standards for global compatibility.

Partner with us for tailored casting services that guarantee exceptional results and seamless integration into your supply chain, whether you need custom prototypes or large-scale production.
