Custom Stainless Steel and Aluminum Sheet Metal Fabrication Parts with Folded Mounting Tabs and Keyhole Openings
-
Model NumberS240304 2407RMaterial CapabilitiesSteel/Aluminum/copper/Stainless Steel 316/brass
-
ApplicationMachinery/Industry/Home/AutomotiveEquipmentCNC Bending/Stamping Machine/Laser Marking
-
ProcessLaser Cutting Bending StampingKeywordSheet metal fabricating part
-
Surface treatmentPainting\Powder Coating\Plating\PolishingDrawing format2D/3D/CAD/DWG//STEP/PDF/IGS
-
CertificateISO9001/TS16949LogoAccept Customized Logo
-
TechnologyStamping+drilling+assembly

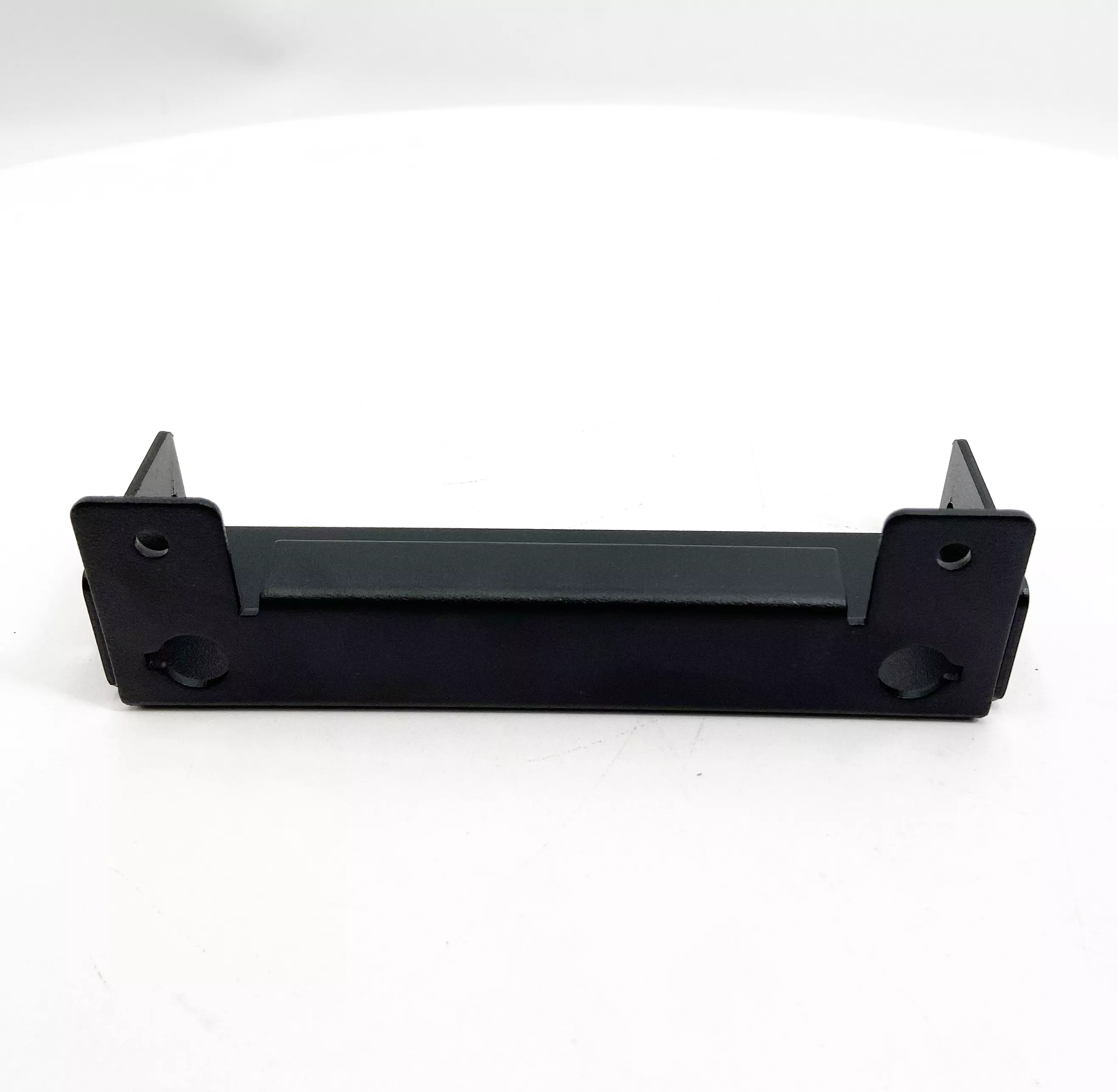

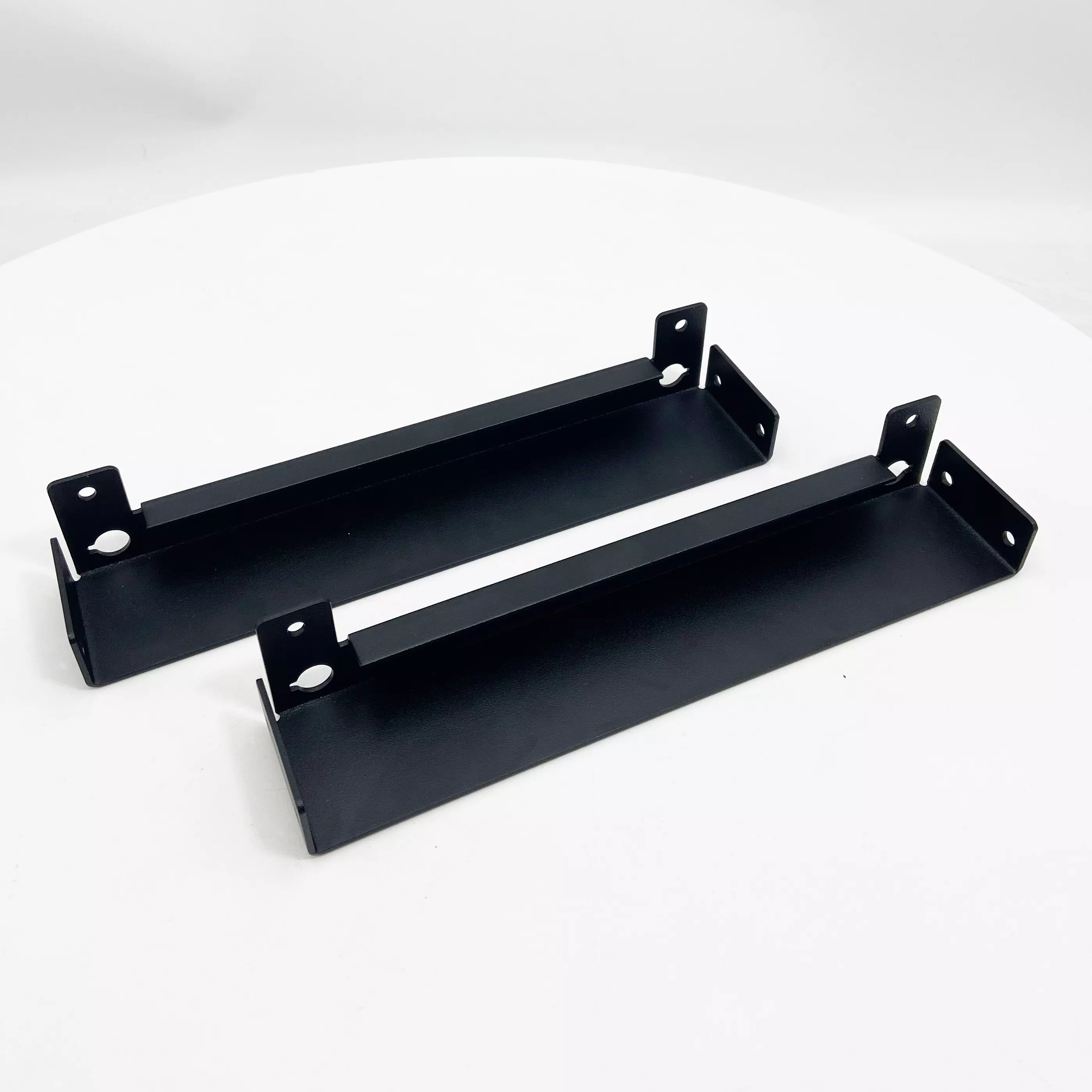

The S240304 2407R examples show folded sheet metal brackets with a long base, end walls and upright tabs containing round and keyhole-shaped openings. The repeated samples illustrate the same general configuration. Use the drawing to define the exact mounting geometry and material for the order.
Tabs and mounting openings
Dimension the base, folded ends and tab positions from the selected references. Provide the opening profile and the mating-fastener information where needed. Show which dimensions are accepted after bending so that the tab arrangement matches the installed requirement.
Steel, aluminum, copper, stainless steel 316 and brass are listed material capabilities. Laser cutting, bending and stamping are listed with drilling and assembly in the manufacturing information. Specify the operations needed for the selected part and clarify any companion hardware.
Finished condition
Define the required painting, powder coating, plating or polishing scope and any surfaces needing special attention. Supply the drawing revision and quantities, with inspection points for opening geometry and formed alignment. Load capacity or installation compatibility needs separate design-specific evidence.
