Custom Machining Precision Cast Iron Casting Parts | Slotted Mounting Component Enquiries

• Model Number

  S240306
  Material

  Aluminum/Stainless Steel/Iron/Cooper/Brass/Zinc etc...
• Application

  Industry
  Surface treatment

  Paint/Powder coating/oxidation etc
• Process

  Die Casting-deburring- Machinery
  Mold making

  On-site
• Service

  OEM ODM
  Feature

  Eco Friendly
• Quality Control

  Professional Inspection
  Drawing format

  2D/(PDF/CAD)3D(IGES/STEP)
• Certification

  ISO9001/ISO14001/IATF16949

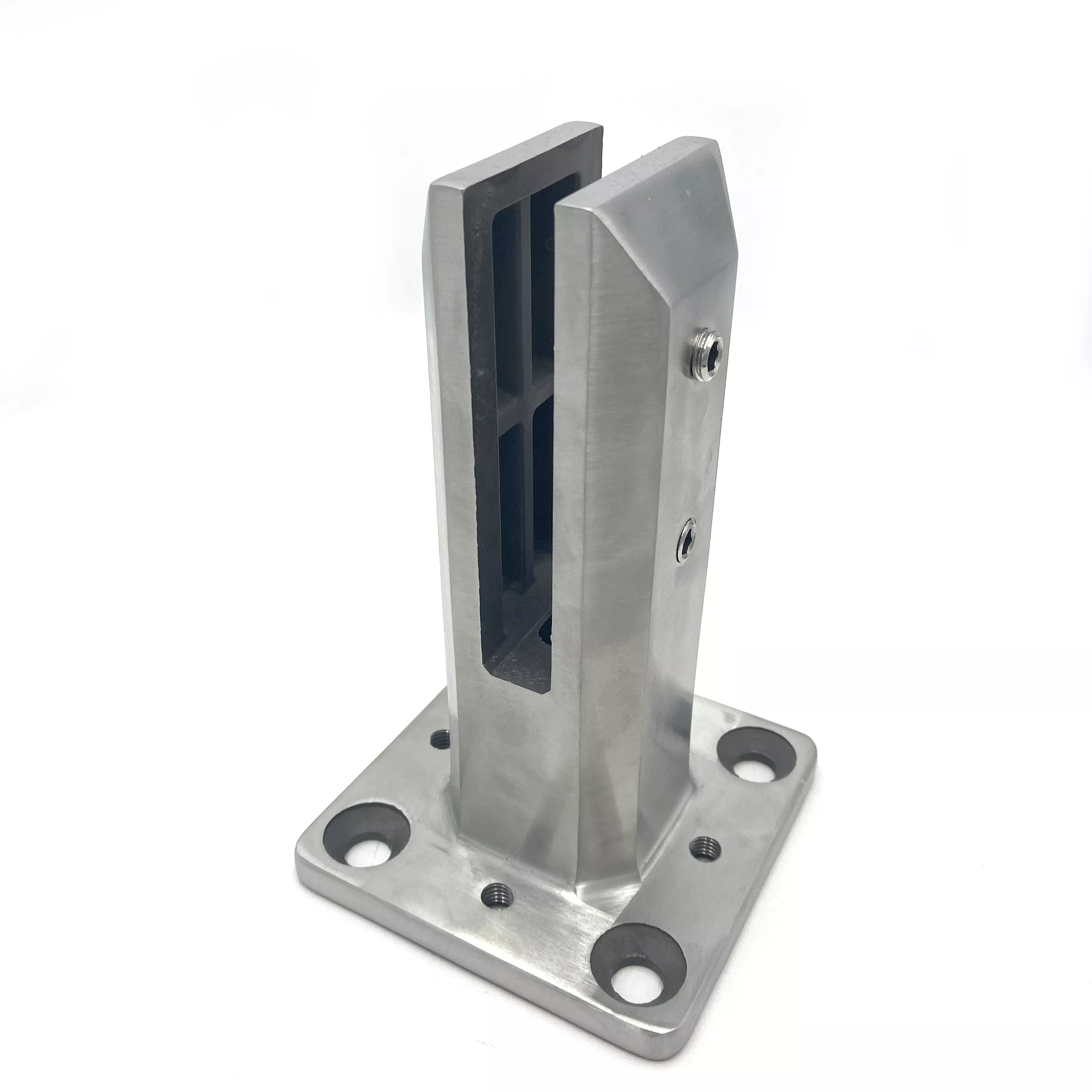

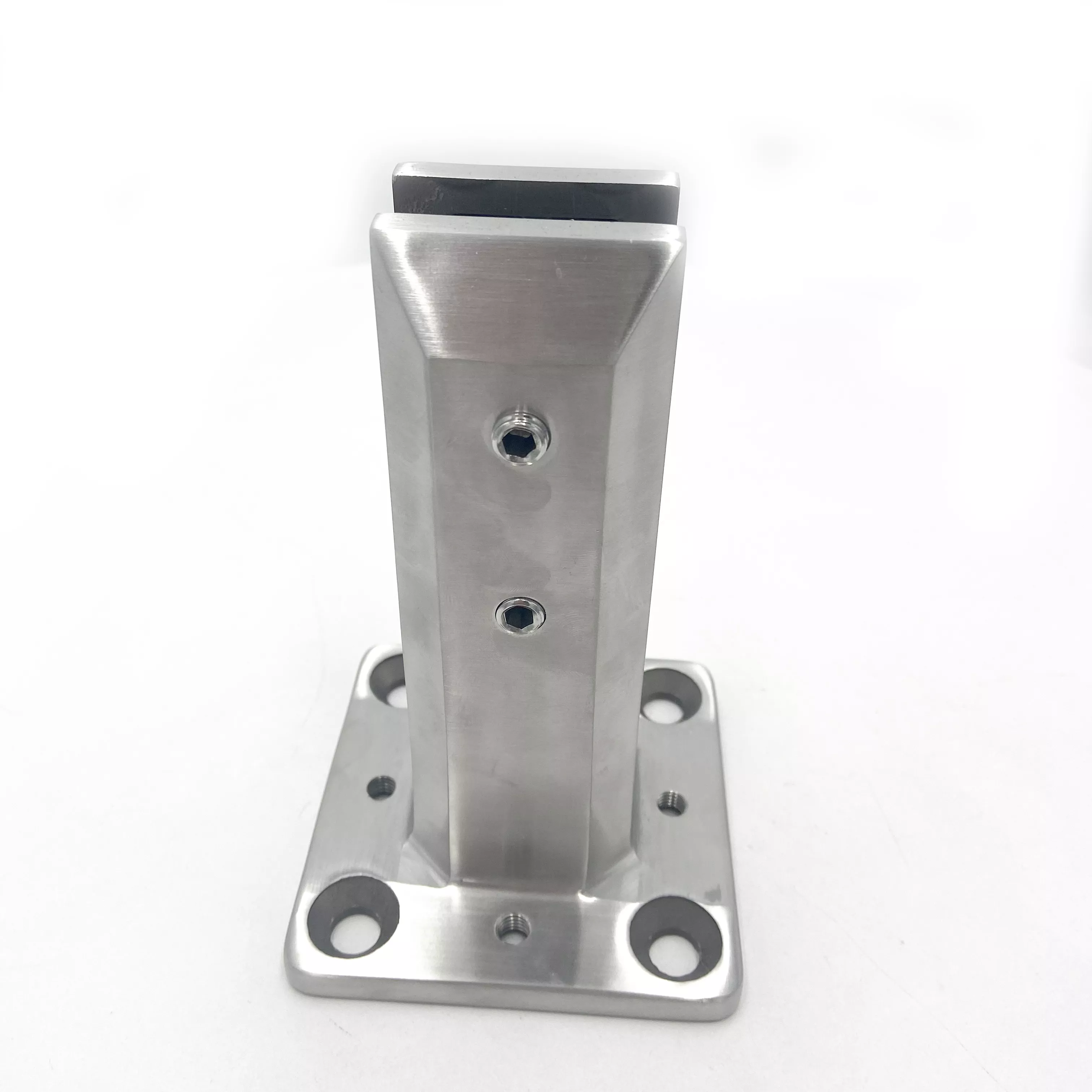

Define the tall slotted component through its mounting flange and long central channel. The light-gray example has side threaded-looking holes and four large lower fixing openings. Its geometry identifies the drawing topic without establishing actual iron grade, allowable load or compatibility with a particular machine.

Relate the long channel to the lower flange

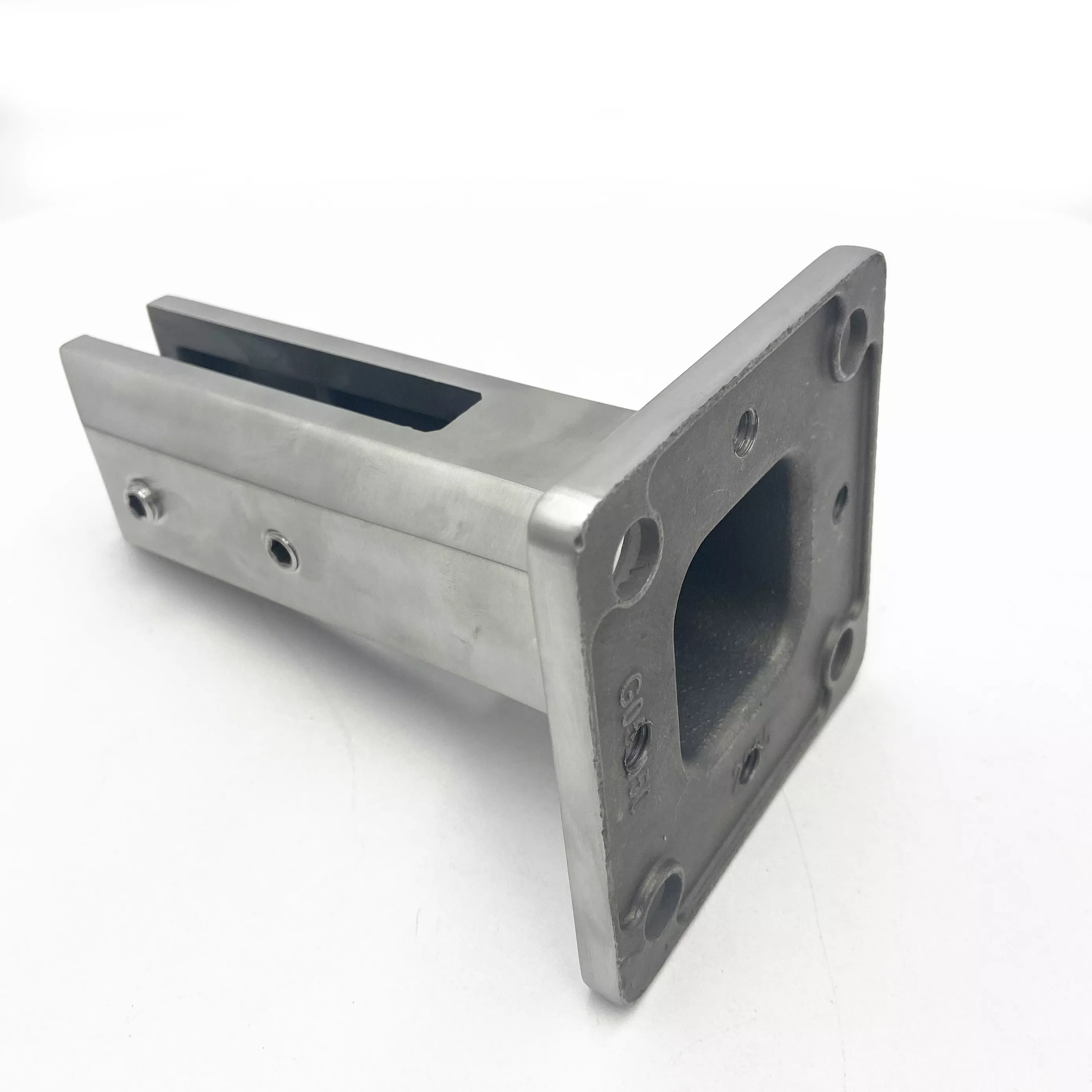

Provide the component section and locate the slot, side holes and lower mounting pattern from assembly datums. Specify any actual thread requirements and mating dimensions. Identify whether the requested supply includes only this component or adjoining pieces and fastening hardware.

Choose the casting and machining conditions

Specify the actual cast-iron grade and condition for the selected design. Other listed metals are separate project alternatives. Review the forming route against the component requirements, then mark the slot, holes and contact surfaces that need machining rather than adopting a general die-casting sequence automatically.

• Identify the slotted component and controlled revision.
• Specify actual iron grade and material evidence.
• Locate channel, side holes and lower flange.
• Define forming, machining and compatible treatment.
• Agree final inspection and required supplied pieces.

Accept the finished mounting relationships

Provide PDF/CAD or IGES/STEP geometry with units, tolerances and final measurement conditions identified. Select any finish with masking at dimensionally sensitive regions. A required certification must have current evidence applicable to the actual project; a general parameter label cannot establish that qualification.

Include quantities, installation details and functional-test requirements. Where load, movement or another service condition matters, specify its acceptance limits and method. The tall form and mounting pattern alone do not provide those performance values.

Discover the precision and reliability of Dmetal Custom Machining Precision Castings, expertly crafted to meet the highest standards in various industries. With model number S240306, these customized cast iron casting parts are designed for a wide range of applications and are available in an impressive selection of materials, including aluminum, stainless steel, iron, copper, brass, and zinc.

Each component undergoes a meticulous process that includes die casting, deburring, and advanced machinery techniques. This ensures not only precision but also durability in the end product. Our state-of-the-art mold making is done on-site, which streamlines production and enhances quality control.

The surface treatment options available, including paint, powder coating, and oxidation, allow for customization that meets both aesthetic and functional requirements. Our commitment to eco-friendliness ensures that your products will be sustainable while maintaining high performance.

Quality assurance is paramount at Dmetal; we employ professional inspection practices to guarantee that every part adheres to rigorous standards. The drawings can be provided in various formats, including 2D (PDF/CAD) and 3D (IGES/STEP), to facilitate seamless communication during the design and manufacturing processes.

With certifications such as ISO9001, ISO14001, and IATF16949, you can trust Dmetal as your reliable partner for OEM and ODM services. Elevate your production with our custom machining precision castings that deliver both excellence and innovation.
