Custom Stainless Steel Sheet Metal Plate Fabrication and Stamping with Twin Circular Profiles and Curved Slots
-
Model NumberS2401 2407RDrawing Format2D/(PDF/CAD) / 3D(IGES/STEP/STP)
-
MaterialGalvanized Plate / Steel /Aluminum /Stainless Steel Sheet PlateFinishPainting/ Anodizing/ Powder Coating/Nickel Chrome Plating
-
ColorPanton Color and Ral Color SupportedCertificateISO9001/ROHS/IATF16949
-
ProcessSheet Metal Fabricating + CNC + Surface TreatmentLogoAccept Customized Logo
-
PackingPlastic Bag + Carton + Plywood Pallet

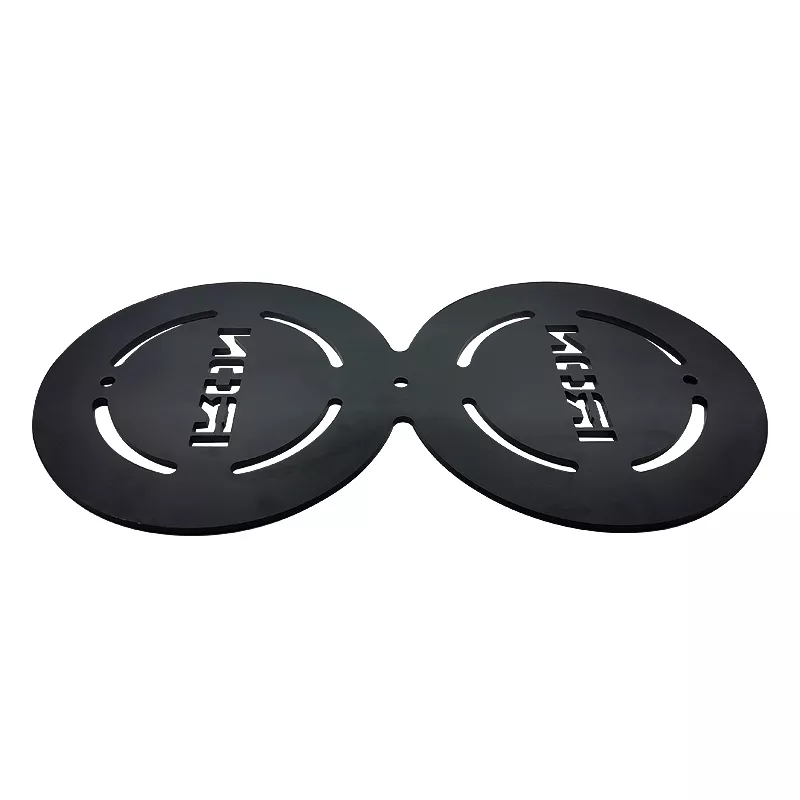

The S2401 2407R plate example has two connected circular profiles, curved slots and central cutout details. This geometry can be quoted as a customer-defined sheet metal component. The listing names stainless steel plate fabrication, with the actual grade and thickness specified for the enquiry.
Outline, slots and cutout artwork
Provide the outer profile, connection between the circular areas and the location of each slot. Include the required central cutout artwork where it is part of the design, together with any restrictions on internal corners or visible edges. Provide the final cutout artwork with its required dimensions and orientation.
Galvanized plate, steel, aluminum and stainless steel sheet are listed materials. Select the ordered grade and the required surface treatment and color. Define the edge condition and visible-face acceptance reference for the finished plate.
Quotation brief
Supply 2D files and a 3D model where available, with revision and quantities. Mark mounting or locating dimensions that require inspection. Confirm any required material documents and packaging protection for the flat finished surfaces.
