Custom Laser Cut Sheet Metal Fabrication Box Parts with Keyhole Mounting Openings and Bent Walls
-
Model NumberS2402 2407RDrawing Format2D/(PDF/CAD) / 3D(IGES/STEP/STP)
-
MaterialGalvanized Plate / Steel /Aluminum /Stainless Steel Sheet PlateFinishPainting/ Anodizing/ Powder Coating/Nickel Chrome Plating
-
ColorPanton Color and Ral Color SupportedCertificateISO9001/ROHS/IATF16949
-
ProcessSheet Metal Fabricating + CNC + Surface TreatmentLogoAccept Customized Logo
-
PackingPlastic Bag + Carton + Plywood Pallet

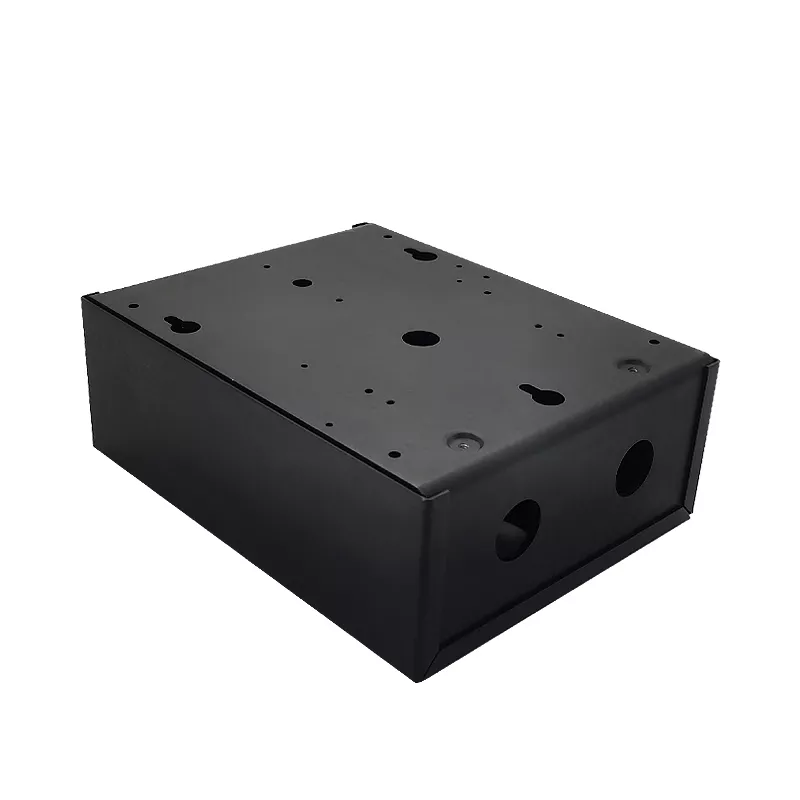

S2402 2407R sheet metal fabrication enquiries include the illustrated box with keyhole-shaped openings, smaller mounting holes and circular side cutouts. Identify the mounting face and the complete box configuration in the drawing. This layout should be distinguished from a box with a different opening pattern even when the outer shape is similar.
Mounting pattern and enclosure outline
Provide the finished dimensions, wall heights and sheet thickness. Show the keyhole profile and positions relative to other holes and formed edges. Include the mating assembly where it determines access or clearance around the side openings.
Galvanized plate, steel, aluminum and stainless steel sheet are listed material options. Select the grade and required finish, including any coating or visible-face requirements. Laser cutting requests in the title should be defined for the actual cut features and fabrication scope.
Quotation information
Send 2D/3D files with revision and quantity, and identify critical dimensions for inspection. Confirm whether a cover or additional hardware is required and how the finished box should be protected in packing.
