Custom Galvanized Steel Sheet Metal Stamping and Fabrication Strips with Repeated Slots and Profiled Edges
-
Model NumberS2407RMaterial CapabilitiesSteel/Aluminum/copper/Stainless Steel 316/brass
-
ApplicationMachinery/Industry/Home/AutomotiveEquipmentCNC Bending/Stamping Machine/Laser Marking
-
ProcessLaser Cutting Bending StampingKeywordSheet metal fabricating part
-
Surface treatmentPainting\Powder Coating\Plating\PolishingDrawing format2D/3D/CAD/DWG//STEP/PDF/IGS
-
CertificateISO9001/TS16949LogoAccept Customized Logo
-
TechnologyStamping+drilling+assembly

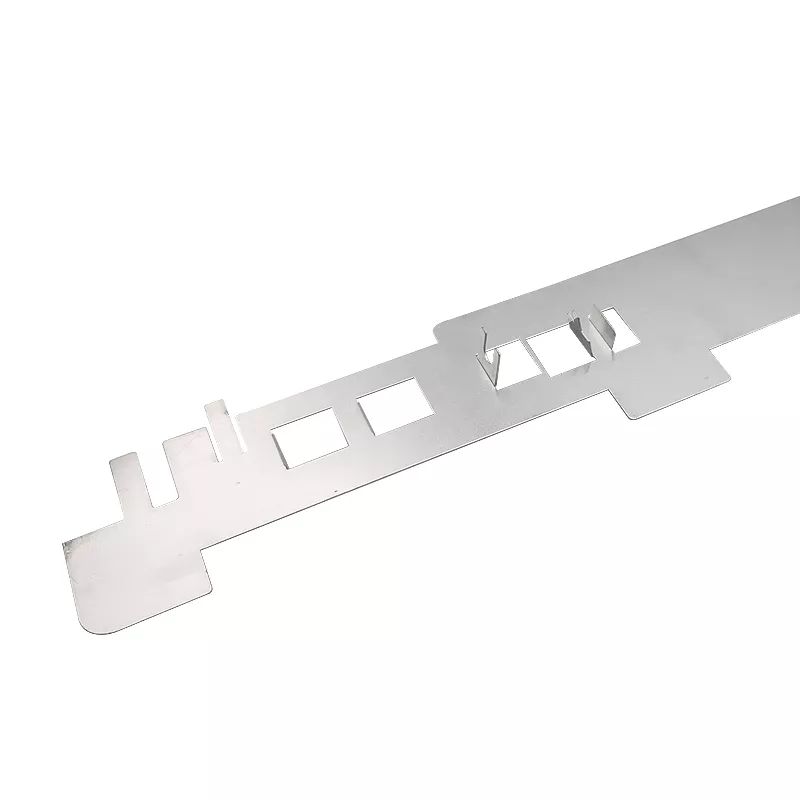

S2407R sheet metal fabrication enquiries include the illustrated long strips with repeated openings and different edge profiles. One example has closely spaced edge features, while another has a different slot arrangement and end shape. Select the required design and provide its complete profile.
Repeated openings and end connections
Specify strip length, width and thickness, with the size and spacing of every repeated feature. Show the end tabs, notches or holes that mate with the assembly. Identify any bend requirement and the dimensions accepted after forming.
Galvanized steel is named in the title. State the exact grade and required coating condition, then define any additional finishing. Laser cutting, bending, stamping, drilling and assembly appear in the source manufacturing information; agree the operations needed for the ordered strip.
Quotation package
Provide 2D/3D files with revision and quantity per profile. Mark inspection points for the repeated pattern and end interfaces. Include the edge condition and packing protection needed for long finished pieces.
