Custom Precision Grey Iron Sand Casting Parts | Flanged Hub Components

• Model Number

  2407
  Material

  Aluminum
• Application

  Industry
  Dimensions

  Customer Required
• Surface treatment

  Paint/Powder coating/oxidation etc
  Mold making

  By ourself
• Process

  Die Casting-deburring- Machinery
  Service

  OEM ODM
• Feature

  Eco Friendly
  Quality Control

  Professional Inspection
• Packing

  Carton

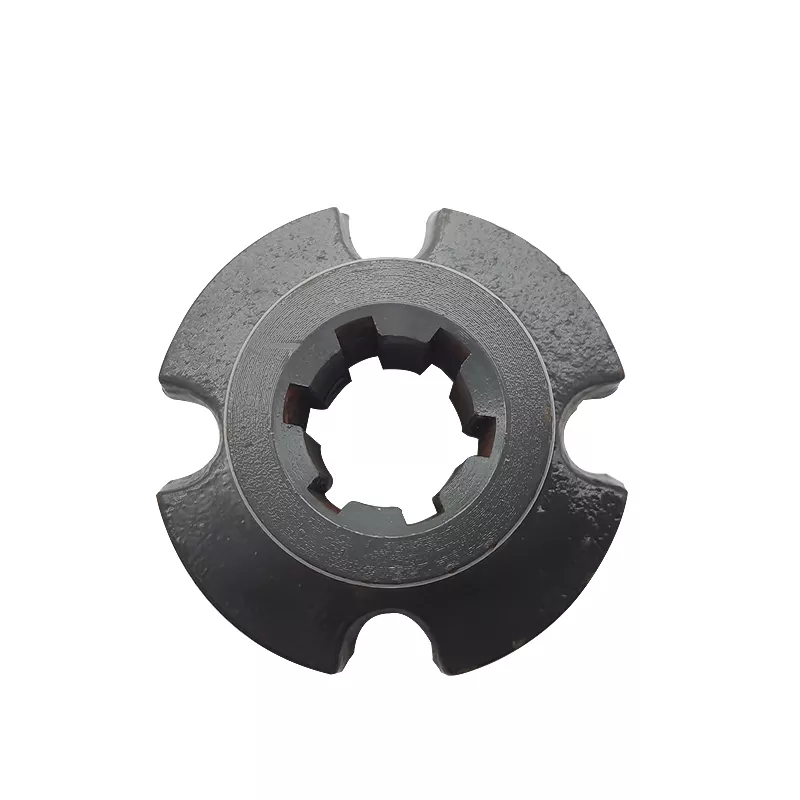

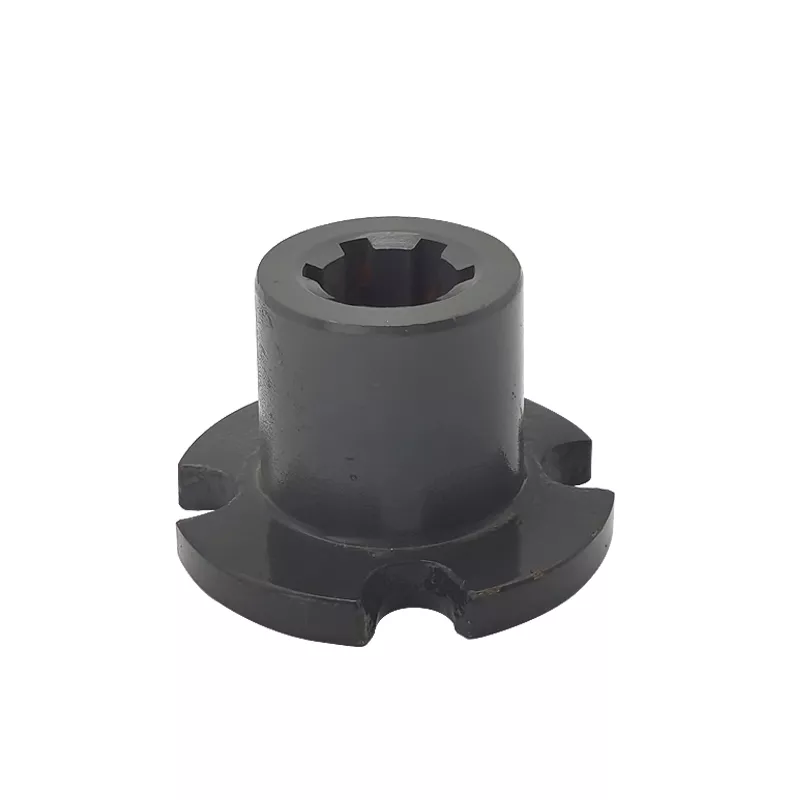

A flanged cylindrical hub is the starting geometry for this grey-iron casting enquiry. The dark example shows an internally notched or splined-looking opening and repeated cutouts around the lower flange. Determine the required mating profile from the assembly drawing before treating the photograph as a dimensional or compatibility reference.

Relate the internal profile to the flange

Show the hub section, opening and flange contact faces on controlled drawings. Locate the outer cutouts from the required datums and identify any surfaces that will be machined. Supply the actual spline or alternative connection definition where applicable, including how engagement and final fit will be inspected.

Define the grey-iron manufacturing request

Select the actual iron grade and supplied condition, with material records appropriate to the order. Review the sand-casting route against the hub geometry and identify machining, deburring and compatible surface treatment separately. Precision should be expressed through drawing requirements and acceptance criteria rather than an unrestricted capability claim.

• Reference the hub drawing and mating component.
• Specify grey iron grade and material documentation.
• Define the internal connection and flange datums.
• Mark machining allowances and treatment boundaries.
• Agree final dimensional and functional checks.

Accept the hub for its stated assembly

Provide operating requirements where the part transfers force or locates rotating equipment. Appearance alone establishes neither machine fit nor allowable duty. Any qualification requirement needs current evidence applicable to the actual component and delivery.

For a comparable quotation, include drawing revision, quantities and required inspection records. Confirm the finished condition used for measurement, particularly when a selected coating affects a flange face or internal connection.

Discover the exceptional quality of our ISO Factory Custom Iron Casting Service. Crafted through advanced techniques such as sand casting, this precision metal casting solution is designed specifically for industrial applications. The Model Number 2407 showcases our commitment to excellence with its grey iron composition, ensuring durability and reliability.

Our casting parts are tailored to meet customer-required dimensions, allowing for seamless integration into your operations. Each piece undergoes rigorous surface treatments including paint, powder coating, and oxidation, enhancing both performance and aesthetic appeal.

The entire manufacturing process is completed in-house, from mold making to die casting, followed by thorough deburring and machining. This level of control ensures that every product upholds our high standards of quality and craftsmanship.

We take pride in offering OEM and ODM services, catering to your specific needs while adhering to eco-friendly practices. Our professional inspection team guarantees that every order meets stringent quality control measures before delivery.

Packed securely in cartons, our casting parts are designed for safe transit, ready to contribute to your projects with efficiency and precision. Choose our iron casting services for a reliable solution that enhances your industrial capabilities.
