Custom Steel Ductile Iron Sand and Lost Wax Investment Casting Parts with Machined Flanges
Generate QR code
Product description
Project & Delivery Requirements
-
Model NumberDM2103Materialsteel/Iron
-
ApplicationIndustryDimensionsCustomer Required
-
Surface treatmentPaint/Powder coating/oxidation etcMold makingBy ourself
-
ProcessDie Casting-deburring- MachineryServiceOEM ODM
-
FeatureEco FriendlyQuality ControlProfessional Inspection
-
PackingCarton

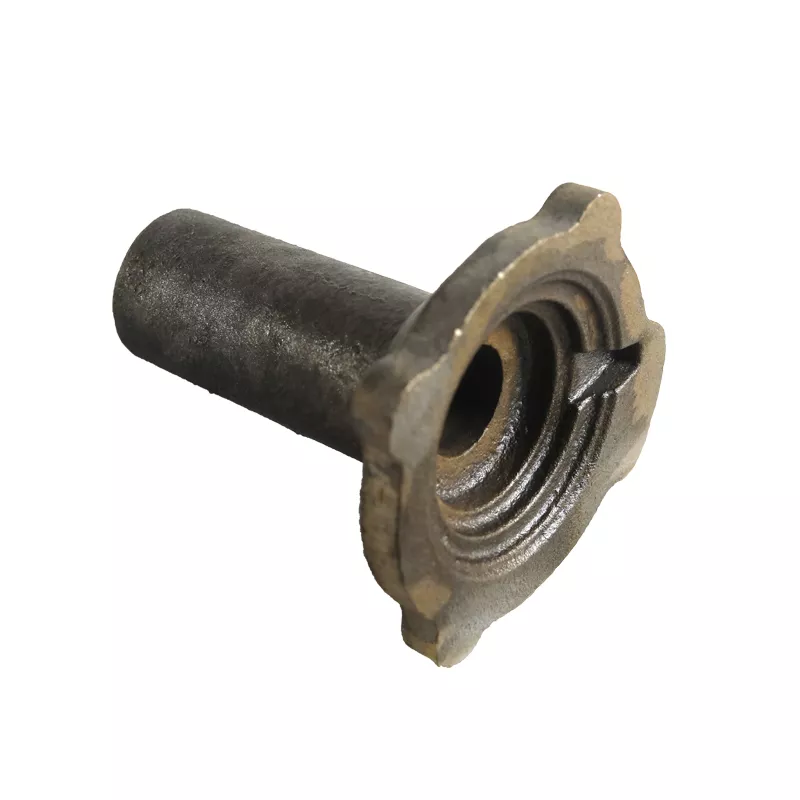

A tubular body ending in a mounting flange
The example has a long hollow form with a flange and circular interface at one end. Define the bore axis, flange face and fixing geometry together, with the wall sections and contact areas required for assembly.
Specify the steel or iron grade and whether sand casting or lost-wax investment casting is requested for review. Mark the bores and faces needing machining.
Inspection of the working interfaces
Provide quantities, finish and drawing revision. Include mating-component details, critical fit dimensions and material or inspection records for the completed housing.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
