OEM Laser Cut Sheet Metal Stamping and Bending Parts with Long Slots and Mounting Flanges
-
Model NumberS2401 2407RDrawing Format2D/(PDF/CAD) / 3D(IGES/STEP/STP)
-
MaterialGalvanized Plate / Steel /Aluminum /Stainless Steel Sheet PlateFinishPainting/ Anodizing/ Powder Coating/Nickel Chrome Plating
-
ColorPanton Color and Ral Color SupportedCertificateISO9001/ROHS/IATF16949
-
ProcessSheet Metal Fabricating + CNC + Surface TreatmentLogoAccept Customized Logo
-
PackingPlastic Bag + Carton + Plywood Pallet

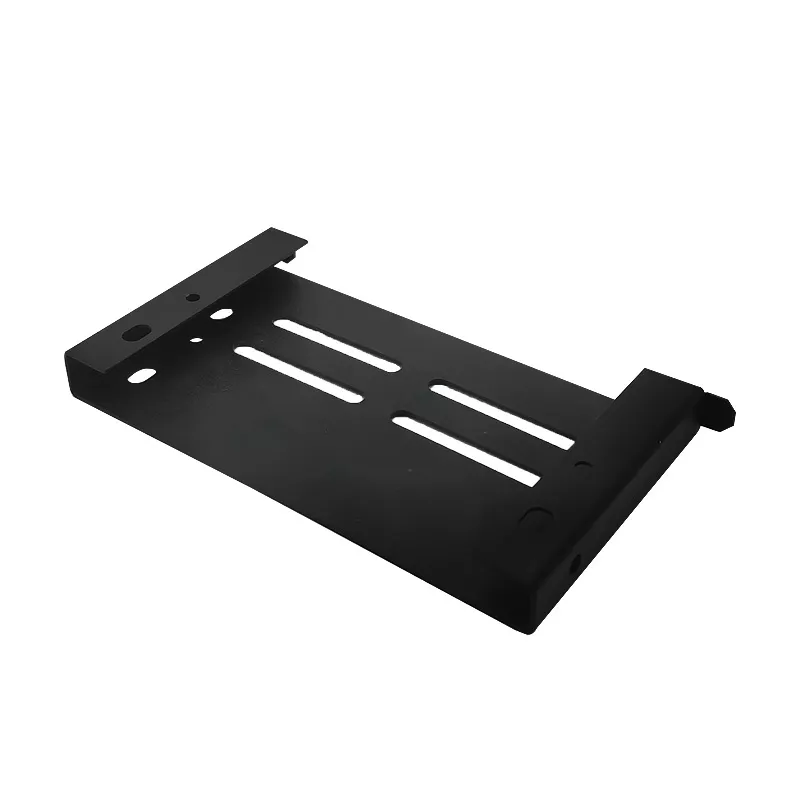

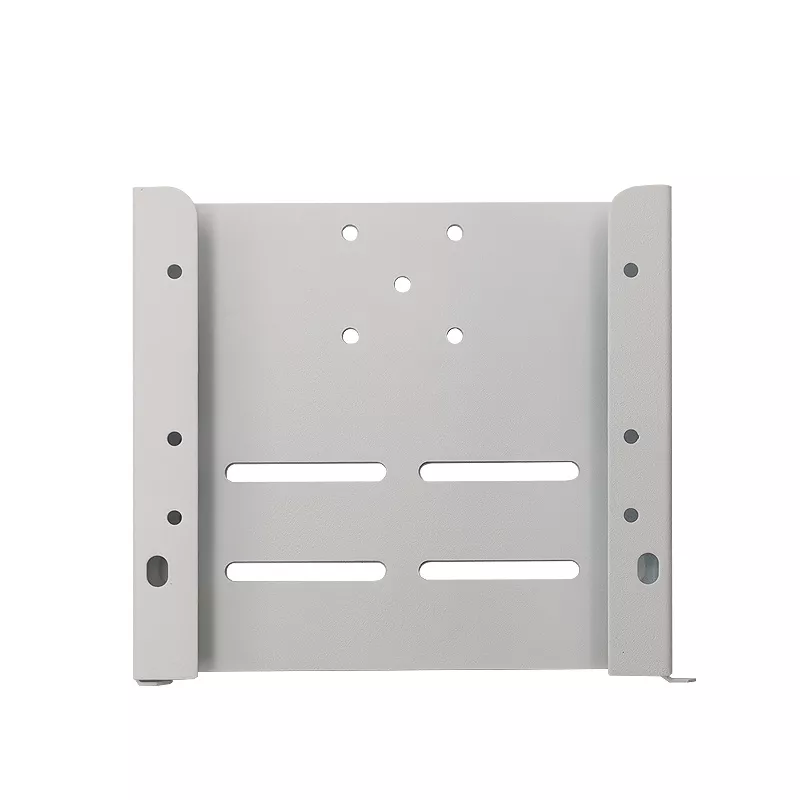

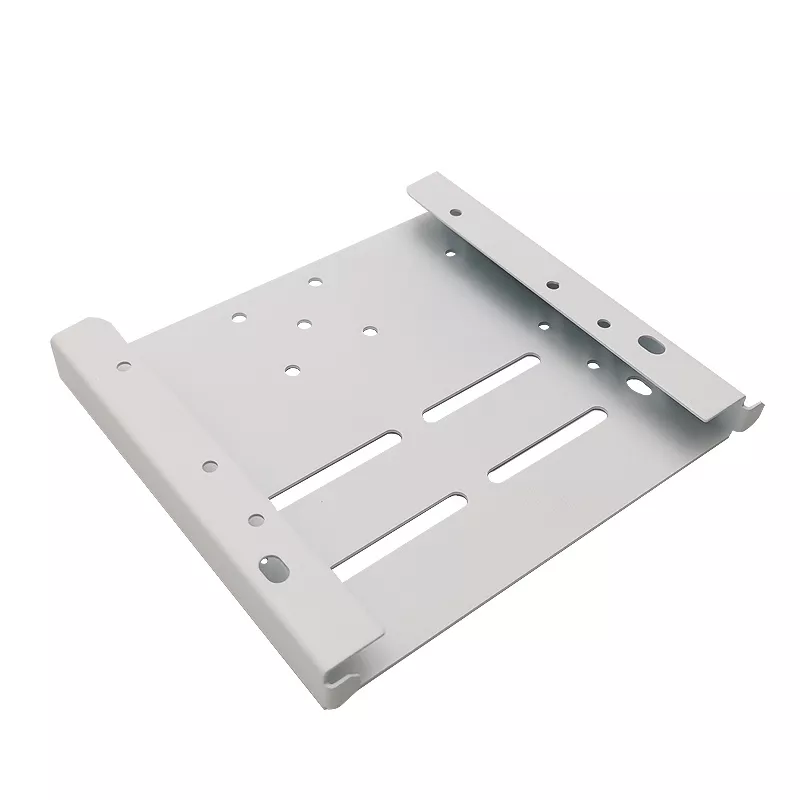

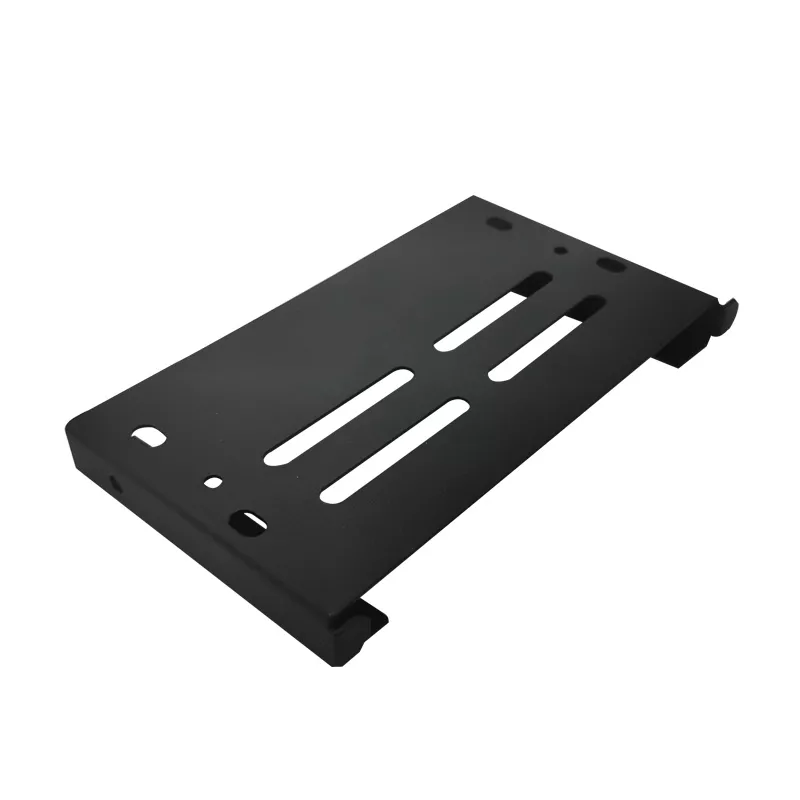

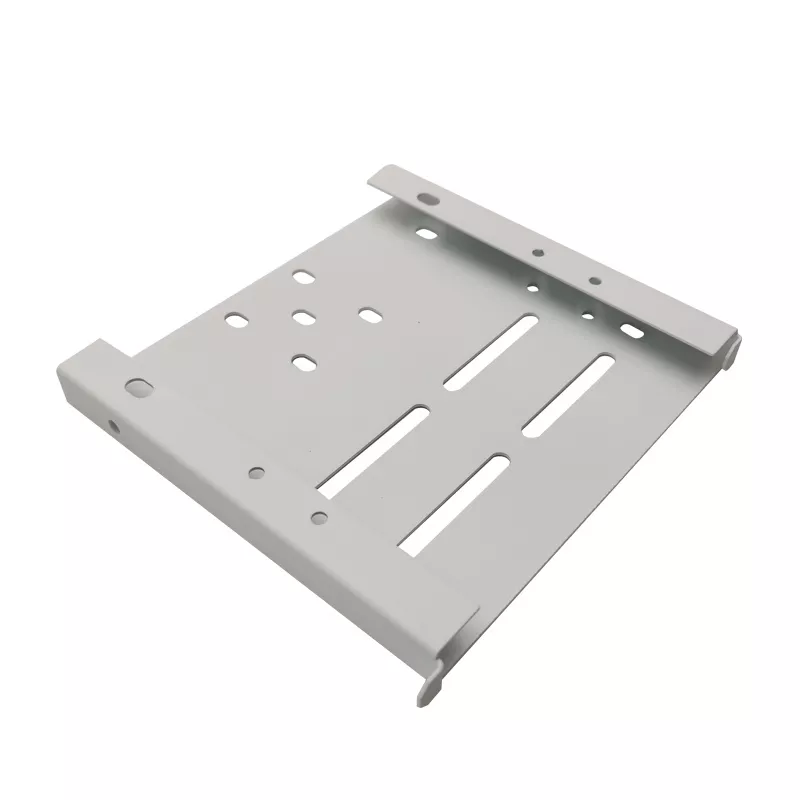

The S2401 2407R example is an elongated sheet metal panel with long slots, additional holes and bent ends. The slot arrangement and end flanges define the visible mounting geometry. OEM laser cutting, bending and stamping requests should be specified against the selected part drawing.
Specify the slot pattern
Provide the slot lengths, widths and positions relative to the end flanges and other holes. Identify any movement or positioning requirement of the mating assembly and define the corresponding acceptance criteria. The photograph does not establish a standard adjustment range or fastener size.
Galvanized plate, steel, aluminum and stainless steel are listed material options. Select the grade and thickness, then define the surface treatment and color. Mark any locating faces or openings that need a controlled finished condition.
For the quotation
Submit matching 2D/3D drawing revisions, quantity and inspection requirements. Agree the operations needed to complete the slots, bends and mounting interfaces. Confirm whether any companion pieces are included and how the formed ends should be protected during packing.
