Custom Powder Coated Sheet Metal Stamping and Fabrication Enclosure Panels with Mixed Cutouts
-
Model NumberS2407RMaterial CapabilitiesSteel/Aluminum/copper/Stainless Steel 316/brass
-
ApplicationMachinery/Industry/Home/AutomotiveEquipmentCNC Bending/Stamping Machine/Laser Marking
-
ProcessCutting Bending Stamping WeldingSurface treatmentPainting\Powder Coating\Plating\Polishing
-
Drawing format2D/3D/CAD/DWG//STEP/PDF/IGSCertificateISO9001/TS16949
-
KeywordSheet Metal Fabricating Parts

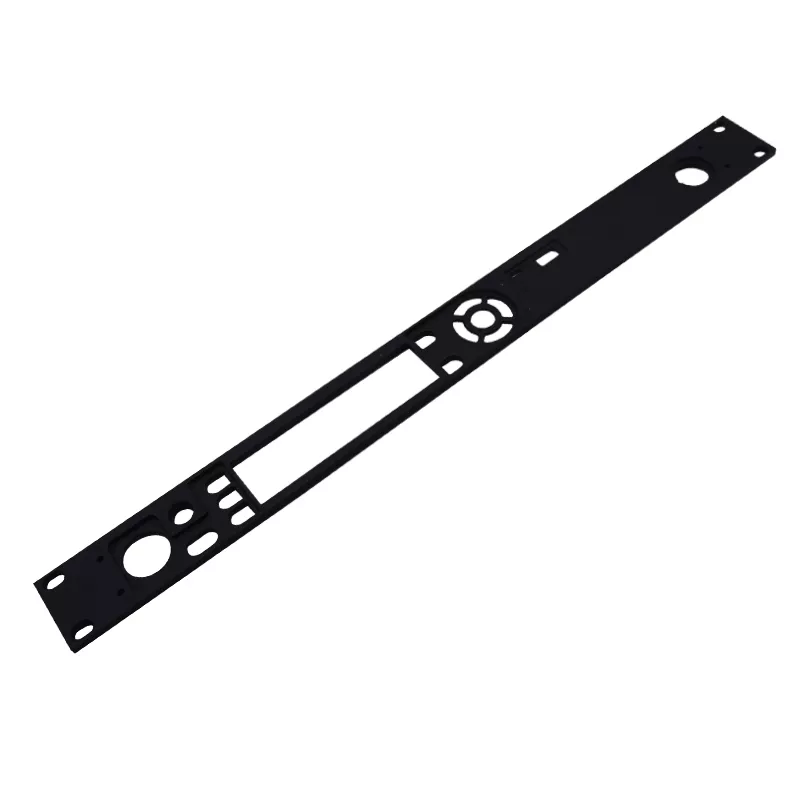

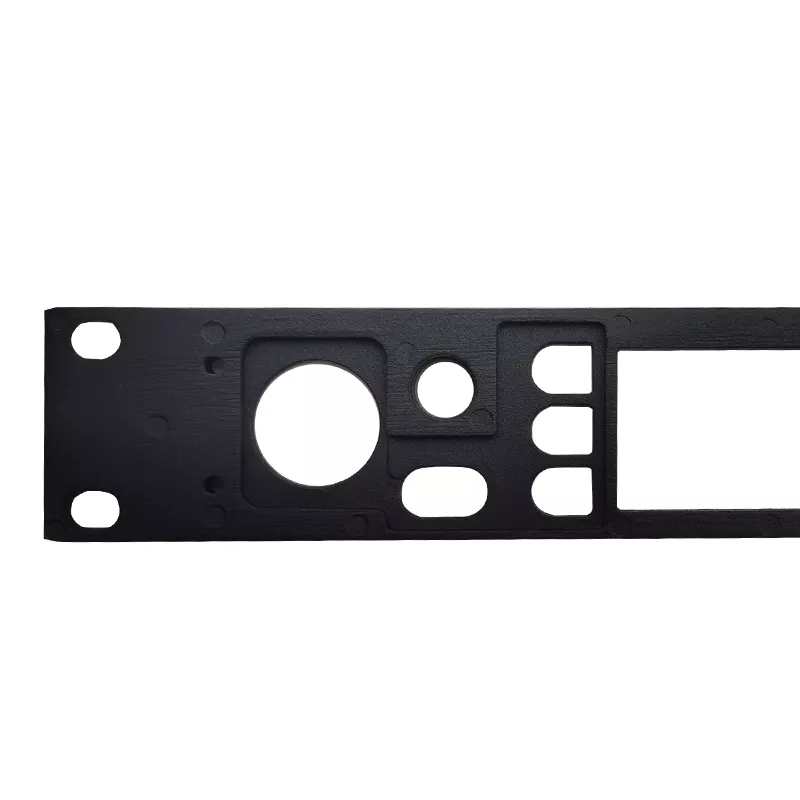

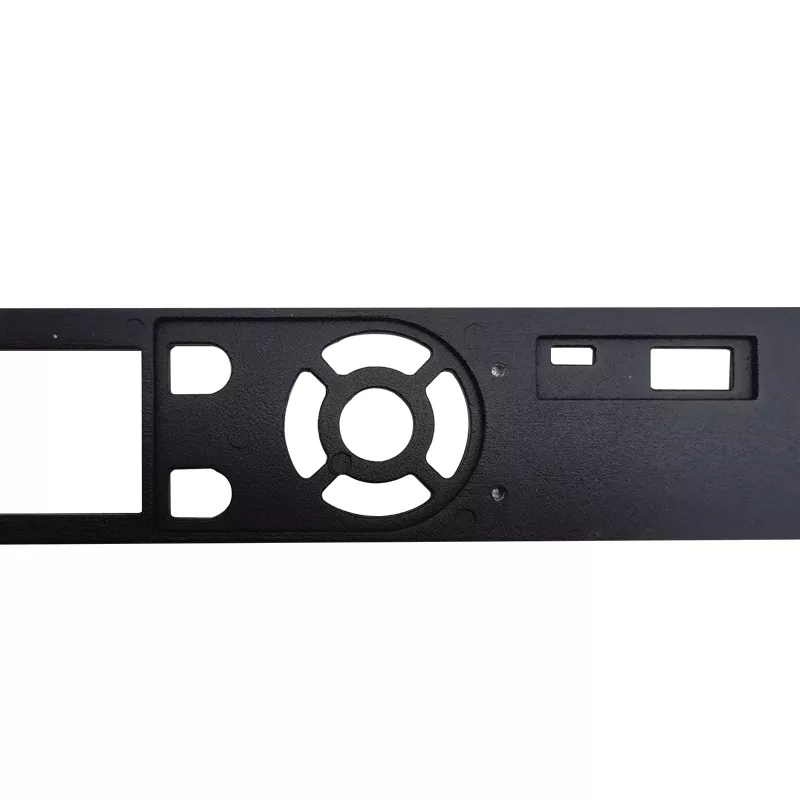

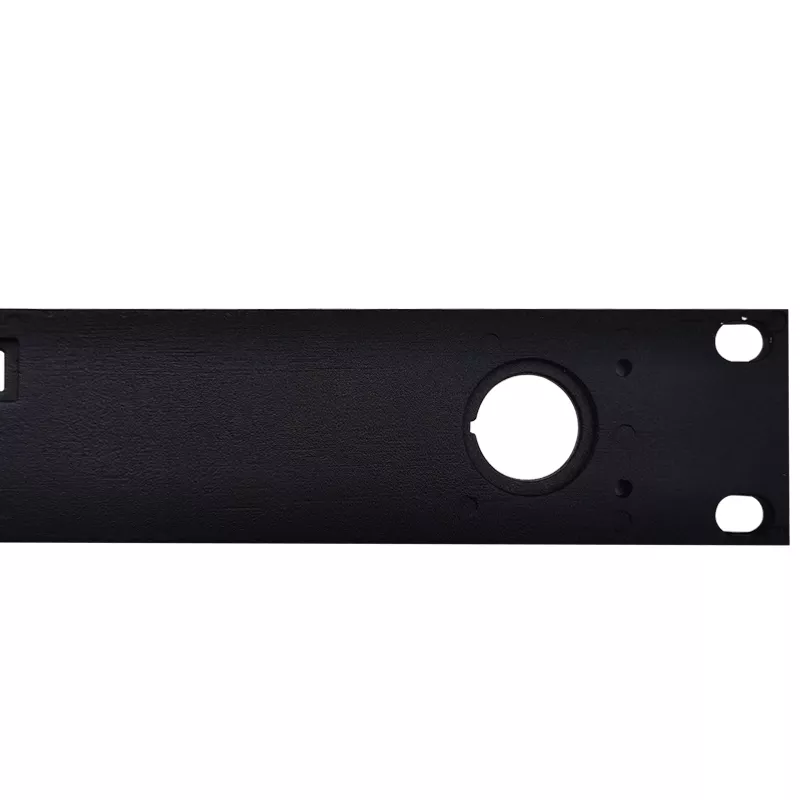

The S2407R example is a long narrow sheet metal panel with several circular, rectangular and slotted cutouts. Its opening pattern gives the fabrication enquiry a specific interface layout. Provide the ordered panel drawing and identify the components that need to pass through or mount behind these openings.
Coordinate the cutouts
Dimension the outline and locate every opening from common references. Identify any formed edges or separate mounting features and the clearances needed behind the panel. State the material grade and thickness for the part.
Steel, aluminum, copper, stainless steel 316 and brass are listed capabilities. The source covers cutting, bending, stamping and welding, with powder coating among the finishing options. Select the operations and finish actually required for this panel.
Quotation and inspection
Supply current 2D/3D files, quantity and a color or appearance reference. Agree inspection of the opening positions and finished edges. Define the panel supply and any companion pieces explicitly before approving fabrication.
