Custom Sheet Metal Enclosure Bending and Stamping Parts | Hinge and Bracket Components

• Model Number

  S2407R
  Material Capabilities

  Steel/Aluminum/copper/Stainless Steel 316/brass
• Application

  Machinery/Industry/Home/Automotive
  Equipment

  CNC Bending/Stamping Machine/Laser Marking
• Process

  Laser Cutting Bending Stamping
  Keyword

  Sheet metal fabricating part
• Surface treatment

  Painting\Powder Coating\Plating\Polishing
  Drawing format

  2D/3D/CAD/DWG//STEP/PDF/IGS
• Certificate

  ISO9001/TS16949
  Logo

  Accept Customized Logo
• Technology

  Stamping+drilling+assembly

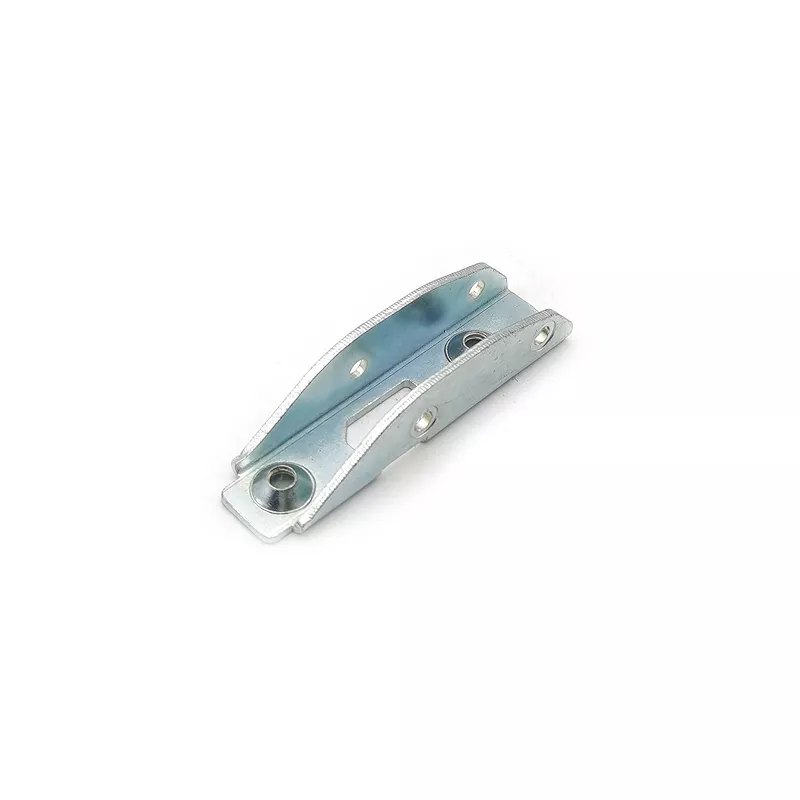

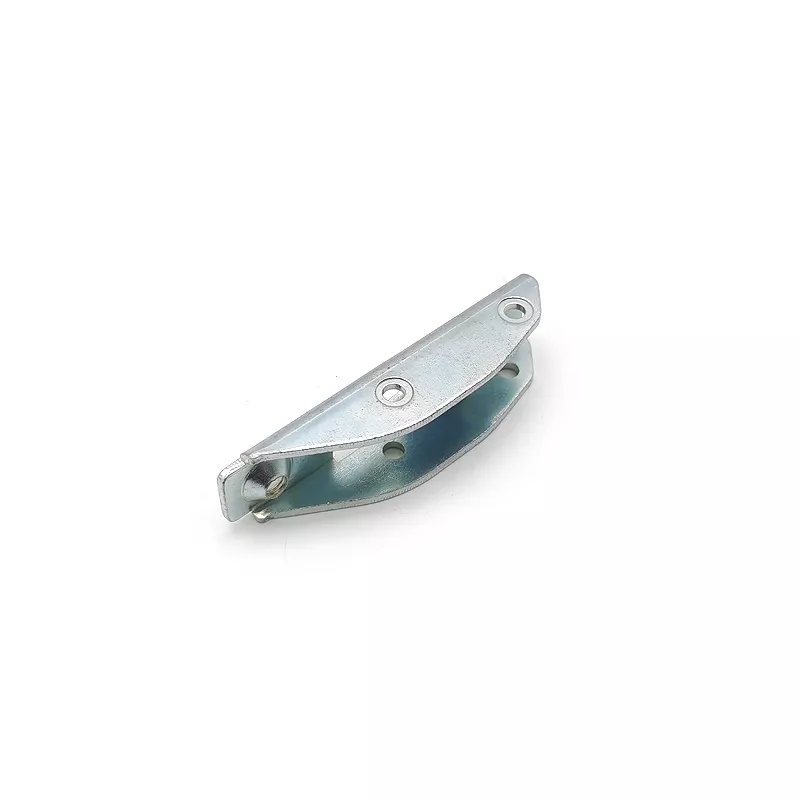

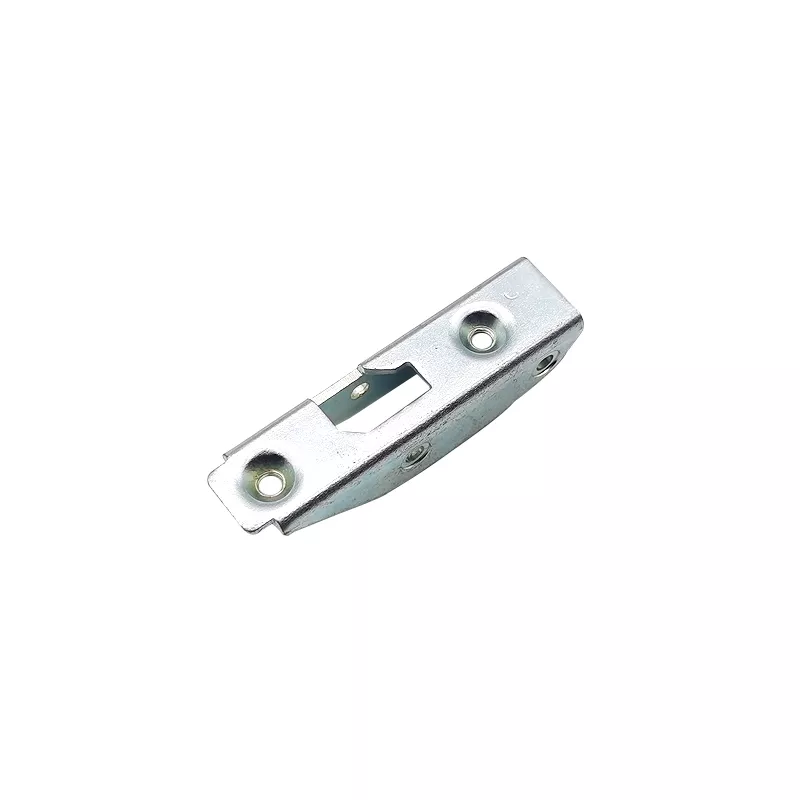

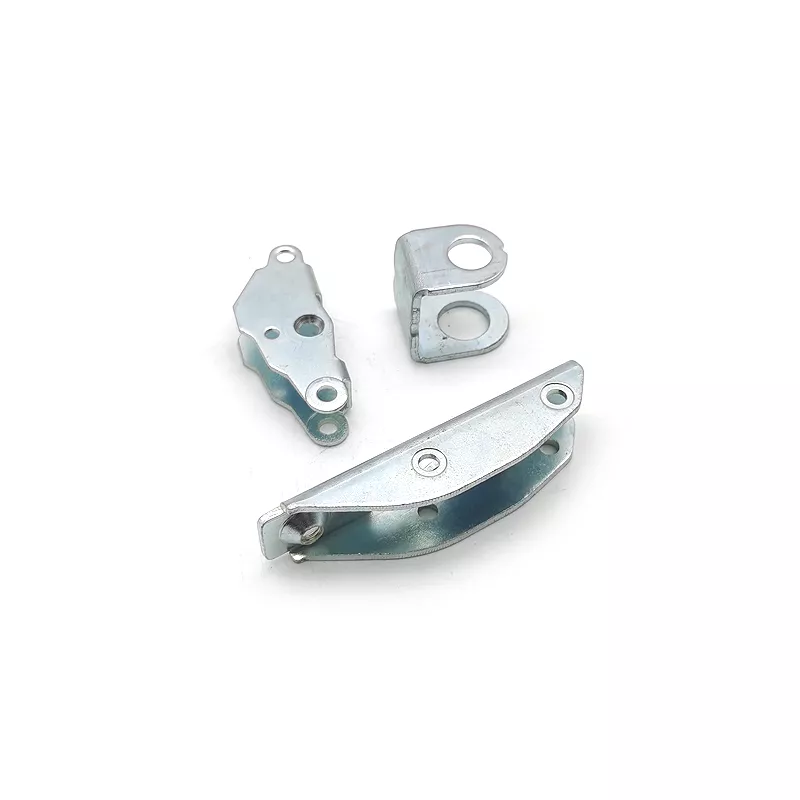

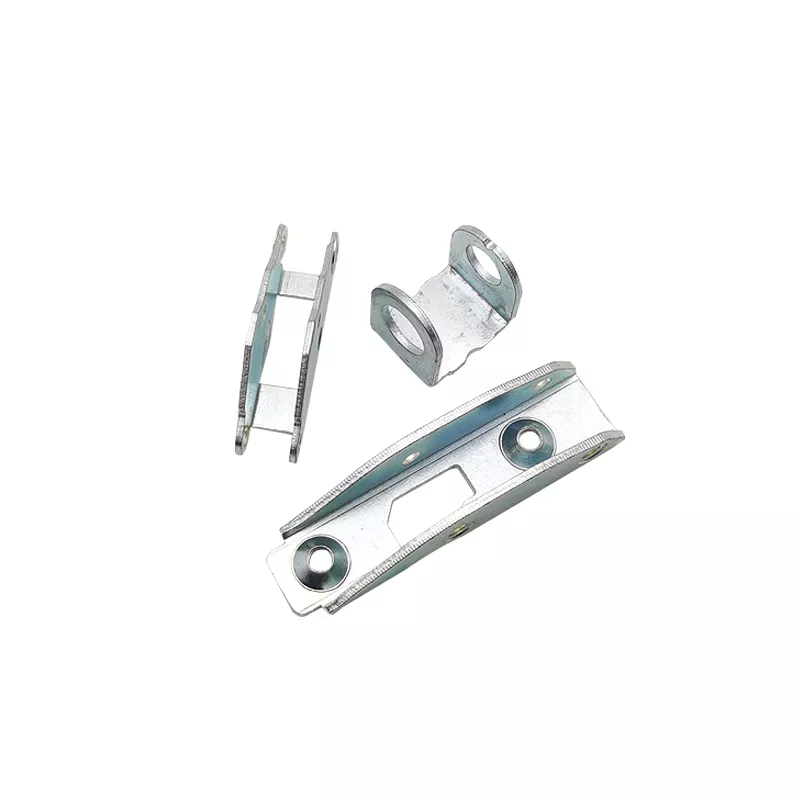

Develop enclosure hardware from the actual hinge and bracket drawings. The three light examples include a twin-ear piece with round holes and a longer curved channel-like component with end openings. The group illustrates different connection forms; it does not establish a matched mechanism or a complete supplied enclosure.

Coordinate each bracket with the moving contacts

Show individual sections and the relationship between ears, holes and adjoining components. Locate pivot axes and fixing surfaces from assembly datums, with required clearances and movement defined by the installation. Identify any pins, bushes or fasteners separately rather than assuming the photographed pieces include the mating hardware.

Choose sheet material and fabrication scope

Steel, aluminum, copper, stainless steel and brass require separate grade and condition selections. State thickness or section requirements and requested material records for each item. Define laser cutting, stamping, bending, drilling and any joining or assembly only where needed by the controlled design.

• Identify each hinge or bracket drawing revision.
• Dimension pivot holes, ears and fixing contacts.
• Select actual material and supplied condition.
• Define forming, hardware and surface treatment.
• Agree fit, movement and application acceptance.

Inspect enclosure hardware at its working interfaces

Specify tolerance units and final measurement conditions, including the selected paint, powder coating, plating or polishing system. Any load, repeated movement, sealing or automotive requirement needs actual operating conditions and applicable tests. A hinge-like outline alone demonstrates neither rated duty nor enclosure performance.

Provide CAD, DWG, STEP, PDF or IGS files, per-item quantities and required inspection documentation. Keep supplied components, assembled hardware and any separately requested complete enclosure clearly identified when comparing fabrication proposals.
