Custom Steel Sheet Metal Bending and Fabrication Offset Brackets with Mounting Holes and Slots
-
Model NumberS24005 2407RMaterial CapabilitiesSteel/Aluminum/copper/Stainless Steel 316/brass
-
ApplicationMachinery/Industry/Home/AutomotiveEquipmentCNC Bending/Stamping Machine/Laser Marking
-
ProcessCutting Bending Stamping WeldingSurface treatmentPainting\Powder Coating\Plating\Polishing
-
Drawing format2D/3D/CAD/DWG//STEP/PDF/IGSCertificateISO9001/TS16949
-
KeywordSheet Metal Fabricating Parts

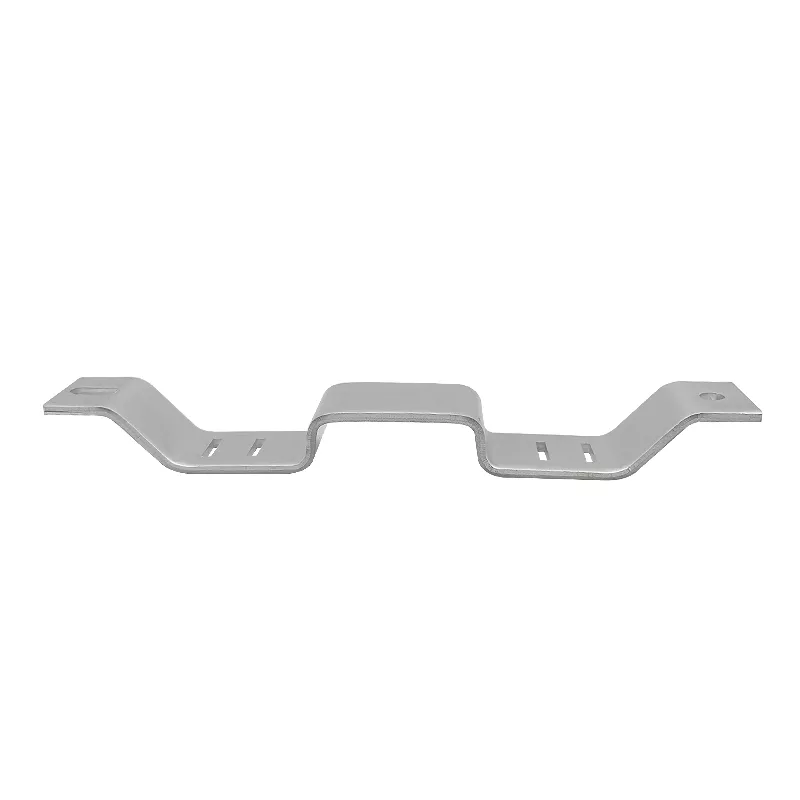

S24005 2407R sheet metal fabrication enquiries include the illustrated bracket with several offset bends, end mounting holes and narrow rectangular slots. The raised center and end sections should be dimensioned in the finished condition. Specify the steel grade and sheet thickness for the ordered design.
Offsets and mounting interfaces
Provide the bracket length, width and bend heights together with the position of the holes and slots. Identify the faces that contact the mating assembly. Where end openings differ in shape, show their individual dimensions rather than assuming a symmetric part.
The source lists cutting, bending, stamping and welding with painting, powder coating, plating and polishing. Agree the operations and surface condition appropriate to this bracket and its selected material.
Design package
Send matching 2D/3D revisions, quantities and dimensional acceptance points. State any assembly clearance or load requirement separately and request the necessary evidence. Confirm whether the order is for the bracket alone or includes additional pieces.
