18x64-C Side Lock with Arms Without Bevels | Sawtooth Mining Chain Link

• Model Number

  S240311
  Material

  Iron /Steel /20CrMnTi
• Application

  Mine/Auto/Industry
  Dimensions

  Customer Required
• Surface treatment

  Paint/Powder Coating/Oxidation etc
  Mold making

  By Ourselves
• Service

  OEM ODM
  Quality Control

  Professional Inspection
• Packing

  Individually Packed or as per your requirements
  Process

  Forging+Machining(if Need)+Surface Treatment

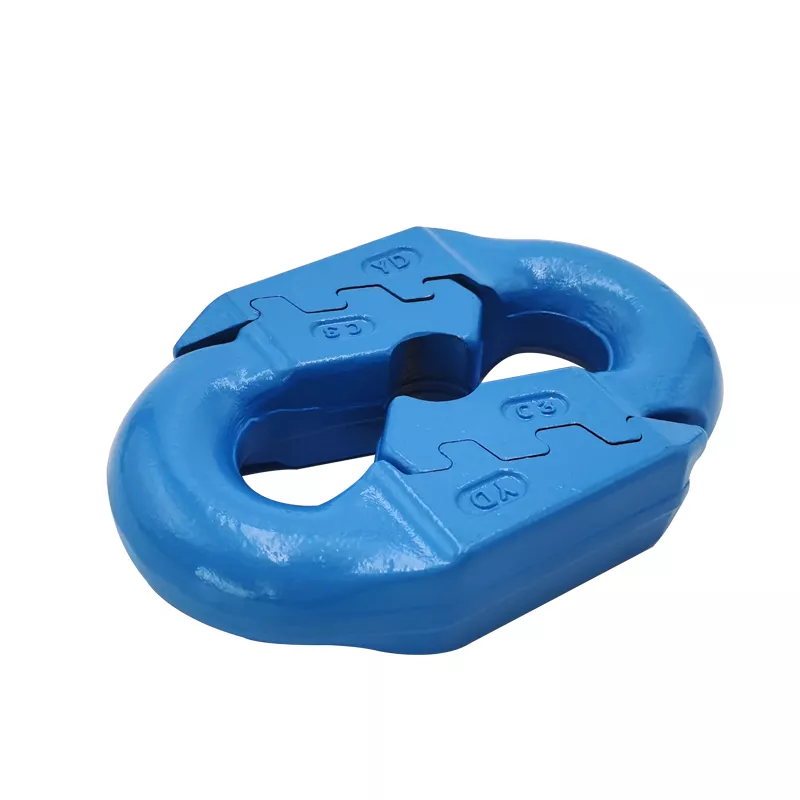

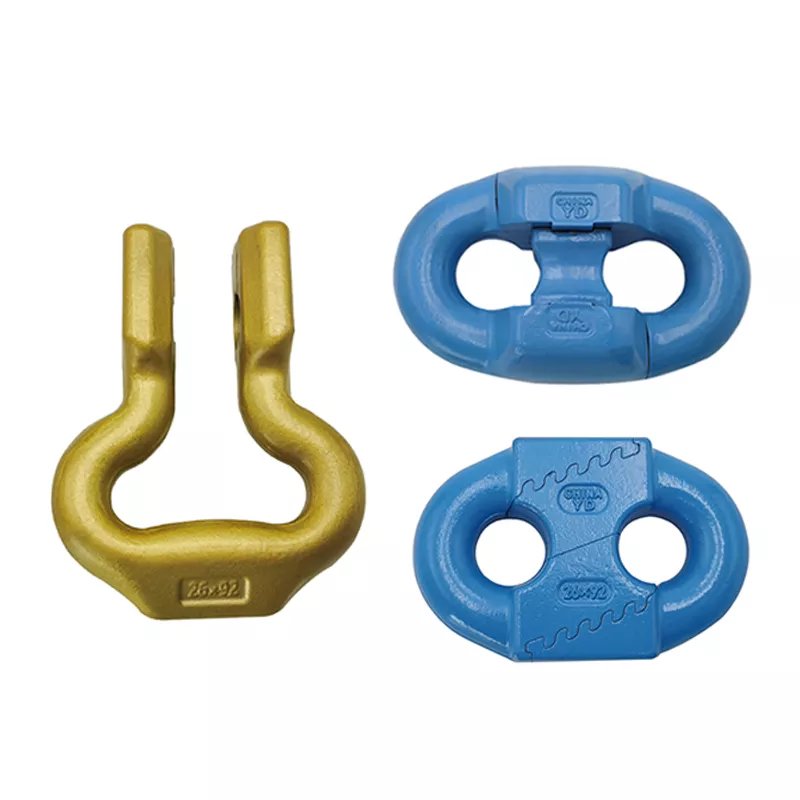

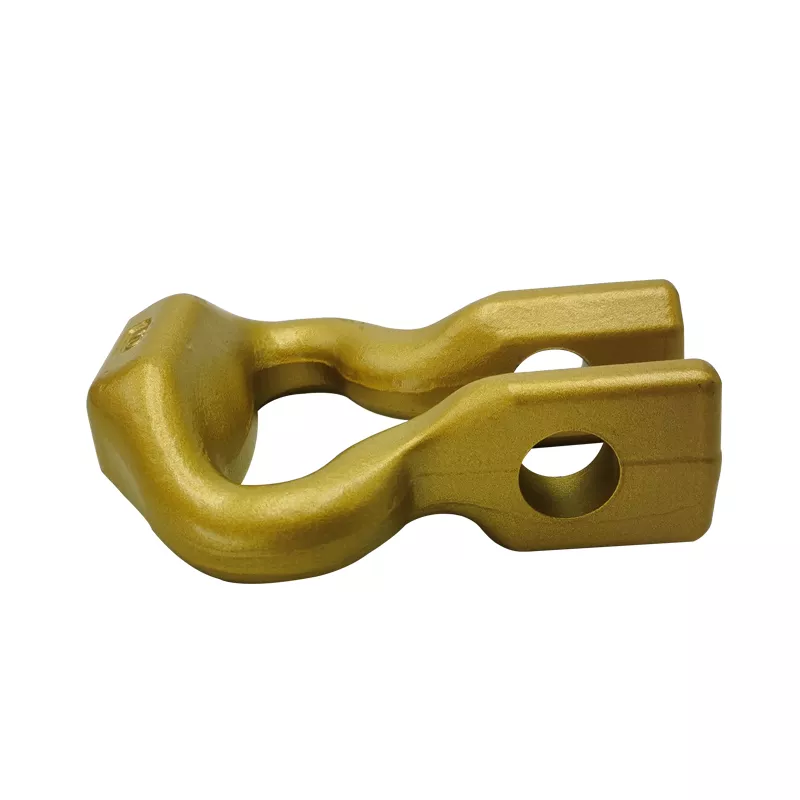

The 18x64-C side lock with arms without bevels is a reference for a mining chain connection enquiry. The gallery shows several forms, including an open fork-like part and split links with different joint arrangements. Identify the intended design explicitly; a collage of related connectors does not define the finished part or its chain fit.

Define arms and interlocking joint geometry

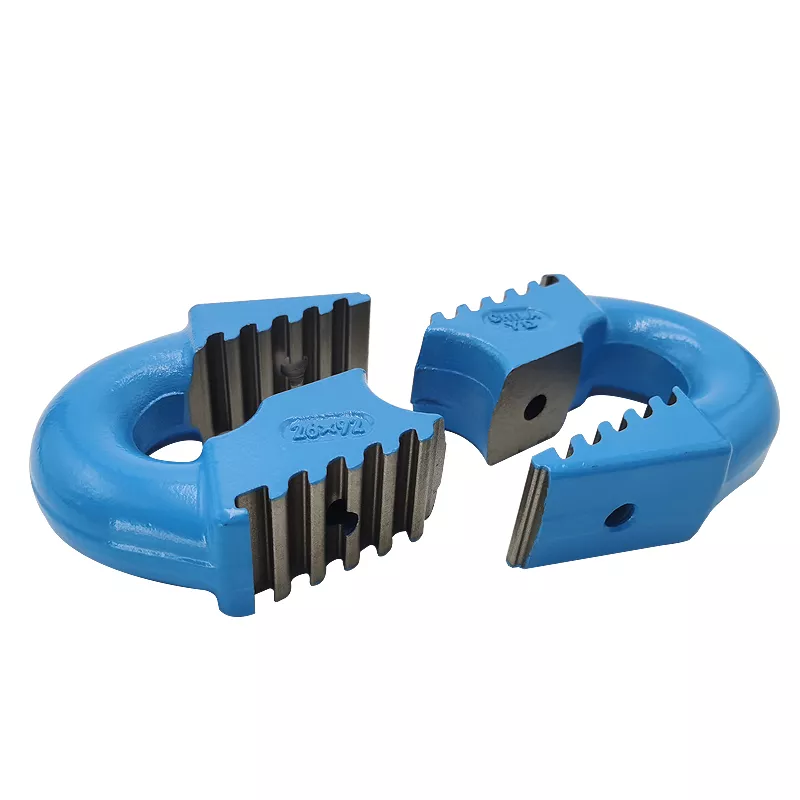

Provide the required side-lock drawing and revision with the 18x64-C reference. Dimension the arms, link section, opening and mating surfaces. For a sawtooth joint, define the tooth profile and the way the mating components engage rather than inferring their dimensions from a photograph.

If arms without bevels are required, identify the affected edges and their finished condition on the drawing. Include the retaining or closure components and the assembly clearances needed around them. The gallery assembly illustration provides a visual connection concept; equipment-specific instructions and suitability still need to be established for the intended conveyor.

Select material and manufacturing scope

The catalogue model is S240311, with a general material field listing iron, steel and 20CrMnTi. Specify the actual material grade and condition for your enquiry. The model and image colors do not establish that every connector example has the same alloy, treatment or duty rating.

The listed process covers forging, machining if required and surface treatment. Identify fitted joint faces, holes and other features requiring finished dimensions. Agree the selected finish and dimensional inspection in the supplied condition so that machining and treatment are assessed against the same drawing requirements.

Match the connector to its working assembly

• Identify the side-lock design and mating chain specification.
• Define arm edges, joint profile and closure hardware.
• Select material, condition and required documentation.
• State operating duty, quantities and acceptance criteria.
• Mark the arm edges and tooth engagement dimensions requiring inspection.

Any working-load, fatigue or approval requirement needs evidence applicable to the actual connector and equipment. The title reference and general mining application do not establish those properties. A drawing-based enquiry allows the requested side lock to be reviewed against its chain interfaces before ordering.
