Custom Bent Sheet Metal Housing Cases with Vent Slots and Cutouts for Stamping and Box Fabrication Enquiries
Generate QR code
Product description
Project & Delivery Requirements
-
Model NumberS2401 2407RDrawing Format2D/(PDF/CAD) / 3D(IGES/STEP/STP)
-
MaterialGalvanized Plate / Steel /Aluminum /Stainless Steel Sheet PlateFinishPainting/ Anodizing/ Powder Coating/Nickel Chrome Plating
-
ColorPanton Color and Ral Color SupportedCertificateISO9001/ROHS/IATF16949
-
ProcessSheet Metal Fabricating + CNC + Surface TreatmentLogoAccept Customized Logo
-
PackingPlastic Bag + Carton + Plywood Pallet
Coordinate the cutouts with the bent side walls

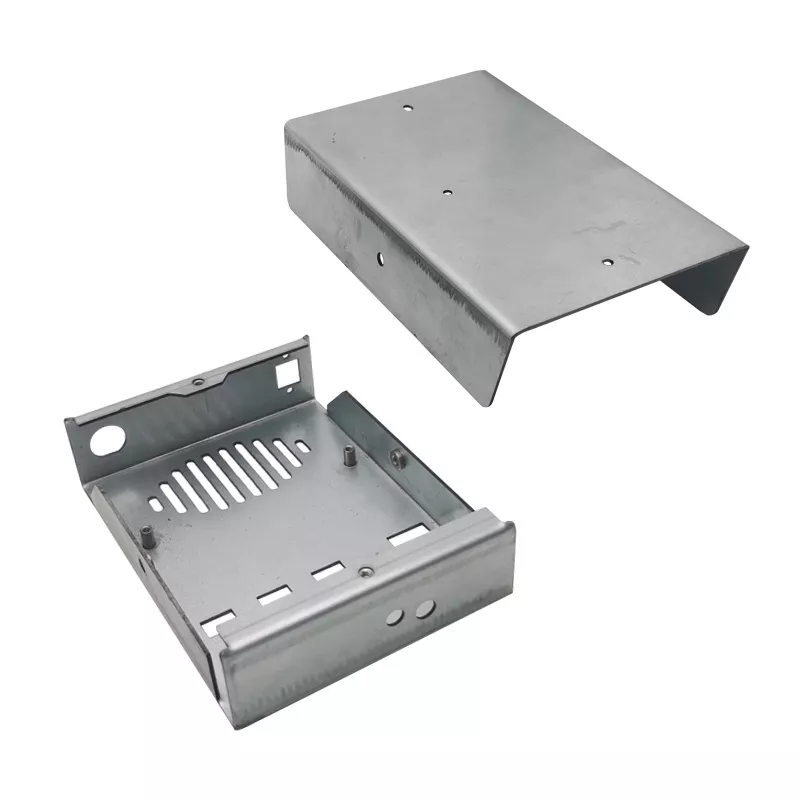

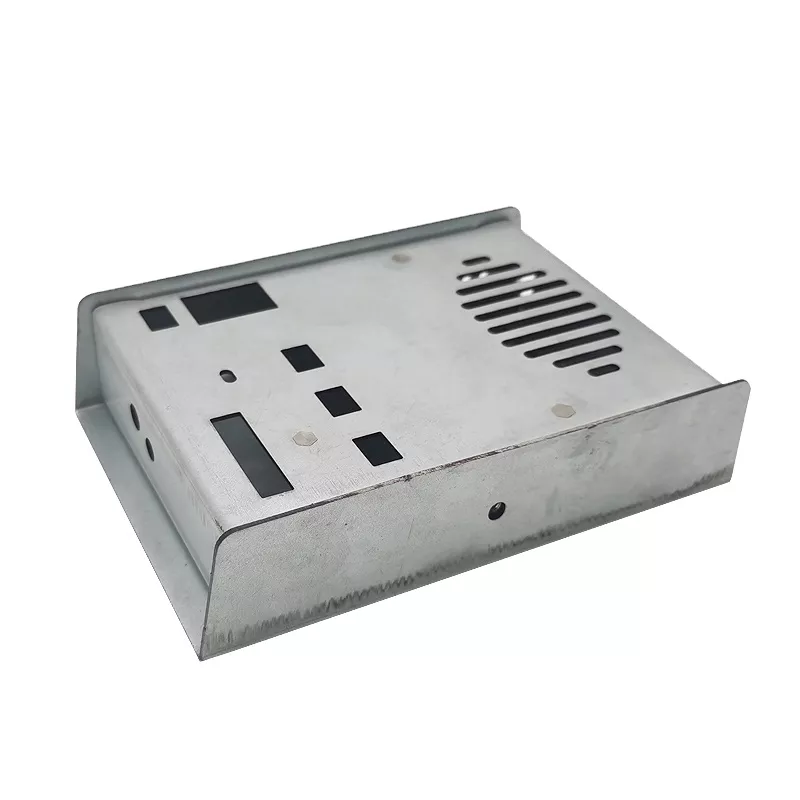

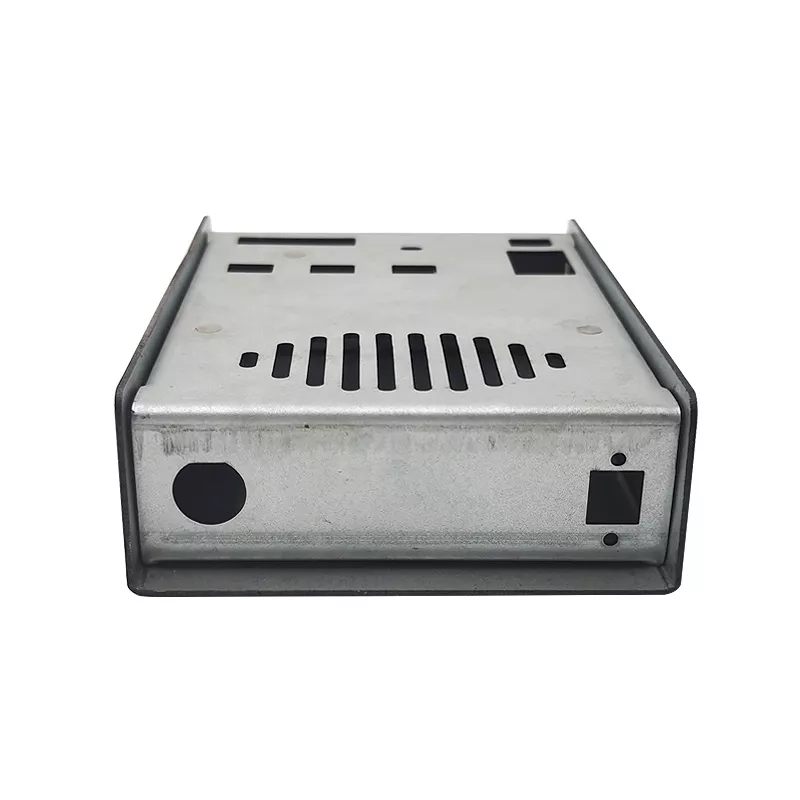

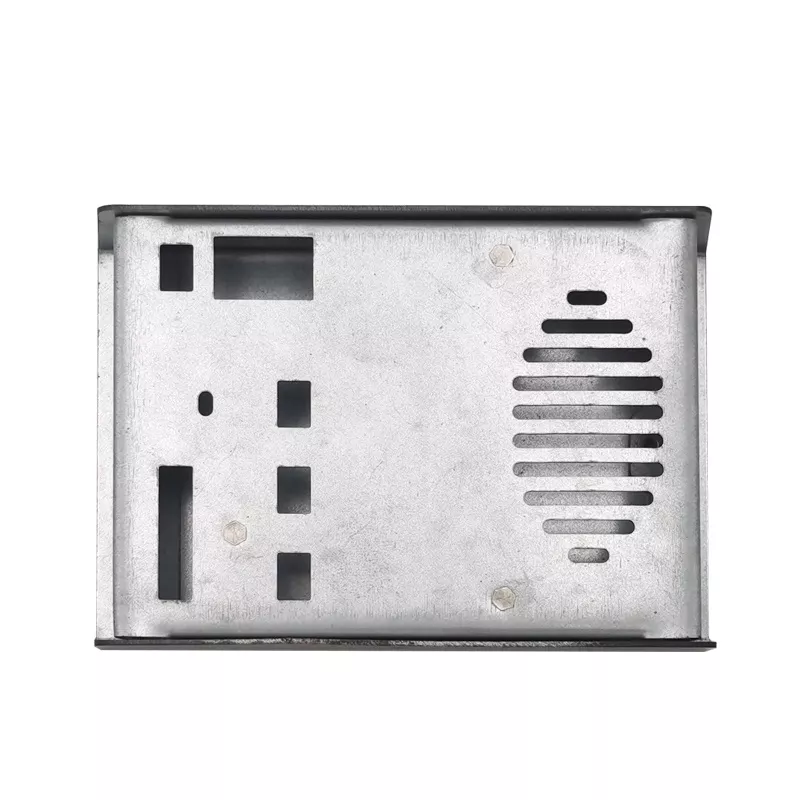

The example has a broad sheet-metal face with rectangular openings, a row of rounded slots and folded walls along the edges. Dimension the cutouts and side holes from common references, including the required clearance after bending.
Galvanized plate, steel, aluminum and stainless sheet are listed material options. Specify the grade, thickness, bend details and any stamping or CNC requirements for the selected case. PDF, CAD, IGES, STEP and STP drawings are supported. Agree the finish for that metal and identify the inspection dimensions. The pictured open case does not establish a sealed enclosure rating.
Please include the drawing revision, material specification, quantity, critical dimensions, finish and inspection documents needed for your part. Tooling, samples, delivery and any return or remedy arrangements are subject to the agreed order terms.
