Custom Stainless Steel Laser Cut and Welded Sheet Metal Plates with Mounting Brackets and Circular Openings
-
Model NumberDmetalProduct nameSheet Metal Fabrication
-
Drawing format.step / .stp / .pdfSurface finishingPowder Coating
-
ColorBlack, White and CustomizedApplicationElectronics
-
MOQ100PackagingIndividual Packing

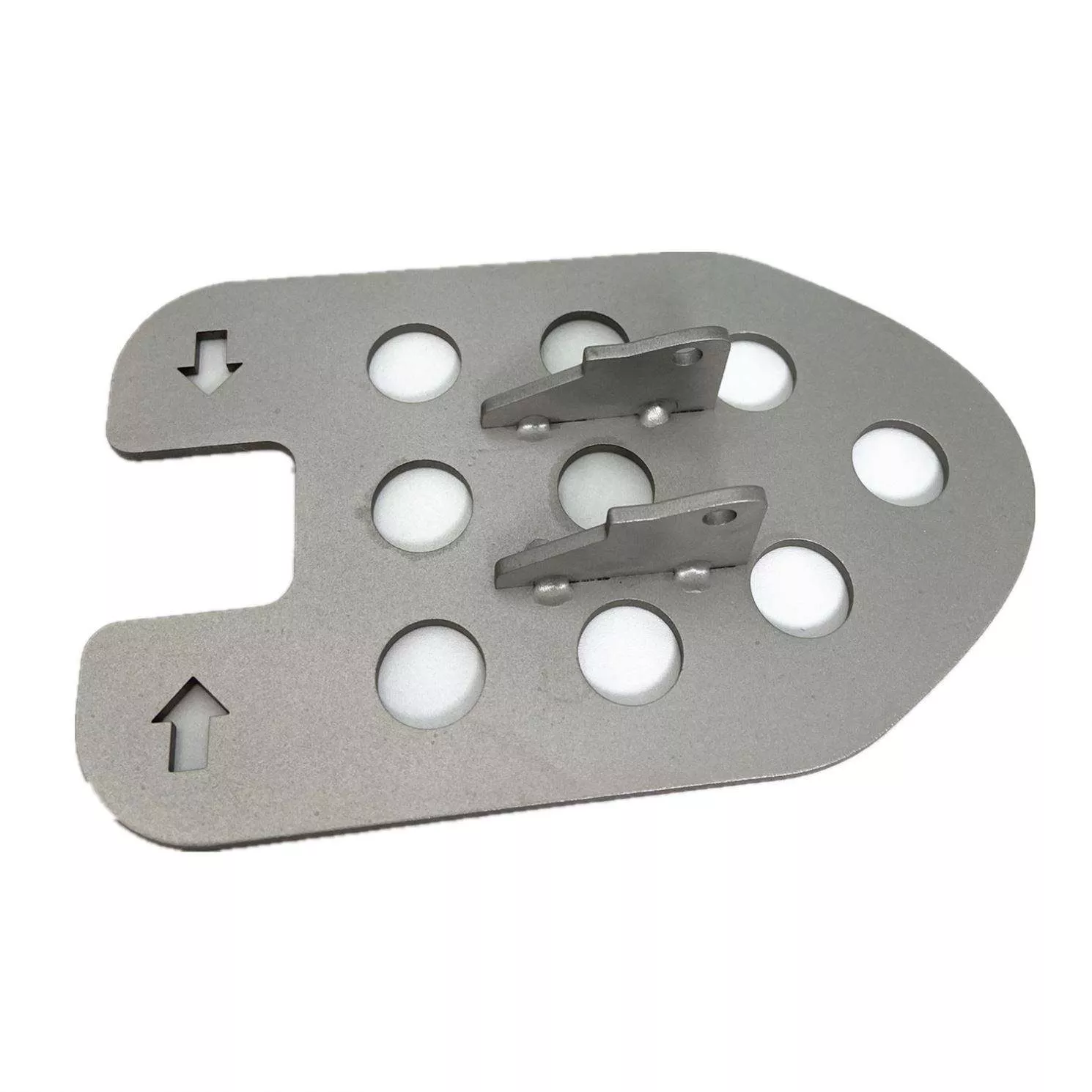

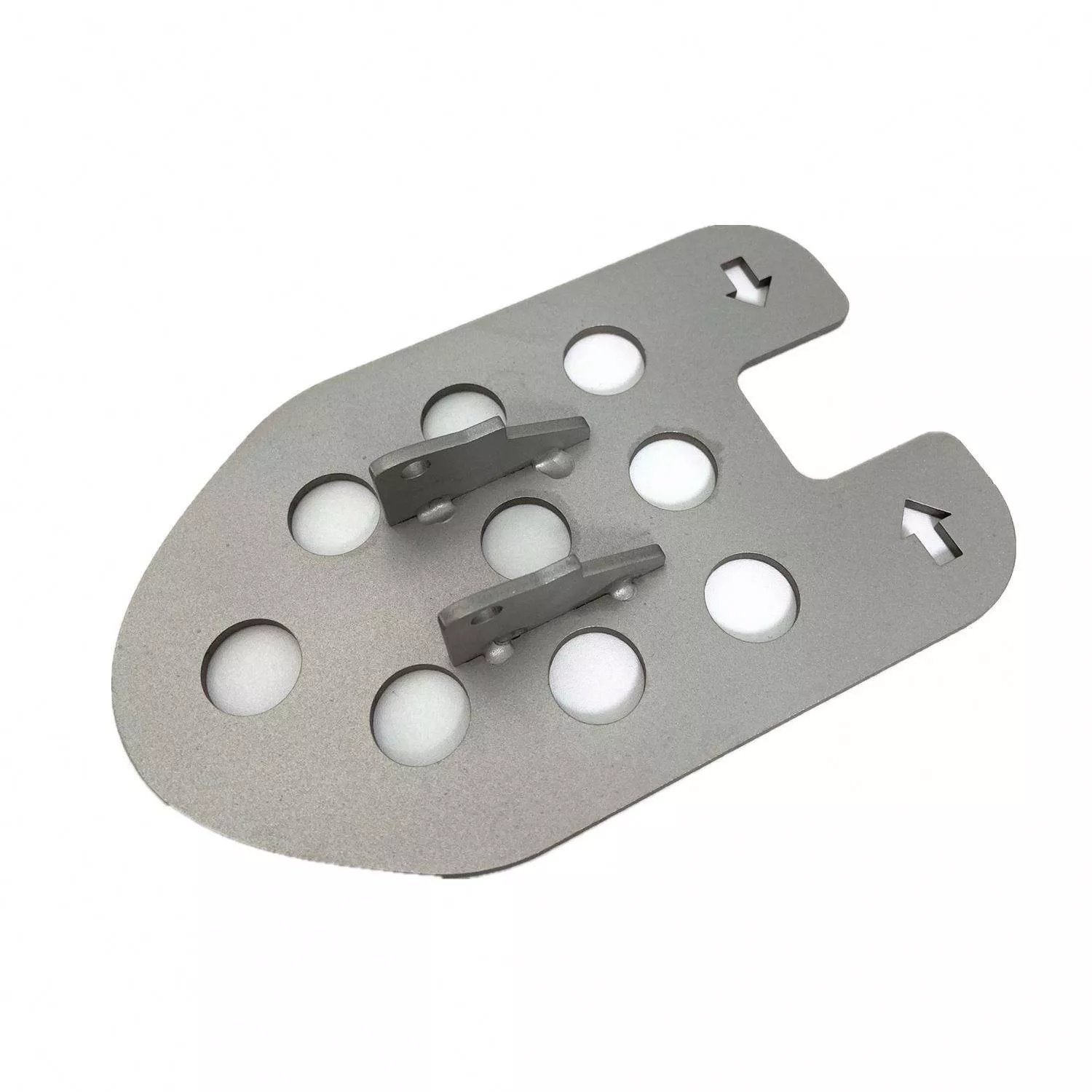

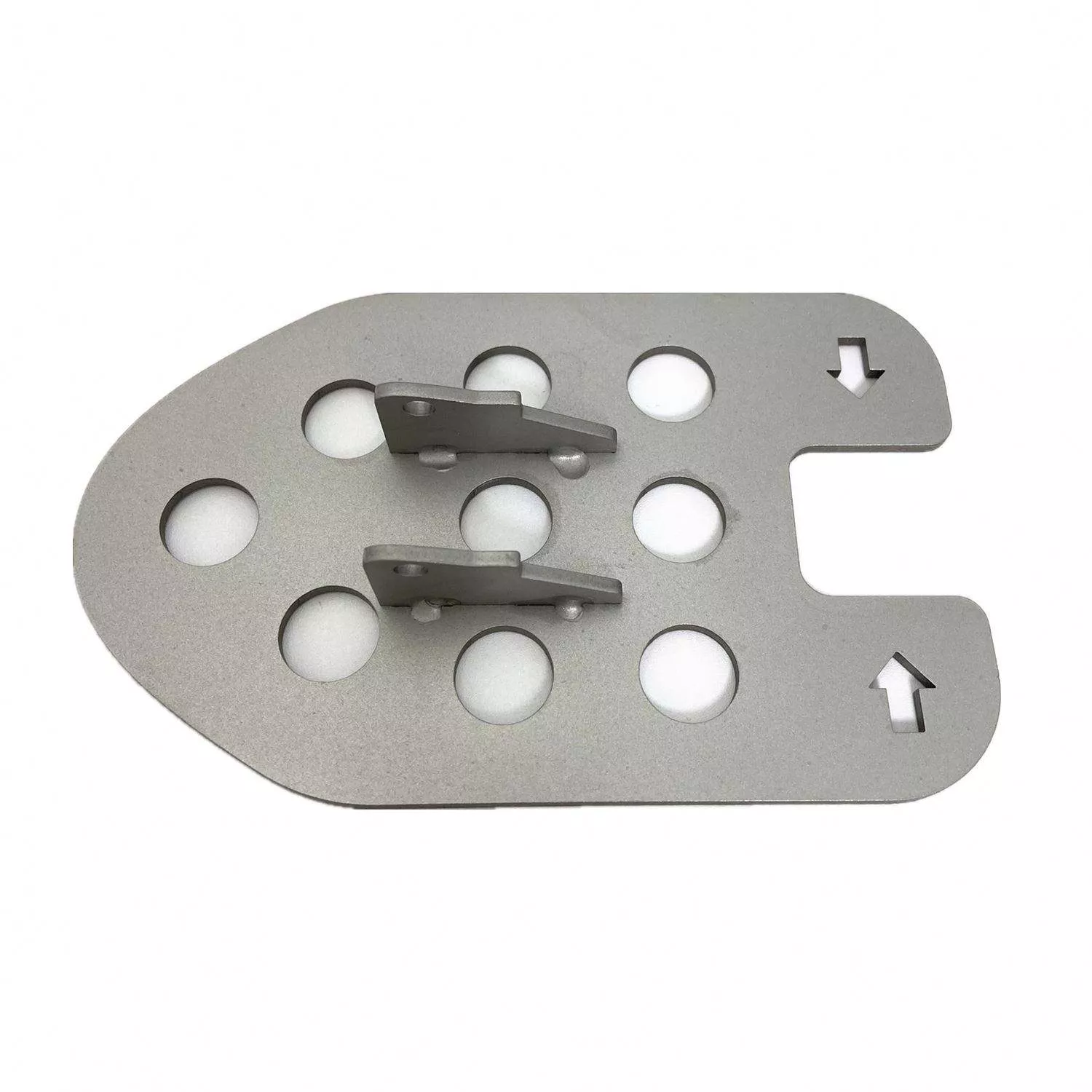

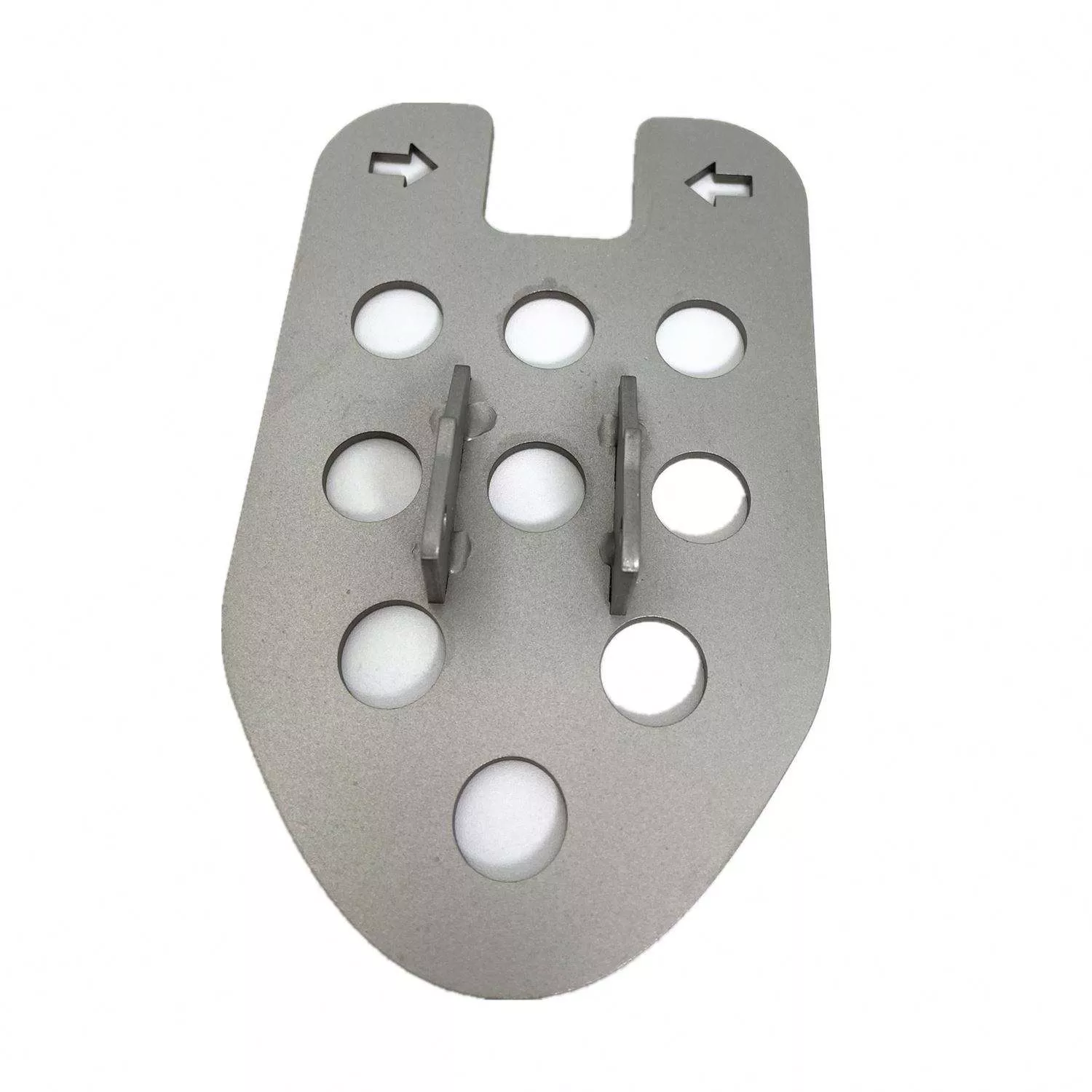

This custom stainless steel sheet metal fabrication enquiry shows a profiled plate with circular openings, shaped end cutouts and two attached mounting brackets. The relationship between the flat plate and bracket positions is important to the supplied assembly. Define the material and connection requirements in the drawing.
Plate outline and bracket locations
Show the circular-hole pattern, end details and bracket dimensions from the assembly references. Identify the joint locations and the inspection requirements for the attached pieces. The listing names laser cutting and welding; the quotation should state the actual operations and joint specification for this design.
Powder coating is listed with black, white and custom colors. Define the stainless steel grade, sheet thickness and the requested finished condition, including any surfaces requiring masking or a different treatment.
Enquiry package
Provide PDF and STEP/STP files with revision and quantities. The listed minimum is 100 pieces with individual packing. Agree dimensional inspection for bracket alignment and mounting interfaces, together with any required joint or material documentation.
