Model NumberDM2309ApplicationCustom Casting
-
ProcessDie Casting / Sand Casting / Precision CastingSurface treatmentSandblasting / Powder Coating / Painting / Plating
-
DimensionsCustomizedMaterialAluminum/ Iron/ Steel
-
MOQ100 pcsKeywordCustom Casting

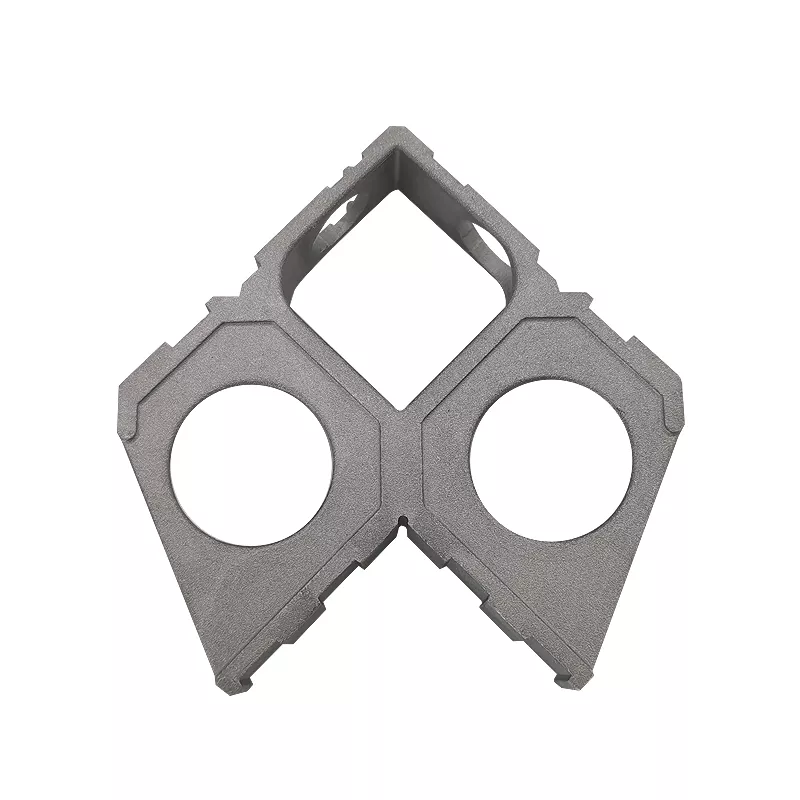

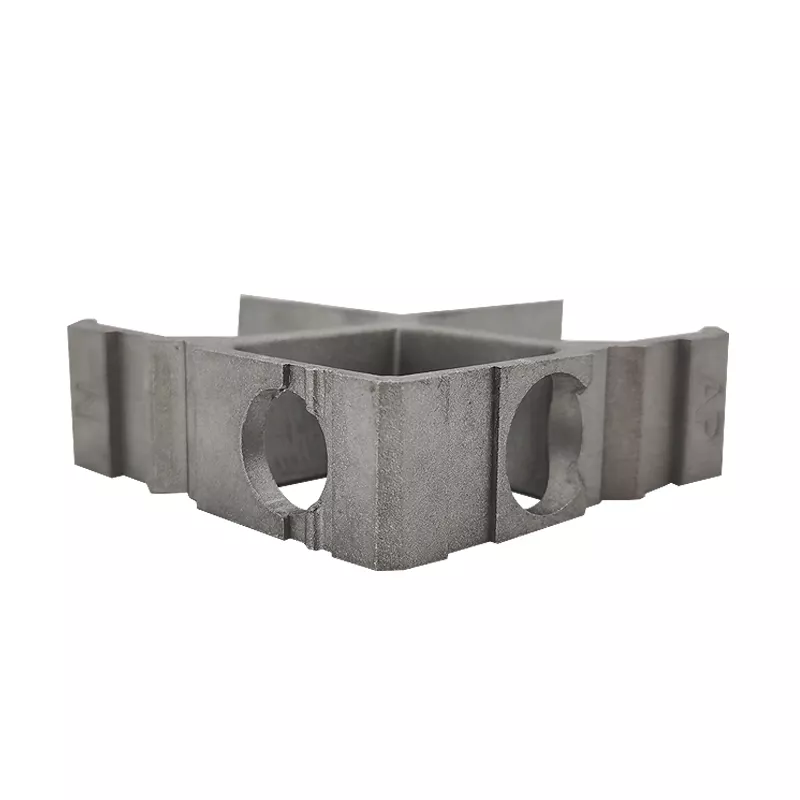

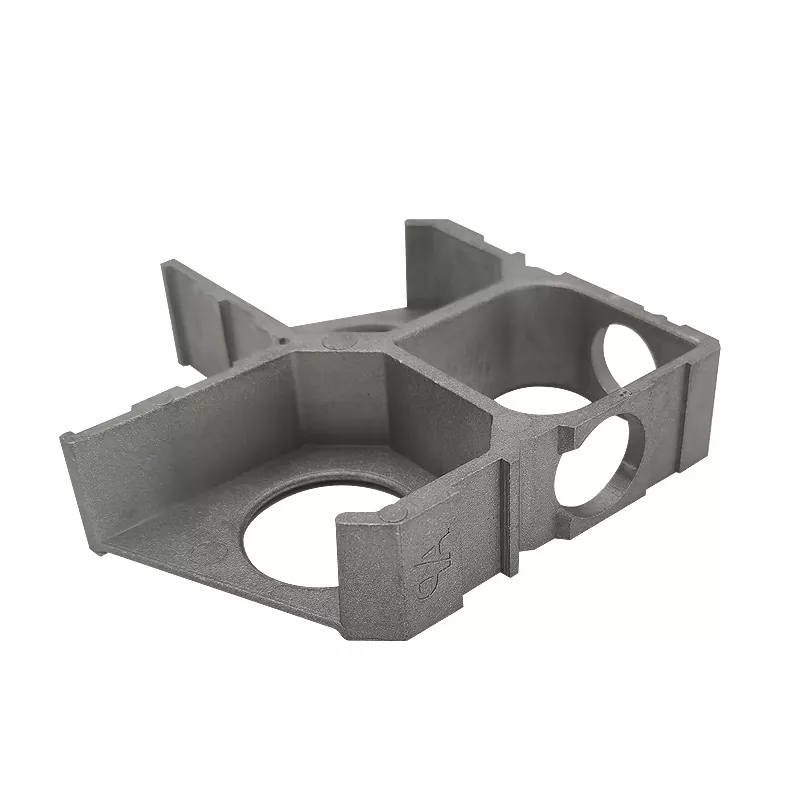

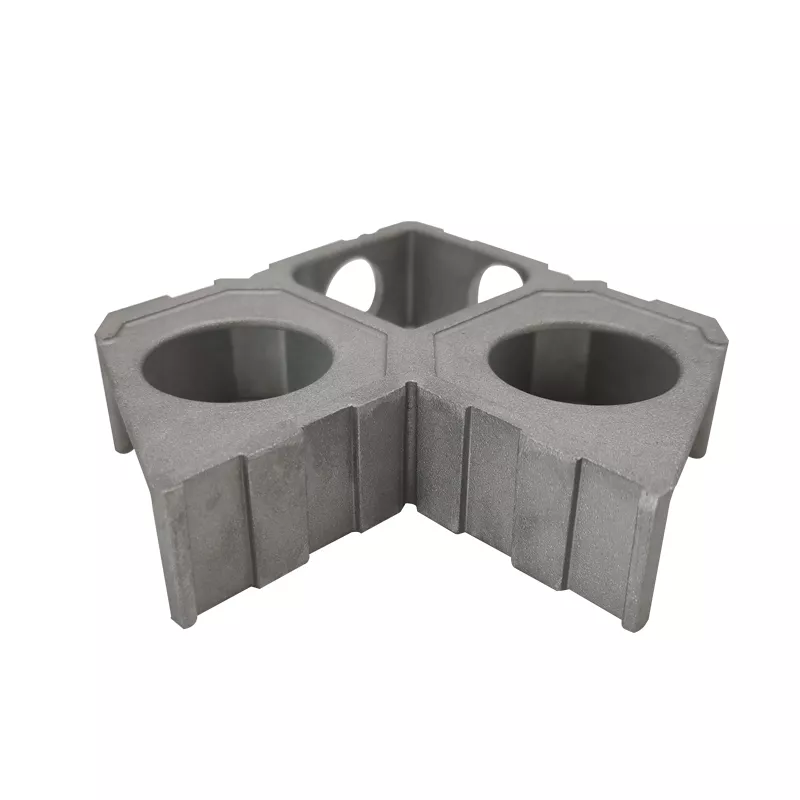

An open frame needs its wall intersections and circular interfaces defined together. This zinc-alloy die-casting enquiry uses an example with intersecting upright walls, large openings through the base and side, and projecting wall ends. The geometry provides a starting point for the component drawing and supplied scope.
Locate the frame walls from working datums
Dimension the overall envelope, wall sections and circular openings from references shared with the mating assembly. Show the sections around wall intersections and any recessed regions that cannot be understood from the exterior view. Identify which upright ends locate another part and which are simply part of the outer form.
State whether the requested delivery is the frame alone or includes adjoining pieces and fasteners. If the openings receive other components, provide the relevant fit requirements and the actual mating dimensions. The example establishes no universal mounting pattern, load rating or ready-to-install assembly.
Select the zinc alloy and finished interfaces
Specify the actual zinc alloy and condition for the project. A zinc-alloy casting requirement should remain distinct from aluminum, iron and steel alternatives used in other custom enquiries. Review die casting as the manufacturing direction for the selected design, with any secondary work clearly identified.
- Provide the open-frame drawing and component revision.
- Define the selected zinc alloy and material records.
- Locate circular openings relative to wall intersections.
- Mark interfaces requiring machining after casting.
- Agree finishing, included parts and dimensional acceptance.
Plan inspection around the assembled frame
Identify the surfaces to be checked in the final supplied condition, including the effect of any selected compatible surface treatment. State the inspection datums, measurement units and tolerances on the drawing. Where several frame faces work together, explain whether they require a combined inspection setup.
Include intended use, environmental conditions and the required inspection documentation in the request. Functional or structural suitability depends on the approved design and acceptance criteria. A clear frame brief lets the casting, machining and finish requirements be reviewed as one controlled component specification.
Unlock the potential of advanced manufacturing with our Precision Custom OEM Cast Zinc Alloy Metal Die Casting Service, tailored to meet the specific needs of your projects. This service is ideal for a wide range of applications where precision and quality are paramount.
Utilizing state-of-the-art processes such as Die Casting, Sand Casting, and Precision Casting, we ensure that each piece meets rigorous standards and specifications. Our process not only delivers high precision but also maintains the integrity of the design, making it suitable for complex shapes and intricate details.
Surface treatment options are versatile, including Sandblasting, Powder Coating, Painting, and Plating, allowing you to achieve the desired finish that complements your product's aesthetic and functional requirements.
With customizable dimensions, our offerings can be tailored exactly to your specifications. Our materials selection includes Aluminum, Iron, and Steel, ensuring durability and performance for various applications. Whether you're producing small prototypes or larger quantities, our minimum order quantity (MOQ) starts at just 100 pieces, accommodating both large-scale and niche market needs.
When you partner with us, you're not just getting a casting service; you're accessing a comprehensive solution designed to enhance your product's quality and execution. Our commitment to excellence and attention to detail in custom casting services sets us apart in the foundry industry.
