Custom Aluminum Die and Sand Casting Industrial Machinery Components | Grooved Spoked Wheel Project Enquiries
-
Model Numbersand casting

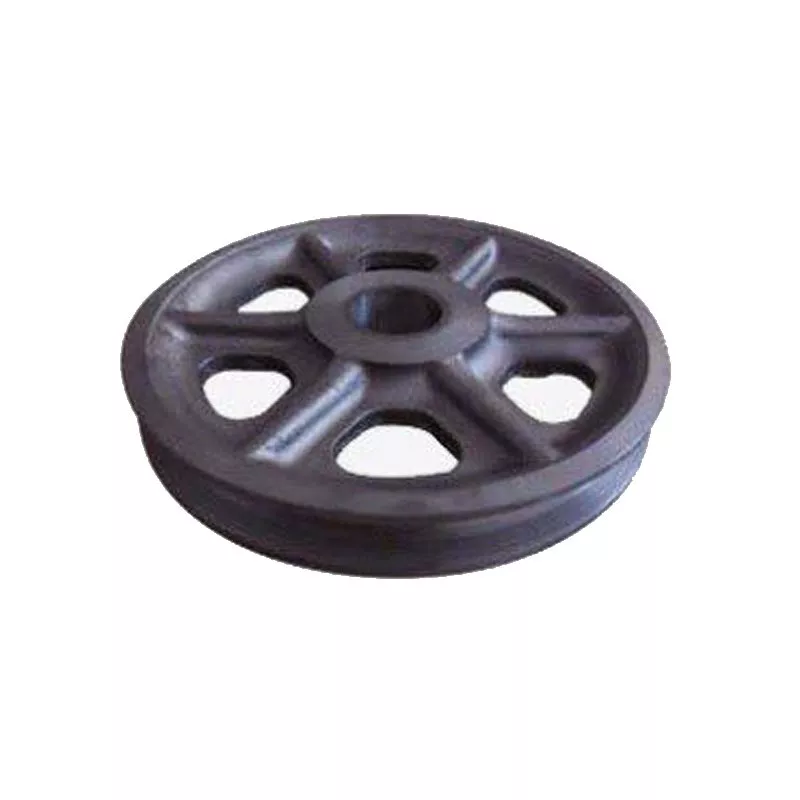

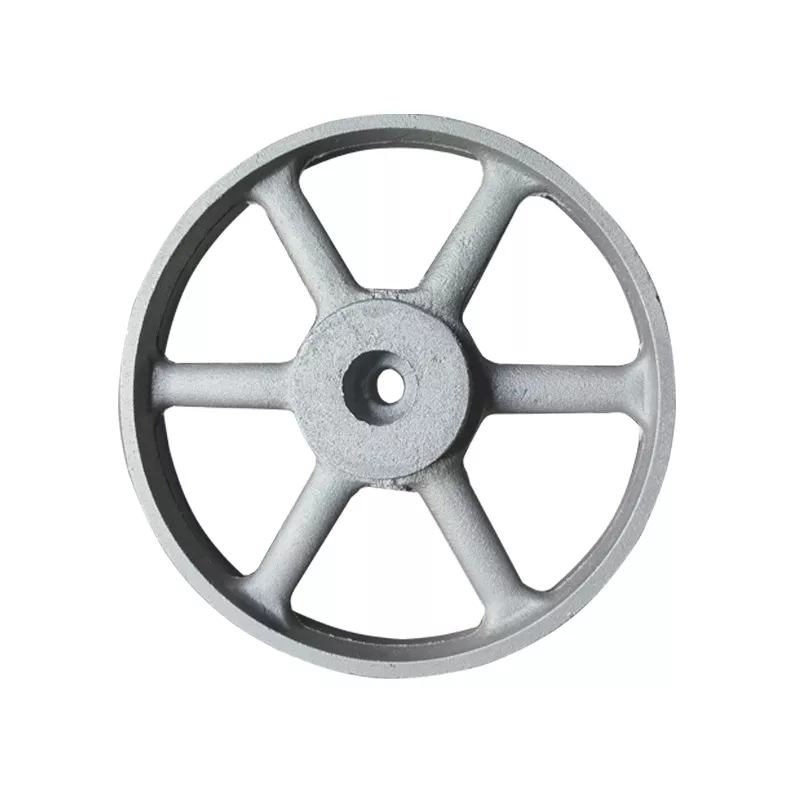

The image shows one grooved spoked wheel or pulley-like form with a central bore and broad rim. Define its role in the machinery project; the photograph does not establish actual aluminum grade, belt fit or a rotary rating.
Locate the hub within the rim and groove geometry
Provide the controlled wheel drawing with bore, shaft reference, rim profile and relevant mounting features. Define the working contacts and any dimensional relationships that control installation.
- Select the wheel drawing and adjoining references.
- Specify actual aluminum alloy and condition.
- Dimension hub, rim, groove and mounting contacts.
- Compare die and sand-casting requirements.
- Agree machining, inspection and rotary tests.
Review the route against actual sections
Die casting and sand casting are distinct proposals. Include quantities, wall transitions, machining stock and compatible finishing for the selected alloy rather than treating appearance as proof of one manufacturing history.
Set measurable acceptance for machinery duty
State final tolerance units, speed, torque or balance criteria where relevant. A wheel shape and general precision or durability descriptions do not establish operating capacity or universal belt compatibility; request material, dimensional and appropriate test records for the ordered design.
Explore premium custom aluminum die casting and sand casting components tailored for industrial machinery. Our advanced manufacturing facilities in China deliver precision-engineered parts designed to meet the highest standards of strength and durability, ensuring optimal performance in demanding environments.
We specialize in creating bespoke casting solutions that suit a wide range of applications, from heavy-duty equipment to intricate assemblies. Each component undergoes rigorous quality inspections, providing reliable and consistent products for your business needs.
Benefit from fast production cycles and flexible customization options, including various sizes and finishes. Our team is dedicated to supporting your requirements with competitive pricing and efficient global shipping, making us your trusted partner for B2B industrial casting services.
