Qingdao Custom Aluminum Sheet Metal Laser Cutting and Stamping Fabrication for Rectangular Cutout Mounting Panels
-
Model NumberDML240901Product nameSheet Metal Fabrication
-
Drawing format.step / .stp / .pdfSurface finishingPowder Coating
-
ColorBlack, White and CustomizedApplicationElectronics
-
MOQ100PackagingIndividual Packing
Mounting panels with rectangular cutouts

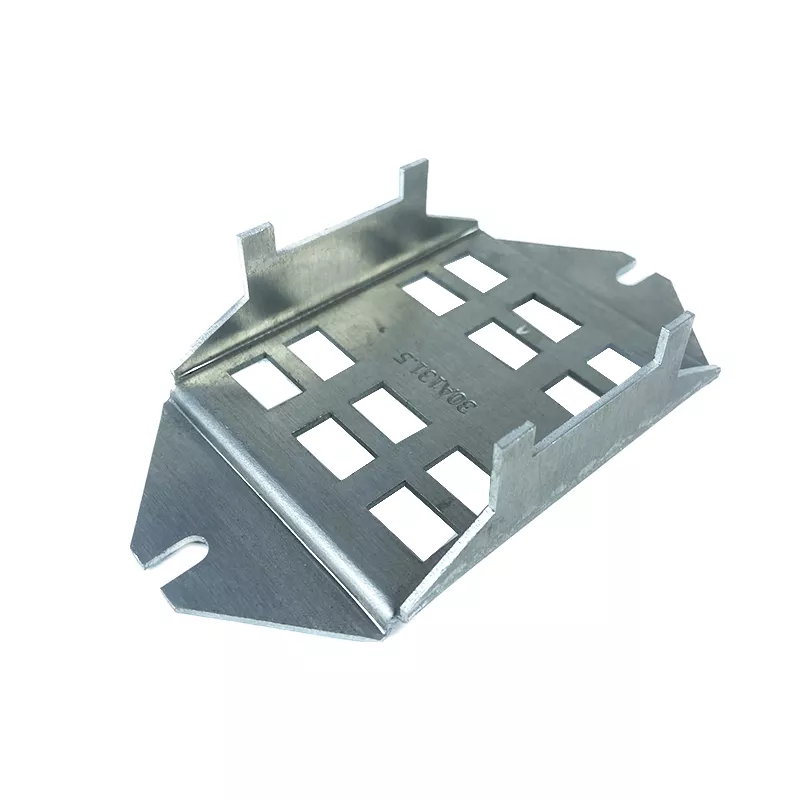

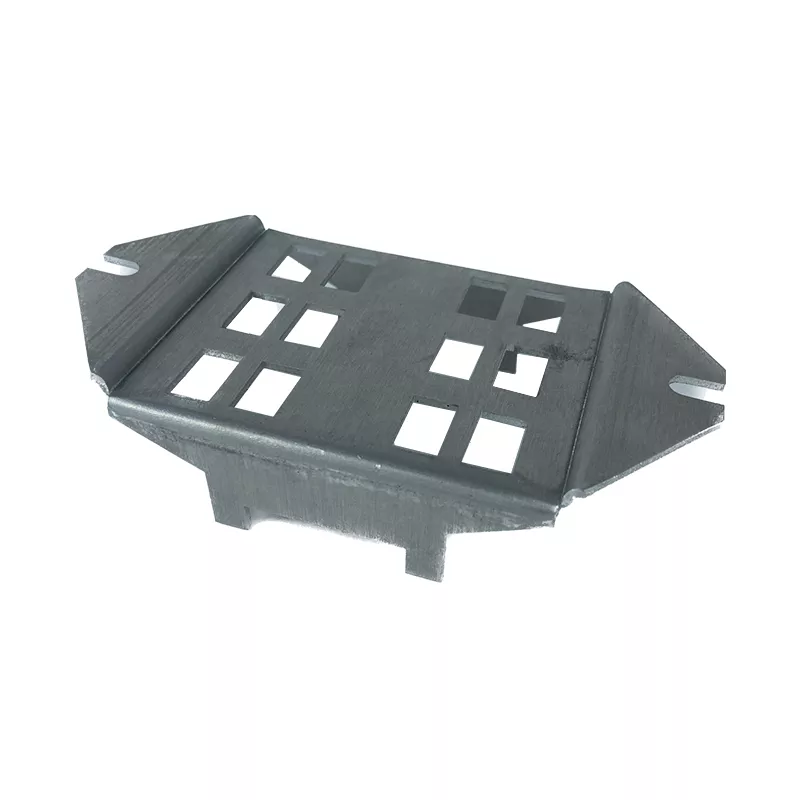

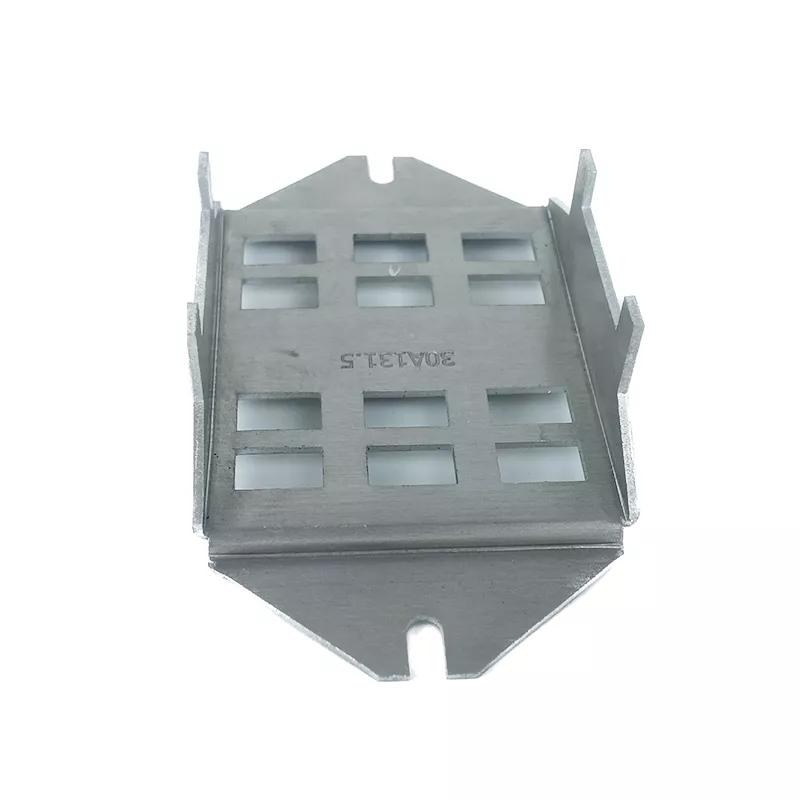

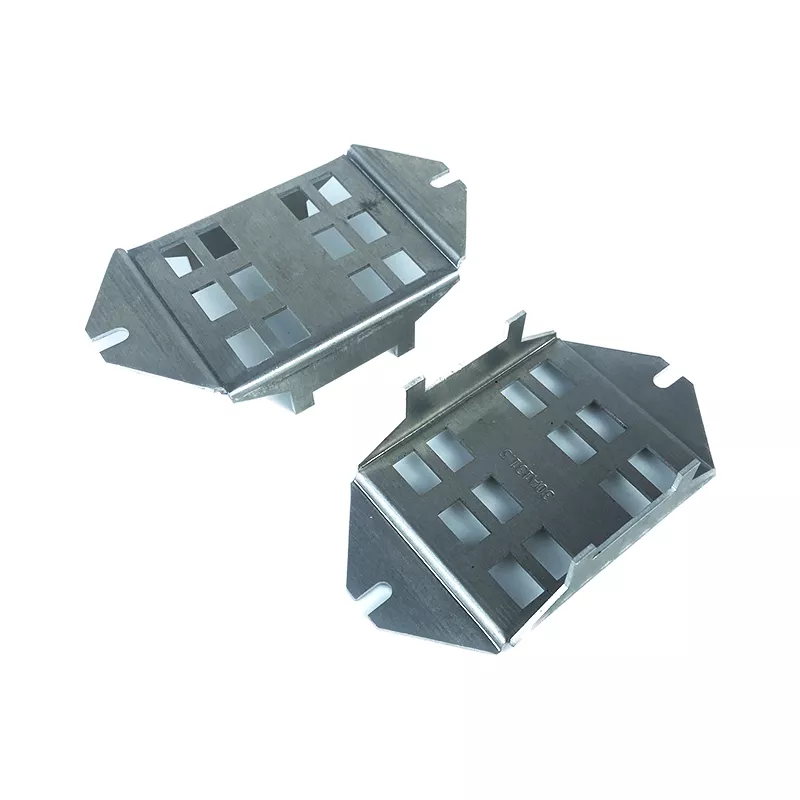

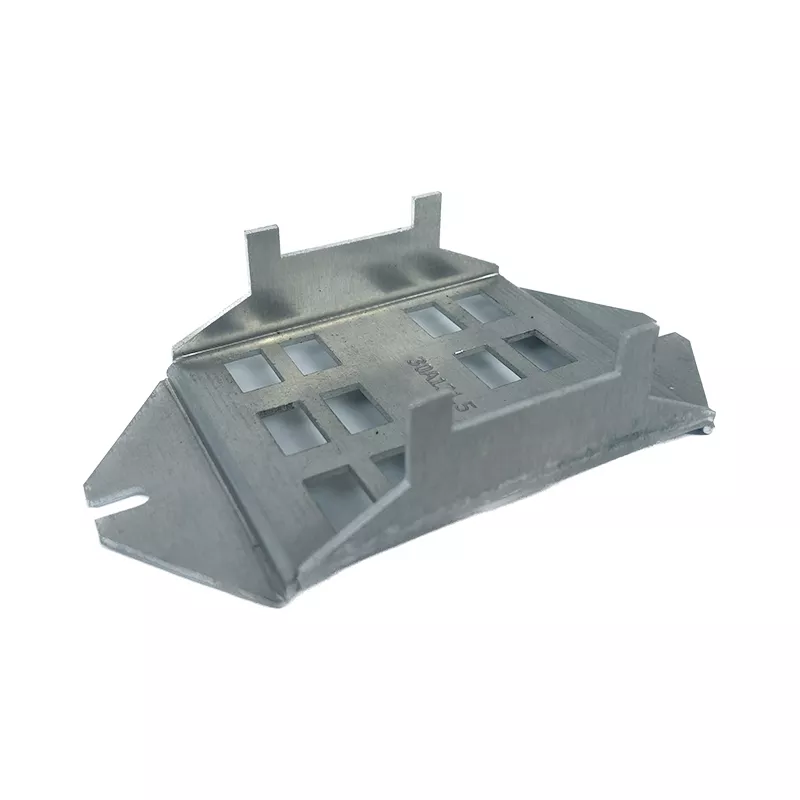

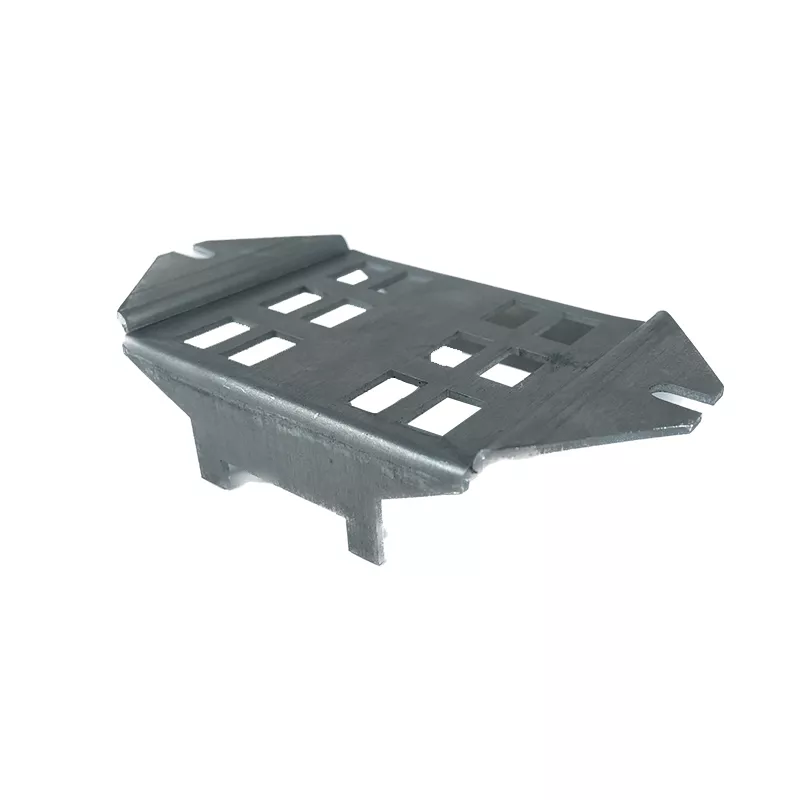

The illustrated component has several rectangular openings in a broad face, upright side sections and notched projecting ends. Small tab features follow the formed profile. It is an example for DML240901 custom aluminum sheet metal laser cutting and stamping fabrication.
Define the formed profile
Show the opening sizes and spacing, finished side heights and the positions of the tabs and end notches. Dimension these features from clear panel references and include sheet thickness. Identify the mating component or support where it determines the available clearance.
Specify the aluminum grade, required finish and final appearance. Powder coating can be requested in black, white or a custom color, with any masking needs stated for the actual order. Marked text or identification should be provided as artwork if required.
STEP, STP and PDF drawings are accepted for electronics parts. The listed minimum order quantity is 100, with individual packing. Include the current drawing revision, quantity and any hardware included in the scope of supply.
