Custom Steel and Aluminum Sheet Metal Laser Cutting Stamping and Punching for Folded Mounting Rails
-
Model NumberDML240901Product nameSheet Metal Fabrication
-
Drawing format.step / .stp / .pdfSurface finishingPowder Coating
-
ColorBlack, White and CustomizedApplicationElectronics
-
MOQ100PackagingIndividual Packing

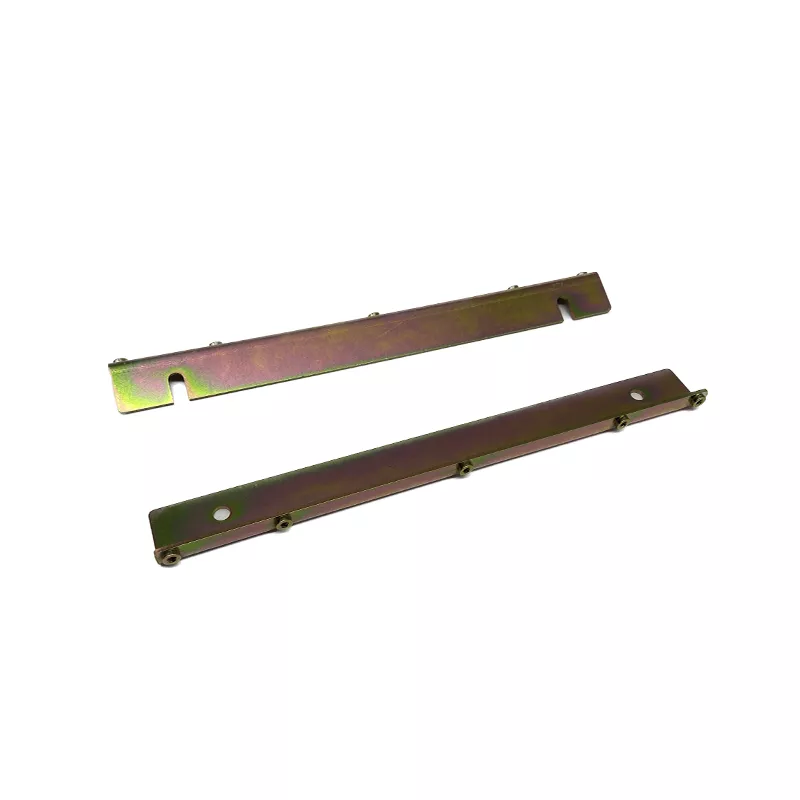

Folded mounting rails with notched ends
The illustrated rail strips combine long folded edges, fixing features and end notches. They are examples for this DML240901 sheet metal processing listing, which names steel and aluminum laser cutting, stamping and punching work. Identify the rail configuration required rather than assuming the pictured group is a supplied set.
A cross-section drawing should show the fold height, rail width and sheet thickness. Locate holes and fastening features along the length and dimension each end notch. Include the mating-part geometry wherever it controls clearance or the position of an attachment.
Prepare the fabrication drawing
STEP, STP and PDF are listed drawing formats. The item records an electronics application and a minimum order quantity of 100, with individual packing. Provide the material designation and drawing revision together with quantities for each requested rail.
Powder coating can be specified in black, white or a custom color. Define the required finish for the order, including treatment of mating surfaces and holes. Any thread or inserted fastener needs its own specification; the photograph does not determine those dimensions.
