Custom Aluminum Stainless Steel Sheet Metal Fabrication | Square Tube Flange Assemblies
-
Model NumberLZXMaterialsteel, stainless steel, aluminum, galvanized steel,
-
SizeCustomized sizeApplicationMachinery/Industry/Home/Automotive
-
ColorCustomized ColorProcessStamping
-
ServiceCustomized OEMUsagePrecision Metal Stamping Product
-
TypeOEM PartsEquipmentCNC Bending/Stamping Machine/Laser Marking

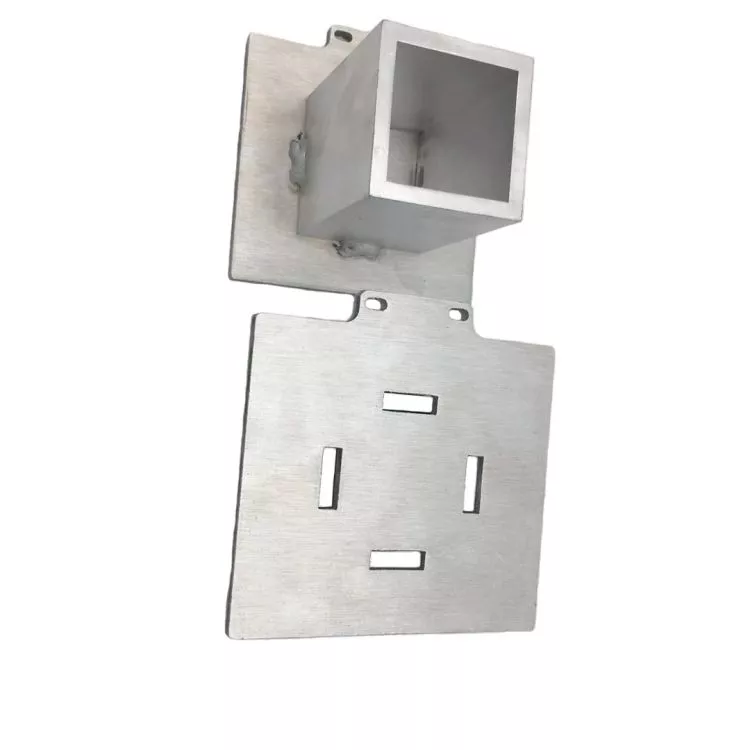

A hollow square body above a mounting plate
The example shows an open square section joined to a broad flange with fixing details near its edge. Dimension the internal opening, wall thickness and flange outline, using common references for the body axis and mounting face.
Define the joint and each material
Specify the aluminum, stainless steel or other selected metal for both the upright body and base plate. Identify joint geometry and any welding or finishing requirements on the assembly drawing rather than assuming the same construction for every material option.
Provide quantities, surface finish and inspection criteria for alignment, opening size and fixing positions. Similar images elsewhere in the range do not establish a different assembly size, and the photograph does not verify joint strength or structural capacity.
