Custom Galvanized Steel Sheet Metal Punching and Stamping Parts | Elongated Slotted Brackets

• Model Number

  DML240901
  Product name

  Sheet Metal Fabrication
• Drawing format

  .step / .stp / .pdf
  Surface finishing

  Powder Coating
• Color

  Black, White and Customized
  Application

  Electronics
• MOQ

  100
  Packaging

  Individual Packing

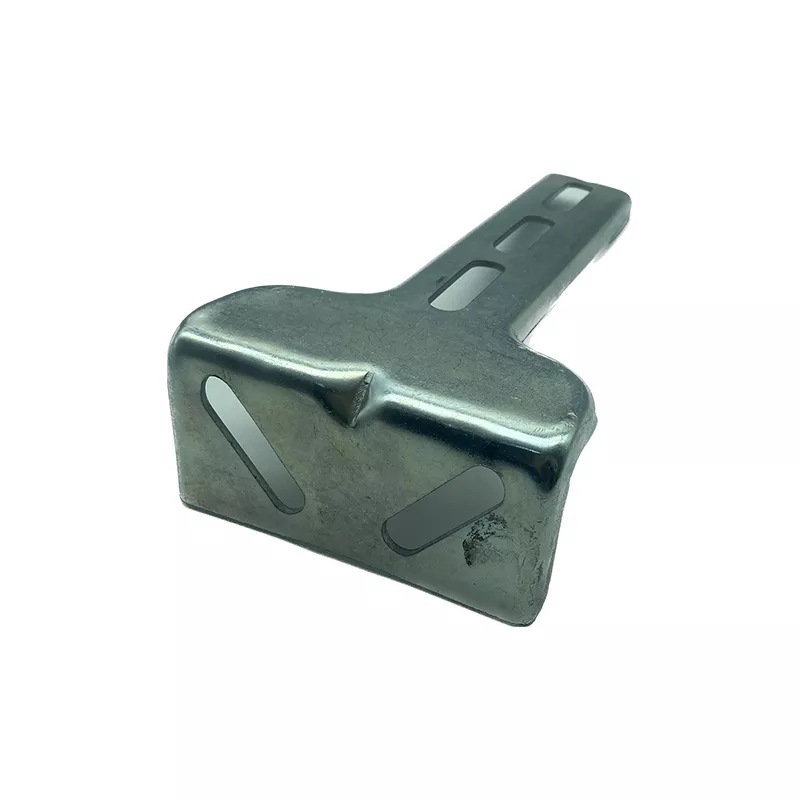

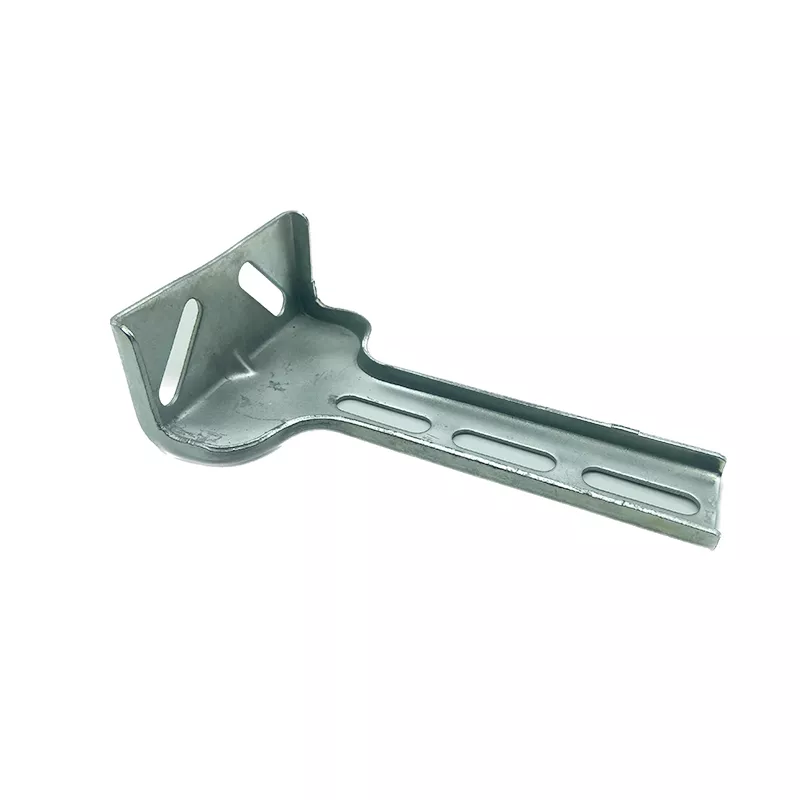

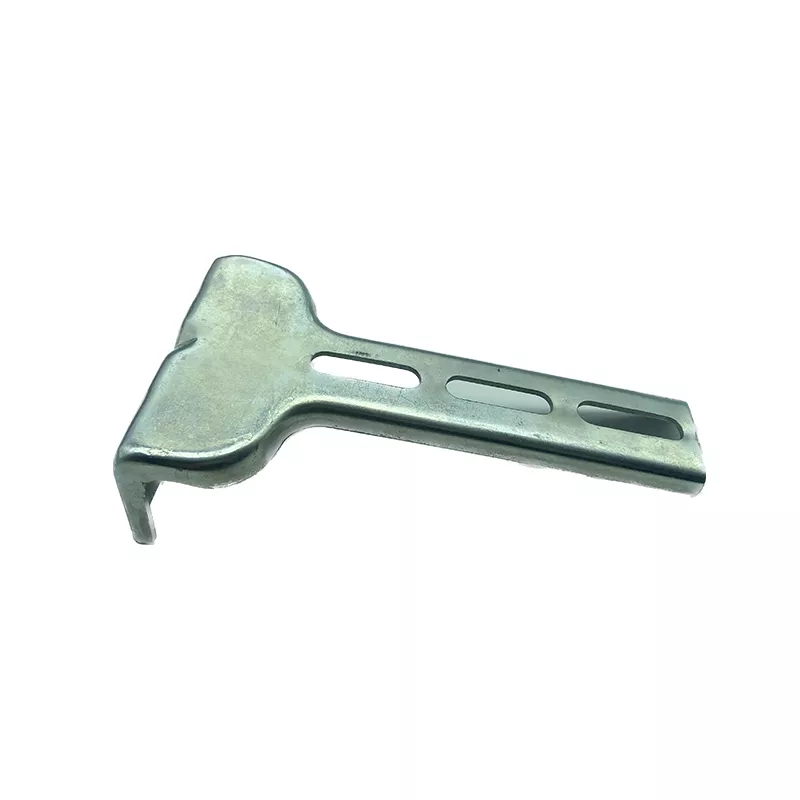

Specify the elongated bracket from its slotted end flange, curved transition and long arm regions. The light example shows recessed or raised details along the arm and a formed connection to the upright end. Its appearance does not establish galvanizing, actual steel grade, thickness or a rated mounting function.

Coordinate the end flange with the arm contacts

Provide flat and formed geometry with sections through the transition. Locate end slots, arm details and working contact faces from assembly datums, identifying the actual mating hardware and clearance requirements. State any inserts or fasteners included rather than assuming the bracket represents a complete mounting system.

Select steel and the required fabrication scope

Define actual grade, supplied coating condition and sheet thickness for the order, with requested material documentation. Specify cutting or punching, stamping, bending and necessary edge work according to the controlled design. A light surface or a service name does not independently prove the example's material chemistry or production route.

• Reference the elongated bracket and formed revision.
• Specify steel grade, coating condition and thickness.
• Locate end slots, transition and arm contacts.
• Define punching, forming and compatible treatment.
• Agree final mounting and application acceptance.

Inspect the finished interfaces and appearance

Where powder coating is requested, choose an actual system compatible with the substrate and existing coating. State color, masking and appearance criteria, with tolerance units and final measurement conditions at working contacts. Load, corrosion, electrical or environmental requirements need actual service conditions and applicable evidence.

Include STEP, STP or PDF drawings, quantities and required inspection records. Separate fabricated-bracket supply from installed electronics, complete equipment and any independently specified performance qualification for the intended assembly.
